User Manual for Intellytech Socanland FL-40 Airlight Bi-Color 10x10" LED Panel Kit with Anton Bauer Battery Plate Click to enlarge the picture
Contents of the user manual for the Intellytech Socanland FL-40 Airlight Bi-Color 10x10"
- Product category: LED Lights Intellytech
- Brand: Intellytech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellytech LED Lights
 |
User manual for the Intellytech Socanland FL-40 Airlight Bi-Color 10x10" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellytech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellytech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellytech product will considerably shorten its lifespan!
|
Product description - FL-40 AIRLIGHT - Foldable, Flexible LED Mat Light Kit. Bi-Color 10"x10" Panel, Flexlite

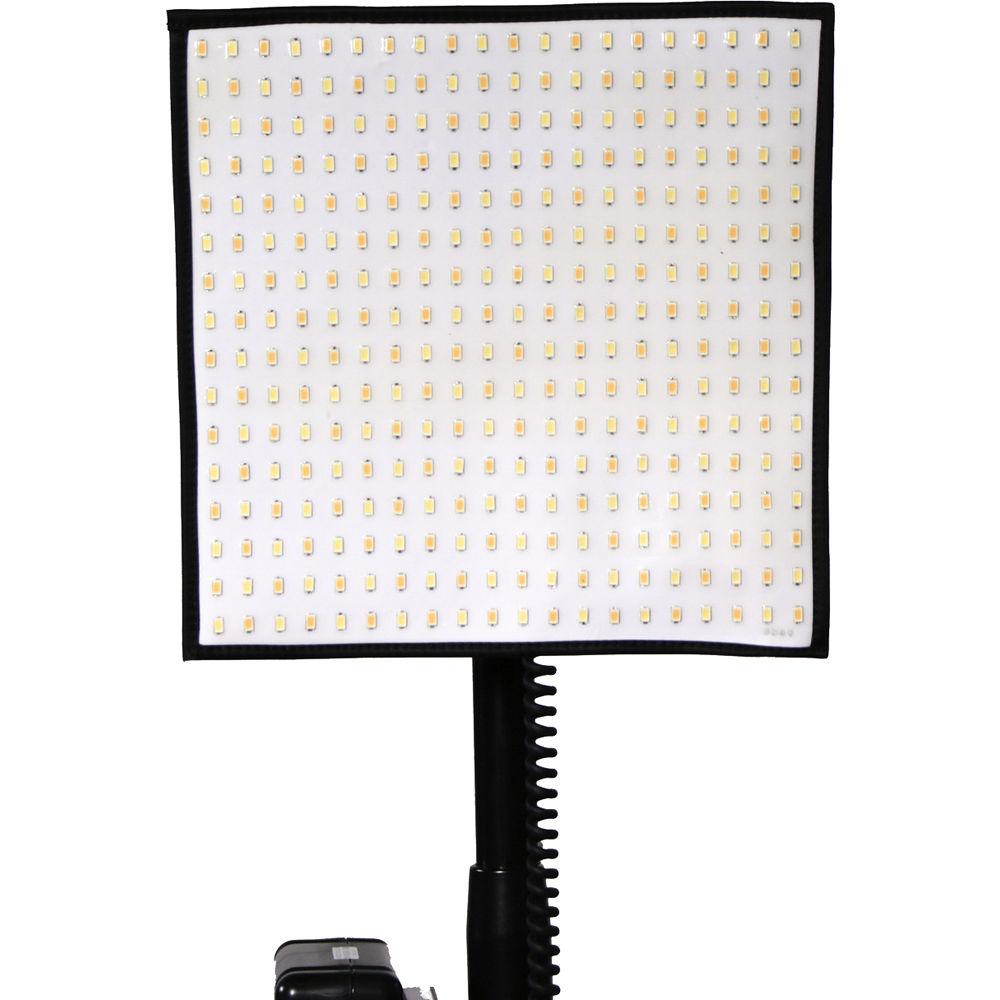

The Socanland FL-40 Airlight Bi-Color 10x10" LED Panel Kit with Anton Bauer Battery Plate from Intellytech takes flexibility in lighting to a new level. The kit includes the FL-40 10x10" Bi-Color LED Panel, Anton Bauer battery plate, dimmer/control module, AC adapter, cloth diffuser, X-Bracket, 2 extension cables, and carrying case.The FL-40 panel makes it easy to direct the light anywhere. At less than 1/4" thick, it's easily bendable onto items like, windows, doors, light stands, or car visors. Alternatively, you can fix it to the included X-Bracket with its 5/8" receiver and attach it to boom, stands, or other grip gear. And, once you're set up, you won't have to worry about fussing with filters; the FL-40 is dimmable up to 100%, and its color temperature is variable from 3150 to 5700K. - 10x10" Bi-Color LED Panel

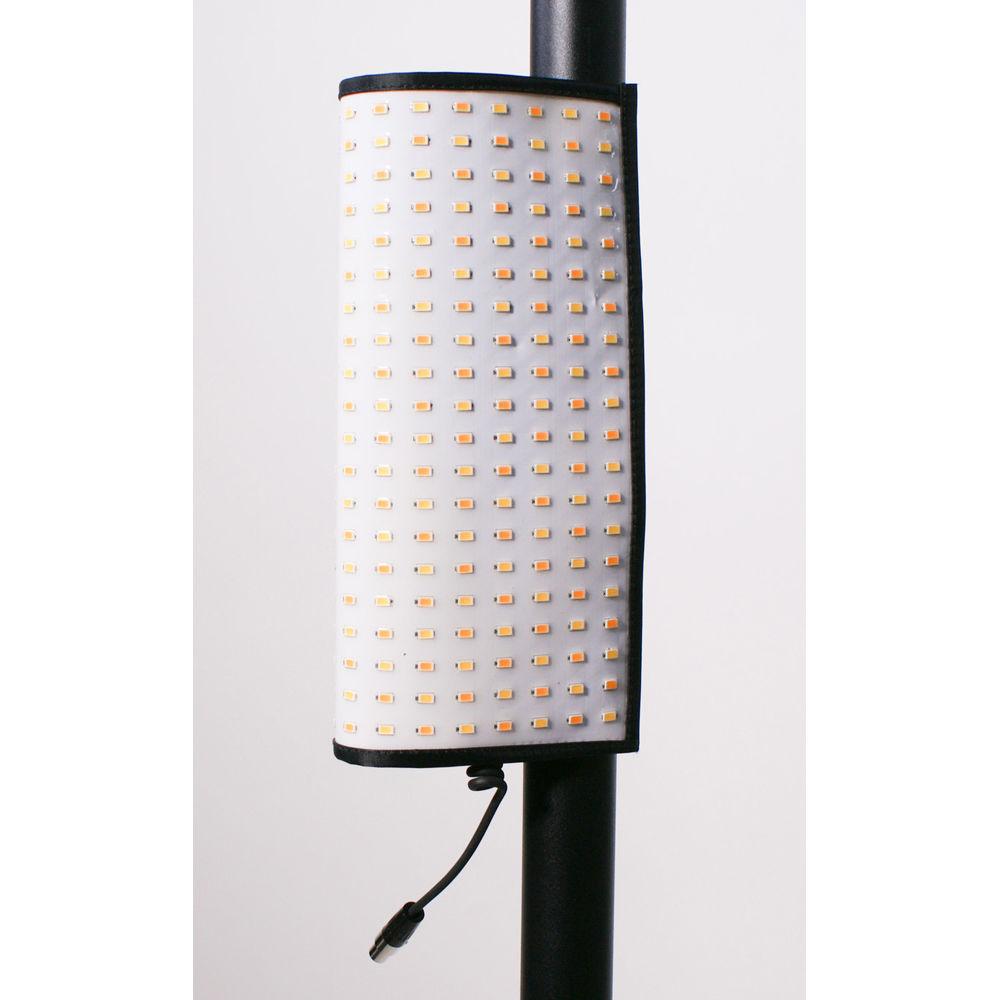

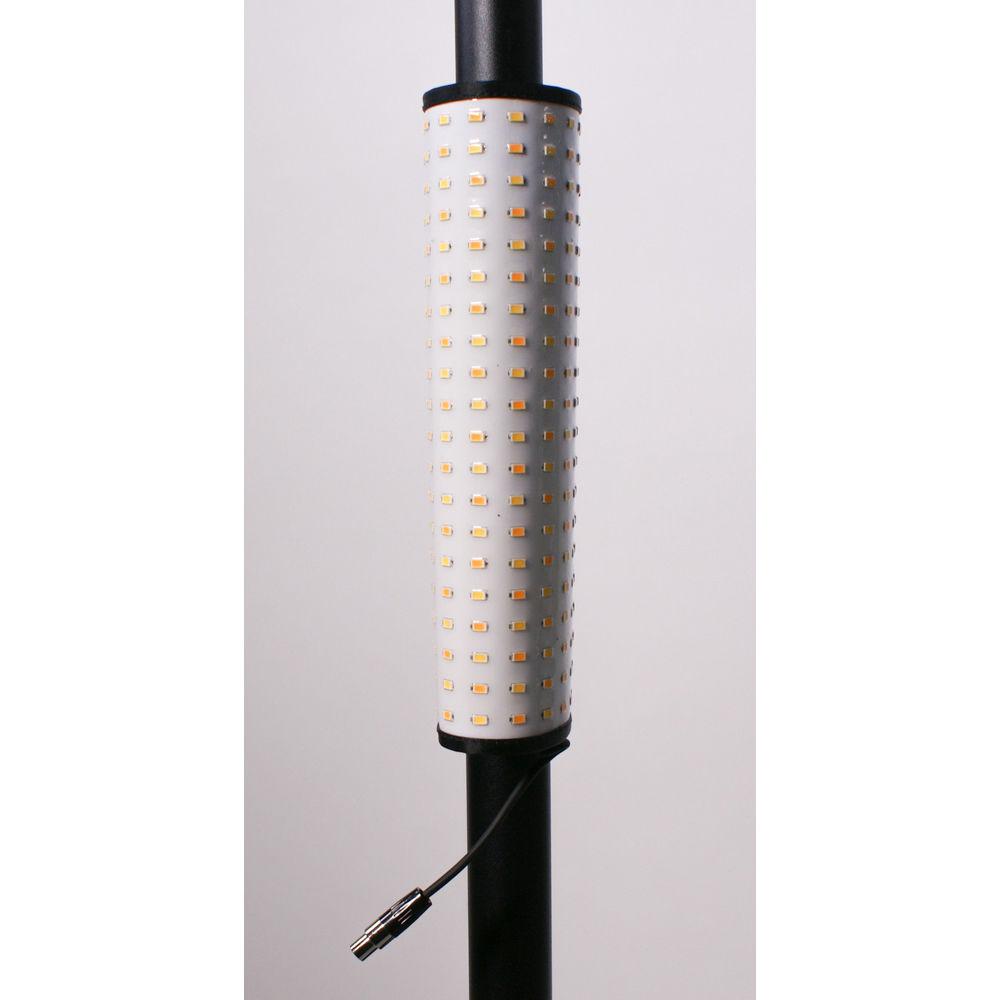

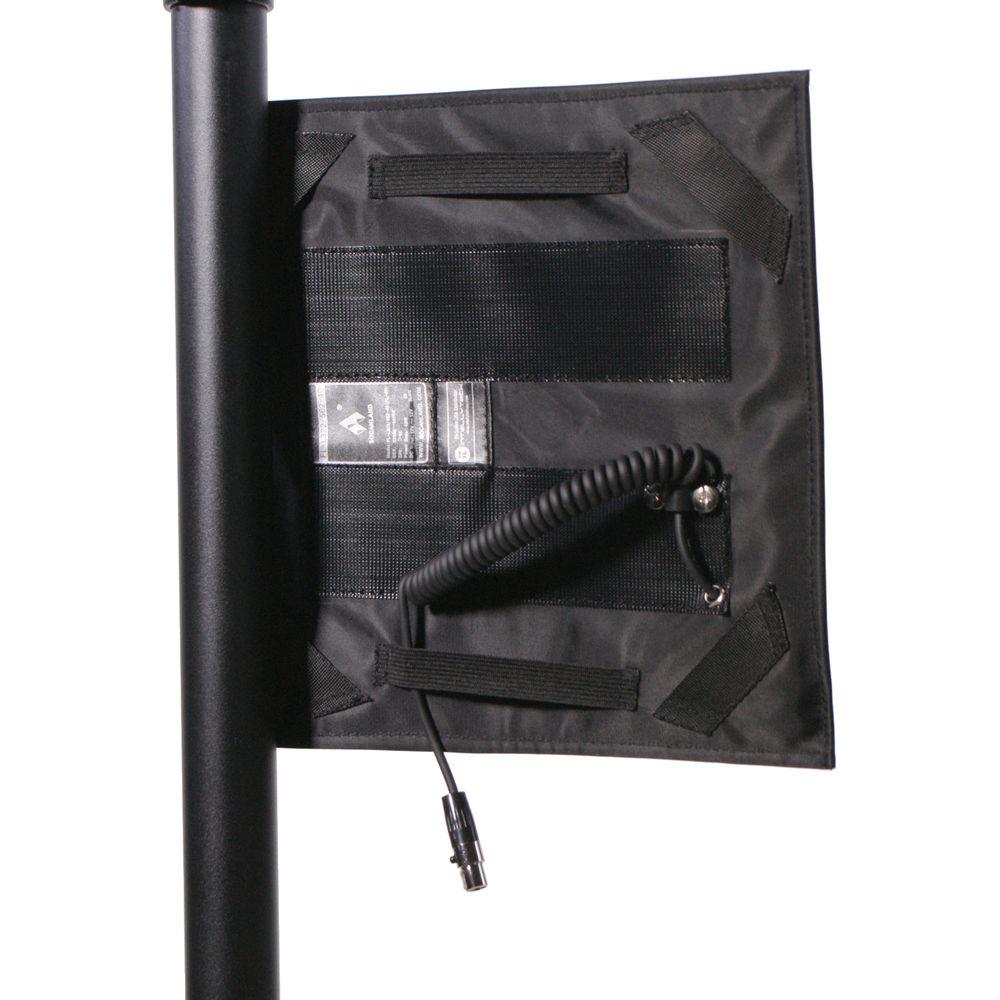

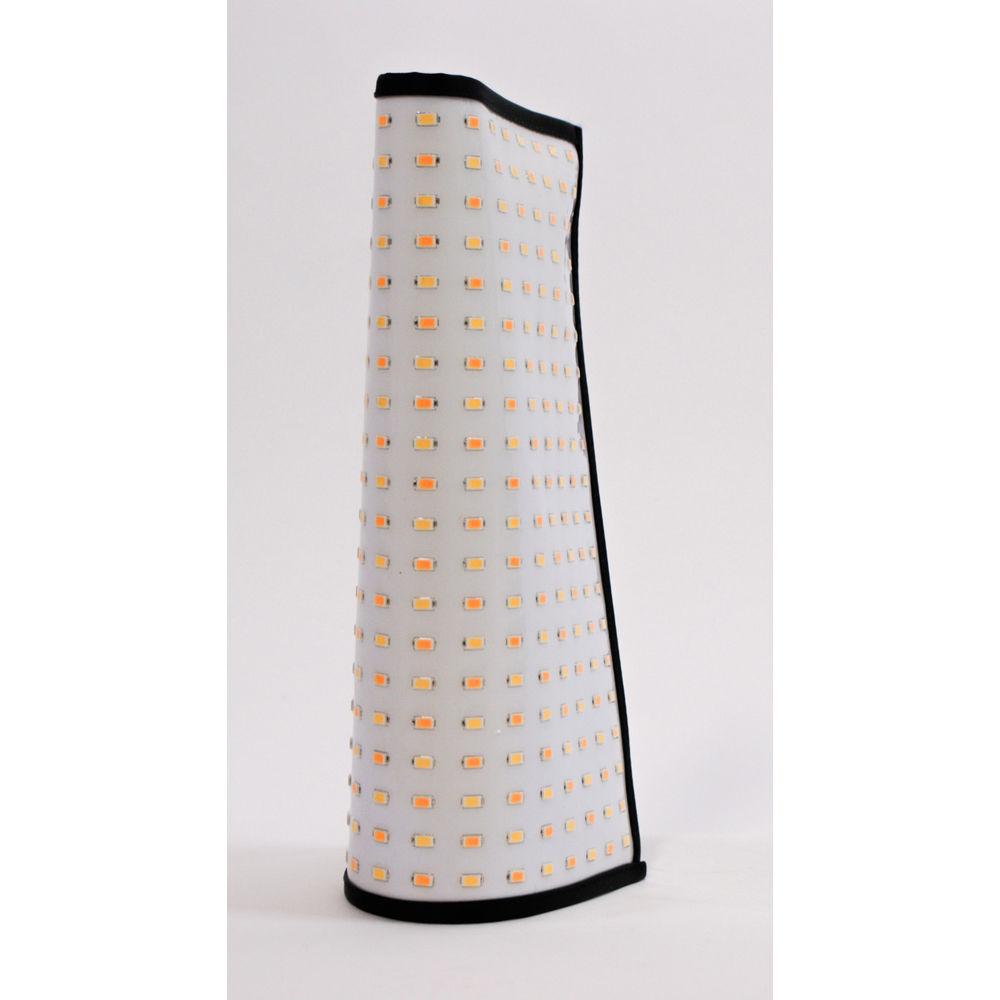

- The FL-40 panel weighs just ounces and is less than 1/4" thick. The LED panel is completely flexible allowing the user to bend and direct the light with precision. The thin, flexible panel allows for the light to be mounted virtually anyway or anywhere whether using the included X-Bracket, magnets, gaffer tape, or literally wrapped around an object like a car visor or a light stand.
- Complete Kit

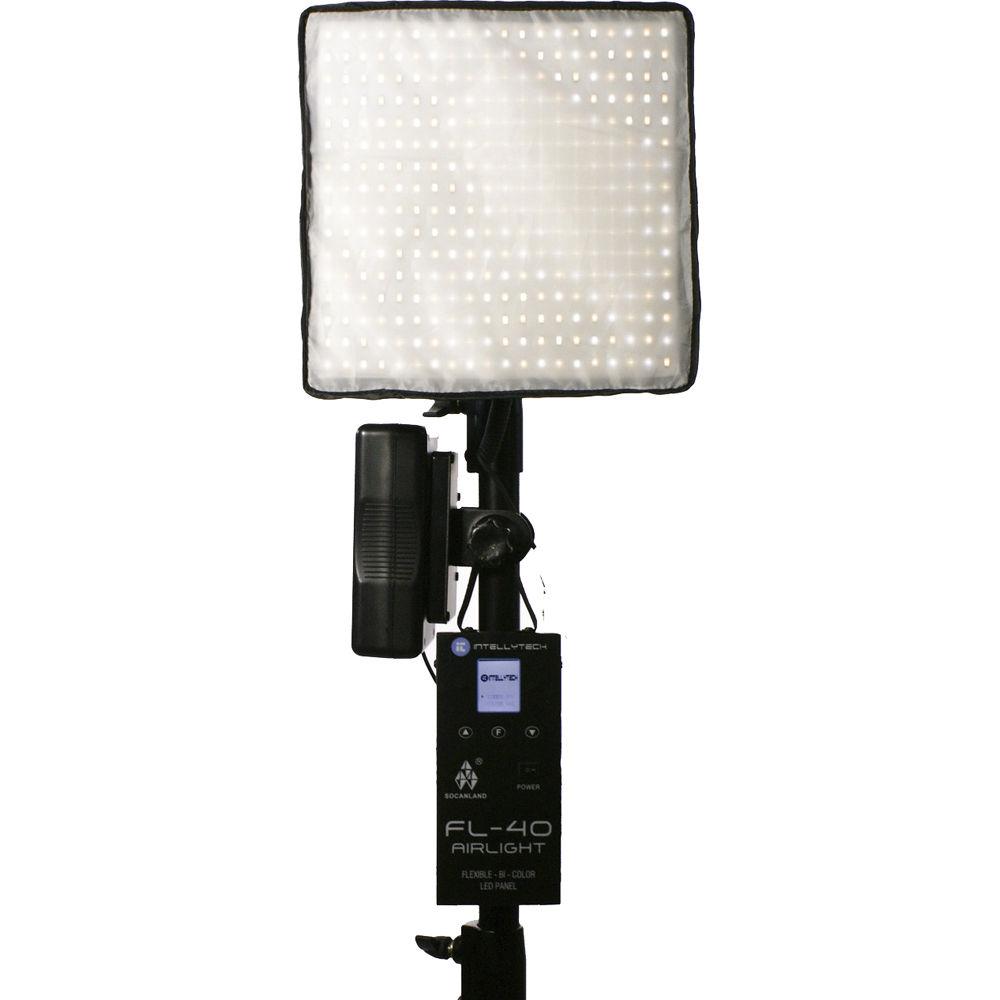

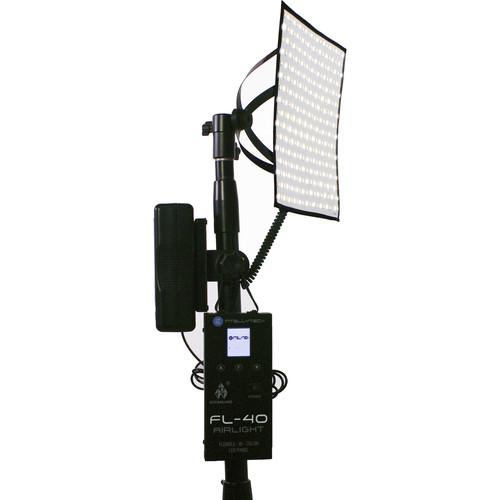

- The FL-40 is sold as a complete kit allowing the user to power the light via battery or AC without having to purchase any additional accessories. Intellytech includes an Anton Bauer Gold Mount battery plate at no extra charge. The battery plate clamps onto the light stand. Alternatively, the light can be powered via an included AC adapter.
- Dimmer/Control Module
- Control brightness and color settings on the LCD Screen. The module has ports for Battery / AC Power and the FL-40. LCD screen displays brightness from 0-100 and color temperature from 3150-5700K.
- Diffuser
- Cloth diffuser. Completely flexible with 4 touch-fastener straps allowing for a secure connection to the light.

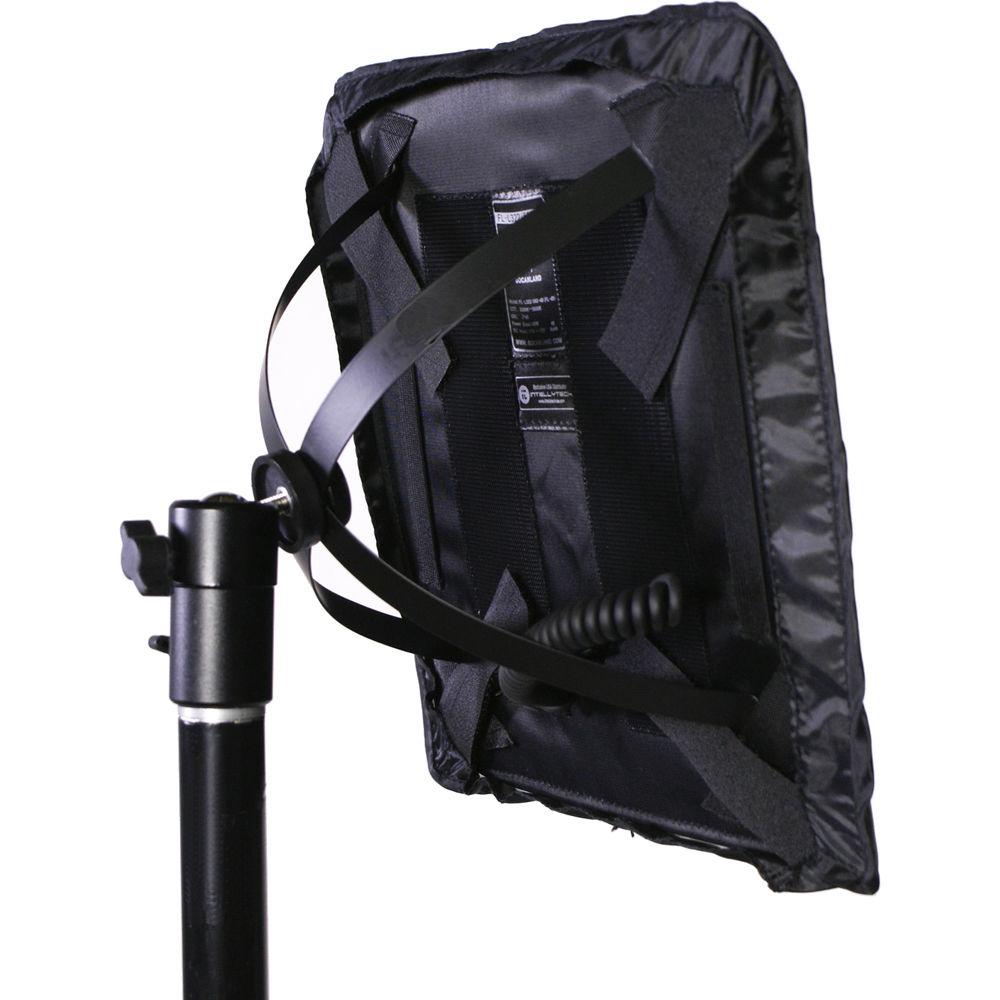

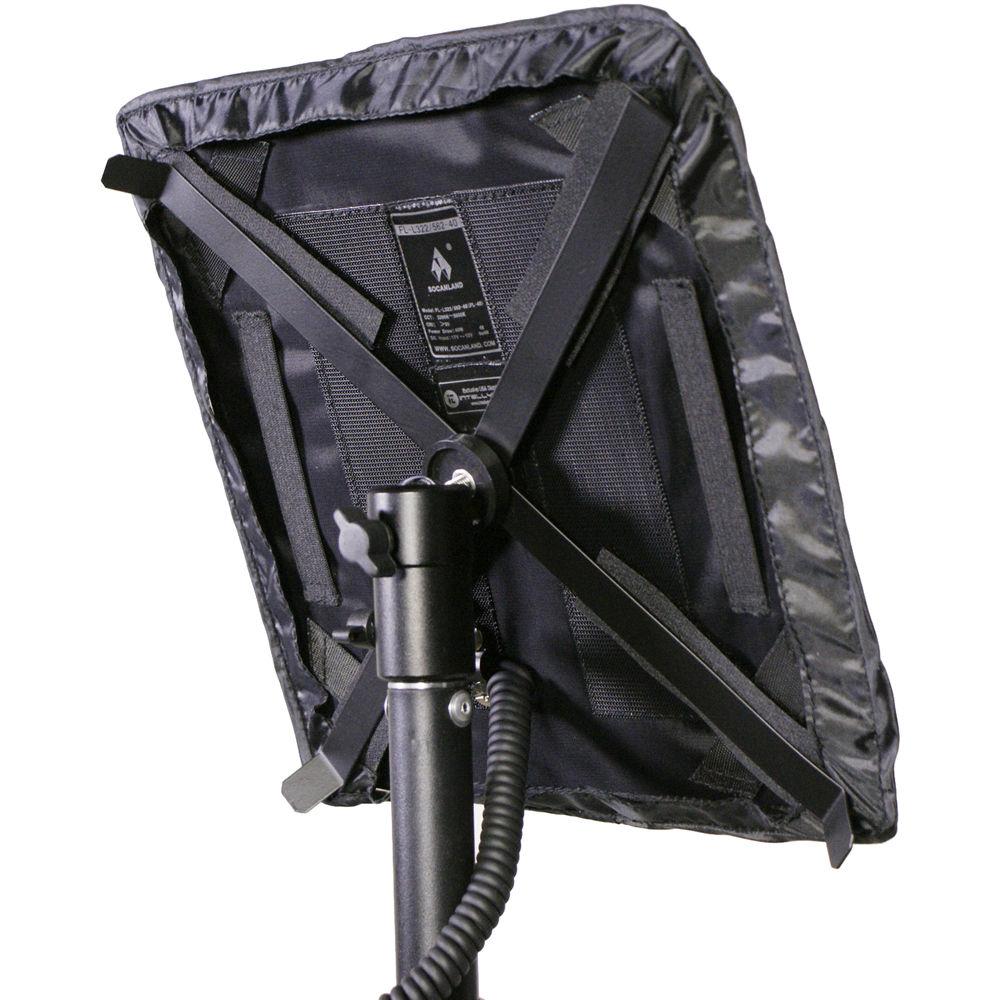

- X-Bracket
- Attaches to light and to standard 5/8" stud for light stand or C-stand. Fully rotatable.
- Carrying Case
- Holds all of included accessories comfortably.
- Extension Cables
- AC adapter extension cable, 4-pin extension cable from light to dimmer.

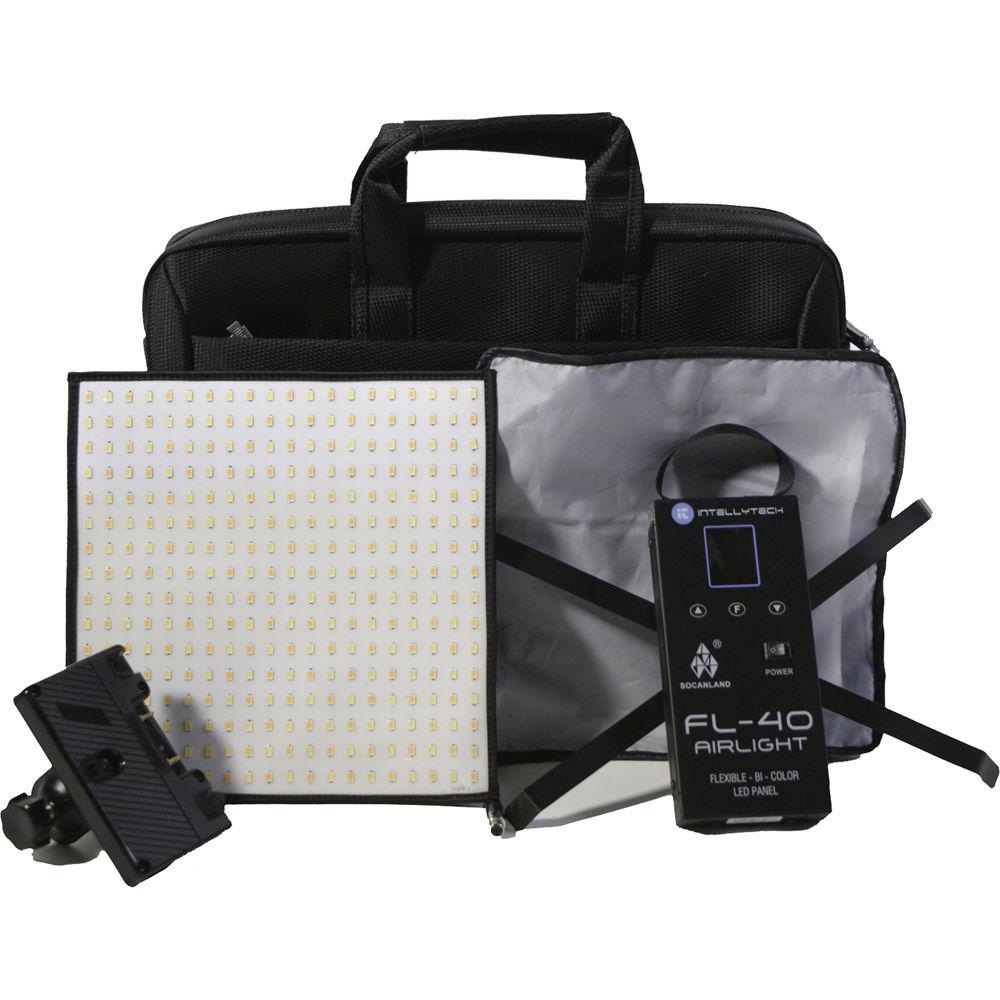

In the Box Intellytech Socanland FL-40 Airlight Bi-Color 10x10" LED Panel Kit with Anton Bauer Battery Plate Bi-Color Panel Dimmer/Control Module Diffuser X-Bracket AC Adapter Carrying Case 2 x Extension Cable D-Tap to Mini 5-Pin Cable for Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Socanland FL-40 Airlight Bi-Color 10x10" LED Panel Kit with Anton Bauer Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech FL-40 Specs | | | Beam Angle | 0 to 120° | | Color Temperature | 3150 to 5700K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 10.0 x 10.0" / 25.4 x 25.4 cm | | Fixture Weight | 3.2 lb / 1.45 kg | | | | Battery Plate | 1 x Gold Mount | | | | Fixture Mount | None | | Mount via Included Adapter | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 16.8 x 13.0 x 5.8" |
