Product description

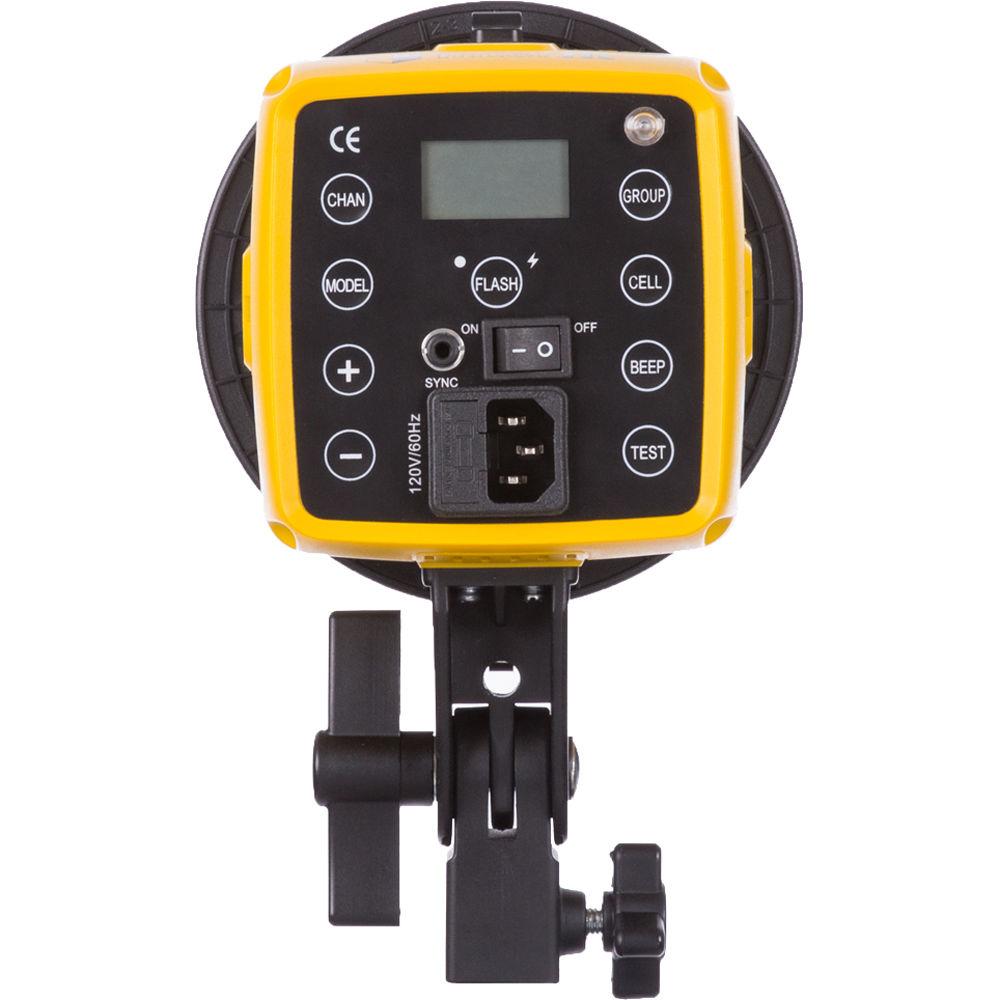

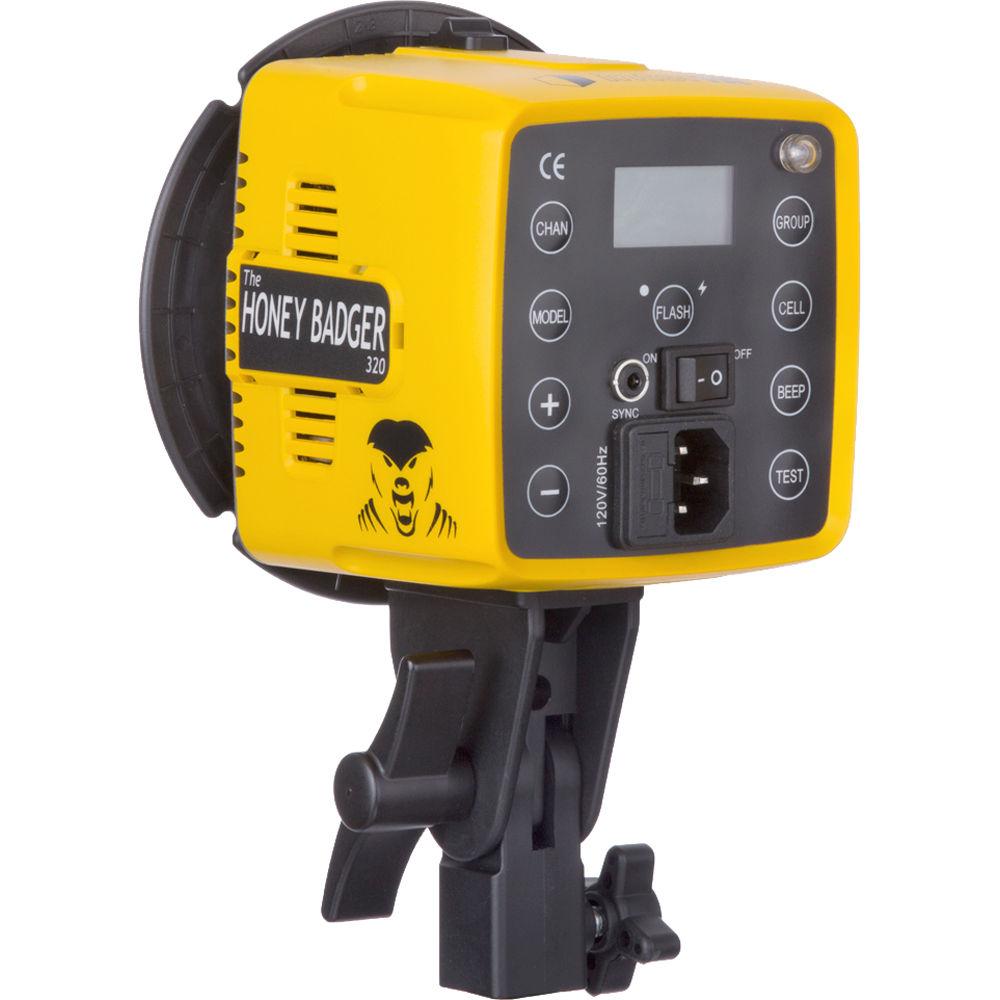

• Honey Badger 320Ws Compact Flash Head
  • Teaser Commercial for the NEW Interfit Honey Badger
  Name after a small ferocious animal with a deceptively wholesome name, the Honey Badger 320Ws Compact Flash Head from Interfit has a space-efficient 5 x 5 x 6" form factor, weighs just 3 lb, and contains some impressive features. The light boasts a 7-stop flash power range that can be adjusted in 1/10 stop increments and a 60W LED modeling lamp that is the equivalent of 300 tungsten watts and can be used manually or set to output proportionate to the flash intensity. The modeling lamp has a 5600K color temperature and is flicker-free for use as a video light. Recycle time is a fast 1 second at full power and a fraction of that at lower power. Flash durations are correspondingly short - as quick as 1/900 second (t.1) for freezing action at peak moments.The Honey Badger has a built-in wireless receiver that accepts signals from a separately purchased S1 manual or TTL transmitters that can not only wirelessly trigger the flash, but control power level, modeling light, and the beep indicator for full recycling. The light has a Bowens S-Type front accessory mount making it compatible with the many manufacturers that produce products with this mount. The Honey Badger also has a built-in pop-up softbox ring that makes for very fast setup with the included 24 x 24" softbox. Lightweight with a small form factor and impressive performance, the Honey Badger is hard to beat.

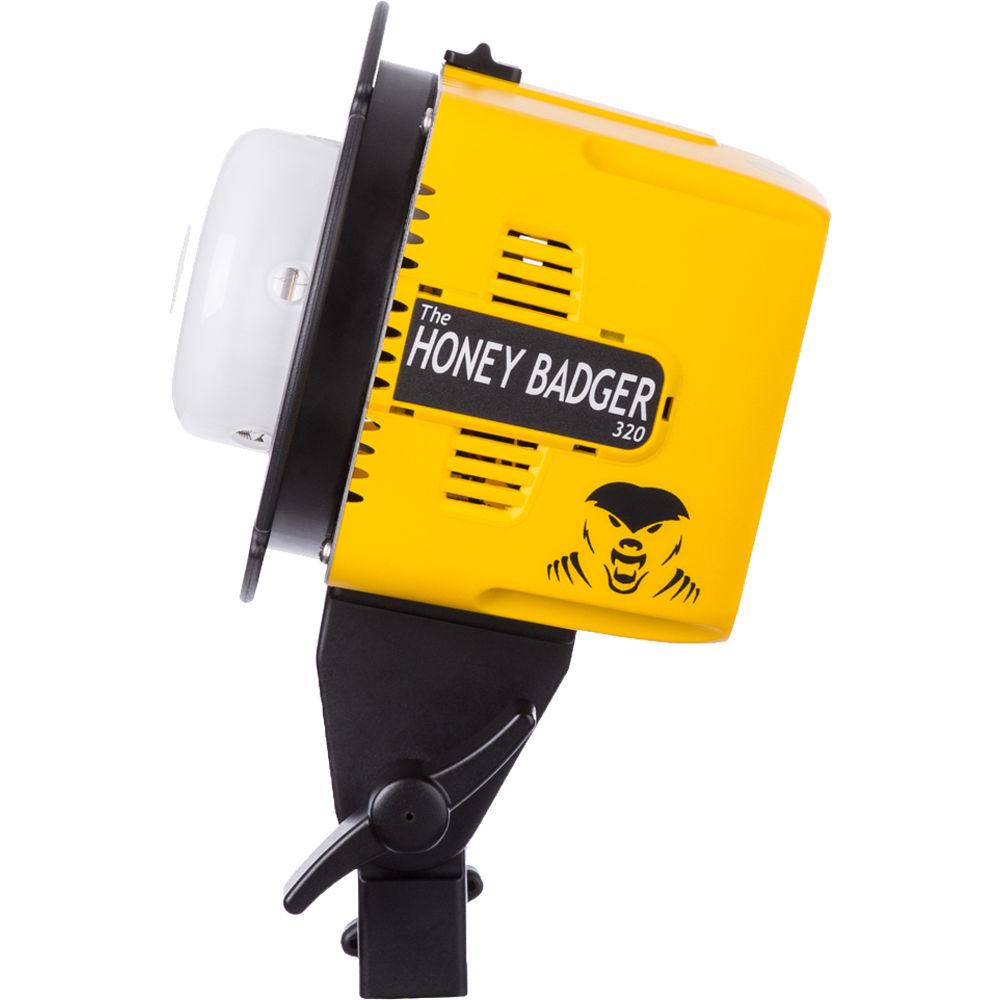

  Compact Form Factor
  • Size and weight matter to the mobile photographer. The Honey Badger weighs 3 lb, measures 5" wide (6" including the outer ring), and 6" deep from the rear control panel to the edge of the protective cap. The robust and compact housing makes the Honey Badger the ideal solution for photographers on the move.
  Extended Power Range
  • The Honey Badger has an impressive 7-stop power range, two more stops than many studio flash heads. Power can be adjusted from 320Ws down to 5Ws in 1/10th stop increments for precise exposure.
  Fast Recycle Time
  • At full power, the Honey Badger recycles in just 1 second. Recycle times get even shorter as you decrease flash power.
  Short Flash Duration
  • Short flash durations give you the ability to freeze motion beyond the capabilities of the shutter sync speed. At full power, the Honey Badger has a t.1 flash duration of 1/900.

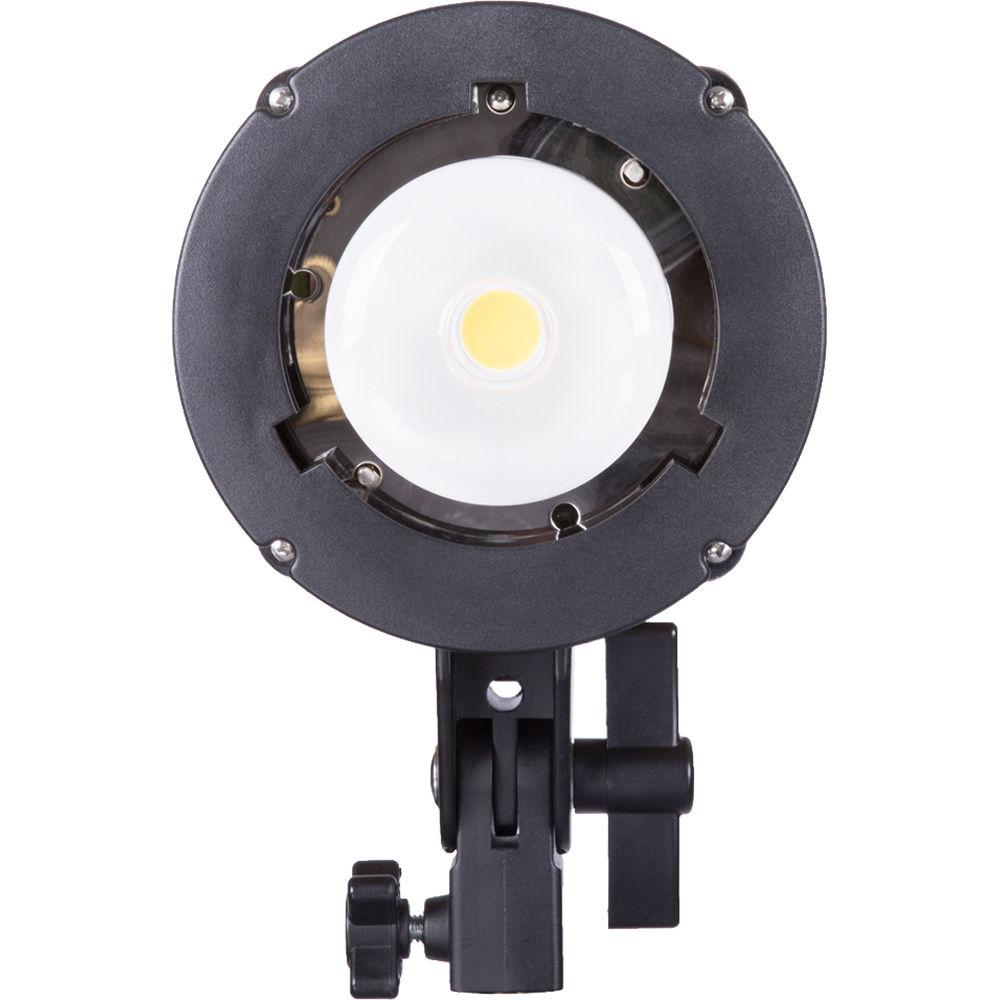

  60W LED Modeling Lamp
  • The Honey Badger is equipped with a 60W LED modeling lamp with the equivalent light output of a 300W tungsten lamp. This flicker-free LED can be used as a continuous light source for both photo and video purposes. The modeling lamp can be set to adjust proportionately to the flash power, or to full power. The color temperature was intentionally set to 5600K (daylight), to accurately portray the color rendition of the flash's output.
  Versatile Modifier Mount
  • A convenient feature of the Honey Badger is the versatile modifier mount. The Honey Badger utilizes the popular Bowens S-Type modifier mount, making it compatible with the same modifiers as the S1. The Honey Badger also features a built-in pop-up softbox ring for use with pop-up style softboxes that are popular with speedlight shooters.

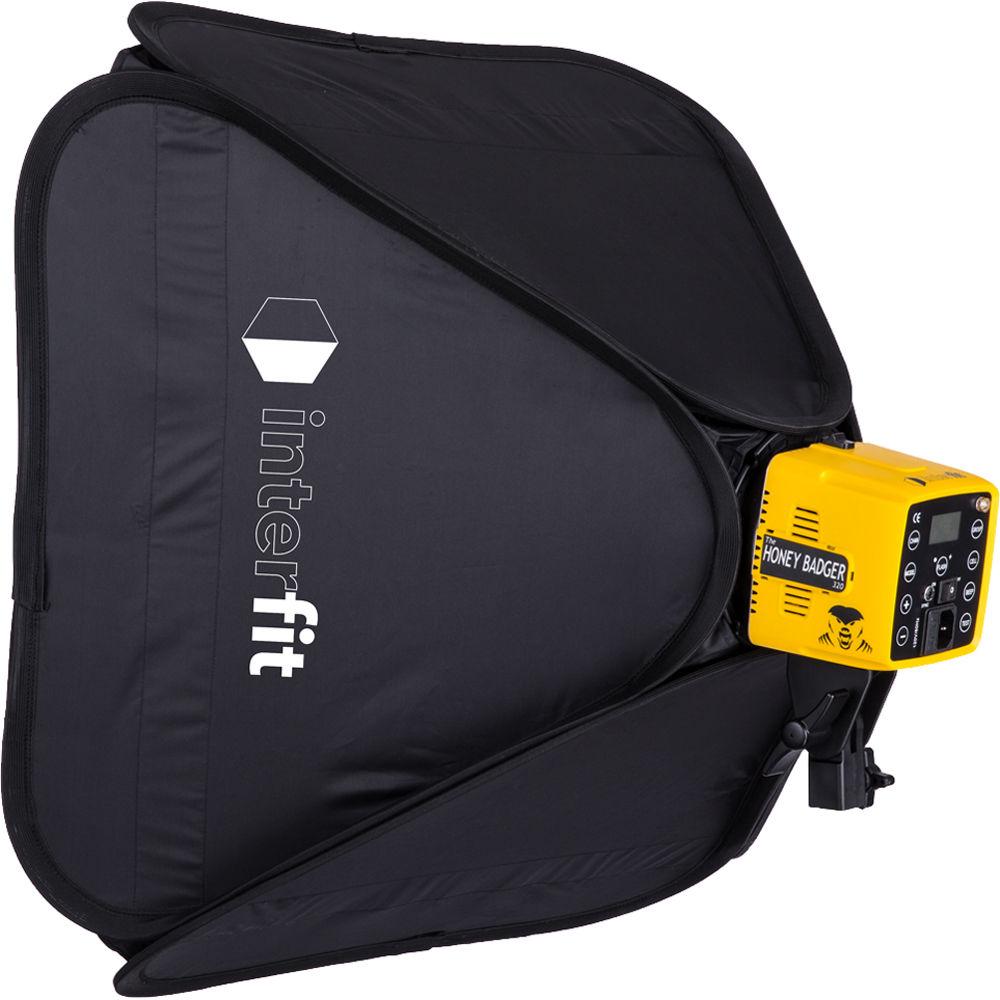

  Included Pop-Up Softbox
  • Every Honey Badger includes a 24 x 24" pop-up softbox with an inner and outer diffuser. This style of softbox does not require an elaborate setup and folds away quickly and compactly.

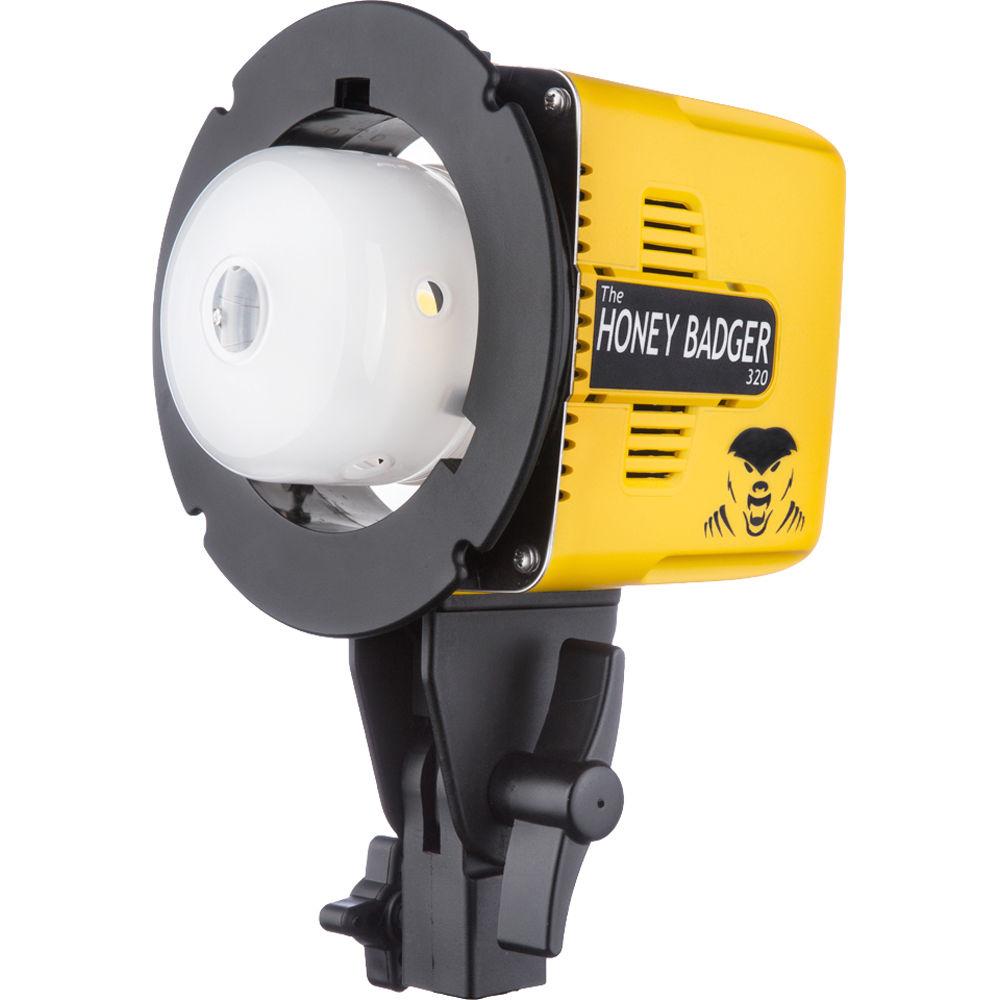

  Glass Dome Diffuser
  • The Honey Badger includes a frosted glass dome diffuser. This protects the flash tube and helps to spread light evenly throughout the modifier.
• S1 Manual Remote for all Cameras Compatible with the S1, S1a, and Honey Badger and all cameras, the S1 Manual Remote for All Cameras from Interfit has 15 wireless channels to thwart interference from other radio systems and supports 8 distinct groups for control of multiple light setups. The remote can adjust power level, modeling light, and full power beep indicator at distances up to 320'. It uses the 2.4 GHz frequency and supports a maximum sync speed of 1/250 second. While the remote runs on AAA batteries, there's also an AC power option for more permanent setups.
  Manual Mode
  • This remote is compatible with all makes and models of cameras (film and digital) in manual mode. (Access to TTL and HSS functions of S1 and S1a require the dedicated TTL remotes)
  Remote Power Adjustment
  • The S1 Manual Remote allows you to control the power output of your S1, S1a, or Honey Badger from the camera position.
  15 Channels
  • Having 15 channels allows you to work in close proximity with other photographers without interfering with each other's light setups. Channels are displayed by numbers 1-15.
  8 Control Groups
  • This feature allows you to control up to 8 groups of lights independently of one another. Groups are displayed by letters, A-H.
  320' Wireless Range
  • The 320' wireless range lets you roam freely around the studio, field, city block, or wherever your work takes you.
  Additional Controls
  • In addition to triggering and manual control, the Interfit S1 Manual Remote allows you to control the modeling lamps and audible beeps on your lights.
  AAA Batteries
  • All S1 remotes are powered by two AAA batteries.
  3.5mm Sync Jack
  • The 3.5mm sync jack on the side of the remote allows you to use your S1, S1a, or Honey Badger lights in conjunction with other radio flash systems. Simply connect your 3rd-party remote to the S1 remote via sync cable to fire all lights together.
  AC Power Option
  • The S1 Manual Remote can be powered by AC power using the micro-USB port on the side of the remote, eliminating the need for replacement batteries and disabling the remote's auto-shut-off functions. This is especially useful for long-term or permanent camera fixtures.

• Power Cable

• Sync Cable

• Glass Dome for S1, S1a, and Honey Badger Flash Heads

• Pop-Up Softbox (24x24")

• Limited 1-Year Warranty

• Limited 1-Year Warranty

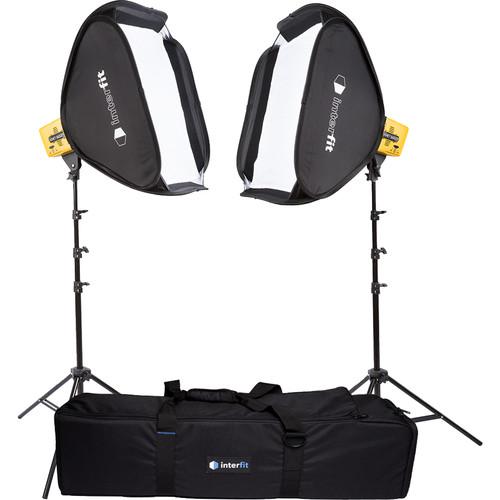

Also Includes

• 2 x Light Stands (7.6')
• Kit Bag
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Honey Badger 320Ws Compact Flash Head

  Maximum Power	5 to 320 Ws
  Power Control	7 Stops in 1/10-Stop Increments
  Guide Number	148' / 45 m at 3.3' / 1 m, ISO100 with Reflector
  Flash Duration	t.1: 1/900 Sec (Full Power)
  Recycle Time	1 Sec (Full Power)
  Color Temperature	5600K ± 200K
  Accessory Fitting Type	8 mm Umbrella Shaft, Bowens S Type

  Type	LED
  Wattage	60 W

  Sync Type	Radio
  Sync Speed	1/1/250 Sec

  AC Input Voltage	110 VAC, 60 Hz

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 5.0 x W: 5.0 x L: 6.0" / H: 12.7 x W: 12.7 x L: 15.2 cm
  Weight	3.0 lb / 1.36 kg

  Box Dimensions (LxWxH)	13.2 x 10.4 x 9.1"

• S1 Manual Remote for all Cameras

  Channels	15
  Groups	8
  Wireless Range	328' / 100 m
  Radio Frequency	2.4 GHz

  Sync Speed	1/250 Sec

  Ports	1 x 3.5 mm (Flash) 1 x Mini-USB

  Battery Type	2 x AAA

  Box Dimensions (LxWxH)	5.6 x 4.4 x 1.8"
