User Manual for Interfit Strobies Pro-Flash 360 W s Kit with Battery Click to enlarge the picture
Contents of the user manual for the Interfit Strobies Pro-Flash 360 W s
- Product category: Battery Powered Heads Interfit
- Brand: Interfit
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Interfit Battery Powered Heads
 |
User manual for the Interfit Strobies Pro-Flash 360 W s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Interfit product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Interfit user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Interfit product will considerably shorten its lifespan!
|

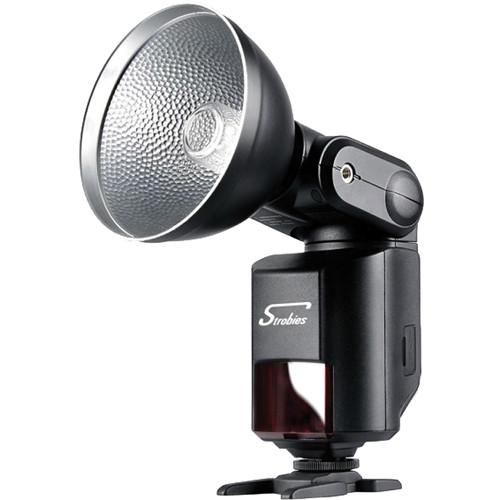

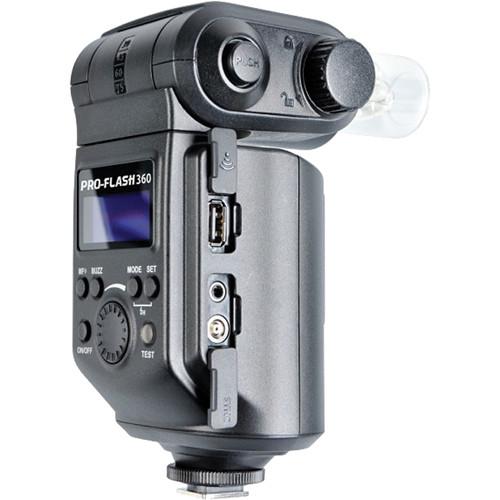

Product description Designed with power and control in mind, the Strobies Pro-Flash 360 W/s Kit with Battery from Interfit features full to 1/128 power flash variability in 1/3 stop increments over an 8-stop range. Five different flash modes give you control of the optical slave, pre-flash options and stroboscopic output with sync speeds up to 1/250 sec., allowing for sequential stop-action photography using compatible cameras. Convenience features include a large LCD display, assist beam and an Audio Ready function.The Pro-Flash 360 can be triggered via a sync cable or by its switchable optical slave and although it's meant to the used off-camera it can be triggered via your camera's hot shoe as well. However you trip the flash, you'll appreciate its fast recycling of 4.5 seconds at full power and even faster times at partial power. Regarding power, the Pro-Flash 360 runs on the included Pro-Flash Li-Ion Battery Pack which will give you up to 450 full power flashes on a 3-hour charge.The Pro-Flash 360 has a tilting and swiveling flash head, and comes with the power pack and battery cable, shoulder strap, charger, 4.5" removable silver reflector, 2 diffusers, a mini flash stand and carry pouch. - More Power in a Familiar Form
- The versatile Pro-Flash mounts on your hot shoe and resembles a typical on-camera flash but with approximately 5 times the power
- Battery Power

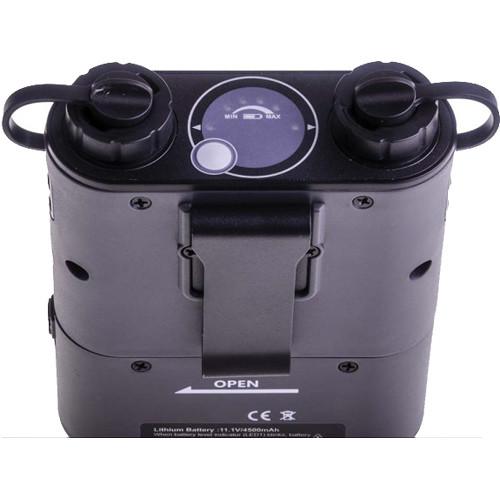

- The included Strobies Pro-Flash battery pack provides 450 full power flashes on a 3 hour charge. The pack can be also used on select Canon, Nikon, Sony or Metz "speedlights" with separate purchase of a flash cable. Up to 1,400 flashes are possible with these smaller units
In the Box Interfit Strobies Pro-Flash 360 W/s Kit with Battery Strobies Pro-Flash Strobies Pro-Flash Battery Pack Flash Tube Reflector (4.5") Flash Cable 6' (1.8m) Mini Flash Stand 2 x Diffusers Shoulder Strap Carry Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Interfit Strobies Pro-Flash 360 W s Kit with Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInterfit Pro-Flash 360 Specs | | | Maximum Watt/Seconds | 360 | | Guide Number | 262' (80 m) | | Recycle Time | 4.5 Sec. @ full power | | Flash Duration | 1/300 to 1/10,000 Sec. | | Color Temperature | 5,600 K | | Flash Variability | Full to 1/128 power over 8 stop range, 1/3 stop increments | | Flash Ready Indicator | LED and audible | | Triggering | Built-in optical slave, sync cable, hot shoe
Optional Fro-Flash receiver | | Adjustments | Vertical rotation: -15 to 90º
Horizontal rotation: 0 to 270º | | Replaceable Flashtube | Yes, STR229 | | Changeable Reflector | Includes 4.5" aluminum reflector (proprietary mount) | | Dimensions | 2.9 x 3.7 x 8.6" (7.5 x 9.5 x 22 cm) | | Power | Strobies Pro-Flash battery pack | | Weight | 1.7 lb (0.78 kg) | | | | Battery Type | 4500 mAh Li-Ion | | Number of Flashes @ Full Power | 450 With Pro-Flash 360
Up to 1,400 with standard speedlights and optional cables | | Cable | 6.0' (1.8 m) | | Dimensions | 6.3 x 5.3 x 2.0" (16 x 13.4 x 5.1 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 5.235 lb | | Box Dimensions (LxWxH) | 13.8 x 11.5 x 6.3" |
