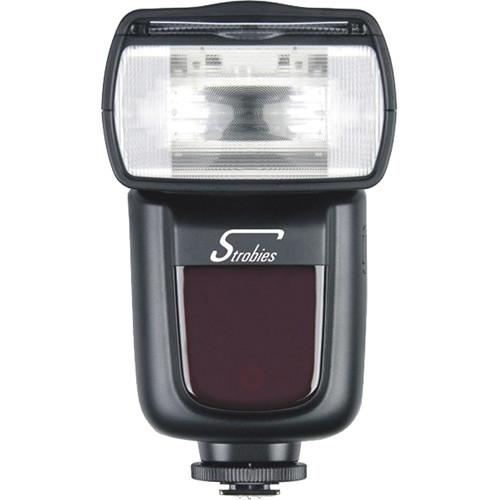

User Manual for Interfit Strobies Pro-Flash TLi-N Speedlight for Nikon Cameras Click to enlarge the picture
Contents of the user manual for the Interfit Strobies Pro-Flash TLi-N Speedlight for
- Product category: On Camera Flashes Interfit
- Brand: Interfit
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Interfit On Camera Flashes
|
User manual for the Interfit Strobies Pro-Flash TLi-N Speedlight for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Interfit product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Interfit user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Interfit product will considerably shorten its lifespan!
|
Product description Powered by a rechargeable Li-ion battery pack, the Strobies Pro-Flash TLi-N Speedlight from Interfit simplifies powering your on-camera flash and dramatically speeds up recycle time. The TLi-N is a powerful flash that works with Nikon's i-TTL system and features a guide number of 190' at ISO 100 and 105mm. The zoom head has an expansive range of 24-105mm which can reach 14mm with the built-in diffuser panel. Additionally, the battery allows for 650 full power flashes on a single charge and a recycle time of less than 1.5 seconds.
Full bounce and swivel features are available on the TLi-N with a head that can tilt from -7 to +90° and rotate 360°. Wireless master and slave TTL control is also possible with an optical trigger and sensor that are compatible with Nikon's SB-900 and SB-910 speedlights. High-speed, 1st, and 2nd curtain sync settings can be used as well as a multi-flash, or stroboscopic, mode. Included with the TLi-N are a battery pack, charger, mini-stand, and nylon protective pouch. - Manual flash power from 1/1 to 1/128 power adjustable in 1/3 stop increments
- Flash exposure lock is available as well as compensation from ±3 stops in 1/3 stop increments
- Multi-flash, or stroboscopic, can emit a series of up to 100 flashes in a single exposure at a rate of 199 Hz
- Modeling flash is fired when camera's depth-of-field preview is initiated
- AF assist beam with range of 2.0-32.8' in the center of 2.0-16.4' in the periphery
- Optical pulse transmission range of 39.4-49.2' indoors and 26.2-32.8' outdoors
- Four wireless channels and three groups
- Color temperature of 5600K ±200
- Flash ready indicator lights
- High-speed sync up to 1/8000 second
- Can be triggered through 2.5mm sync port, wireless control port, or hot shoe
In the Box Interfit Strobies Pro-Flash TLi-N Speedlight for Nikon Cameras Rechargeable Li-Ion Battery Pack for Strobies Pro-Flash TLi-C & TLi-N rrabxzswabcqtrtyubsaf Battery Charger for Strobies Pro-Flash TLi-C & TLi-N Mini Stand Nylon Protective Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Interfit Strobies Pro-Flash TLi-N Speedlight for Nikon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInterfit STR237 Specs | Mount | Shoe | | Guide No. | 190.29' / 58 m ISO 100 at 105 mm Position | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 14 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | 2.5 mm, Proprietary | | Recycle Time | Approximately 1.5 Seconds | | Flash Duration | 1/300 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash
Skip Two Preflashes | | Wireless Operation | Method: Optical Pulse
Distance: Up to 49.21' / 15 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 1 x Proprietary Rechargeable Li-Ion Battery | | Dimensions (W x H x D) | 2.5 x 3.0 x 7.5" / 64.0 x 76.0 x 190.0 mm | | Weight | 19.04 oz / 539.78 g with battery | | | | Package Weight | 2.12 lb | | Box Dimensions (LxWxH) | 10.0 x 8.3 x 3.05" |
