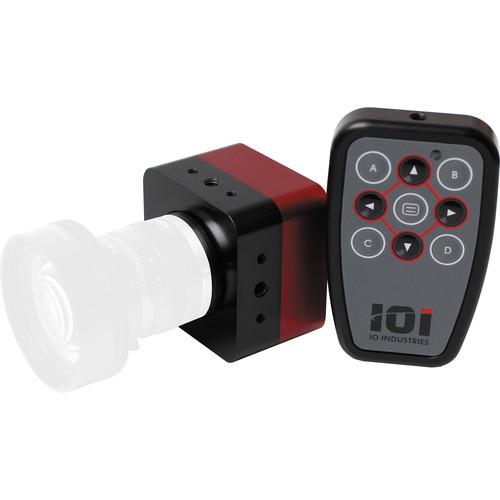

User Manual for IO Industries Flare 2KSDI Camera Kit Click to enlarge the picture
Contents of the user manual for the IO Industries Flare 2KSDI Camera Kit
- Product category: Industrial & Multi-Purpose Cameras IO Industries
- Brand: IO Industries
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IO Industries Industrial & Multi-Purpose Cameras
|
User manual for the IO Industries Flare 2KSDI Camera Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IO Industries product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IO Industries user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IO Industries product will considerably shorten its lifespan!
|
Product description The Flare 2KSDI Camera Kit from IO Industries contains a compact, professional, 3G/HD-SDI camera intended for broadcast and cinema applications. The 2KSDI camera does not have any buttons or control knobs; it can be configured from an on-screen display with the Remote Control. It is compatible with all SMPTE rates between 24 and 60 fps. The included USB Control Cable connects to a PC and can control the camera, and update firmware and LUTs. With it's mounting points on all four sides, this camera can be mounted from any angle. - Great for broadcast and cinema, medical, security, and recording on vehicles and aircraft
In the Box IO Industries Flare 2KSDI Camera Kit (North America) Flare 2KSDI 3G/HD-SDI Camera (Body Only) Remote Control for Flare 2KSDI Camera Power/Control Cable for Flare 2KSDI Camera AC to 12V DC Adapter with Female P-Tap Connector for Flare 2KSDI Camera (North America) USB Control Cable for Flare 2KSDI Camera (2m) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IO Industries Flare 2KSDI Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIO Industries Flare 2KSDI Specs | Connectors | 2 x SDI
1 x SYNC-IN
1 x 12-pin Hirose, power and control | | Maximum Frame Rate | 60 fps at 1080p | | Image Type | 4:2:2(Y'Cb'Cr'), or RAW (Bayer) | | Lens Mount | Native C-Mount or T-Mount | | Sensor Size | 2048 x 1088 pixels | | Sensor | 60dB CMOS, 5.5 µm pixels (12.7mm diagonal) | | Video Interface | 3G/HD-SDI, both clean feed and OSD feed | | Output Modes | HD-SDI:
720p 10-bit (4:2:2 or RAW): 23.98/24/25/29.97/30/50/59.94/60
1080i 10-bit (4:2:2 or RAW): 50/59.94/60
1080p 10-bit (4:2:2 or RAW): 23.98/24/25/29.97/30
2K 10-bit (4:2:2 or RAW): 23.98/24/25/29.97/30
3G-SDI:
1080p 10-bit (4:2:2 or RAW): 50/59.94/60
2K x 1080p 10-bit (4:2:2 or RAW): 50/59.94/60 | | White Balance | Automatic (AWB), tracking AWB, or manually adjustable | | Color Adjustment | Color matrix, saturation | | Black and White Mode | Master pedestal, black gamma, knee point | | Operating Temperature | Up to 122°F (50°C) | | Camera Control | RS-485 handheld remote or PC control, up to 1000ft | | Power Consumption | 4.5 W | | Power | 10-19 VDC | | Dimensions (H x W x D) | 2.5 x 2.5 x 1.7" (63.5 x 63.5 x 44.1 mm) | | Weight | 10.9 oz (310.0 g) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 10.5 x 8.8 x 6.2" |
