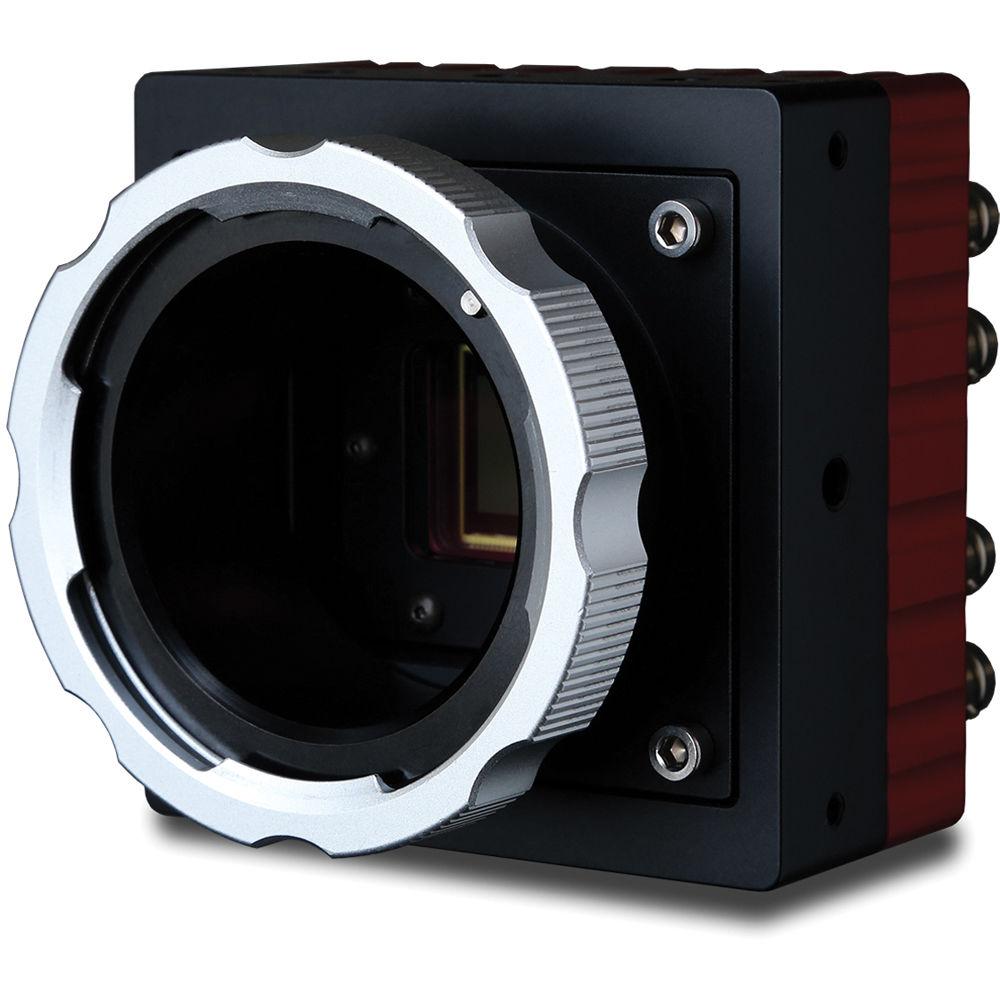

Product description The Flare 4KSDI 4K/UHD Camera Head Kit with Passive ARRI PL Mount Lens Adapter from IO Industries features a CMOS sensor and is designed to fit where larger cameras cannot. Included with the camera is an ARRI PL Mount that requires you to use a manual focus and iris capable lens as there is not electronic control. The extensive feature set makes the 4KSDI easy to deploy in either live event broadcasts or scripted productions.The sturdy aluminum chassis includes rugged mounting points on all sides for placing almost anywhere. An integrated Optical Low Pass Filter helps block IR pollution and remove moiré artifacts. At the heart of the camera sits a Super 35 global shutter CMOS sensor with 12 stops of dynamic range. Four standard 3G/HD-SDI outputs make connecting the 4KSDI to peripheral devices easy.Depending on the output format, either two or four cables are needed to connect the 4KSDI to 4K/UHD-supported field recorders, monitors, and live production switchers. And, for stereoscopic or panoramic configurations or live-to-air broadcasts, an HD tri-level sync reference is all that’s needed for precise multi-camera synchronization. - Enable the OSD overlay using the handheld remote to control each of the camera functions. Attach to a PC or paint-box by connecting via RS485 serial cable.
- Centered mounting points surround four sides of the camera body. This design allows for the mounting of the camera from any angle
- Removable stainless steel 3/8"-16 to 1/4"-20 thread reducer
- Includes the following back-focus shims: Silver: 0.0005" (0.0127mm), Amber: 0.001" (0.0254mm), Purple: 0.0015" (0.0381mm), Red: 0.002" (0.0508mm), Green: 0.003" (0.0762mm), Tan: 0.004" (0.1016mm), Blue: 0.005" (0.1270mm)

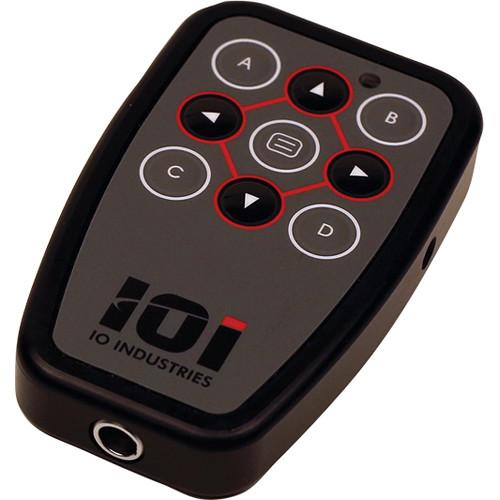

In the Box IO Industries Flare 4KSDI 4K/UHD Camera Head Kit with Passive ARRI PL Mount Lens Adapter Camera Head Passive ARRI PL Mount Lens Adapter 7 x Back-Focus Shim Hex Key 4 x Stainless Steel Cap Screw Remote Control Power/Control Cable AC-DC Adapter (NA) 6.5' USB Control Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IO Industries Flare 4KSDI 4K UHD Camera Head Kit with Passive ARRI PL Mount Lens Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIO Industries Flare 4KSDI Specs | | | Image Sensor Type | Global Shutter CMOS | | Sensor Size | Super 35 (22.53 x 11.88 mm) | | Dynamic Range | 12 stops | | Filter | IR-Cut and OLPF | | | | White Balance | Manual
Temperature Presets
1-Shot Auto
Tracking Auto | | Color Correction | Matrix Adjustment, Saturation | | Gamma | Rec. 709, Cine Log, Black Gamma | | LUT (Lookup Table) | 6 x RGB LUTs, 4 x RAW LUTs | | Shutter Control | Manual, Automatic | | Sensitivity Adjustment | ISO control, Up to 4x digital gain | | Level Control | Master Pedestal, Knee Level and Slope | | | | Formats | Quad-Link Formats: 10-bit 4:2:2 or RAW
UHD: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4K: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
10-bit 4:4:4
UHD: 23.98, 24, 25, 29.97, 30
4K: 23.98, 24, 25, 29.97, 30
Dual-Link Formats: 10-bit 4:2:2 or RAW
UHD: 23.98, 24, 25, 29.97, 30
4K: 23.98, 24, 25, 29.97, 30 | | | | Video Output | 4 x 3G/HD-SDI (4 x BNC) | | Image | Mapping: Quadrant (SMPTE 425-5), 2-Sample Interleaved (SMPTE 425-5) | | Camera Control | Handheld remote (OSD), RS-485 (open protocol) | | Synchronization | Tri-level Sync with user offset (1x BNC) | | | | Power | 7 to 19 VDC (10 W max) | | Temperature | Operating: -22 to 104°F (-30 to 40°C)
Storage: -22 to 140°F (-30 to 60°C) | | Dimensions | 3.64 x 3.64 x 1.87" (92.7 x 92.7 x 47.7 mm) (not including lens mount) | | Weight | 26.4 oz (750 g) |
