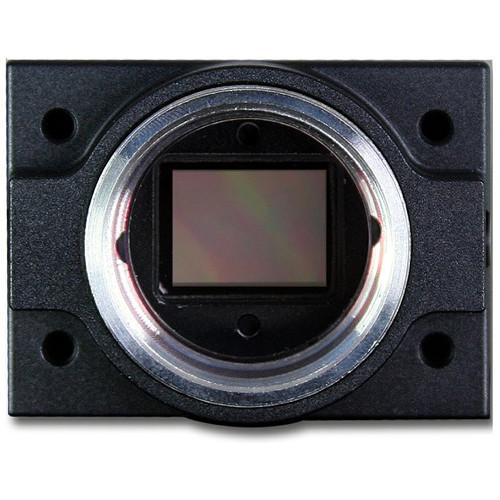

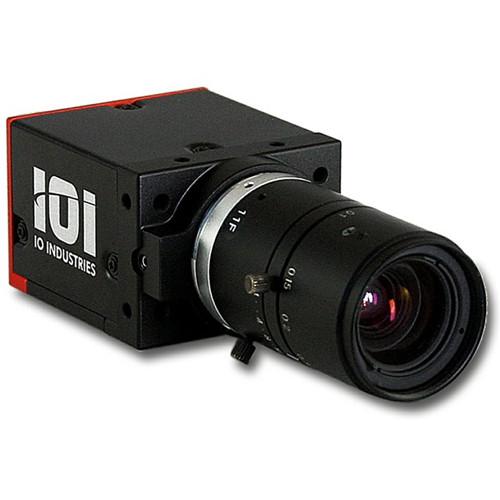

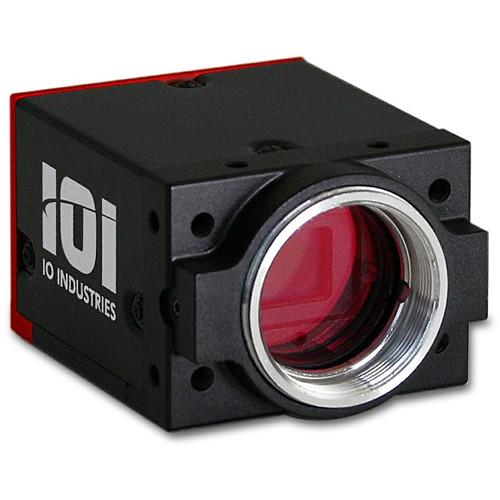

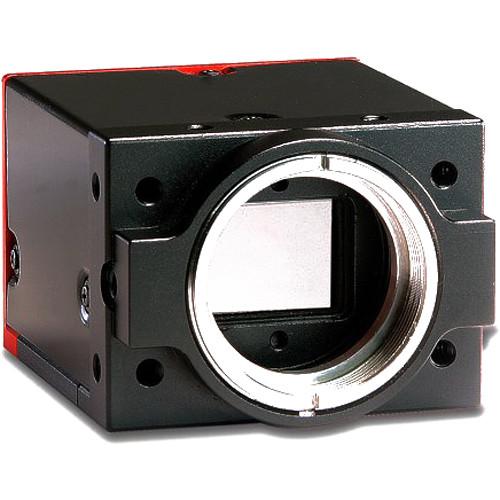

Product description The IO Industries Victorem 2KSDI-Mini Camera is a compact camera head with a global shutter sensor for HD image acquisition. Its small form-factor and ruggedness let this camera be used in applications such as aircraft and vehicle recording, test range instrumentation, security and surveillance, and specialty video production. A C-mount at the front of the camera can accept many readily-available professional lenses, and can be adapted to use other lens systems as well. This camera features a connection for C-mount leses that have an electronic iris for auto-iris functionality.

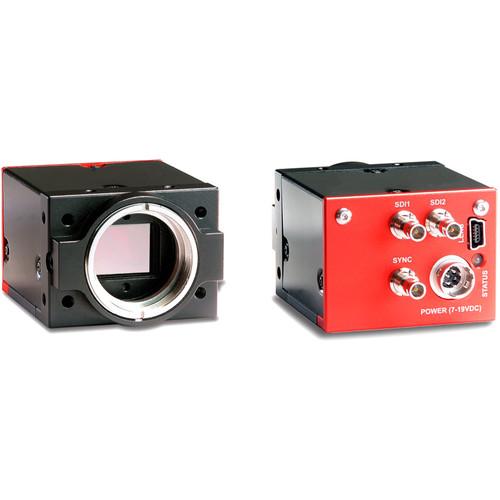

For outputting video, the Victorem 2KSDI uses dual SDI outputs via DIN 1.0/2.3 connections. Both outputs are active simultaneously, so one can be used for recording, and the other for monitoring, or they can be used for redundancy. OSD menu information can be sent out of the first SDI output. 10-bit 4:2:2 and 4:4:4 video can be output, in addition to raw bayer information for processing in post production. - Exposure Control
- Automatic (adjusts exposure, gain and/or iris if connected electronically) or manual exposure
- Image Processing
- Gamma (1D LUTs), master pedestal control, adjustable sharpening
- Color Control
- Auto white balance or calibrated presets, color correction matrix, RGB offsets, saturation control
- Output Options
- Output SDI video at 10-bit 4:2:2, 10-bit 4:4:4, or raw bayer video for processing in post-production
- Camera Configuration Options
- RS-485; use handheld remote for OSD, USB adapter for PC software or direct ASCII protocol
- OSD Menu Navigation
- The camera menu is visible on the SDI1 output feed for visual confirmation of menu selections
In the Box IO Industries Victorem 2KSDI-Mini Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IO Industries Victorem 2KSDI-Mini Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIO Industries Victorem 2KSDI-Mini Specs | | | Model | Sony Pregius IMX265 | | Size | 1/2"-type | | Dynamic Range | 73.6 | | | | Outputs | 3G/HD-SDI: 2 x DIN 1.0/2.3 (push-pull/threaded) | | Output Resolution | 2048 x 1080 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50 | | Video Sampling | 10-bit, 4:2:2, YCbCr
10-bit, 4:4:4, RGB

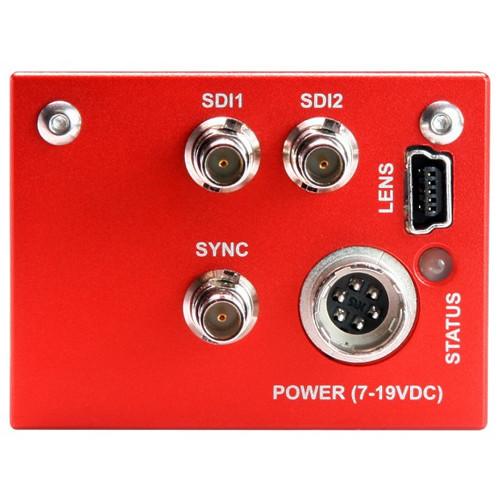

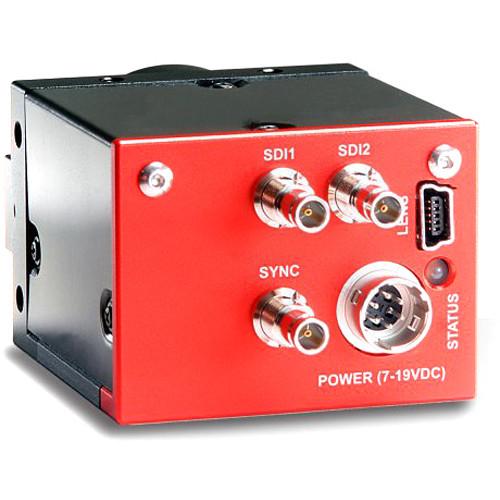

Raw (Bayer) | | Other I/O | Sync: 1 x DIN 1.0/2.3 (push-pull/threaded)
Control: 1 x USB mini-B
Power/RS845: 1 x 6-pin LEMO | | Sync | Tri-level input | | Lens Mount | C-mount | | Environmental | Operating Temperature: 14 to 122°F / -10 to 50°C
Storage Temperature: -40 to 185°F / -40 to 85°C
Operating Humidity: 20-85% (non-condensing)
Storage Humidity: 10-90% (non-condensing) | | Shock and Vibration | Tested per MIL-STD-810G Method 516.6, 3-axis Shock 75G and Method 514.6, 3-axis Vibration Cat. 20 | | Power Input | 7-19 VDC | | Dimensions | 1.3 x 1.7 x 2.1" / 33 x 44 x 54 mm | | Weight | 4.9 oz / 140 g | | | | Package Weight | 0.62 lb | | Box Dimensions (LxWxH) | 6.2 x 5.3 x 5.0" |
