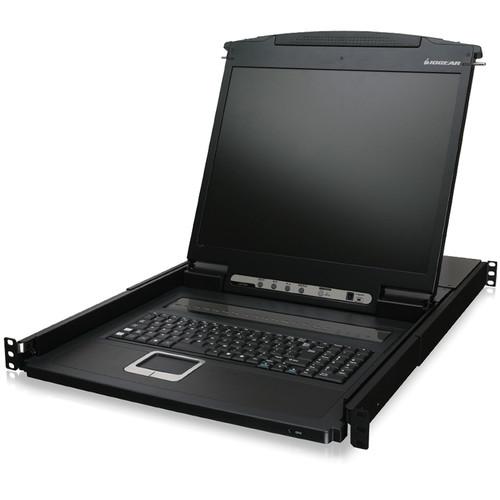

Product description The 16-Port 19" LCD Combo KVM Switch from Iogear is an integrated LCD console with 16-port KVM (keyboard, video, and mouse) switch that offers secure access to 16 VGA, USB, or PS/2 computers. It features a convenient space saving rack mountable sliding / retractable 19" TFT LCD active matrix monitor and keyboard with built-in touchpad. It fits into a universal 1U rack mount space. The switch supports both PS/2 and USB keyboards and mice for the connected computers, and supports USB peripheral devices for the attached computers. It can control up to 16 computers, but as many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers* controlled from a single keyboard, monitor and mouse console. It increases space and productivity, while providing an energy cost saving solution. It contributes to a greener environment by reducing the amount of waste generated by multiple components. It provides an easy and efficient way to organize and streamline a growing or expanding server operation. Note: *It can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models - Integrated 16-port KVM console featuring a 19" TFT LCD active matrix monitor, keyboard and touchpad
- 1280 x 1024 resolution on 19" rack mount LCD video display
- Adjustable mounting rail to fit different sizes of racks
- Compatible with Windows, Mac, and Linux platforms
- Easy computer selection via front panel pushbutton LED's, intuitive OSD (on-screen display) and hotkeys
- External USB or PS/2 with VGA console port
- Controls up to 256 computers from a single console
- Provides two level password protection for OSD
- Video settings of each computer are automatically adjusted for optimal output to the monitor due to DDC emulation
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation

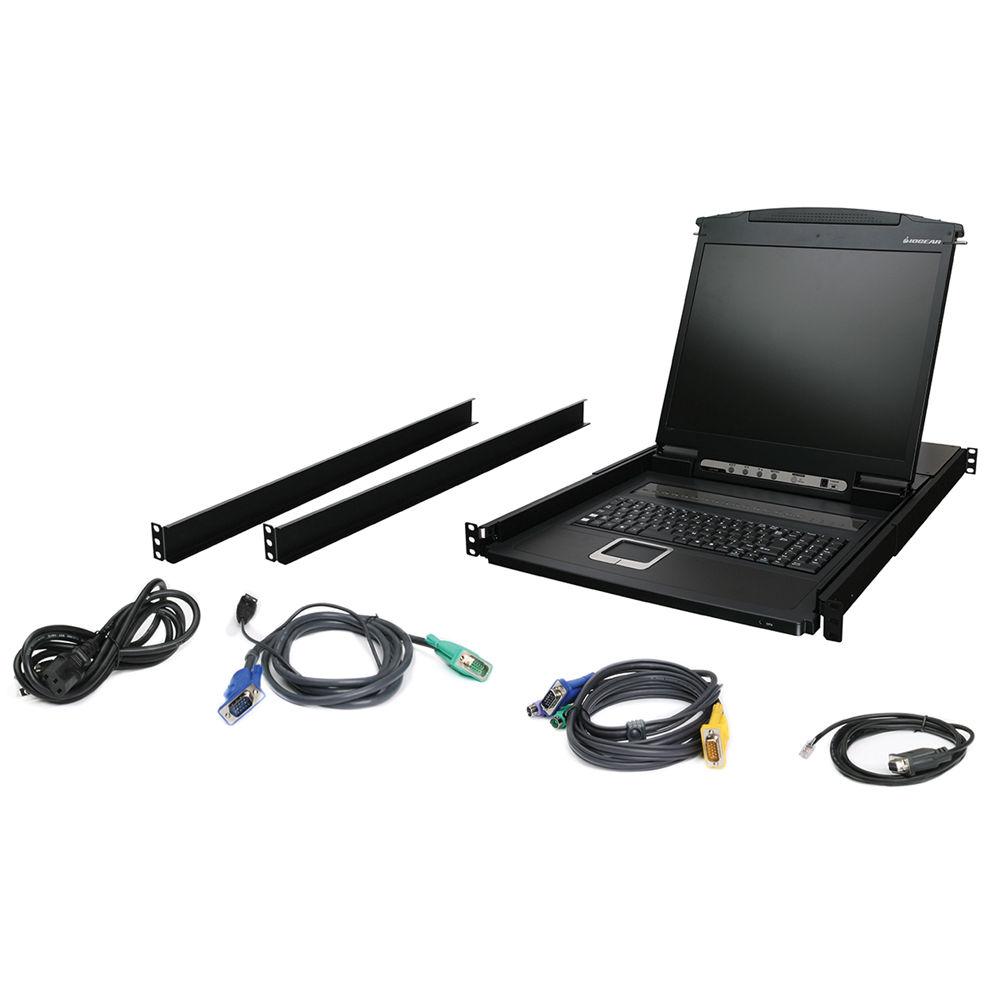

UPC: 881317512895 In the Box IOGEAR 16-Port 19" LCD Combo KVM Switch PS/2 KVM Cable USB KVM Cable Power Cable Firmware Upgrade Cable Standard Long Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 16-Port 19" LCD Combo KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

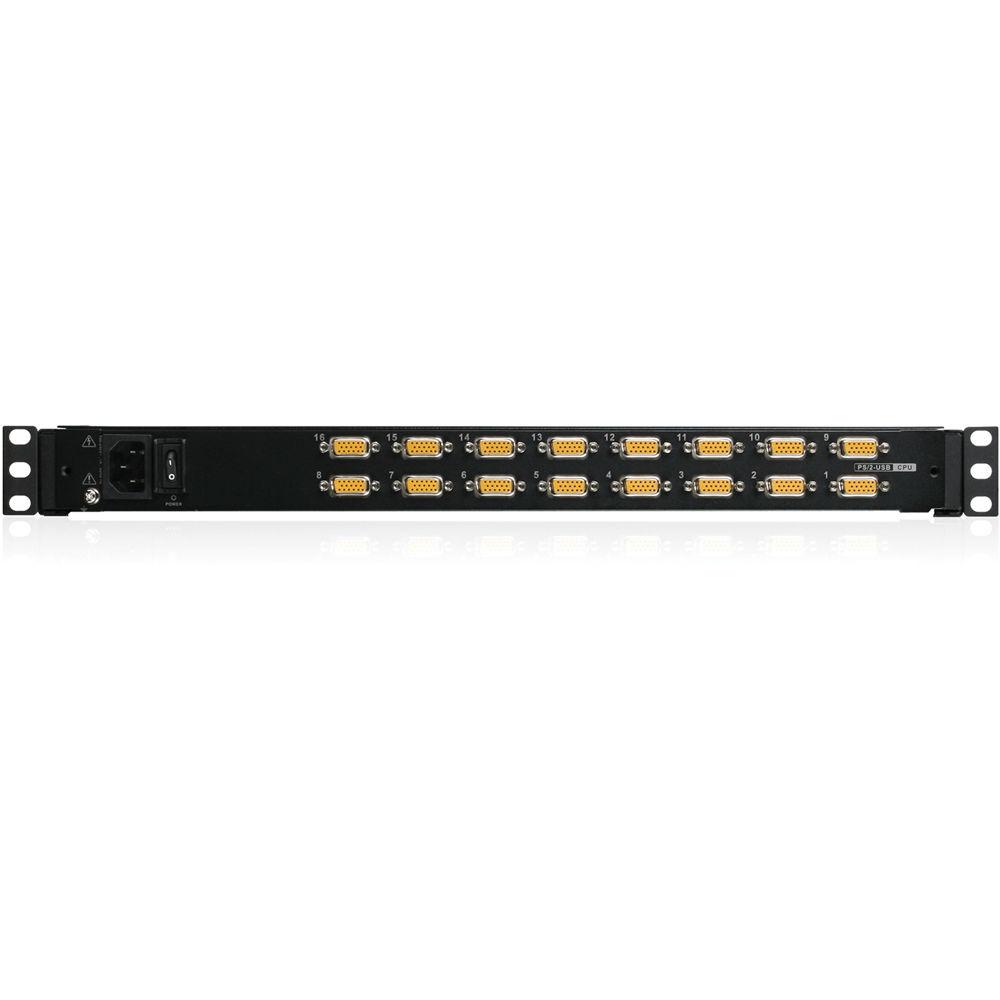

Technical parametersIOGEAR GCL1916 Specs LCD Size | 19" (485.6 mm) | Video Resolution | 1280 x 1024 at 75 Hz DDC2B | Computer Connections | Direct: 16 Daisy Chain or Cascading: 256 (via cascade) | Connectors | Power: 1 x 3-Prong AC socket Computer/KVM: 16 x SPHD-17 female (yellow) | Switches | F/W Upgrade: 1 x Slide Switch Port Selection: 8 x Pushbutton Power: 1 x Rocker Switch Reset: 1 x Semi-recessed Pushbutton LCD Power: 1 x Pushbutton LCD Adjustment: 4 x Pushbutton | Power | Current: 2.4 A Voltage: 5.3 VDC | Scan Interval | 1 to 255 sec | Environment | Operation Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: -4 to +140°F (-20 to +60°C) Relative Humidity: 0 to 80% (non-condensing) | Case | Metal | Port Selection | On Line: 8 (orange) Selected: 8 (green) Power On: Dark green (KVM) Orange (LCD) | Dimensions (L x H x D) | 17.75 x 27.00 x 1.75" (45.09 x 68.58 x 4.45 cm) | Weight | 28.05 lb (12.68 kg) | | Package Weight | 40.6 lb | Box Dimensions (LxWxH) | 33.0 x 26.5 x 5.0" |
