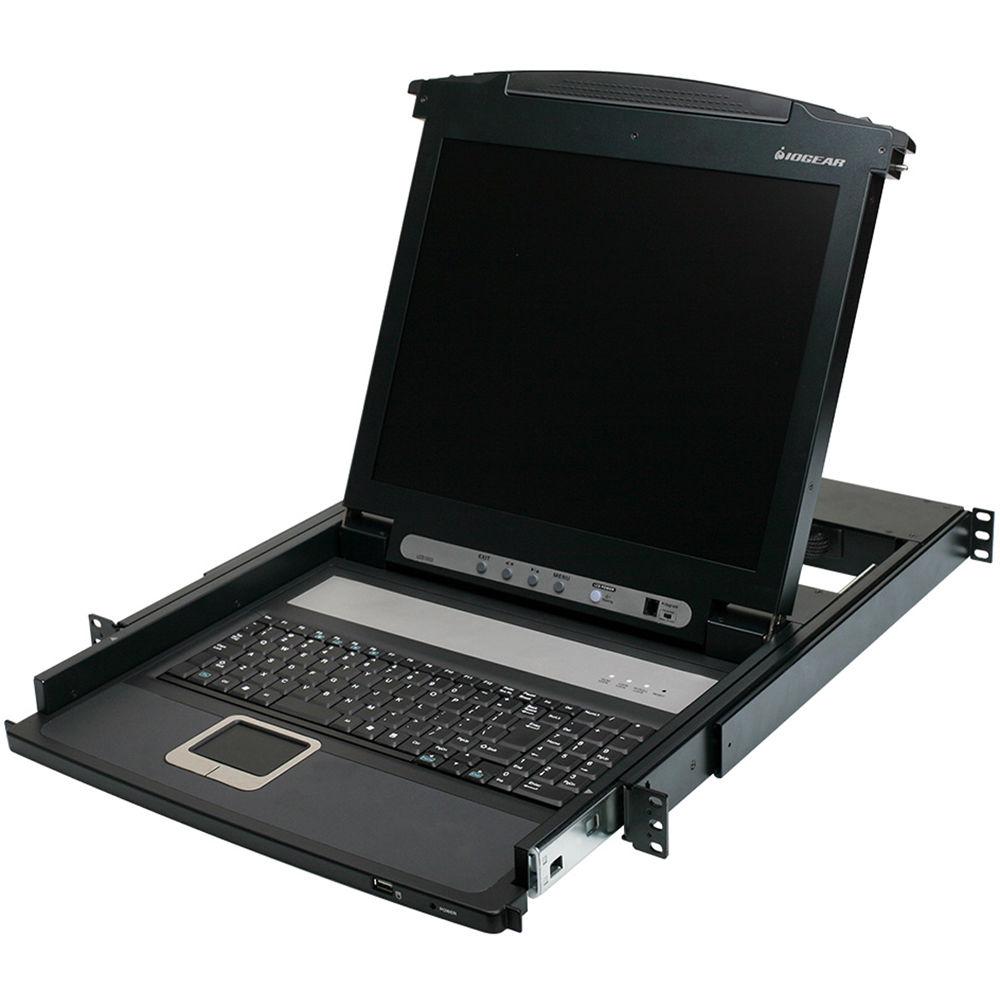

Product description With the 16-Port IP-Based KVM and 17" LCD KVM Console Bundle from IOGEAR, users can control up to sixteen computers using the included 17" TFT LCD monitor complete with a keyboard and touchpad. The KVM switch features a variety of connections including a single console port, sixteen computer/KVM ports, one USB 1.1 Type-A port, PS/2 and USB connectivity for a second mouse and keyboard, a single HDB-15 female secondary console video port, and one RJ-45 LAN port for high-speed network connectivity. In addition to ports, the KVM switch features a single firmware upgrade slide switch, eight push button port selection, and a dedicated reset button.
Once configured, this 1 RU rack-mountable 16-port IP-based KVM switch supports video resolutions up to 1280 x 1024, and works with Windows, Mac, Sun Solaris, and Linux-based operating systems. Additionally, this switch supports hot-pluggable connectivity, eliminating the need to power down the switch when adding or removing computers from the system. The easy-to-use interface features push button functionality along with a browser-based GUI for easy control of connected computers. Network security has also been addressed, as IOGEAR has implemented SSL 128-bit data encryption and RSA 1024-bit certificates to help avoid unauthorized users from gaining access to connected computers. Functionality - Integrated IP KVM bundle features a 17" TFT LCD active matrix monitor, keyboard, and touchpad complete with eight-port IP-based KVM switch
- Monitor and control up to eight computers from both local and remote KVM consoles
- Video quality up to 1280 x 1024 on LCD; up to 1600 x 1200 @ 60 Hz/24-bit color depth for remote access
- Multi-platform OS support for Windows, Mac, Sun Solaris, and Linux
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- DynaSync stores the local monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Rack-mountable in a 19" (1 RU) system; with adjustable depth allowing fitting into different sizes of racks
- Hot-pluggable—add or remove computers without having to power-down the switch
- Front-panel USB port allows connected computers to access USB peripherals, such as USB flash drives or hard drives. Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals
- Dual interface—the automatic interface detection supports computers with either PS/2 or USB connections
- Complete keyboard and mouse emulation for error-free booting
- Support for special keys on Mac and Sun keyboards
Easy-to-Use Interface - Easy to operate—computer selection via front panel push button LEDs, intuitive OSD (on-screen display), and hotkeys
- Browser-based or AP GUIs, including a menu-driven OSD for the remote console
- Windows client and Java client software support
- Multi-browser support for IE, Mozilla, Firefox, Safari, Opera, and Chrome (Chrome works when connecting to the GCS1808i from a Windows OS with the most current Java version installed)
- Panel array mode enables user to monitor multiple servers from a single screen
- Auto-scan mode to monitor connected computers
Advanced Security - Secure keyboard/video/mouse transmission via RC4 128-bit encryption
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates for secure user logins from a browser
- Two-level password security (administrator and users)—up to 64 user accounts with separate profiles for each
- Third-party authentication supported: RADIUS, LDAP, LDAPS, MS Active Directory
- Supports IP and MAC filters
- Log-in authentication required for both local and remote access
Virtual Remote Desktop - Resizable remote desktop window
- Message board allows logged-in users to communicate with each other and allows a user to take exclusive control of the KVM functions
- On-screen keyboard with multi-language support
UPC: 881317514653 In the Box IOGEAR 16-Port IP-Based KVM and 17" LCD KVM Console Bundle GCL1800 17" LCD Console GCS1816i 16-Port IP Based KVM Console Cable 7 x G2L5202U USB KVM Cable (6') 6 x G2L5203U USB KVM Cable (10') 2 x G2L5202P PS/2 KVM Cable (6') 2 x G2L5203P PS/2 KVM Cable (10') GCI1800 Firmware Upgrade Cable for LCD Console GCS1816i Firmware Upgrade Cable GCL1800 LCD Console Mounting Kit GCS1816i Mounting Kit Grounding Wire Power Cord for GCL1800 Power Adapter for GCS1816i Foot Pad Set (4-Piece) Software CD for GCS1816i Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 16-Port IP-Based KVM and 17" LCD KVM Console Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCL1816IKIT Specs | Requirements | Local Console:
1 x VGA monitor
1 x USB or PS/2 mouse
1 x USB or PS/2 keyboard
Local Computers:
Video graphics card with HDB-15 VGA port
USB Type A port and USB host controller, or 6-pin mini-DIN keyboard and mouse port
Operating Systems:
Windows (32/64-bit): Vista, 7, and 8.x
Apple Mac OS X 9.0 to 10.x
Note: For best results during remote access:- Computers used to access the 16-Port IP-based KVM should have at least a P III 1 GHz processor
- Screen resolution should be set to 1024 x 768
- Internet connection speed of at least 128 kbps
- Browsers must support 128-bit data encryption
- To run the Windows client, DirectX 8.0 or higher is required
- To run the Java client, Sun's Java Runtime Environment (JRE) 6, Update 3, or higher is required
- To run the Log Server, Microsoft Jet OLEDB 4.0 (or higher) driver is required
| | Computer Connections | 16 | | Connectors | Console: 1 x SPHD-18, male
Computer/KVM: 16 x SPHD-17, female
Power: 1 x DC jack (KVM), 1 x 3-prong AC socket (LCD)
USB: 1 x USB 1.1 Type A
LAN: 1 x RJ45, female
Second Console Keyboard: PS/2, USB
Second Console Mouse: PS/2, USB
Second Console Video: 1 x HDB-15, female | | Switches | F/W Upgrade: 1 x Slide switch
Port Selection: 16 x Push button
Reset: 1 x Semi-recessed push button
LCD Power: 1 x LED push button (orange)
LCD Adjustment: 4 x Push button | | Emulation | Keyboard: PS/2, USB
Mouse: PS/2, USB | | Video Performance | Remote: 1600 x 1200 @ 60 Hz / 24-bit color depth
Local: 2048 x 1536, DDC2B (for KVM); 1280 x 1024 (for LCD) | | Scan Interval | 1-255 sec | | Housing | KVM Case: Metal
LCD Case: Metal and plastic | | LEDs | On Line: 16 x Orange
Power On: Dark Green (KVM and LCD)
10/100 Mbps: 1 x (Orange/Green, LAN port) | | Power | Voltage: DC 5.3 V
Amps: 2.4 A | | Console Connectors | Flash ROM Upgrade: 1 x RJ-11, female | | CPU Connectors | Keyboard, Mouse, and Monitor: 1 x SPHD-15, female | | Temperature & Humidity | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: 0 to 80% RH, non-condensing | | Dimensions | 37 x 6 x 28" / 94.0 x 15.2 x 71.1 cm | | Weight | 55 lb / 12 kg |
