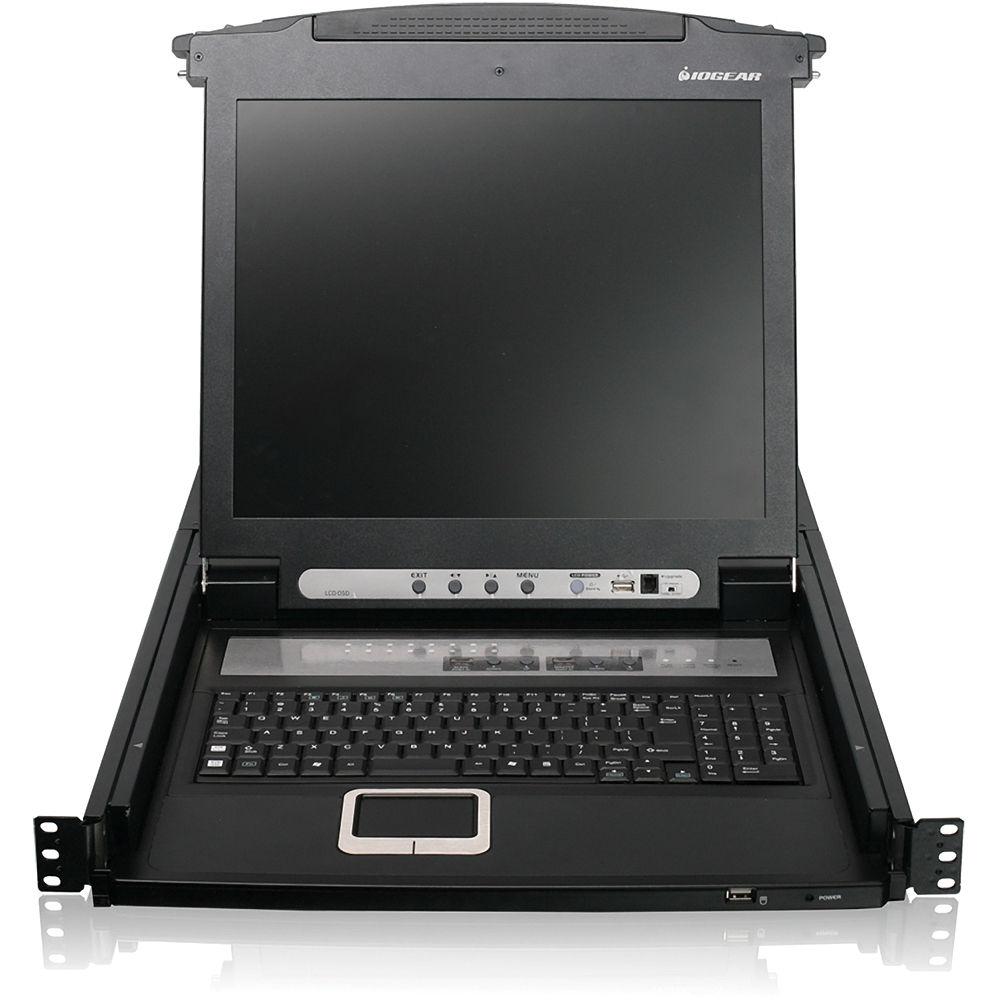

Product description The IOGEAR 16-Port LCD Combo KVM Switch with USB KVM Cables comes with 16 KVM ports as well as an integrated 17" TFT display, keyboard, and touchpad so you can easily operate up to 16 Windows, Mac, Sun, and Linux systems. This switch includes two sets of 16 each 6' and 10' USB KVM cables. Each of the custom cables has a 15-pin KVM connector, as well as a set of interfaces that connect to your computer's USB port and VGA port. The 1 RU switch features a convenient slide/retractable design that can be mounted onto a rack system. The 17" monitor offers a screen resolution of 1280 x 1024 and folds down over the keyboard and touchpad when not in use. For easy management, you can quickly switch between computers utilizing either LED push buttons located on the front panel or hotkey commands. The switch supports DDC emulation which automatically adjusts each computer's video setting for optimal output to the 17" monitor. In addition, an intuitive on-screen display (OSD) offers two-level password protection for enhanced security. IOGEAR lets you expand the switch's capabilities by offering a console port which connects to an optional external monitor, keyboard, and mouse. The switch supports up to 16 additional KVM switches, so you can control up to 256 computers from this console. - Integrates a keyboard, a 16-port KVM switch, a 17" TFT LCD active matrix monitor, and a touchpad in a universal 1 RU rackmount space
- Compatible with Windows, Mac, Sun Solaris, and Linux platforms
- Features a 16-port KVM (keyboard, video, and mouse) switch that can be connected to 16 VGA, USB, or PS/2 ports
- Up to 16 additional compatible KVM switches can be cascaded together, controlling a maximum of 256 computers from a single KVM console
- Equipped with a USB-PS/2 console port on the rear panel that allows the KVM switch to be controlled from an external console (monitor, keyboard, and mouse)
- Includes one console cable, one cascade cable, and 16 KVM cables, which provide VGA and USB connectors

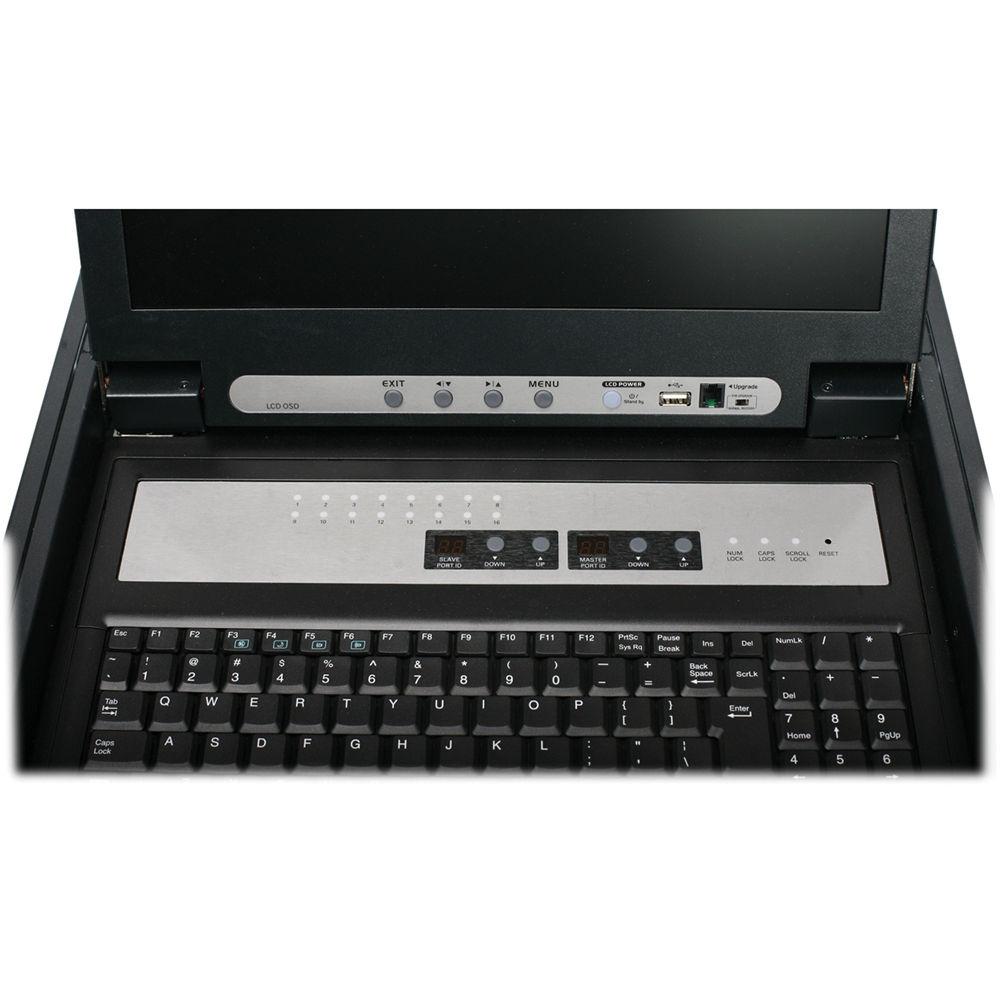

- Front panel push button LEDs, an intuitive OSD (On-Screen Display), and the hotkeys enable quick and easy access to a given computer
- OSD comes with two-level password protection for enhanced security

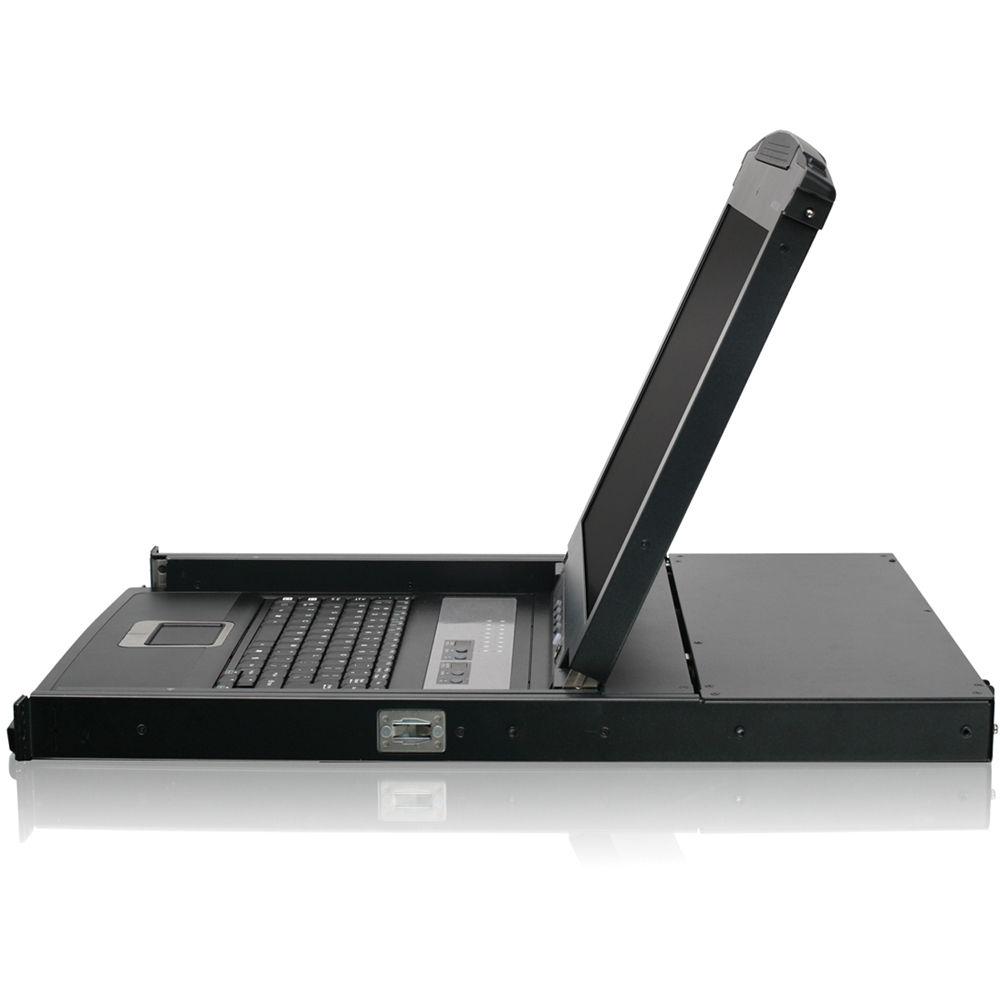

- Depth can be easily adjusted, allowing you to fit racks of different sizes
- Monitor resolution of 1280 x 1024
- DDC emulation enables the video settings of each computer to be automatically adjusted for optimal output to the integrated monitor
- Custom ASIC provides an auto-sensing function which helps recognize the position of each station on the installation
- Fully supports the DDC2B protocol
UPC: 881317506436 In the Box IOGEAR 16-Port LCD Combo KVM Switch with USB KVM Cables (1 RU) 16 x 6' (1.8 m) USB KVM Cable 16 x 10' (3 m) USB KVM Cable 6' (1.8 m) PS/2 KVM Cable Console Cable Cascade Cable Firmware Upgrade Cable Grounding Wire Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 16-Port LCD Combo KVM Switch with USB KVM Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

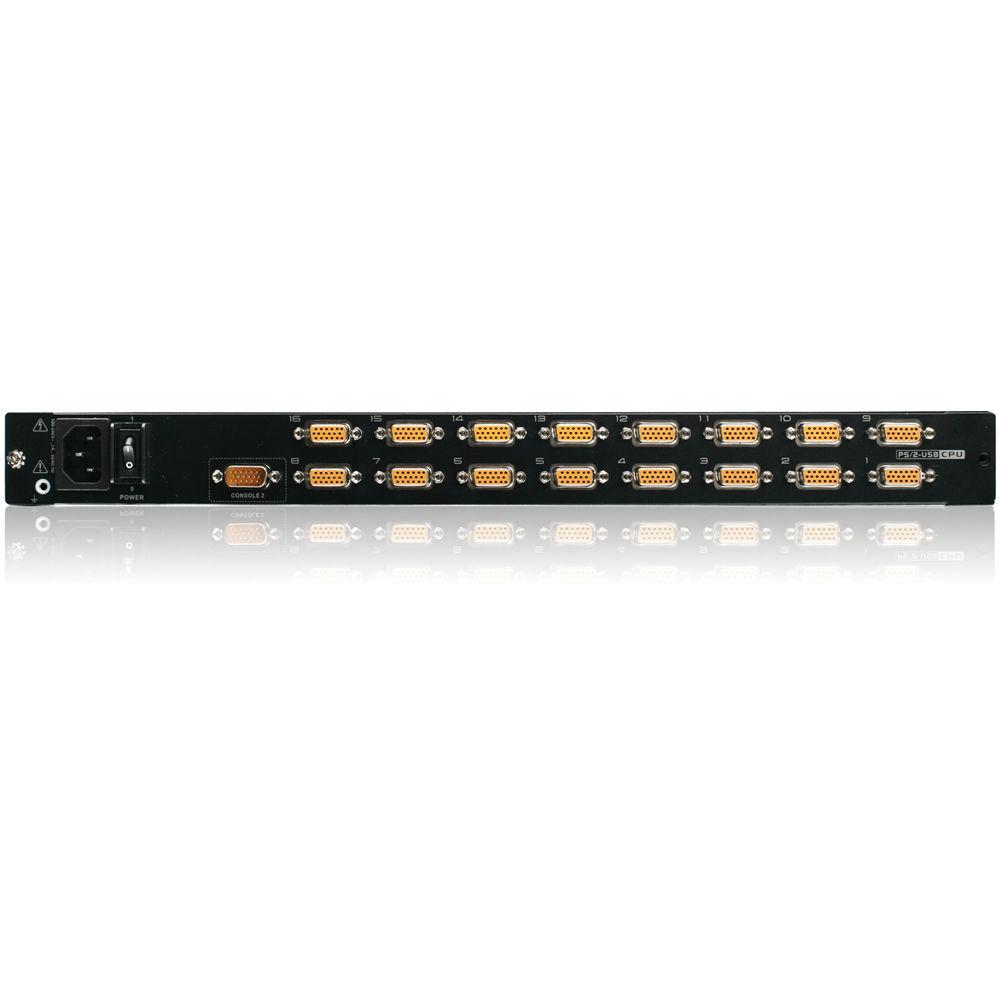

Technical parametersIOGEAR GCL1816 Specs Computer Connections | Direct: 16 Daisy Chain or Cascading: 256 | Port Selection | OSD, hotkeys, push buttons | Connectors | Console: 1 x SPHD-18, male Power: 1 x Three-prong AC socket | Console Connectors | Monitor: 1 x 15-pin VGA, female Keyboard: PS/2 or USB Mouse: PS/2 or USB Extra Mouse: 1 x USB Type A, female Flash ROM Upgrade: 1 x RJ-11, female | CPU Connectors | Keyboard, Mouse, and Monitor: 16 x 15-pin VGA, female | Switches | Reset: 1 x Semi-recessed push button Power: 1 x Rocker switch F/W Upgrade: 1 x Switch LCD Adjustment: 4 x Push button LCD Power: 1 x LED push button (orange) Port Selection: 4 x Push button | LEDs | On Line: 16 (orange) Port ID: 4 x 7-Segment LED display (yellow) Power On (green) | Emulation | Keyboard: PS/2, USB Mouse: PS/2, USB | Video Resolution | 1280 x 1024 @ 75 Hz, DDC2B | Scan Interval | 1-255 seconds | Power Input Rating | Per AC Power Inlet: 100 to 240 VAC, 50/60 Hz, 1 A | Power Consumption | 120 V, 28 W | Environment | Operation Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: 68 to 140°F (-20 to 60°C) Humidity: 0 to 80% RH, non-condensing | Housing Material | Metal and plastic case | Requirements | VGA, SVGA, or Multisync video graphics card with HDB-15 port PS/2 mouse and keyboard ports (6-pin mini DIN), or one USB port | Dimensions (WxHxD) | 19.0 x 1.8 x 25.0" (48.3 x 4.4 x 63.5 cm) | Weight | Unit Pack Weight: 55.9 lb (25.4 kg) Unit Weight with Accessories: 41.9 lb (19 kg) Unit Weight: 29 lb (10.4 kg) | | Package Weight | 54.2 lb | Box Dimensions (LxWxH) | 37.0 x 31.0 x 6.5" |
