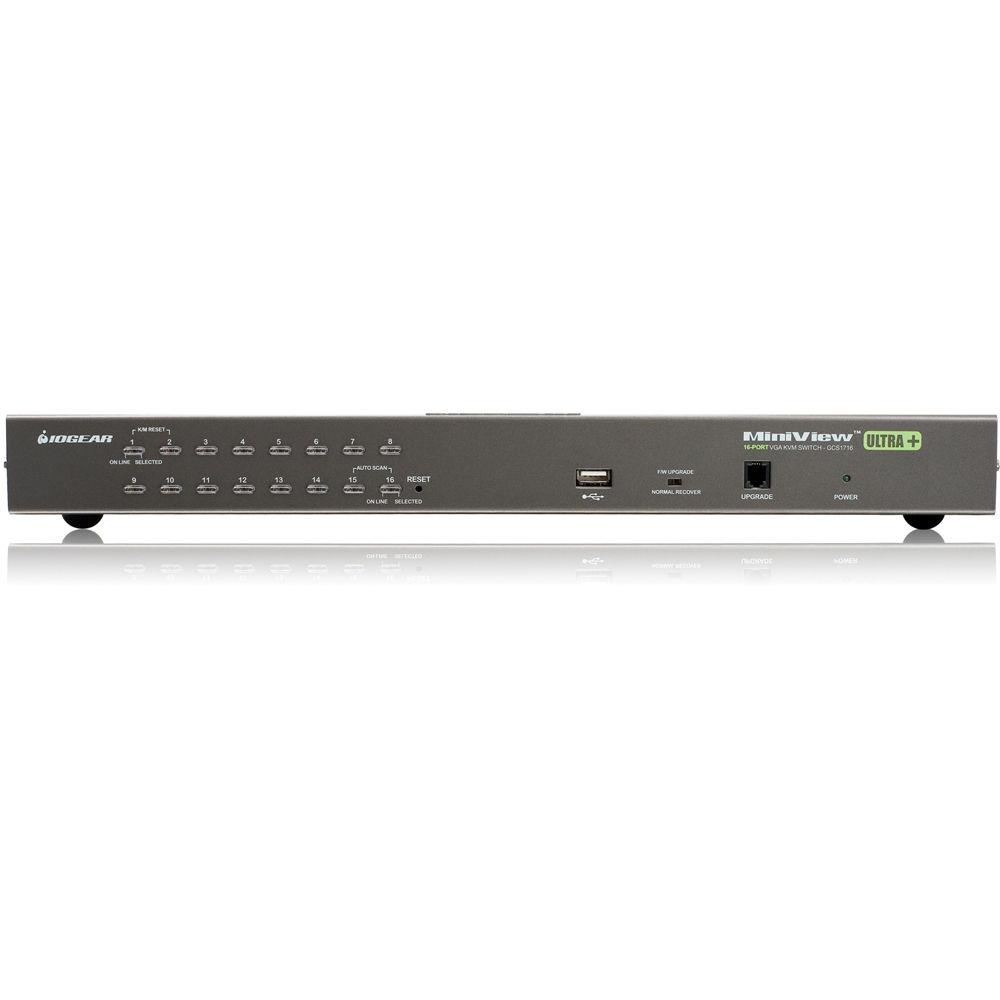

Product description Multi-Monitors: Maximizing Multitasking Read More decvcczfyqcudauytddsuqwswt The 16-Port PS/2 USB Combo KVM Switch Kit with Eighteen KVM Cables from IOGEAR makes connecting a single console to myriad computers extremely easy. In addition to the switch, you will receive as part of the kit one 6-foot USB KVM cables, sixteen 10-foot USB KVM cables, and one 6-foot PS/2 KVM cable. These cables allow you to connect the switch with computers that rely upon the VGA interface and either PS/2 or USB ports for mouse and keyboard connections.
This switch fits into a 1U rack mount and can directly connect up to sixteen different computers. However, if you utilize the 2-level cascade setup, you can connect up to sixteen switches and manage up to 256 computers. The streamlined form-factor allows the switch to be quickly mounted to a 1U system rack. Whether you have a small handful of computers or a myriad, this switch and the cable kit with it provide simple, powerful, and efficient management. - The switch is compatible with Windows, Mac, Sun Solaris, Linux 1
Please Note: IOGEAR's Display Emulation Technology provides the DDC support for Windows 7 close - The switch is easy to operate, as you can select between computers via the front panel LED's or the intuitive OSD (on screen display), or with HotKeys
- The switch supports cascading for up to 2 levels, so that you can control up to 256 computers from a single console
- For security, the switch features 2-level password protection for OSD
- The switch supports a maximum video resolution of 2048 x 1536 resolution
- There is a front USB port that permits system upgrades and shared peripherals. Fully compliant with USB 1.1 2
Please Note: Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals close - The switch is rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation

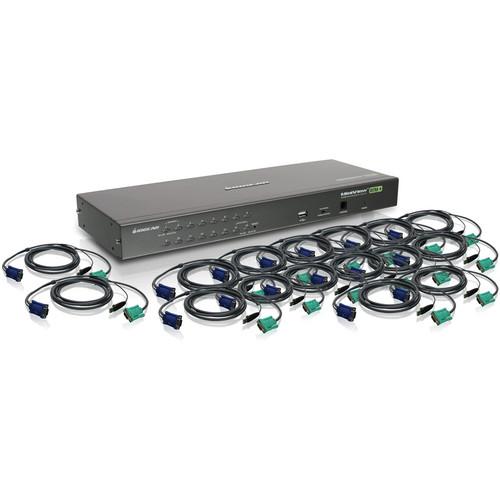

UPC: 881317509499 In the Box IOGEAR 16-Port PS/2 USB Combo KVM Switch Kit with Eighteen KVM Cables 6' (1.8 m) USB KVM Cable decvcczfyqcudauytddsuqwswt 16 x 10' (3 m) USB KVM Cable 6' (1.8 m) PS/2 KVM Cable Console Cable Cascade Cable Firmware Upgrade Cable Grounding Wire Standard Rack Mounting Kit Foot Pad Set (4 Pads) Power Adapter Installation Guide 3-Year Limited Warranty on Switch Limited Lifetime Warranty on PS/2 KVM and USB KVM Cables Brochure PDF 373.9kbdecvcczfyqcudauytddsuqwswt Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 16-Port PS 2 USB Combo KVM Switch Kit with Eighteen KVM Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

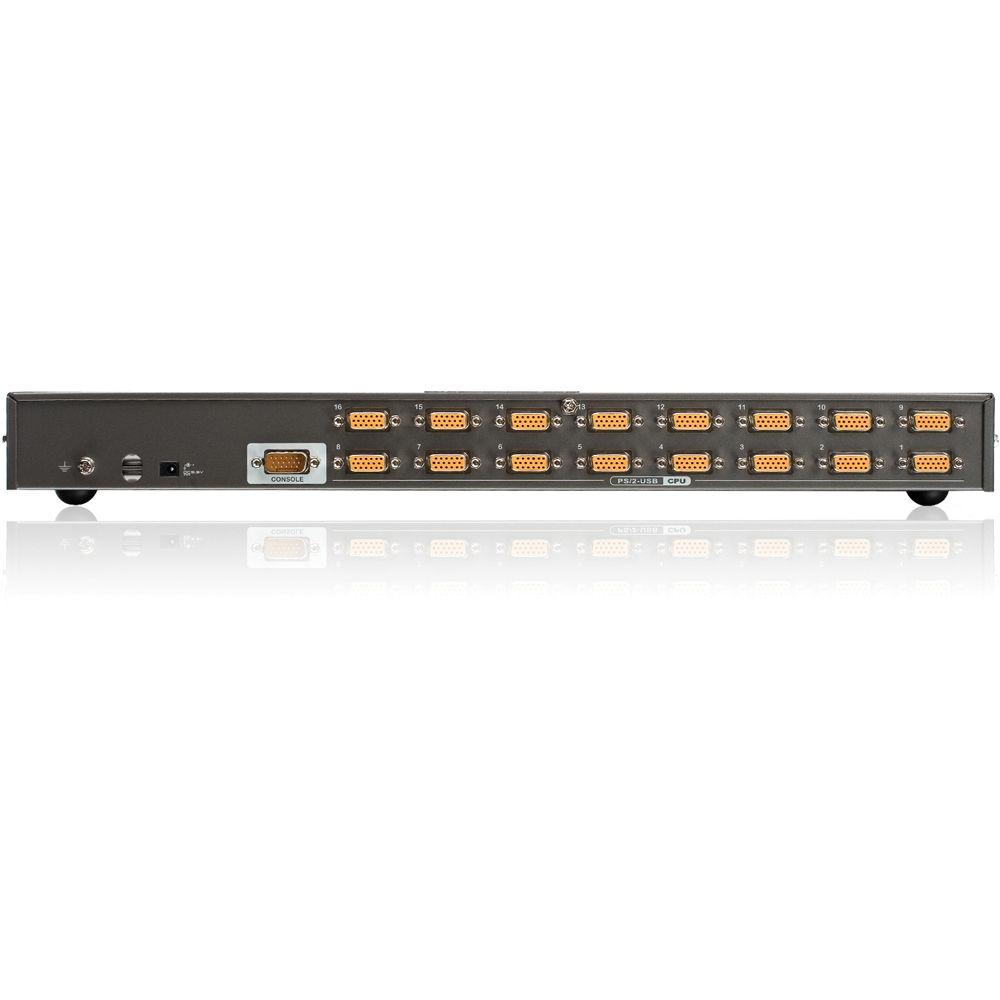

Technical parametersIOGEAR GCS1716KITUTAA Specs | Max Computer Connections | 16 | | PC Connectors | 16x SPHD-15 Female | | Console Connectors | 1x SPHD-18 Male | | USB | 1x USB 1.1. Type A Female Port | | Video Resolution | 2048 x 1536 | | Scan Interval | Variable (1-255 seconds) | | Port Selection | OSD, Push Button, Hotkeys | | Switches | F/W Upgrade: 1x Slide Switch
Port Selection: 16x Push Button | | | | Enclosure | 1U Rack Mount | | Environmental Requirements | Operation Temperature: 32° to 122°F / 0° to 50°C
Storage Temperature: -4 to 140°F / -20° to 60°C
Humidity: 0 to 80% RH, Non-condensing | | Requirements | Console:
·VGA, SVGA, or MultiSync Monitor
·A Keyboard and Mouse (USB or PS/2)
Computers:
·VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
·PS/2 mouse and keyboard ports (6-pin mini DIN)
·1 x USB port
Operating System
·Windows XP, Windows Vista (32-bit / 64-bit )
·Windows 7
·Apple Mac OS 9.0 and above
·Sun Solaris 8.0 and above
·Linux | | Power Requirements | AC: 120VAC
Voltage: DC 5.3V
Amps: 2.4A | | Dimensions (WxHxD) | 17 x 1.75 x 6.25" (43.2 x 4.4 x 15.9cm) | | Weight | 6 lb (2.7kg) | | | | Package Weight | 19.8 lb | | Box Dimensions (LxWxH) | 22.0 x 10.13 x 9.5" |
