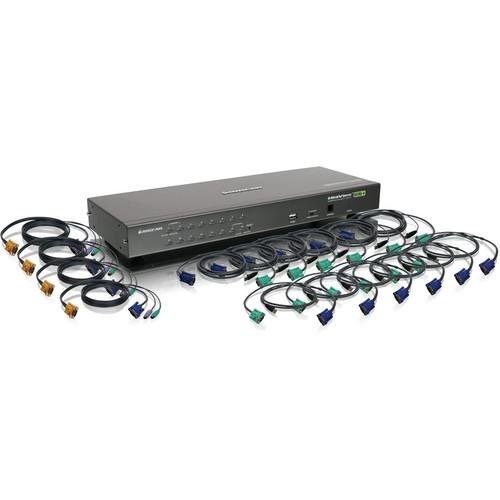

User Manual for IOGEAR 16-Port PS 2 USB Combo KVM Switch Kit with Sixteen KVM Cables Click to enlarge the picture
Contents of the user manual for the IOGEAR 16-Port PS 2 USB Combo
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
|
User manual for the IOGEAR 16-Port PS 2 USB Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More teyqedvqxx The 16-Port PS/2 USB Combo KVM Switch Kit with Sixteen KVM Cables from IOGEAR makes connecting a single console to myriad computers extremely easy. In addition to the switch, you will receive as part of the kit six 6-foot USB KVM cables, six 10-foot USB KVM cables, two 6-foot PS/2 KVM cables, and two 10-foot PS/2 KVM cables. These cables allow you to connect the switch with computers that rely upon the VGA interface and either PS/2 or USB ports for mouse and keyboard connections.
This switch fits into a 1U rack mount and can directly connect up to sixteen different computers. However, if you utilize the 2-level cascade setup, you can connect up to sixteen switches and manage up to 256 computers. The streamlined form factor allows the switch to be quickly mounted to a 1U system rack. Whether you have a small handful of computers or a myriad, this switch and the cable kit with it provide simple, powerful, and efficient management. - The switch is compatible with Windows, Mac, Sun Solaris, Linux 1
Please Note: IOGEAR's Display Emulation Technology provides the DDC support for Windows 7 close - The switch is easy to operate, as you can select between computers via the front panel LED's or the intuitive OSD (on screen display), or with HotKeys
- The switch supports cascading for up to 2 levels, so that you can control up to 256 computers from a single console
- For security, the switch features 2-level password protection for OSD
- The switch supports a maximum video resolution of 2048 x 1536 resolution
- There is a front USB port that permits system upgrades and shared peripherals. Fully compliant with USB 1.1 2
Please Note: Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals close - The switch is rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
UPC: 881317509475 In the Box IOGEAR 16-Port PS/2 USB Combo KVM Switch Kit with Sixteen KVM Cables 6 x 6' (1.8 m) USB KVM Cable teyqedvqxx 6 x 10' (3 m) USB KVM Cable 2 x 6' (1.8 m) PS/2 KVM Cable 2 x 10' (3 m) PS/2 KVM Cable Console Cable Cascade Cable Firmware Upgrade Cable Grounding Wire Standard Rack Mounting Kit Foot Pad Set (4 Pads) Power Adapter Installation Guide 3-Year Limited Warranty on Switch Limited Lifetime Warranty on PS/2 KVM and USB KVM Cables Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 16-Port PS 2 USB Combo KVM Switch Kit with Sixteen KVM Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS1716KITTAA Specs | Max Computer Connections | 16 | | PC Connectors | 16x SPHD-15 Female | | Console Connectors | 1x SPHD-18 Male | | USB | 1x USB 1.1. Type A Female Port | | Video Resolution | 2048 x 1536 | | Scan Interval | Variable (1-255 seconds) | | Port Selection | OSD, Push Button, Hotkeys | | Switches | F/W Upgrade: 1x Slide Switch
Port Selection: 16x Push Button | | | | Enclosure | 1U Rack Mount | | Environmental Requirements | Operation Temperature: 32° to 122°F / 0° to 50°C
Storage Temperature: -4 to 140°F / -20° to 60°C
Humidity: 0 to 80% RH, Non-condensing | | Requirements | Console:
·VGA, SVGA, or MultiSync Monitor
·A Keyboard and Mouse (USB or PS/2)
Computers:
·VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
·PS/2 mouse and keyboard ports (6-pin mini DIN)
·1 x USB port
Operating System
·Windows XP, Windows Vista (32-bit / 64-bit )
·Windows 7
·Apple Mac OS 9.0 and above
·Sun Solaris 8.0 and above
·Linux | | Power Requirements | AC: 120VAC
Voltage: DC 5.3V
Amps: 2.4A | | Dimensions (WxHxD) | 17 x 1.75 x 6.25" (43.2 x 4.4 x 15.9cm) | | Weight | 6 lb (2.7kg) | | | | Package Weight | 18.75 lb | | Box Dimensions (LxWxH) | 22.3 x 10.1 x 9.9" |
