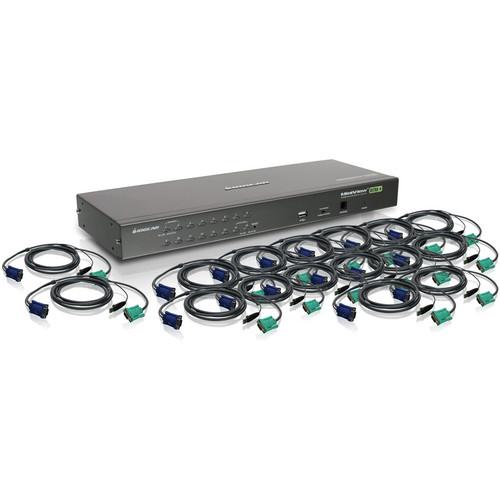

User Manual for IOGEAR 16-Port USB PS 2 Combo KVM Switch with Cables Click to enlarge the picture
Contents of the user manual for the IOGEAR 16-Port USB PS 2 Combo
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 16-Port USB PS 2 Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More vwreuseavvwfxuyuaybrzd The Iogear 16-Port USB PS/2 Combo KVM Switch with Cables connects a single workstation to 16 servers, and utilizing a 2-level cascade setup, you can manage up to 256 computers using a single keyboard, mouse, and monitor.

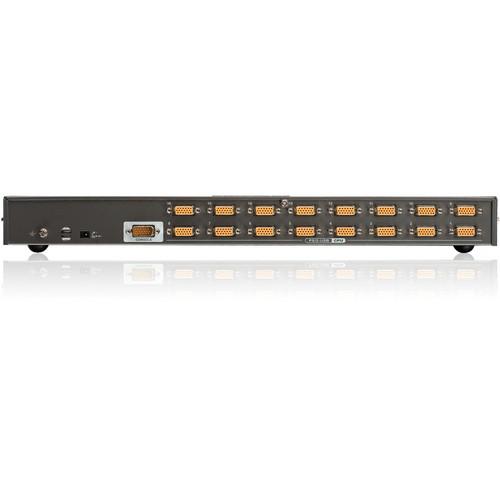

For security purposes, a 2 level password protection for OSD is available. It offers a maximum resolution up to 2048 x 1536. Custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Instead of the usual 25-pin connectors, this KVM switch uses a high density SPHD 15-pin connector that allows for a compact design and makes it rack mountable in a 19” (48.26 cm) 1U system rack. With a USB port on the front panel, it also offers support for PS/2 connection.

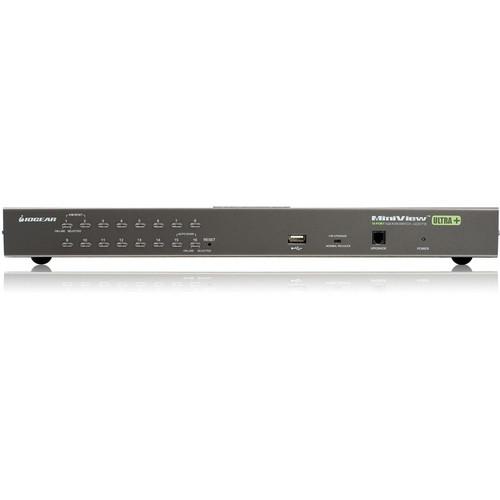

You can easily switch between computers by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. The auto-scan feature permits automatic scanning and monitoring of all connected activities. Along with the DDC2B support, a multi-OS platform support including Windows XP, Windows Vista, Windows 7, Mac OS X, Sun Solaris, and Linux is available. The 16-Port USB PS/2 Combo KVM Switch with Cables eliminates the excessive expense of additional monitors, keyboards and mice while increasing the office space and productivity. - 16-Port PS/2 USB Combo KVM Switch The 16-Port PS/2 USB Combo KVM Switch from IOGEAR is a rackmount device that allows up to 16 computers to share a single keyboard, monitor, and mouse. It features a 1U rackmount design for professional installation.
- USB and PS/2 connectivity
- VGA display support at 2048 x 1536 resolution
- Windows, Mac, Linux, and Sun Solaris support
- Push-button, OSD, and hot key switching
UPC: 881317502858 - 6' (1.8 m) USB KVM Cable The 6' (1.8 m) USB KVM Cable from IOGEAR is used to connect a computer to a GCS1716, GCS1742, or GCS1744 KVM switch. The cable features VGA and USB connectors.
- Features double-shielded 22 gauge USB and UL-2919 VGA cable for superior transmission quality
UPC: 881317503190 - 6' (1.8 m) PS/2 KVM Cable The 6' (1.8 m) PS/2 KVM Cable from IOGEAR is used to connect a computer to a GCS1716, GCS1742, or GCS1744 KVM switch. The cable features VGA and PS/2 connectors.
- Features double-shielded 22 gauge PS/2 and UL-2919 VGA cable for superior transmission quality
UPC: 881317503169 - 10' (3 m) USB KVM Cable The 10' (3 m) USB KVM Cable from IOGEAR is used to connect a computer to a GCS1716, GCS1742, or GCS1744 KVM switch. The cable features VGA and USB connectors.
- Features double-shielded 22 gauge USB and UL-2919 VGA cable for superior transmission quality
UPC: 881317503206 In the Box Bundle Items 16-Port PS/2 USB Combo KVM Switch vwreuseavvwfxuyuaybrzd - 2 x Custom KVM Cable Sets (1 USB, 1 PS/2)
8 x 6' (1.8 m) USB KVM Cable - Limited Lifetime Warranty
6' (1.8 m) PS/2 KVM Cable - Limited Lifetime Warranty
8 x 10' (3 m) USB KVM Cable - Limited Lifetime Warranty
Also Includes - Console Cable
- Cascade Cable
- Firmware Upgrade Cable
- Grounding Wire
- 4 x Foot Pad
- Power Adapter
- Rack Mount Kit
- 3-Year Limited Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 16-Port USB PS 2 Combo KVM Switch with Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 16-Port PS/2 USB Combo KVM Switch
| Max Computer Connections | 16 | | PC Connectors | 16x Console Connectors | | Console Connectors | 1x Console Connector | | Video Resolution | 2048 x 1536 | | Scan Interval | Variable (1-255 seconds) | | Port Selection | OSD, Push Button, Hotkeys | | Enclosure | 1U Rackmount | | System Requirements | Computers with PS/2 or USB and VGA connections
Equipment rack strongly recommended | | Power Requirements | AC: 120VAC | | Dimensions (WxHxD) | 17 x 1.75 x 6.25" (43.2 x 4.4 x 15.9cm) | | Weight | 6 lb (2.7kg) | | | | Box Dimensions (LxWxH) | 22.0 x 9.63 x 5.63" | - 6' (1.8 m) USB KVM Cable
| Cable Type | KVM | | Length | 6' (1.8 m) | | Connector 1 | 1x 15-pin KVM connector for IOGEAR GCS1716, GCS1742, or GCS1744 KVM switch | | Connector 2 | 1x VGA (Male)
1x USB "Type-A" (Male) | | | | Box Dimensions (LxWxH) | 9.75 x 8.25 x 0.63" | - 6' (1.8 m) PS/2 KVM Cable
| Cable Type | KVM | | Length | 6' (1.8 m) | | Connector 1 | 1x 15-pin KVM connector for IOGEAR GCS1716, GCS1742, or GCS1744 KVM switch | | Connector 2 | 1x VGA (Male)
2x PS/2 (Male) | | | | Box Dimensions (LxWxH) | 7.1 x 7.0 x 0.8" | - 10' (3 m) USB KVM Cable
| Cable Type | KVM | | Length | 10' (3 m) | | Connector 1 | 1x 15-pin KVM connector for IOGEAR GCS1716, GCS1742, or GCS1744 KVM switch | | Connector 2 | 1x VGA (Male)
1x USB "Type-A" (Male) | | | | Box Dimensions (LxWxH) | 7.4 x 6.0 x 1.0" |
