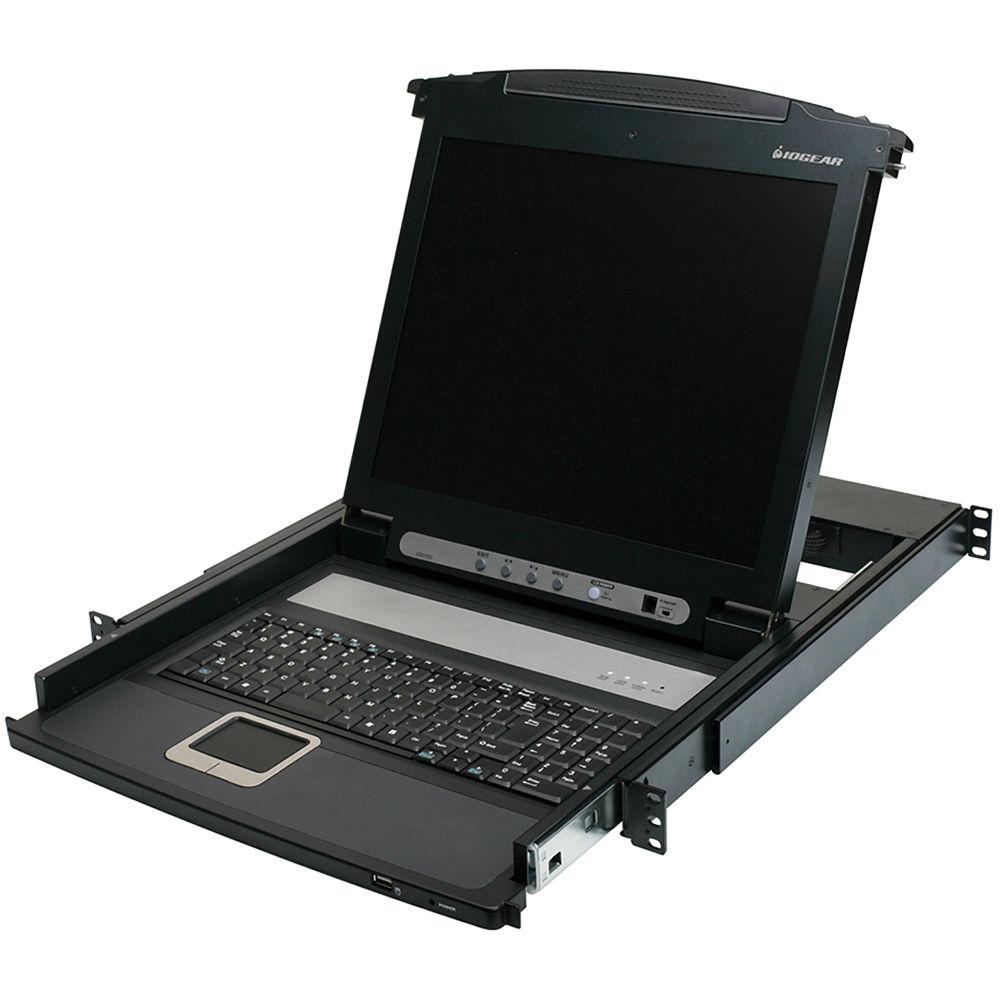

Product description The Iogear 17" LCD Combo Console integrates a 17" TFT LCD active matrix monitor, a keyboard, and a touchpad in a single unit. The keyboard and touchpad are built into the base, while the LCD display is built into the cover. The 17" display features a 1280 x 1024 screen resolution.The console's depth can be easily adjusted, allowing it to fit racks of different sizes. You can also slide the console module section out and flip the cover upwards. The LCD drawer features an external USB mouse port and additional external console ports for a separate keyboard, monitor, and mouse that can be used by a second user. The LCD combo console is compatible with Windows, Mac, Sun Solaris, and Linux operating systems. - Integrates a 17" TFT LCD monitor with a keyboard and touchpad in a single unit
- Compatible with Windows, Mac, Sun Solaris, and Linux operating systems
- The keyboard and touchpad are built into the base, while the LCD display is built into the cover
- The 17" display features a 1280 x 1024 resolution
- The depth is adjustable, allowing it to fit racks of different sizes
- You can use the console by simply sliding out the console module section and flipping the cover up
- The LCD drawer features an external USB mouse port
- With additional external console ports for devices, a separate keyboard, monitor, and mouse can be used by a second user
UPC: 881317506139 In the Box IOGEAR 17" LCD Combo Console USB KVM Cable Firmware Upgrade Cable Rack Mount Kit (Short and Long L Brackets) Grounding Wire Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 17" LCD Combo Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

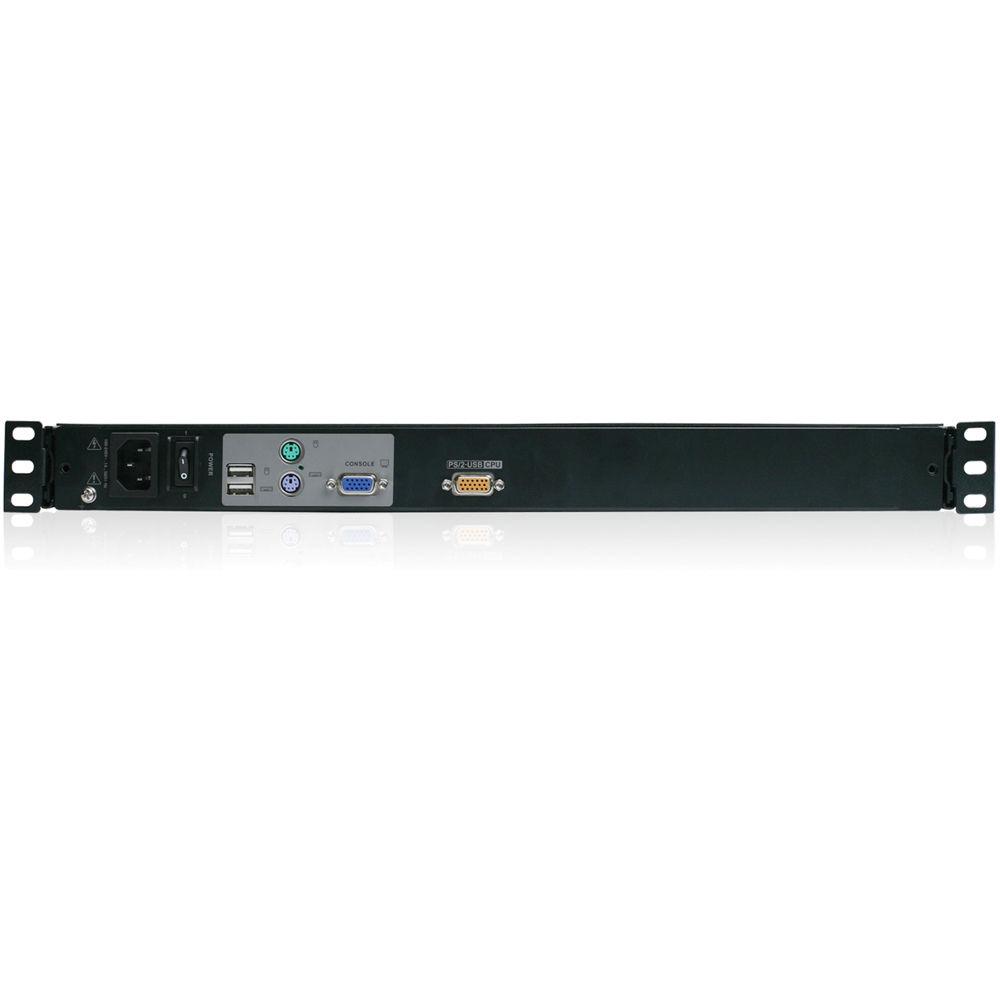

Technical parametersIOGEAR GCL1800 Specs Computer Connections | Direct: 1 Daisy Chain or Cascading: 256 | Connectors | HDB-15 (second console video) PS/2 or USB (second console keyboard) PS/2 or USB (second console mouse) USB (external USB mouse port) 3-Prong AC power socket | Console Connectors | RJ-11 (flash ROM upgrade) | CPU Connectors | SPHD-15 (keyboard, mouse, and monitor) | Switches | Power Reset F/W Upgrade LCD Power 4 x LCD Adjustment | LEDs | Power On: Dark green | Emulation | Keyboard: PS/2, USB Mouse: PS/2, USB | Resolution | 1280 x 1024 @ 75 Hz | Power Input | 100 - 240 VAC, 50/60 Hz, 1 A | Power Consumption | 120 V, 29.6 W | Temperature & Humidity | Operation Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: 68 to 140°F / -20 to 60°C Humidity: 0-80% RH; Non-condensing | Dimensions (WxHxD) | 19.0 x 1.8 x 21.0" / 48.3 x 4.4 x 53.3 cm | Weight | Unit Pack Weight: 40.1 lb / 18.2 kg Unit Weight with Accessories: 30.3 lb / 13.7 kg Unit Weight: 25.9 lb / 11.8 kg | | Package Weight | 39.8 lb | Box Dimensions (LxWxH) | 28.1 x 26.6 x 5.5" |
