IOGEAR 2-Port 4K UHD DisplayPort KVMP

User Manual for IOGEAR 2-Port 4K UHD DisplayPort KVMP Kit with Keyboard and Mouse

• Product category: KVM Switches IOGEAR
• Brand: IOGEAR
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IOGEAR KVM Switches

Product description

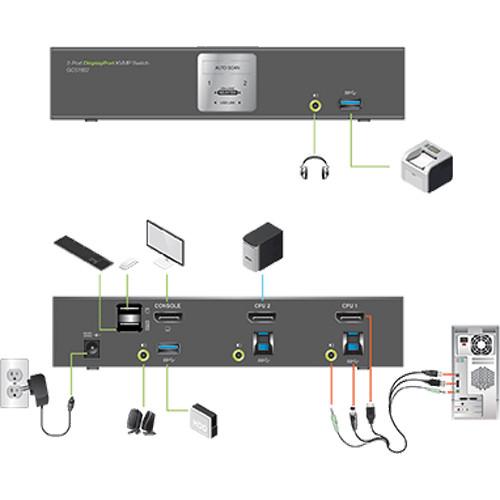

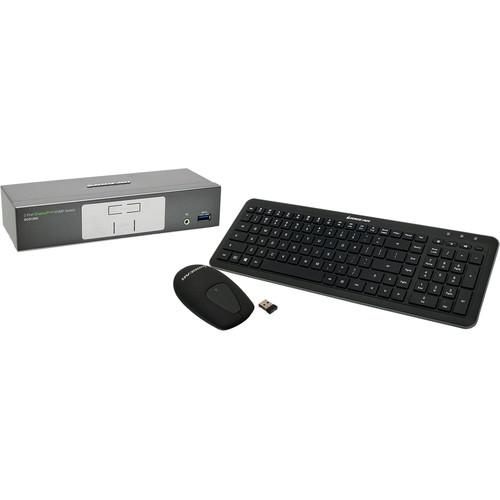

• 2-Port DisplayPort KVMP Switch with USB 3.1 Gen 1 Hub The IOGEAR 2-Port DisplayPort KVMP Switch with USB 3.0 Hub lets you use a single set of console peripherals to control up to two computer systems that have DisplayPort outputs. The switch allows you to quickly move between the systems via hotkey combinations, pushbuttons, or wheel-mouse clicks. KVM cables are included for connecting to your computer's DisplayPort, audio, and USB Type-A ports, and an integrated 2-port USB 3.0 hub is available for equipment sharing with printers, scanners, and external storage drives. For easy installation, it is Plug & Play compatible with a wide-variety of operating systems. Once connected, the switch supports resolutions of up to 3840 x 2160 and 2.1-channel audio.
  • Control 2 computers using a single keyboard, mouse, and DisplayPort video console
  • Up to UHD 4K resolution (3840 x 2160 @ 30 Hz)
  • DisplayPort 1.1 compliant & HDCP compliant
  • 2-port USB 3.0 hub with 5 Gb/s max transfer rate
  • Dual-Mode DP supports HDMI and DVI output
  • Computer selection via front-panel pushbuttons, hotkeys, and mouse
  • Independent switching of the KVM, USB, and audio
  • Supports HD audio through DisplayPort
  • Full bass response for 2.1 channel audio
  • Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
  • Multi-platform support - Windows 7 and later, Mac, and Linux
  • Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
  • Mac keyboard support and emulation
  • Auto-scan mode to monitor all computers
  • Power-on detection
  • Hot pluggable
  • Firmware upgradable
  UPC: 881317514875

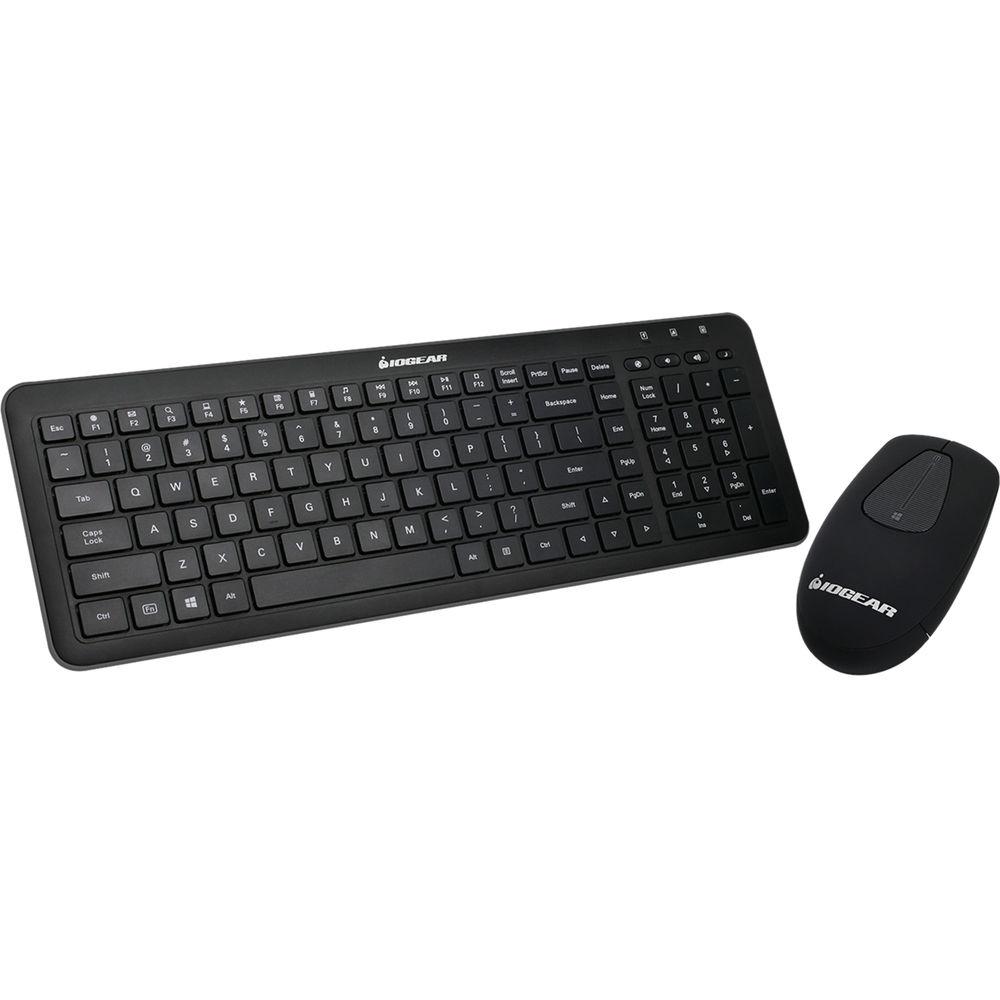

• Tacturus RF Desktop Wireless Keyboard and Touch Mouse Combo The Tacturus RF Desktop Combo from IOGEAR includes a wireless keyboard and mouse that enable you to interact with your desktop computer from up to 33' away. The keyboard features low-profile Quietus keys, which are designed to provide a quiet and comfortable typing experience. The chiclet layout style of the keys provides extra space in between keys and a slightly larger key area to improve typing accuracy.

  This combo also includes the Touch Mouse, which features a touch pad in place of the traditional scroll wheel that allows you to navigate web pages, documents, programs, and more. The Touch Mouse utilizes a touch sensor to track your finger movements for easy, quick-response scrolling.

  Batteries for both the keyboard and mouse are included.
  Wireless
  • The Tacturus RF Desktop is completely wireless. Its advanced 2.4 GHz wireless receiver will allow you to enjoy your keyboard and mouse from up to 33' away.
  Multimedia Hotkeys
  • From launching a browser to playing music on your computer, access all your favorite multimedia controls with the 12 multimedia hotkeys on the Tacturus RF Desktop keyboard.
  Built to Last
  • GEAR's Quietus keys feature quality construction that provides a keystroke life of up to 10 million cycles.
  Additional Features
  • 2.4 GHz wireless connection with up to 33' range
  • 1000dpi resolution wireless mouse with touch pad
  • Low-profile Quietus keys for quiet, comfortable typing
  • Touch Mouse supports smooth horizontal and vertical animation scrolling
  • 12 multimedia hotkeys for quick access to your music, e-mail, browser, and more
  • Chiclet style keyboard layout
  • Durable keys with a keystroke life of 10 million cycles
  • Dedicated button for easy access to Windows 8 and Windows 8.1 Start Screen
  UPC: 881317512529

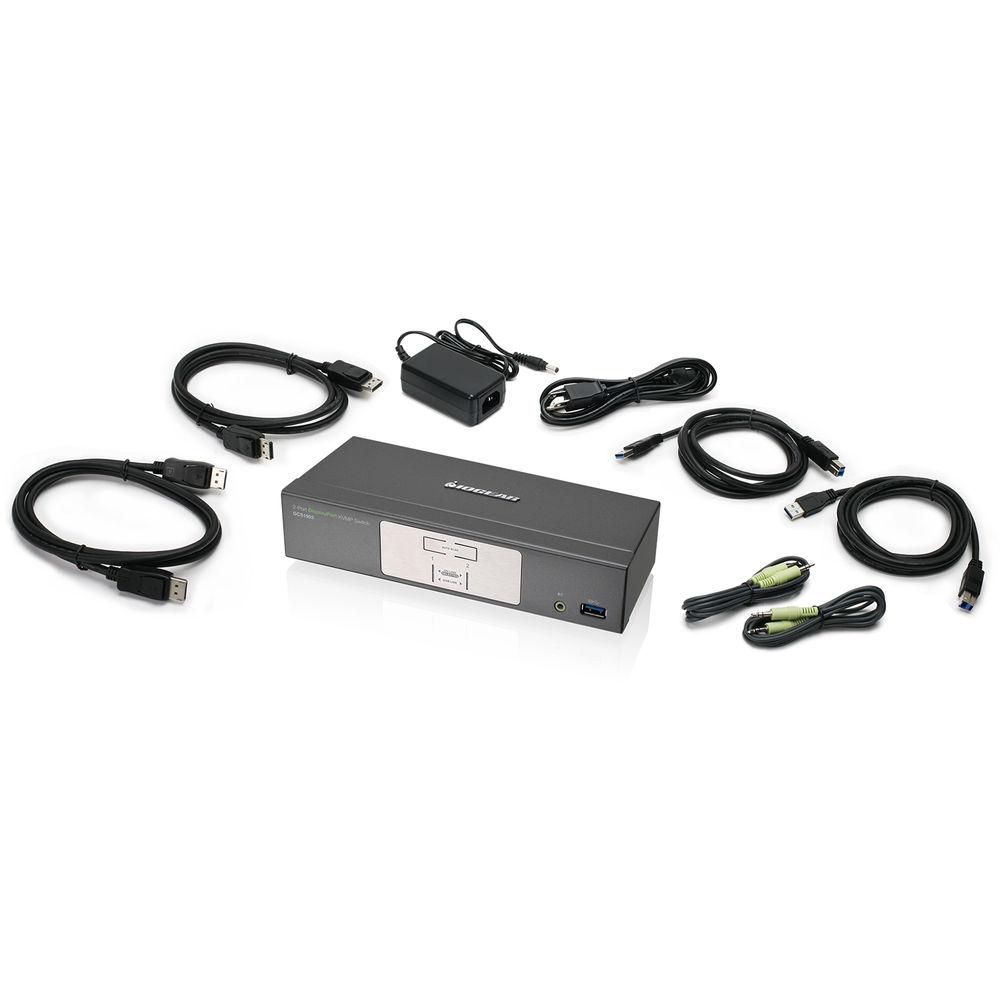

• Package of KVM Cable Sets

• Power Adapter

• Limited 3-Year Warranty

• USB Receiver

• AAA Battery for Keyboard

• AA Battery for Mouse

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2-Port DisplayPort KVMP Switch with USB 3.1 Gen 1 Hub

  # of Systems Supported	2
  CPU Connections	2 x DisplayPort 2 x 3.5 mm 2 x USB 3.0 Type-B
  Console Connections	1 x DisplayPort 1 x USB 3.0 Type-A (Keyboard) 1 x USB 3.0 Type-A (Mouse) 2 x 3.5 mm Audio
  USB Peripheral/Firmware Connections	1 x USB (Unspecified Version) Type-B (F/W Upgrade) 2 x USB 3.0 Type-A
  Scan Interval Range	1 to 99 secs (5 secs Default)
  Supported Resolutions	2560 x 1600 @ 60 Hz 3840 x 2160 @ 30 Hz
  USB Keyboard/Mouse Emulation	Yes

  DC Input Power	5 VDC

  Operating Temperature	32 to 122°F / 0 to 50°C
  Operating Humidity	0 to 80%
  Storage Temperature	-4 to 140°F / -20 to 60°C

  Certifications	TAA, as per Manufacturer
  Dimensions	2.9 x 1.7 x 7.9" / 7.4 x 4.3 x 20.1 cm
  Weight	1.5 lb / 0.7 kg

  Box Dimensions (LxWxH)	11.3 x 7.0 x 4.1"

• Tacturus RF Desktop Wireless Keyboard and Touch Mouse Combo

  Battery Requirements	1 x AAA
  Dimensions	5.6 x 16.3 x 0.9" / 14.3 x 41.3 x 2.2 cm
  Weight	1 lb / 0.5 kg

  Sensor	Optical
  dpi	1000
  Number of Buttons	2
  Hand Orientation	Ambidextrous
  Battery Requirements	1 x AA
  Dimensions	1.2 x 4 x 2.5" / 3.2 x 10.2 x 6.4 cm
  Weight	1.9 oz / 54.4 g

  System Connection	USB 2.0 Type-A
  Wireless Connectivity	2.4 GHz RF
  Wireless Range	32.8' / 10 m
  Full-Functionality OS Support	Mac, Windows

  Box Dimensions (LxWxH)	16.0 x 7.0 x 2.0"
