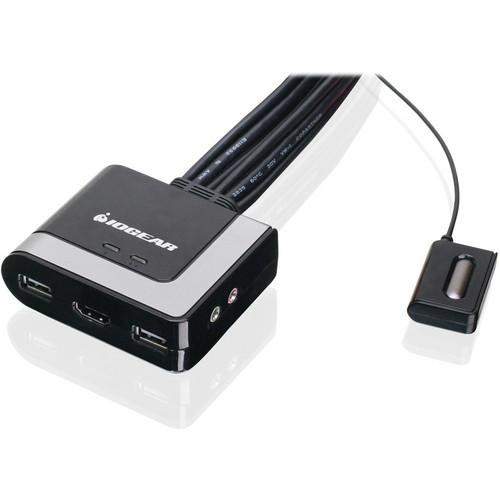

User Manual for IOGEAR 2-Port Cable KVM Switch with HDMI Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port Cable KVM Switch with
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 2-Port Cable KVM Switch with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

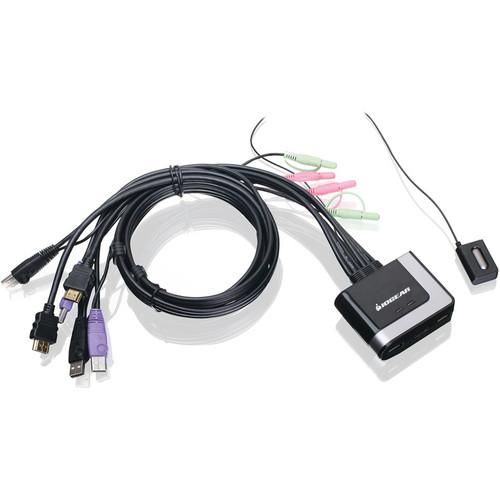

Product description Multi-Monitors: Maximizing Multitasking Read More The IOGEAR 2-Port Cable KVM Switch with HDMI comes with two integrated KVM cables, so you can control two devices with HDMI video connections using a single USB keyboard and mouse as well as an HDMI-capable monitor. Each set of cables sports an HDMI, two USB, and two 3.5mm connectors for your game console or computer. For visuals, this switch supports resolutions of up to 1920 x 1200 at 60 Hz, coming from a compatible graphics card. You can quickly switch between the two systems with a push of a button or using asynchronous hotkey software. It supports DynaSync so that Windows 7 can read and remember the monitor's video resolution when switching between or booting computers. IOGEAR has designed this switch to work with various operating systems, including Windows, Mac OS X, Sun Solaris, and Linux. Additionally, it is HDCP compliant and firmware upgradeable. - Allows you to control 2 computers or HD devices using a single keyboard, USB mouse, and high-definition monitor or HDTV
- Supports resolutions of 1920 x 1200 at 60 Hz
- Multi-OS platform support
- Port switching via remote switch button, mouse, or hotkeys
- Hotkeys allow independent KVM and audio switching between computers
- 2.1 stereo sound and microphone supported
- DynaSync feature with EDID support for Windows 7 – reads and remembers the monitor's parameters so that there is no delay or change of video resolution when switching between or booting computers
- USB 2.0 Peripheral Sharing via mouse port and an optional powered USB hub
- USB mouse and keyboard emulation for error-free, boot-up, and instantaneous recognition when switching computers
- Power-On Detection automatically switches to the next powered-on computer when one of the computers is powered off
- Re-programmable hotkey activation for keyboards without a scroll lock key
- Keyboard emulation can be disabled to support gaming keyboard's special keys
- Mouse emulation can be disabled to support mice with special keys
- Mac and Sun keyboard support
UPC: 881317507204 In the Box IOGEAR 2-Port Cable KVM Switch with HDMI 3-Year Limited Warranty More info from IOGEAR uvrbesadrdrbctafqdxbcyuseybfuaxbfwwrw Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port Cable KVM Switch with HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

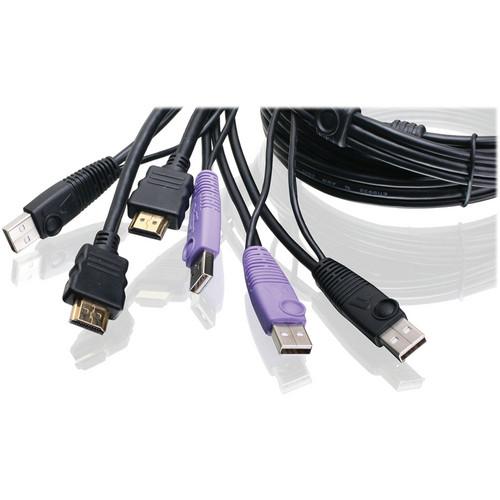

Technical parametersIOGEAR GCS62HU Specs | | | # of Systems Supported | 2 | | CPU Connections | 2 x HDMI, Male
2 x USB (Unspecified Version) Type-A (Keyboard), Male
2 x USB (Unspecified Version) Type-A (Mouse), Male
2 x 3.5 mm
2 x 3.5 mm Microphone, Male | | Console Connections | 1 x HDMI, Female
1 x USB (Unspecified Version) Type-A (Keyboard), Female
1 x USB (Unspecified Version) Type-A (Mouse), Female
1 x 3.5 mm Audio, Female
1 x 3.5 mm Microphone, Female | | Scan Interval Range | 3 to 20 secs (5 secs Default) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Operating System Support | Linux, Solaris, Windows, macOS/OS X | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Housing Material | Plastic | | Dimensions | 3.1 x 1.0 x 2.6" / 8.0 x 2.5 x 6.5 cm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 4.2 x 4.2 x 2.4" |
