User Manual for IOGEAR 2-Port DisplayPort 1.2 Graphics Splitter Multi-Monitor MST Video Hub Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port DisplayPort 1.2 Graphics Splitter
- Product category: Computer Monitor Adapters IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Computer Monitor Adapters
 |
User manual for the IOGEAR 2-Port DisplayPort 1.2 Graphics Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

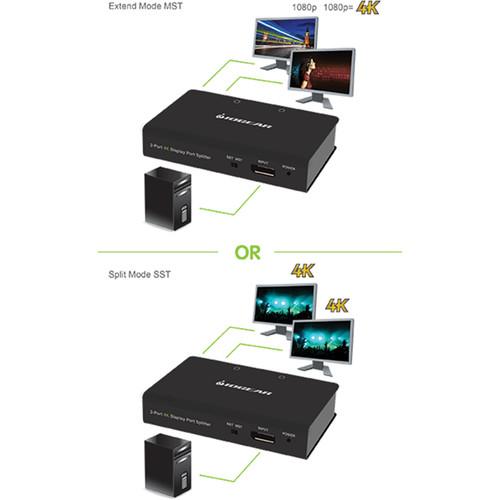

Product description Mirror or extend your system's desktop across two displays at resolutions up to 4096 x 2160 @ 60 Hz using the 2-Port DisplayPort 1.2 Graphics Splitter / Multi-Monitor MST Video Hub from IOGEAR. Users will be able to increase their productivity and workflow by expanding the amount of usable screen space on two independent displays for multi-document viewing, media streaming, content/web browsing, and more, or mirror a display across two monitors to allow remote viewing applications, such as monitoring equipment diagnostics or the status of a remove server.

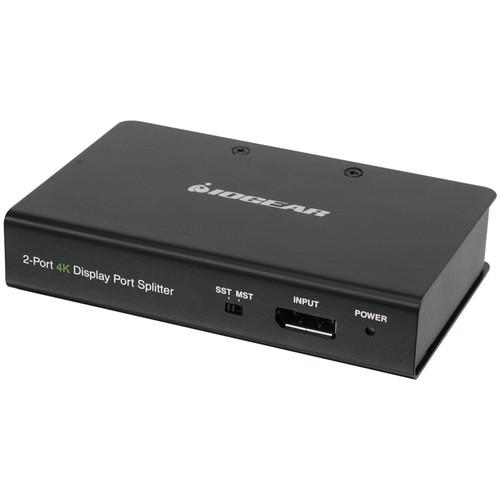

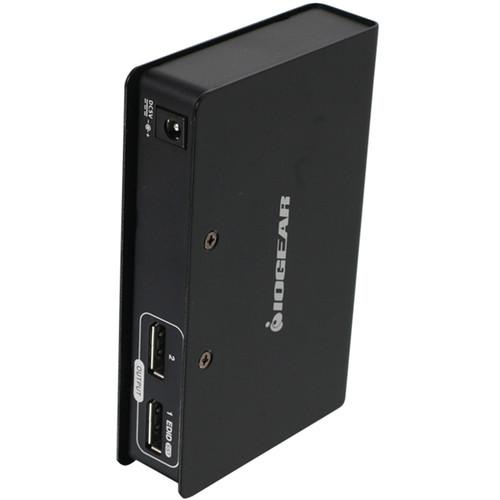

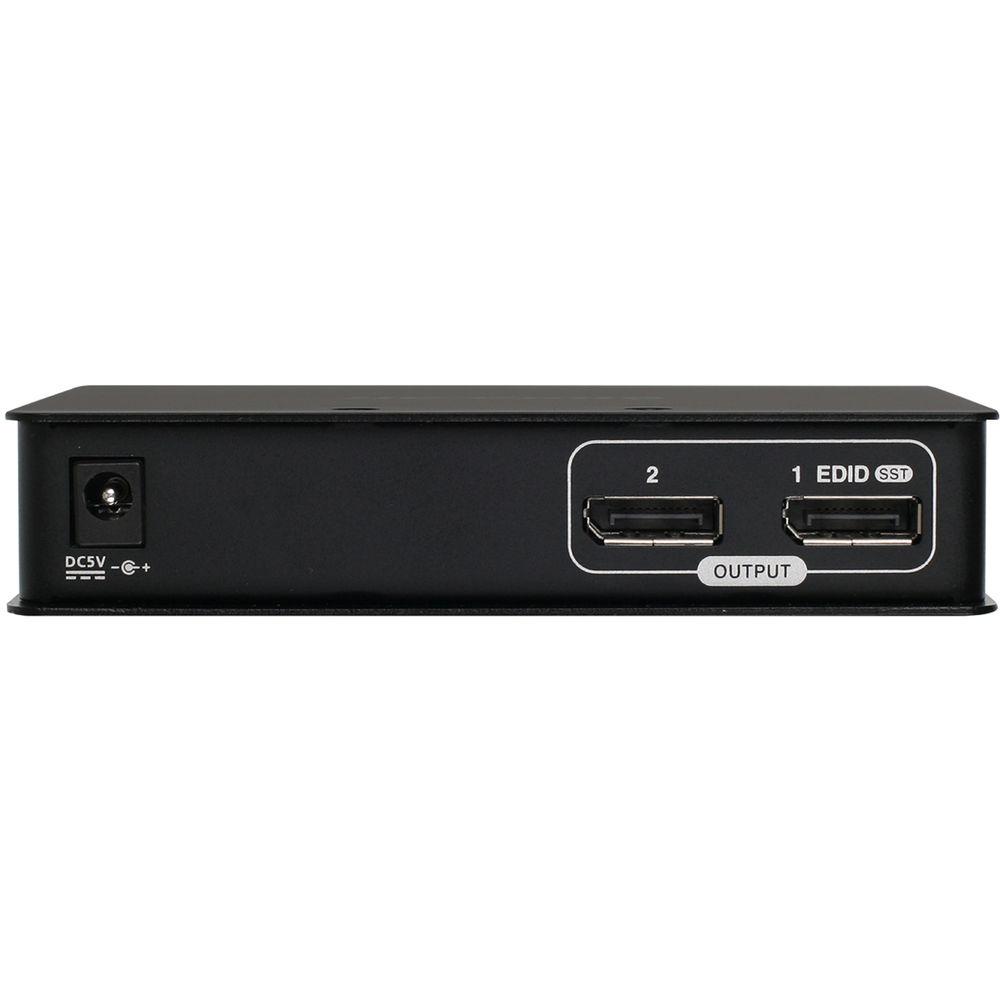

This hub is equipped with one DisplayPort 1.2 female input, and that signal is output using two DisplayPort female ports. In addition to video, this hub supports 7.1-channel digital audio surround sound, both Single-Stream Transport (SST) and Multi-Stream Transport (MST), is DPCP and HDCP 1.3 compliant, and requires a graphics card that is compatible with DisplayPort 1.2. A power adapter and limited 3-year warranty are included. General Features - Connect two independent displays from a single DisplayPort 1.2 video output
- Mirror or extend a desktop across two displays from a computer with one DisplayPort output
- With DisplayPort 1.2 graphics cards, two monitors are supported at resolutions up to 4096 x 2160 @ 60 Hz
- Supports 7.1 digital audio surround sound

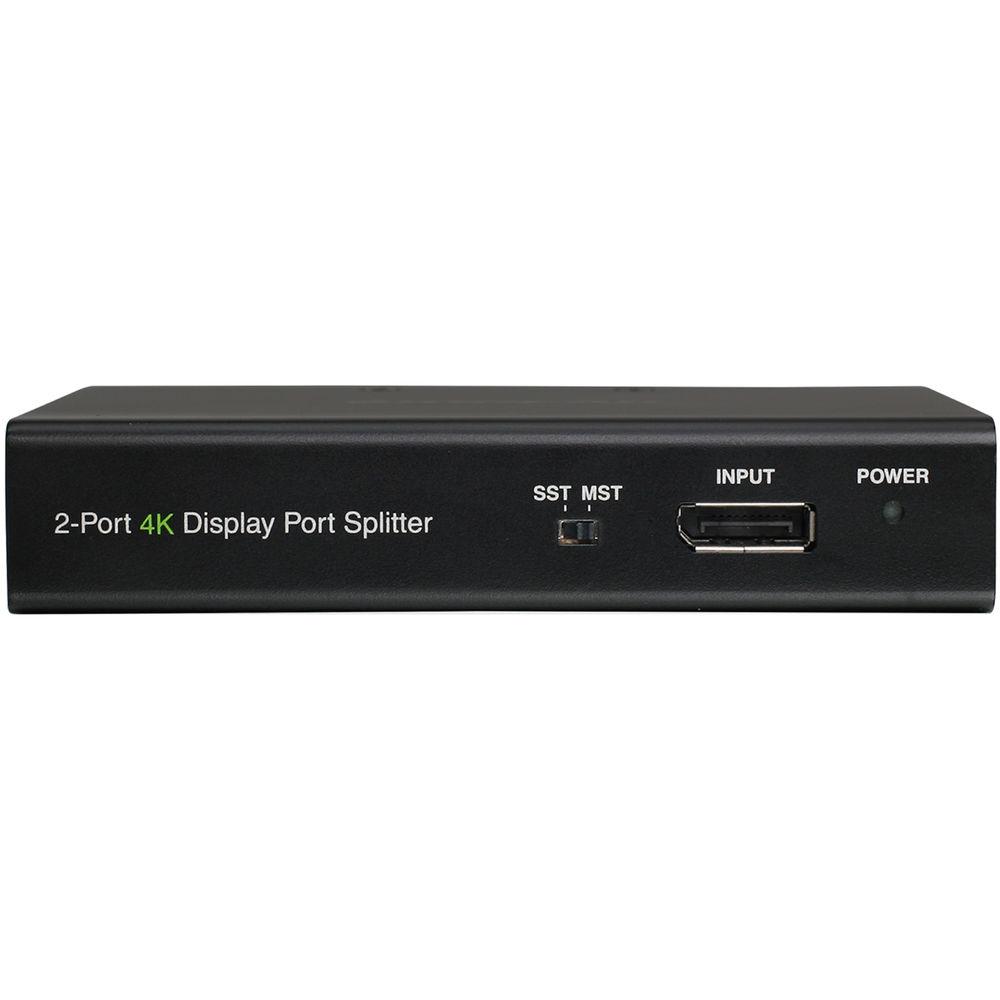

- Push-button toggle between Single-Stream Transport (SST) and Multi-Stream Transport (MST)
- No driver or software installation needed
- A Broad Range of Uses
- Add two independent displays to your DisplayPort 1.2-enabled computer with a single DisplayPort video output in a variety of applications.
- Business
- Use one monitor to view your email, web browser, or presentation while composing and generating content on the other.
- Digital Signage
- Create a high-resolution panoramic video display to showcase products and capture the attention of prospective customers.
- Data Management
- Well-suited for laying out multiple spreadsheets to show data more effectively, which can help to improve workflows and productivity in the office or workplace.
- Digital Arts
- Compose, open, and edit various images, videos, or audio files in a variety of resolutions and screen orientations.
- Web Development
- Edit source code on one display while previewing work in a browser on the other screen.
UPC: 881317512949 In the Box IOGEAR 2-Port DisplayPort 1.2 Graphics Splitter / Multi-Monitor MST Video Hub Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port DisplayPort 1.2 Graphics Splitter Multi-Monitor MST Video Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GDPSP2 Specs | | | Connector 1 | DisplayPort 1.2 Female | | Connector 2 | 2 x DisplayPort Female | | | | Maximum Resolution Support | 4096 x 2160 at 60 Hz | | Audio Support | Yes, 7.1 Channel | | | | Power Source | Power Adapter | | Power Rating | 5 VDC at 2 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 90% | | | | Material | Metal | | Dimensions | 3.0 x 1.0 x 4.4" / 7.6 x 2.5 x 11.2 cm | | Weight | 0.5 lb / 0.2 kg | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.5 x 6.25 x 2.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
