User Manual for IOGEAR 2-Port DisplayPort 1.2 KVM Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port DisplayPort 1.2 KVM Switch
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 2-Port DisplayPort 1.2 KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

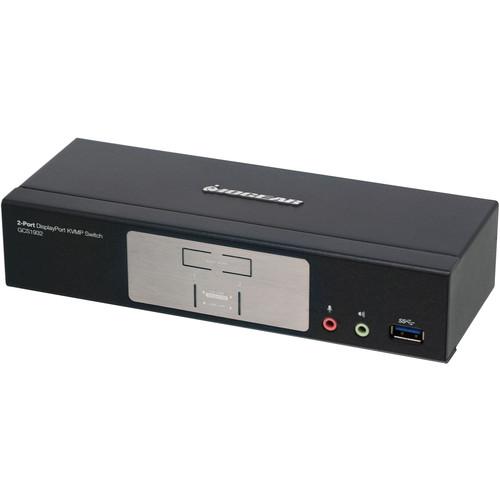

Product description Multi-Monitors: Maximizing Multitasking Read More The IOGEAR 2-Port DisplayPort 1.2 KVM Switch features DisplayPort, USB 3.0, and audio connections as well as convenient switching options to control two computers using a single monitor, keyboard, mouse, and headset. The IOGEAR KVM switch comes with two DisplayPort inputs that are capable of supporting resolutions of up to 4096 x 2160 at a 60 Hz refresh rate. This wider 4K resolution is the 4K DCI standard, making it suitable for professional film and video production industries. IOGEAR lets you quickly switch between the two computer systems by using two pushbuttons on the console, a combination of hotkeys on your keyboard, or the scroll-wheel button on a mouse.
The IOGEAR 2-Port DisplayPort 1.2 KVM Switch sports two sets of console interfaces along with cables that connect to the computer's DisplayPort output and USB 3.0 port. For connecting your peripherals, it is armed with a single DisplayPort, four USB 3.0 Type-A ports, and four audio jacks for your speakers, microphones, and headsets. - Control two computers using a single keyboard, mouse, and DisplayPort video console
- Supports 4096 x 2160 @ 60 Hz resolutions
- DisplayPort 1.2 compliant, HDCP compliant
- 2-port USB 3.0 SuperSpeed hub with 5 Gb/s transfer rate
- MST (Multi-Stream Transport) compatible
- DP++ supports HDMI and DVI outputs

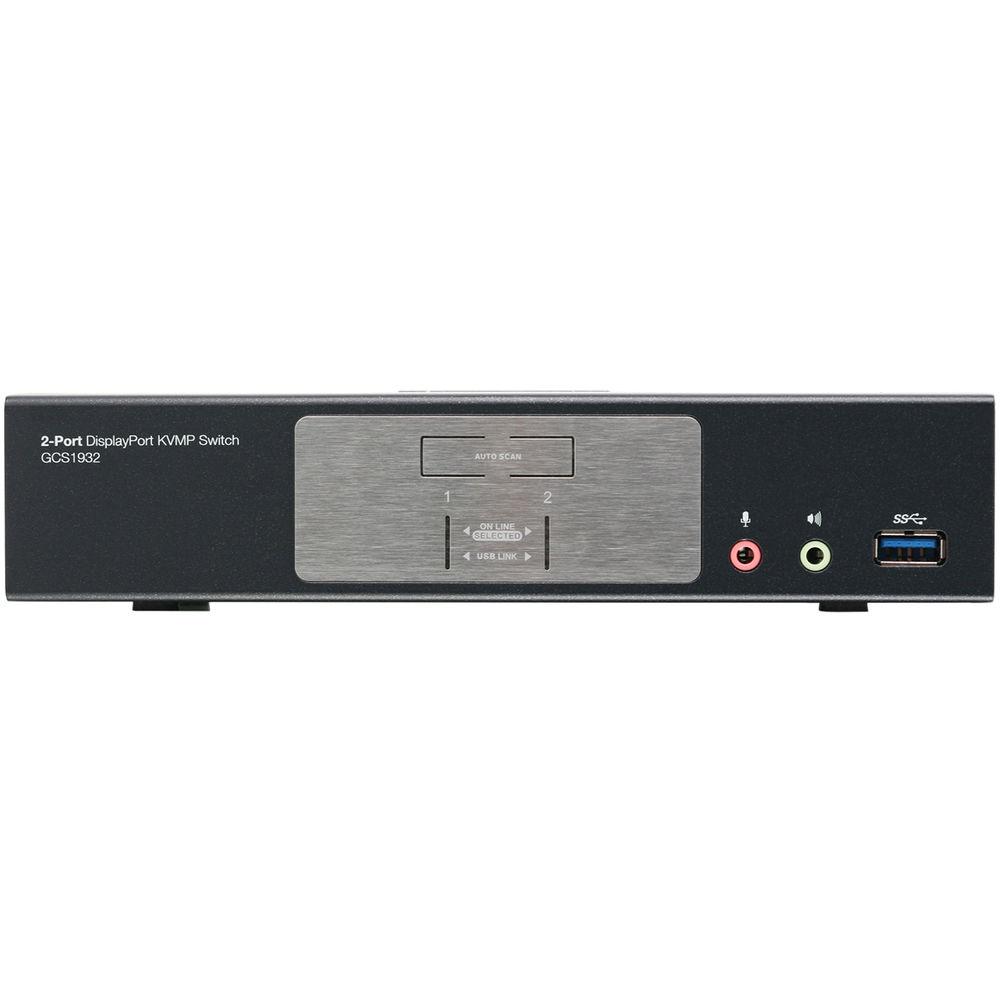

- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Independent switching of the KVM, USB, and audio
- Supports HD audio through DisplayPort
- Full bass response for 2.1-channel audio
- Mouse emulation or bypass feature supports most mouse drivers and multi-function mice
- Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
- Mac keyboard support and emulation
- Auto Scan Mode monitors all computers

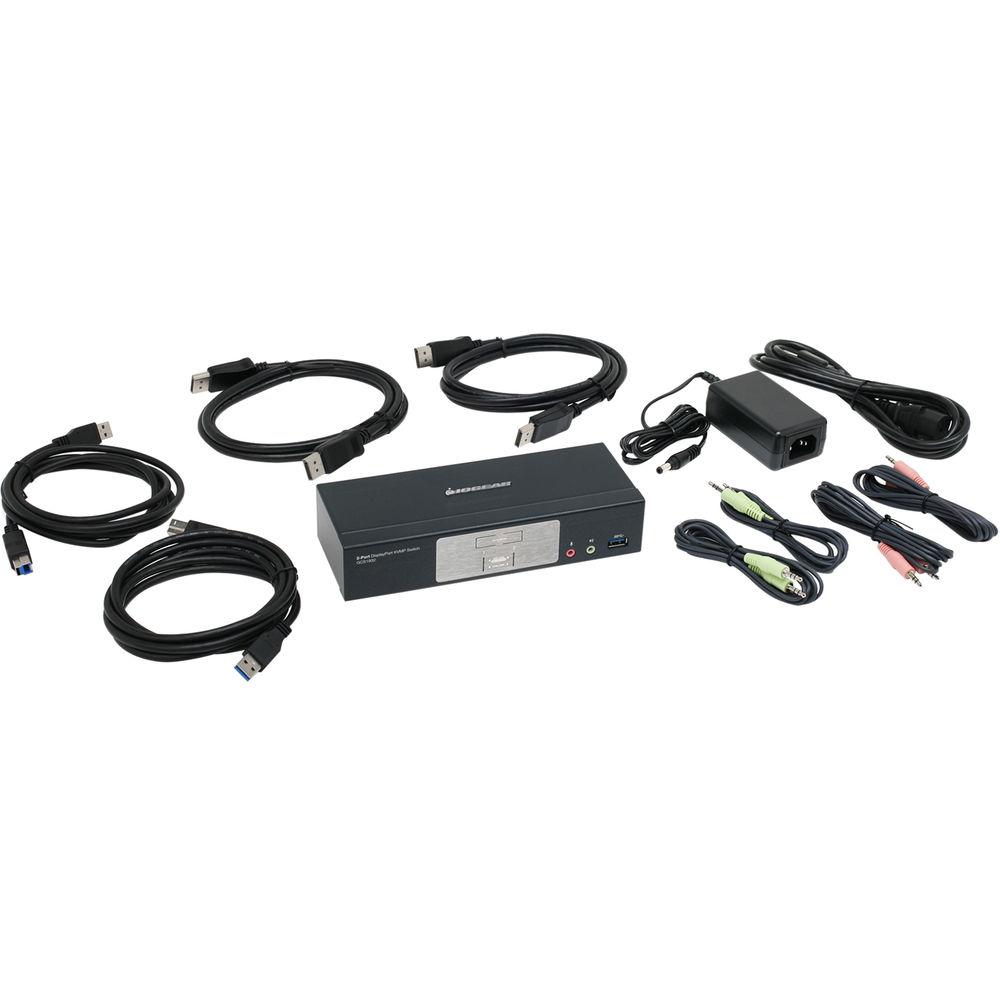

UPC: 881317514431 In the Box IOGEAR 2-Port DisplayPort 1.2 KVM Switch 2 x DisplayPort Cables 2 x USB 3.0 Cables 4 x Audio Cables Power Adapter Limited 3-Year Warranty More from Manufacturer twrctrdyvxfrtbdvxqdyd Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port DisplayPort 1.2 KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

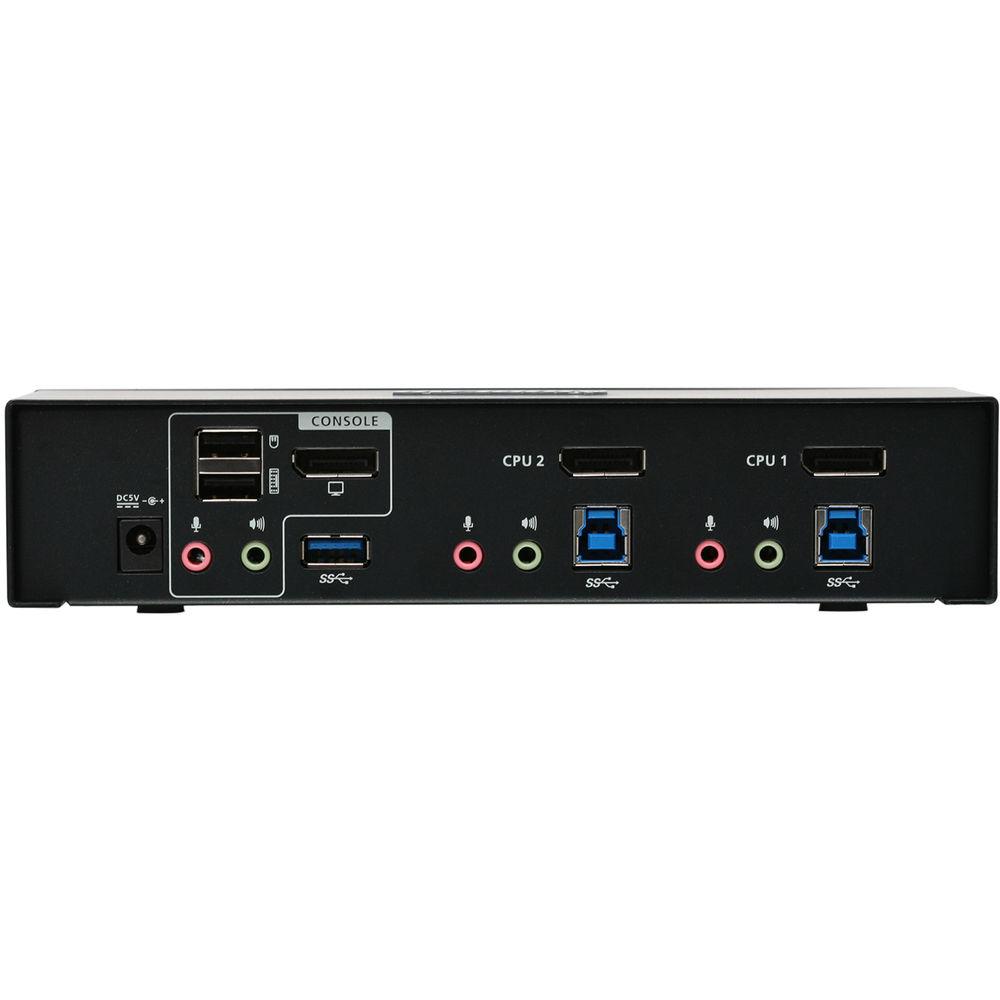

Technical parametersIOGEAR GCS1932 Specs | | | CPU Connections | 2 x DisplayPort
2 x USB 3.0 Type-B
2 x 3.5 mm Line-In
2 x 3.5 mm Microphone | | Console Connections | 1 x DisplayPort
2 x USB 3.0 Type-A (Keyboard/Mouse)
2 x 3.5 mm Line-In
2 x 3.5 mm Microphone | | USB Peripheral/Firmware Connections | 2 x USB 3.0 Type-A | | Scan Interval Range | 1 to 99 secs (5 secs Default) | | Supported Resolutions | 4096 x 2160 @ 60 Hz | | Operating System Support | Linux, Windows, macOS/OS X | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions | 7.9 x 1.7 x 2.9" / 200.7 x 43.2 x 73.7 mm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 11.26 x 6.929 x 4.095" |
