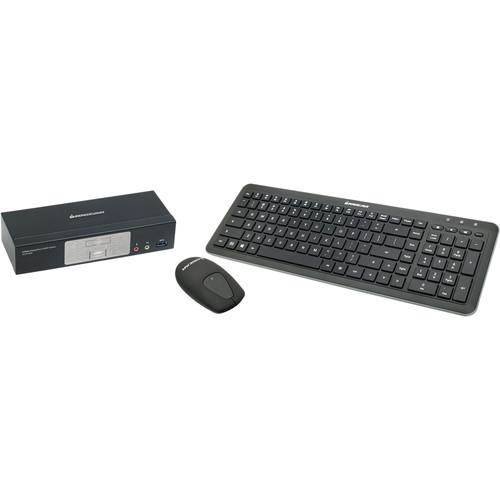

User Manual for IOGEAR 2-Port DisplayPort 1.2 KVMP Bundle with Wireless Keyboard and Mouse Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port DisplayPort 1.2 KVMP Bundle
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 2-Port DisplayPort 1.2 KVMP Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

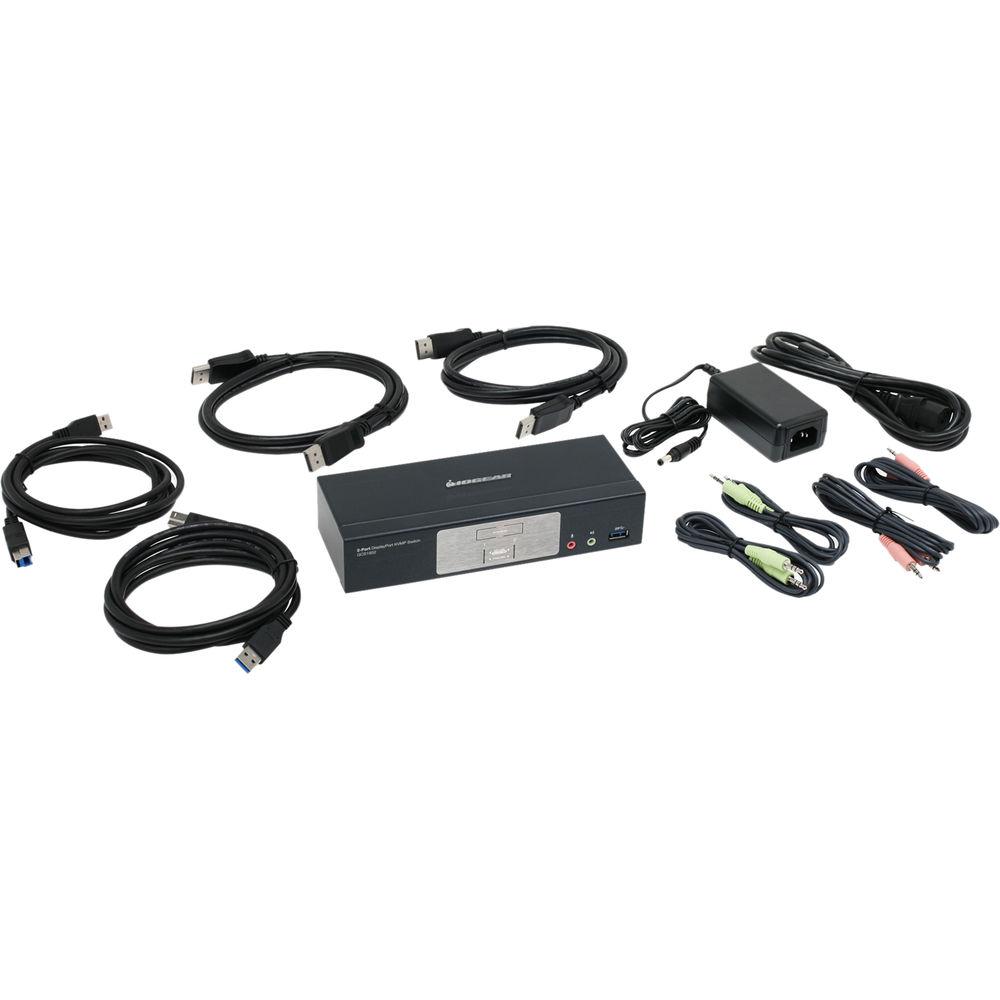

Product description Multi-Monitors: Maximizing Multitasking Read More This bundle from IOGEAR comes with the 2-Port DisplayPort 1.2 KVMP switch and Tacturus RF Desktop Wireless Keyboard and Touch Mouse Combo, so you can control up to two computer systems using your DisplayPort-capable monitor. The keyboard and mouse connect to the switch via a USB receiver, which enables a wireless connection of up to 33' away. Other notable equipment included are two DisplayPort cables, two USB 3.0 cables, and four audio cables to help you quickly create a single-monitor workstation setup. - 2-Port DisplayPort 1.2 KVM Switch The IOGEAR 2-Port DisplayPort 1.2 KVM Switch features DisplayPort, USB 3.0, and audio connections as well as convenient switching options to control two computers using a single monitor, keyboard, mouse, and headset. The IOGEAR KVM switch comes with two DisplayPort inputs that are capable of supporting resolutions of up to 4096 x 2160 at a 60 Hz refresh rate. This wider 4K resolution is the 4K DCI standard, making it suitable for professional film and video production industries. IOGEAR lets you quickly switch between the two computer systems by using two pushbuttons on the console, a combination of hotkeys on your keyboard, or the scroll-wheel button on a mouse.

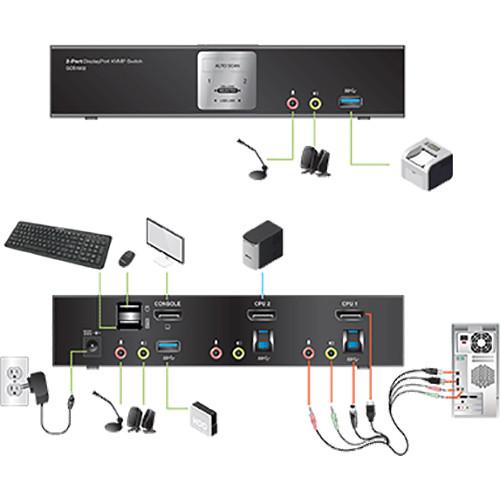

The IOGEAR 2-Port DisplayPort 1.2 KVM Switch sports two sets of console interfaces along with cables that connect to the computer's DisplayPort output and USB 3.0 port. For connecting your peripherals, it is armed with a single DisplayPort, four USB 3.0 Type-A ports, and four audio jacks for your speakers, microphones, and headsets. - Control two computers using a single keyboard, mouse, and DisplayPort video console
- Supports 4096 x 2160 @ 60 Hz resolutions
- DisplayPort 1.2 compliant, HDCP compliant
- 2-port USB 3.0 SuperSpeed hub with 5 Gb/s transfer rate
- MST (Multi-Stream Transport) compatible
- DP++ supports HDMI and DVI outputs
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Independent switching of the KVM, USB, and audio
- Supports HD audio through DisplayPort
- Full bass response for 2.1-channel audio
- Mouse emulation or bypass feature supports most mouse drivers and multi-function mice
- Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
- Mac keyboard support and emulation
- Auto Scan Mode monitors all computers

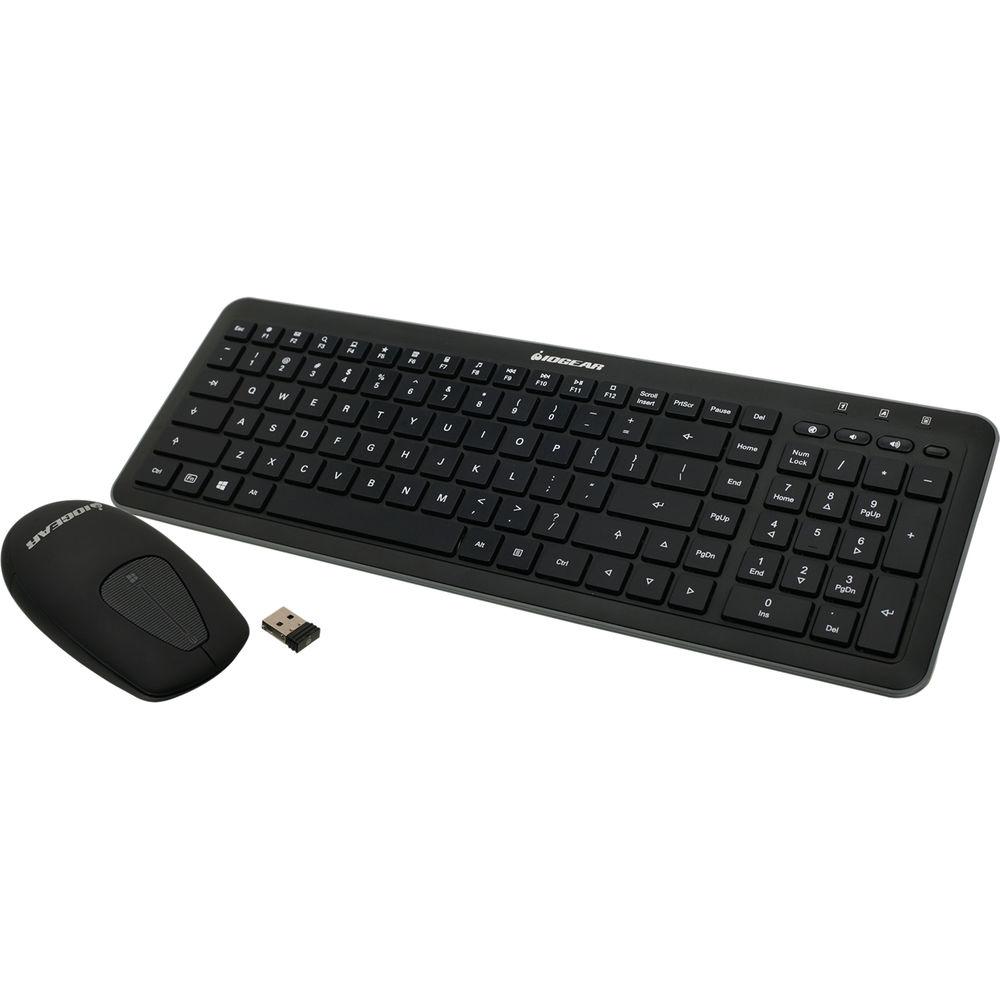

UPC: 881317514431 - Tacturus RF Desktop Wireless Keyboard and Touch Mouse Combo The Tacturus RF Desktop Combo from IOGEAR includes a wireless keyboard and mouse that enable you to interact with your desktop computer from up to 33' away. The keyboard features low-profile Quietus keys, which are designed to provide a quiet and comfortable typing experience. The chiclet layout style of the keys provides extra space in between keys and a slightly larger key area to improve typing accuracy.
This combo also includes the Touch Mouse, which features a touch pad in place of the traditional scroll wheel that allows you to navigate web pages, documents, programs, and more. The Touch Mouse utilizes a touch sensor to track your finger movements for easy, quick-response scrolling.
Batteries for both the keyboard and mouse are included. - Wireless
- The Tacturus RF Desktop is completely wireless. Its advanced 2.4 GHz wireless receiver will allow you to enjoy your keyboard and mouse from up to 33' away.
- Multimedia Hotkeys
- From launching a browser to playing music on your computer, access all your favorite multimedia controls with the 12 multimedia hotkeys on the Tacturus RF Desktop keyboard.
- Built to Last
- GEAR's Quietus keys feature quality construction that provides a keystroke life of up to 10 million cycles.
- Additional Features
-
- 2.4 GHz wireless connection with up to 33' range
- 1000dpi resolution wireless mouse with touch pad
- Low-profile Quietus keys for quiet, comfortable typing
- Touch Mouse supports smooth horizontal and vertical animation scrolling
- 12 multimedia hotkeys for quick access to your music, e-mail, browser, and more
- Chiclet style keyboard layout
- Durable keys with a keystroke life of 10 million cycles
- Dedicated button for easy access to Windows 8 and Windows 8.1 Start Screen
UPC: 881317512529 In the Box Bundle Items 2-Port DisplayPort 1.2 KVM Switch fcaayqwfryyqwstbxfbd Tacturus RF Desktop Wireless Keyboard and Touch Mouse Combo Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port DisplayPort 1.2 KVMP Bundle with Wireless Keyboard and Mouse in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2-Port DisplayPort 1.2 KVM Switch
| | | CPU Connections | 2 x DisplayPort
2 x USB 3.0 Type-B
2 x 3.5 mm Line-In
2 x 3.5 mm Microphone | | Console Connections | 1 x DisplayPort
2 x USB 3.0 Type-A (Keyboard/Mouse)
2 x 3.5 mm Line-In
2 x 3.5 mm Microphone | | USB Peripheral/Firmware Connections | 2 x USB 3.0 Type-A | | Scan Interval Range | 1 to 99 secs (5 secs Default) | | Supported Resolutions | 4096 x 2160 @ 60 Hz | | Operating System Support | Linux, Windows, macOS/OS X | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions | 7.9 x 1.7 x 2.9" / 200.7 x 43.2 x 73.7 mm | | Weight | 1.5 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 11.26 x 6.929 x 4.095" | - Tacturus RF Desktop Wireless Keyboard and Touch Mouse Combo
| | | Battery Requirements | 1 x AAA | | Dimensions | 5.6 x 16.3 x 0.9" / 14.3 x 41.3 x 2.2 cm | | Weight | 1 lb / 0.5 kg | | | | Sensor | Optical | | dpi | 1000 | | Number of Buttons | 2 | | Hand Orientation | Ambidextrous | | Battery Requirements | 1 x AA | | Dimensions | 1.2 x 4 x 2.5" / 3.2 x 10.2 x 6.4 cm | | Weight | 1.9 oz / 54.4 g | | | | System Connection | USB 2.0 Type-A | | Wireless Connectivity | 2.4 GHz RF | | Wireless Range | 32.8' / 10 m | | Full-Functionality OS Support | Mac, Windows | | | | Box Dimensions (LxWxH) | 16.0 x 7.0 x 2.0" |
