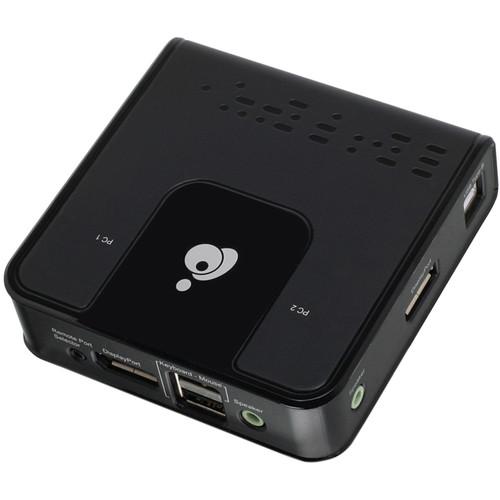

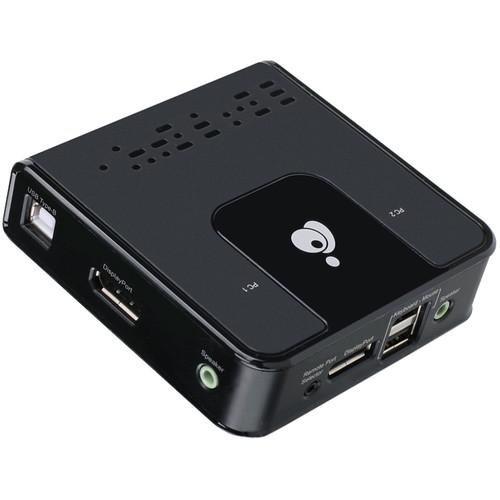

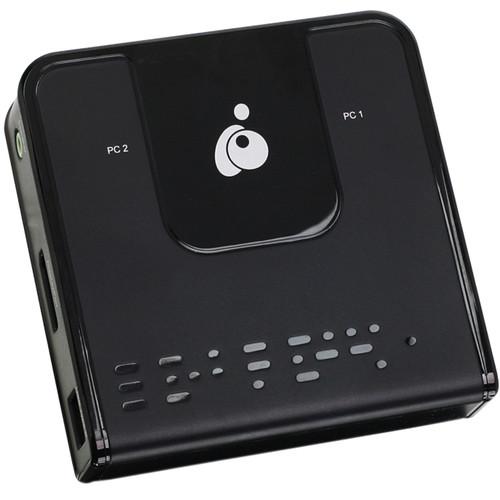

User Manual for IOGEAR 2-Port DisplayPort KVM Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port DisplayPort KVM Switch
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 2-Port DisplayPort KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More With the 2-Port DisplayPort KVM Switch from IOGEAR, it is easy to control two computers using a single UHD 4K monitor, USB keyboard, and USB mouse. This KVM switch supports resolutions up to Cinema 4K (4096 x 2160 @ 60 Hz) to ensure crisp, clear picture quality along with support for HD audio and widescreen viewing capabilities. Also found on the KVM switch are dual USB 2.0 ports designed to support a keyboard and mouse, including those with multimedia keys or using wireless USB receivers. Compatibility isn't an issue, as this KVM switch comes compatible with Windows, Mac, and Linux-based operating systems and even supports power-on detection, hotkey functionality, and firmware upgradability. General Features - Control two computers using a single keyboard, mouse, and DisplayPort monitor
- DisplayPort 1.2 compliant and HDCP compliant
- Computer selection via console selection button, hotkeys, and USB mouse
- Up to Cinema 4K (4096 x 2160) resolution at 60 Hz
- Multiplatform support for Windows, Mac, and Linux
- Supports MST (Multi-Stream Transport), enabling multiple monitors to be used via a single DisplayPort connector
- Supports DisplayPort Dual Mode (DP++) for directly outputting single-link HDMI or DVI signals via a powered DisplayPort-to-HDMI/DVI DP++ adapter
- Compatible with widescreen LCD monitors
- Power-on detection automatically switches inputs when one of the connected computers is powered off
- Audio-enabled full-bass response provides a rich experience for 2.1-channel surround-sound systems
- Supports HD Audio through DisplayPort playback
- Independent switching of the KVM and audio focus allows convenient multi-tasking
- Supports multimedia keyboards as well as wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac keyboard support and emulation
- USB 2.0 mouse port can be used for USB hubs and USB peripheral sharing

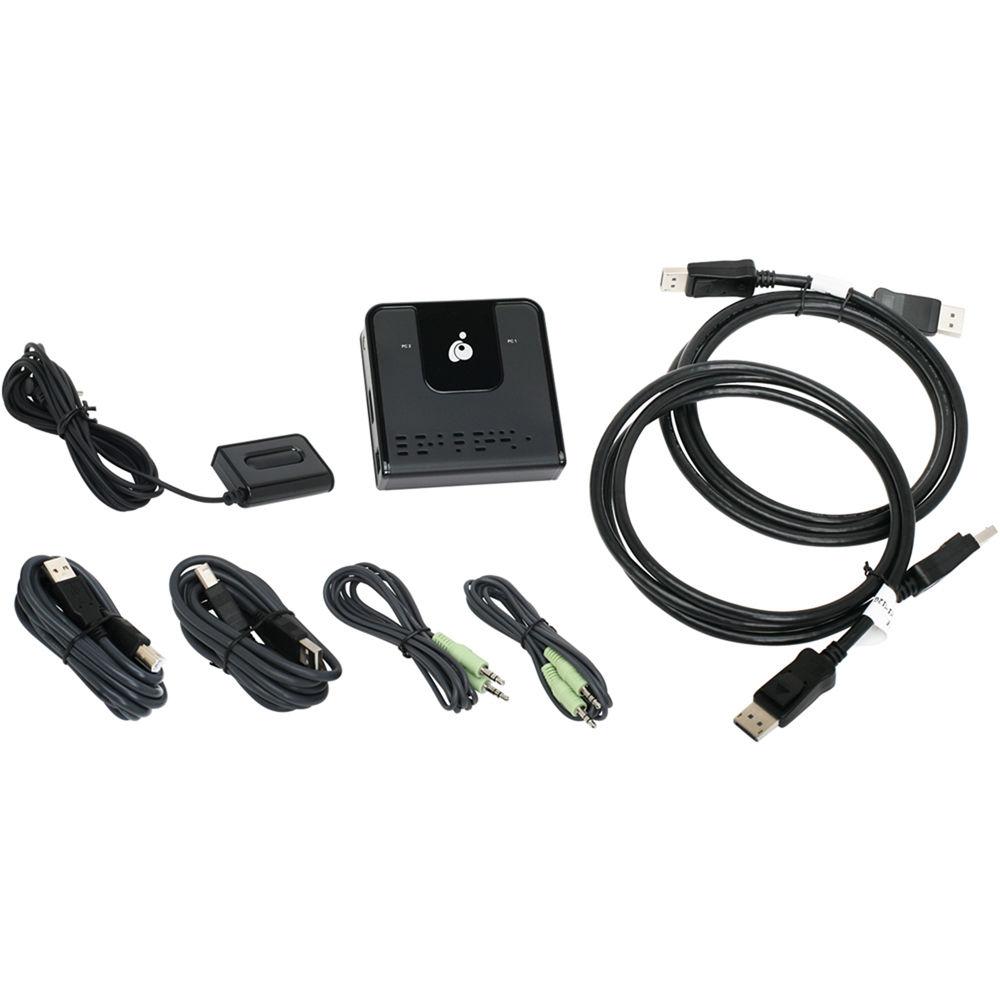

UPC: 881317513960 In the Box IOGEAR 2-Port DisplayPort KVM Switch 2 x USB 2.0 Type-A to USB Type-B Cable 2 x 3.5mm Audio Cable 2 x DisplayPort Cable Port-Selection Remote Limited 3-Year Warranty Brochure PDF 155.2kbsutxscetzbxbtctezvyxvzsscyeadbt More from Manufacturer More info from IOGEAR Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port DisplayPort KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS62DP Specs | | | CPU Connections | 2 x DisplayPort 1.2
2 x USB 2.0 Type-B (Keyboard/Mouse), Female
2 x 3.5 mm, Female | | Console Connections | 1 x DisplayPort 1.2
1 x USB 2.0 Type-A (Mouse), Female
1 x USB 2.0 Type-A (Keyboard), Female
1 x 3.5 mm Audio, Female | | Supported Resolutions | 3840 x 2160 | | Operating System Support | Windows, macOS/OS X | | | | Dimensions | 3.8 x 3.8 x 6.4" / 9.6 x 9.6 x 16.2 cm | | Weight | 0.2 lb / 0.1 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.1 x 6.4 x 3.0" |
