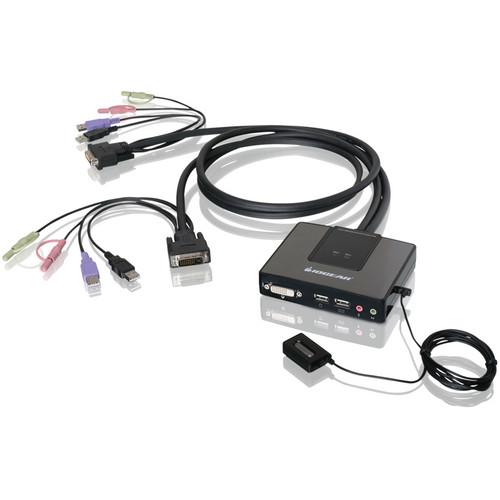

User Manual for IOGEAR 2-Port Dual-Link DVI Cable KVM with Audio Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port Dual-Link DVI Cable KVM
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 2-Port Dual-Link DVI Cable KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More acccfqyrxqdbrcwysae The 2-Port USB Dual-Link DVI Cable KVM Switch with Audio from IOGEAR is a simple way to share one dual-link DVI monitor, mouse, keyboard, speaker set and microphone between two different computers. The product supports 32-bit color at resolutions up to 2560 x 1600 and its mouse and keyboard emulation ensures uninterrupted operation when switching between computers.
There are two convenient switching methods available to use with this switch. The first is a simple push-button remote that easily fits anywhere on your desk, and the second is via hotkeys that allow you to independently switch and control the functions between computers.
Equipped with IOGEAR's DynaSync, which provides the EDID support for Windows 7, this technology remembers your monitor's ideal resolution and refresh rate. The switch can then boot up all of your computers simultaneously, and switch back and forth between the two computers quickly--while still maintaining the ideal resolution of the monitor.
Whether you need to quickly toggle between PC, Mac, or Sun hardware, the 2-Port USB Dual-Link DVI Cable KVM Switch from IOGEAR provides an easy-to-use Plug-n-Play solution to share and switch between devices. - One dual-link DVI console controls two dual-link DVI or USB computers. With a resolution of up to 2560 x 1600 at 60Hz.
- Port switching is possible via remote switch button, mouse, or hotkeys. Hotkeys allow independent KVM and audio switching between computers.
- USB 2.0 Peripheral Sharing is possible via the mouse port--Connect a powered USB hub to expand your USB connectivity. Mouse emulation must be disabled for this feature to function correctly. USB mouse and keyboard emulation is available, for error-free boot-up and instantaneous recognition when switching computers.
- IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between, or booting up, computers. IOGEAR's DynaSync provides the EDID support for Windows 7.
- Power-On Detection--If a computer is powered off, the switch will automatically toggle to the next powered-on computer.
- Mac and Sun keyboards are supported, re-programmable Hotkey activation accommodates keyboards without a Scroll Lock key, and mouse emulation can be disabled to support a mouse with special keys.
- Plug-n-Play ready, no software is required to run, and the Firmware is upgradeable whenever the updates are made available.
- Microphone and 2.1 stereo sound are supported.
- WEEE and RoHS compliant hardware.
UPC: 881317508676 In the Box IOGEAR 2-Port Dual-Link DVI Cable KVM with Audio Remote Switch Button 3-Year Limited Warranty More info from IOGEAR Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port Dual-Link DVI Cable KVM with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS982U Specs | Max Computer Connections | Connections: 3 total
(2) Direct

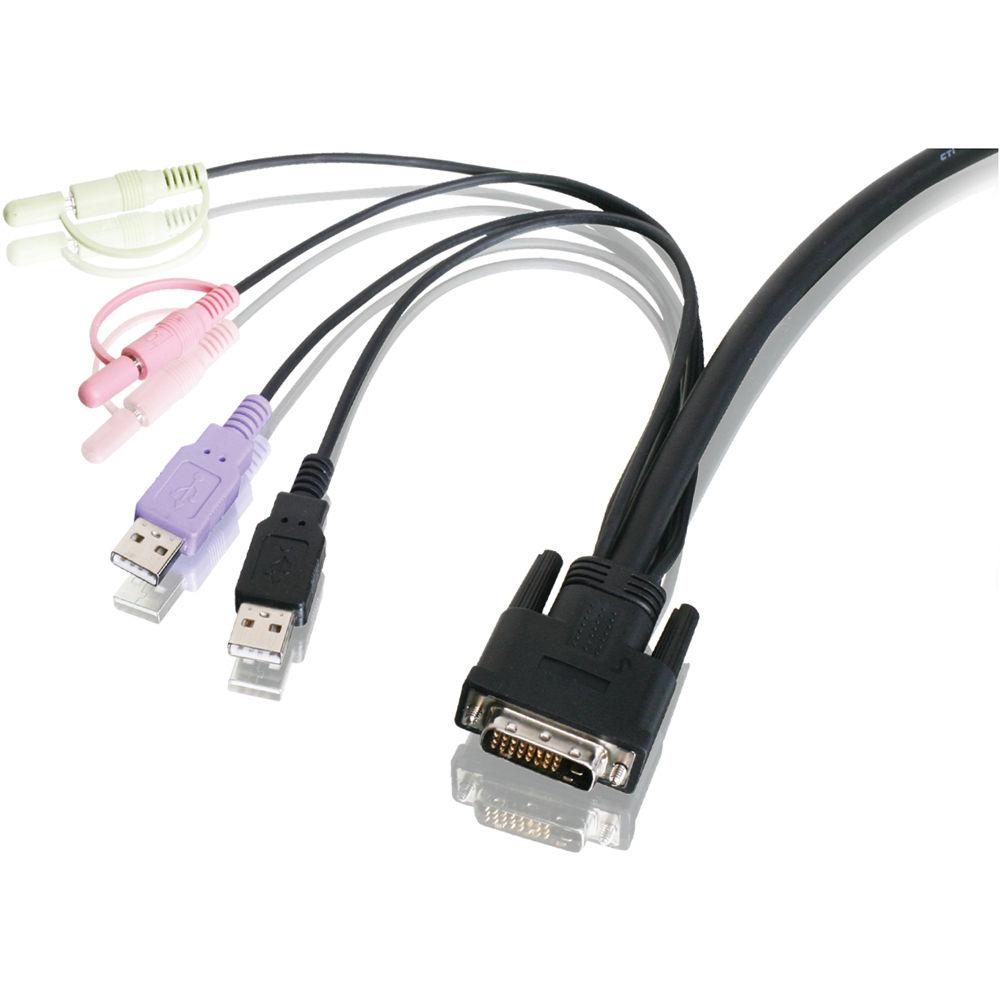

(1) Console | | PC Connectors | Keyboard: (2) USB Type A Male (Purple)
Mouse: (2) USB Type A Male (Black)
Monitor: (2) Dual-Link DVI-D Male
Audio: (2) Mini Stereo Jack Male (Green)
Microphone: (2) Mini Stereo Jack Male (Pink) | | Console Connectors | Keyboard: (1) USB Type A Female
Mouse: (1) USB Type A Female
Monitor: (1) Dual-Link DVI-D Female
Audio: (1) Mini Stereo Jack Female (Green)
Microphone: (1) Mini Stereo Jack Female (Pink) | | Video Resolution | 1920 x 1200 at 60Hz; DDC2B
32-bit color depth | | Scan Interval | Default 5 sec
Adjustable to 3, 5, 10 or 20 sec | | Port Selection | Hotkey, Mouse, or Remote Switch Button | | Emulation | Keyboard: USB
Mouse: USB | | POP Information | (3) Peg Hook 10" (25.4 cm)
(2) Peg Hook 6" (15.24 cm) | | Temperature / Humidity | Operation Temperature: 32° - 122° F (0° - 50° C)
Storage Temperature: -4° - 120° F (-20° - 60° C)
Humidity: 0% - 80% RH (Non-condensing) | | Power Requirements | Bus-powered | | LEDs | Port ID: (2) Green | | Cable Length | 3.9' (1.2 m) | | System Requirements | Console:
(1) DVI display
(1) USB keyboard and 2 USB mice
Computers:
(1) DVI port
(2) USB ports
Operating Systems:
Windows XP, Windows Vista (32-bit / 64-bit)
Windows 7 (32-bit / 64-bit)*
Mac OS X 10.3.9 or later
Sun Solaris
Linux
*IOGEAR's Display Emulation Technology provides the EDID support for Windows 7 | | Enclosure | Plastic | | Dimensions (WxHxD) | 4.75 x 3.75 x 1.0" (12.1 x 9.5 x 2.5 cm) | | Weight | 1.20 lb (0.54 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.3 x 6.5 x 2.9" |
