Product description

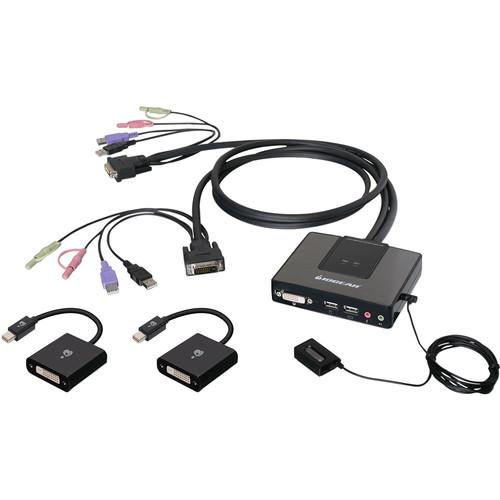

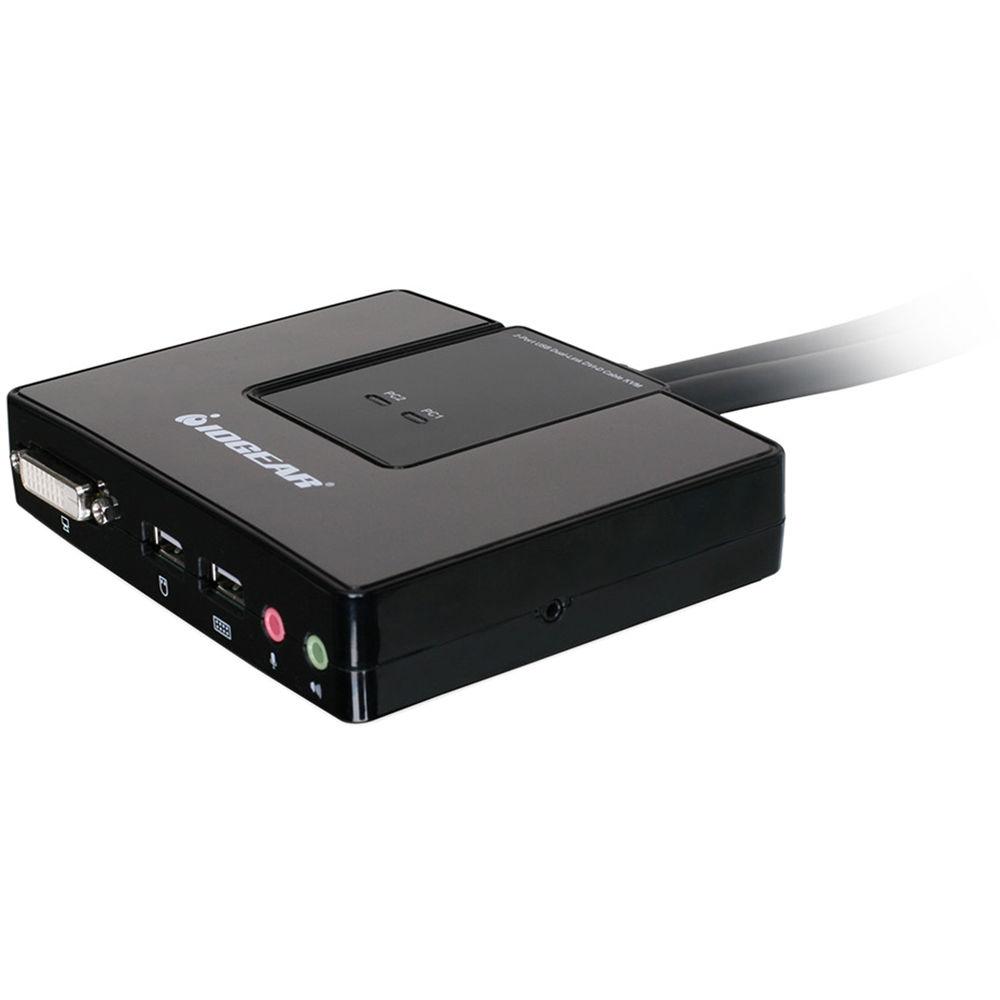

• 2-Port Dual-Link DVI Cable KVM with Audio The 2-Port USB Dual-Link DVI Cable KVM Switch with Audio from IOGEAR is a simple way to share one dual-link DVI monitor, mouse, keyboard, speaker set and microphone between two different computers. The product supports 32-bit color at resolutions up to 2560 x 1600 and its mouse and keyboard emulation ensures uninterrupted operation when switching between computers.

  There are two convenient switching methods available to use with this switch. The first is a simple push-button remote that easily fits anywhere on your desk, and the second is via hotkeys that allow you to independently switch and control the functions between computers.

  Equipped with IOGEAR's DynaSync, which provides the EDID support for Windows 7, this technology remembers your monitor's ideal resolution and refresh rate. The switch can then boot up all of your computers simultaneously, and switch back and forth between the two computers quickly--while still maintaining the ideal resolution of the monitor.

  Whether you need to quickly toggle between PC, Mac, or Sun hardware, the 2-Port USB Dual-Link DVI Cable KVM Switch from IOGEAR provides an easy-to-use Plug-n-Play solution to share and switch between devices.
  • One dual-link DVI console controls two dual-link DVI or USB computers. With a resolution of up to 2560 x 1600 at 60Hz.
  • Port switching is possible via remote switch button, mouse, or hotkeys. Hotkeys allow independent KVM and audio switching between computers.
  • USB 2.0 Peripheral Sharing is possible via the mouse port--Connect a powered USB hub to expand your USB connectivity. Mouse emulation must be disabled for this feature to function correctly. USB mouse and keyboard emulation is available, for error-free boot-up and instantaneous recognition when switching computers.
  • IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between, or booting up, computers. IOGEAR's DynaSync provides the EDID support for Windows 7.
  • Power-On Detection--If a computer is powered off, the switch will automatically toggle to the next powered-on computer.
  • Mac and Sun keyboards are supported, re-programmable Hotkey activation accommodates keyboards without a Scroll Lock key, and mouse emulation can be disabled to support a mouse with special keys.
  • Plug-n-Play ready, no software is required to run, and the Firmware is upgradeable whenever the updates are made available.
  • Microphone and 2.1 stereo sound are supported.
  • WEEE and RoHS compliant hardware.
  UPC: 881317508676

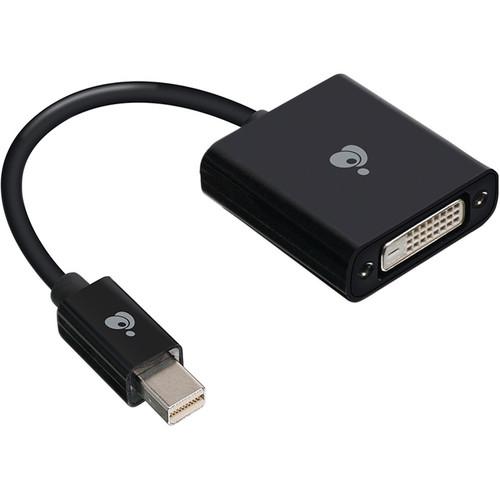

• Active Mini DisplayPort to DVI Adapter The Active Mini DisplayPort to DVI Adapter from IOGEAR is used to convert a Mini DisplayPort output to a DVI output. Use it to connect your computer or laptop or a DVI based display, projector, or TV. An active adapter is needed for connecting more than two displays to a video card. Moreover, this adapter supports resolutions up to 4K 3840 x 2160 at 30 Hz, and is plug-and-play compatible, so you won't have to worry about additional power plugs or installing drivers. UPC: 881317516169

• Remote Switch Button

• 3-Year Limited Warranty

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2-Port Dual-Link DVI Cable KVM with Audio

  Max Computer Connections	Connections: 3 total (2) Direct (1) Console
  PC Connectors	Keyboard: (2) USB Type A Male (Purple) Mouse: (2) USB Type A Male (Black) Monitor: (2) Dual-Link DVI-D Male Audio: (2) Mini Stereo Jack Male (Green) Microphone: (2) Mini Stereo Jack Male (Pink)
  Console Connectors	Keyboard: (1) USB Type A Female Mouse: (1) USB Type A Female Monitor: (1) Dual-Link DVI-D Female Audio: (1) Mini Stereo Jack Female (Green) Microphone: (1) Mini Stereo Jack Female (Pink)
  Video Resolution	1920 x 1200 at 60Hz; DDC2B 32-bit color depth
  Scan Interval	Default 5 sec Adjustable to 3, 5, 10 or 20 sec
  Port Selection	Hotkey, Mouse, or Remote Switch Button
  Emulation	Keyboard: USB Mouse: USB
  POP Information	(3) Peg Hook 10" (25.4 cm) (2) Peg Hook 6" (15.24 cm)
  Temperature / Humidity	Operation Temperature: 32° - 122° F (0° - 50° C) Storage Temperature: -4° - 120° F (-20° - 60° C) Humidity: 0% - 80% RH (Non-condensing)
  Power Requirements	Bus-powered
  LEDs	Port ID: (2) Green
  Cable Length	3.9' (1.2 m)
  System Requirements	Console: (1) DVI display (1) USB keyboard and 2 USB mice Computers: (1) DVI port (2) USB ports Operating Systems: Windows XP, Windows Vista (32-bit / 64-bit) Windows 7 (32-bit / 64-bit)* Mac OS X 10.3.9 or later Sun Solaris Linux *IOGEAR's Display Emulation Technology provides the EDID support for Windows 7
  Enclosure	Plastic
  Dimensions (WxHxD)	4.75 x 3.75 x 1.0" (12.1 x 9.5 x 2.5 cm)
  Weight	1.20 lb (0.54 kg)

  Box Dimensions (LxWxH)	9.3 x 6.5 x 2.9"

• Active Mini DisplayPort to DVI Adapter

  Input	Mini DisplayPort, male 20-pin
  Output	DVI, female 29-pin
  Supported Resolution	Up to 4K 3840 x 2160 @ 30 Hz
  Power Consumption	1 W
  Operating Temperature	32 to 158°F (0 to 70°C)
  Storage Temperature	14 to 176°F (-10 to 80°C)
  Dimensions (H x D x W)	0.875 x 0.5 x 6.875" (2.2 x 1.3 x 17.5 cm)
  Weight	0.05 lb (0.02 kg)

  Box Dimensions (LxWxH)	7.0 x 4.0 x 0.8"
