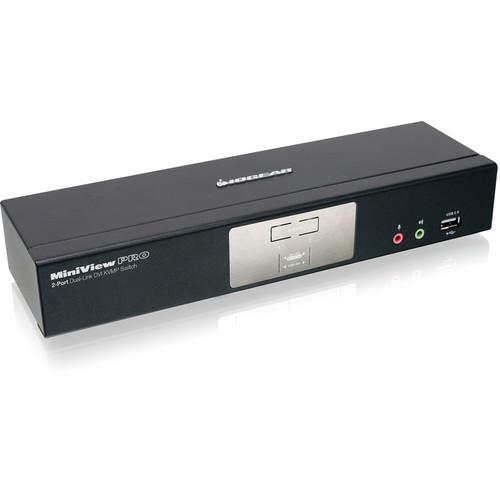

Product description Multi-Monitors: Maximizing Multitasking Read More vwreuseavvwfxuyuaybrzd The Iogear 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio allows you to control 2 computers using a single monitor, keyboard, and mouse. Ideal for multimedia applications, the switch supports an integrated 2-port USB 2.0 hub and audio switching.
Offering a maximum resolution up to 2560 x 1600 (DVI-D Dual link) and 1920 x 1200 (DVI-D Single link), the KVMP Pro supports high-end 3D graphics (NVIDIA 3D Vision Ready) and gaming keyboards. Asynchronous hotkey switching can be done between KVM focus, USB peripheral, and audio ports. You can experience and share the 7.1 surround sound system between 2 computers. The Dynasync feature with EDID support for Windows 7 reads and remembers the monitor's parameters so that there is no delay or change of video resolution when switching between, or booting computers.
Complete keyboard and mouse emulation is possible for error-free booting and real-time switching. The front panel pushbuttons / hotkeys help you switch between computers. The KVMP Switch is also compatible with the MAC / Sun keyboard and special keys. It supports a multi-platform OS including Windows XP, Windows Vista, Windows 7, Mac OS X, Sun Solaris, and Linux. The switch is firmware upgradeable. With the Plug-n-Play installation, no software is required. The 2-Port Dual View Dual-Link DVI KVMP Pro with 7.1 Audio is ideal for CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing), desktop publishing / graphic design / video editing, medical / surgical / diagnostic displays, and high-end gaming, where high and ultra-high video resolutions are required. - Allows you to share a professional quality monitor between two USB, DVI computers, and control them using a single keyboard and mouse
- Features a 2-port USB 2.0 hub, and supports audio switching
- Offers a high resolution up to 2560 x 1600 (DVI-D Dual link) and 1920 x 1200 (DVI-D Single link)
- Supports high-end 3D graphics (NVIDIA 3D Vision Ready) and gaming keyboards
- Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
- Allows you to experience and share the 7.1 surround sound system between 2 computers
- Dynasync feature with EDID support for Windows 7 - reads and remembers the monitor's parameters so that there is no delay or change of video resolution when switching between, or booting computers
- Complete keyboard and mouse emulation for error free booting and real-time switching

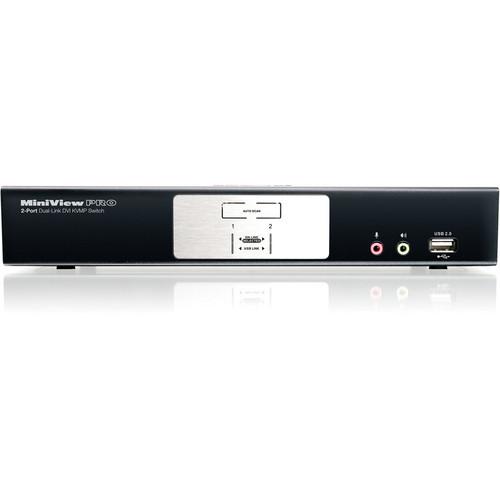

- Front panel pushbuttons / hotkeys for switching between computers
- Compatible with MAC / Sun keyboard and special keys
- Supports a multi-platform OS including Windows XP, Windows Vista, Windows 7, Mac OS X, Sun Solaris, and Linux
- Plug-n-Play installation - allows you to install without any need for a software
- Ideal for CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing), desktop publishing / graphic design / video editing, medical / surgical / diagnostic displays, and high-end gaming, where high and ultra-high video resolutions are required
UPC: 881317508553 In the Box IOGEAR 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio 2 x Dual-Link DVI-D KVM Cable 2 x 7.1 Audio Cable PS/2 to USB Adapter Power Adapter Installation Guide 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

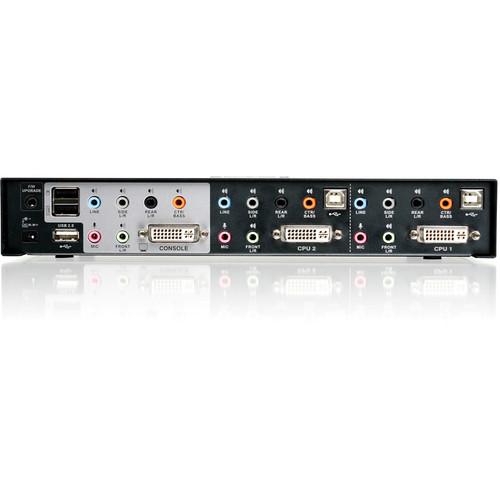

Technical parametersIOGEAR GCS1782G Specs | | | Connections | 2 | | Port Selection | Hotkeys or Pushbutton | | | | CPU Connectors | Keyboard & Mouse: 2 x USB Type B Female Monitor: 2 x Dual Link DVI-I Female | | Console Connectors | Mouse: 1 x USB Type A Female
Keyboard: 1 x USB Type A Female
Monitor: 1 x Dual Link DVI-I Female
Flash ROM Upgrade: 1 x 4-conductor 3.5 mm Jack (Black) | | Connectors-Audio(CPU) | Center/Subwoofer: 1 x Mini Stereo Jack Female (Orange)
Line In: 1 x Mini Stereo Jack Female (Blue)
Line Out: 1 x Mini Stereo Jack Female (Green)
Microphone: 1 x Mini Stereo Jack Female (Pink)
Rear Speaker Out: 1 x Mini Stereo Jack Female (Black)
Side Speaker Out: 1 x Mini Stereo Jack Female (Grey) | | Peripheral Sharing | 2 x USB 2.0 Type A Female | | LED | Selected: 2 (Orange)
USB Peripherals: 2 (Green) | | | | Keyboard / Mouse | USB | | Video Resolution | DVI-D: 2560 x 1600 @ 60 Hz (Dual Link); 1920 x 1200 @ 60 Hz (Single Link); 3840 x 2400 @ 13 Hz (Single Link); DVI-A: 2048 x 1536; DDC2B | | | | Voltage | DC 5.3 V | | Current | 2.4 A | | Scan Interval | 1 to 99 seconds (5 seconds by default) | | | | Temperature / Humidity | Operation Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C) | | Humidity Range | 0 to 80% RH, Non-condensing | | Dimensions (W x H x D) | 10 x 1.5 x 2.75" (25.4 x 3.81 x 6.98 cm) | | Enclosure | Metal | | Weight | 1.84 lb (0.83 kg) | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 13.0 x 8.5 x 4.0" |
