User Manual for IOGEAR 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio Kit with Two Mini DisplayPort Adapters Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port Dual-Link DVI KVMP Pro
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 2-Port Dual-Link DVI KVMP Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

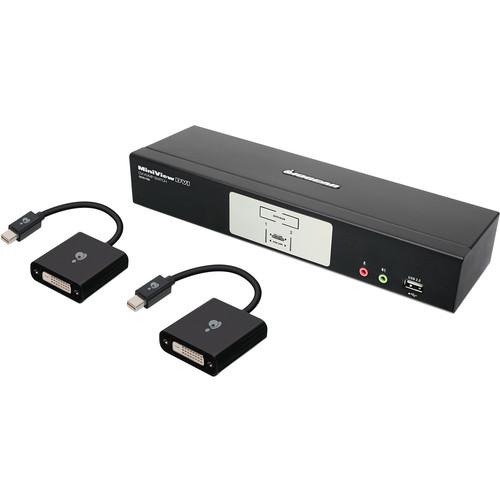

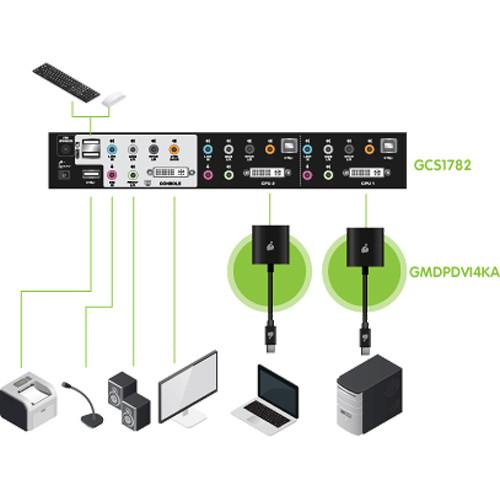

Product description Multi-Monitors: Maximizing Multitasking Read More This IOGEAR kit provides one 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio as well as two Mini DisplayPort adapters, so you can control two Mini DisplayPort desktop computers with a single console system that has one DVI-capable monitor. The adapters convert the ends of the KVM cables from a DVI connection to a Mini DisplayPort interface. - 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio The Iogear 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio allows you to control 2 computers using a single monitor, keyboard, and mouse. Ideal for multimedia applications, the switch supports an integrated 2-port USB 2.0 hub and audio switching.
Offering a maximum resolution up to 2560 x 1600 (DVI-D Dual link) and 1920 x 1200 (DVI-D Single link), the KVMP Pro supports high-end 3D graphics (NVIDIA 3D Vision Ready) and gaming keyboards. Asynchronous hotkey switching can be done between KVM focus, USB peripheral, and audio ports. You can experience and share the 7.1 surround sound system between 2 computers. The Dynasync feature with EDID support for Windows 7 reads and remembers the monitor's parameters so that there is no delay or change of video resolution when switching between, or booting computers.
Complete keyboard and mouse emulation is possible for error-free booting and real-time switching. The front panel pushbuttons / hotkeys help you switch between computers. The KVMP Switch is also compatible with the MAC / Sun keyboard and special keys. It supports a multi-platform OS including Windows XP, Windows Vista, Windows 7, Mac OS X, Sun Solaris, and Linux. The switch is firmware upgradeable. With the Plug-n-Play installation, no software is required. The 2-Port Dual View Dual-Link DVI KVMP Pro with 7.1 Audio is ideal for CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing), desktop publishing / graphic design / video editing, medical / surgical / diagnostic displays, and high-end gaming, where high and ultra-high video resolutions are required. - Allows you to share a professional quality monitor between two USB, DVI computers, and control them using a single keyboard and mouse
- Features a 2-port USB 2.0 hub, and supports audio switching
- Offers a high resolution up to 2560 x 1600 (DVI-D Dual link) and 1920 x 1200 (DVI-D Single link)
- Supports high-end 3D graphics (NVIDIA 3D Vision Ready) and gaming keyboards
- Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
- Allows you to experience and share the 7.1 surround sound system between 2 computers
- Dynasync feature with EDID support for Windows 7 - reads and remembers the monitor's parameters so that there is no delay or change of video resolution when switching between, or booting computers
- Complete keyboard and mouse emulation for error free booting and real-time switching
- Front panel pushbuttons / hotkeys for switching between computers
- Compatible with MAC / Sun keyboard and special keys
- Supports a multi-platform OS including Windows XP, Windows Vista, Windows 7, Mac OS X, Sun Solaris, and Linux
- Plug-n-Play installation - allows you to install without any need for a software
- Ideal for CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing), desktop publishing / graphic design / video editing, medical / surgical / diagnostic displays, and high-end gaming, where high and ultra-high video resolutions are required

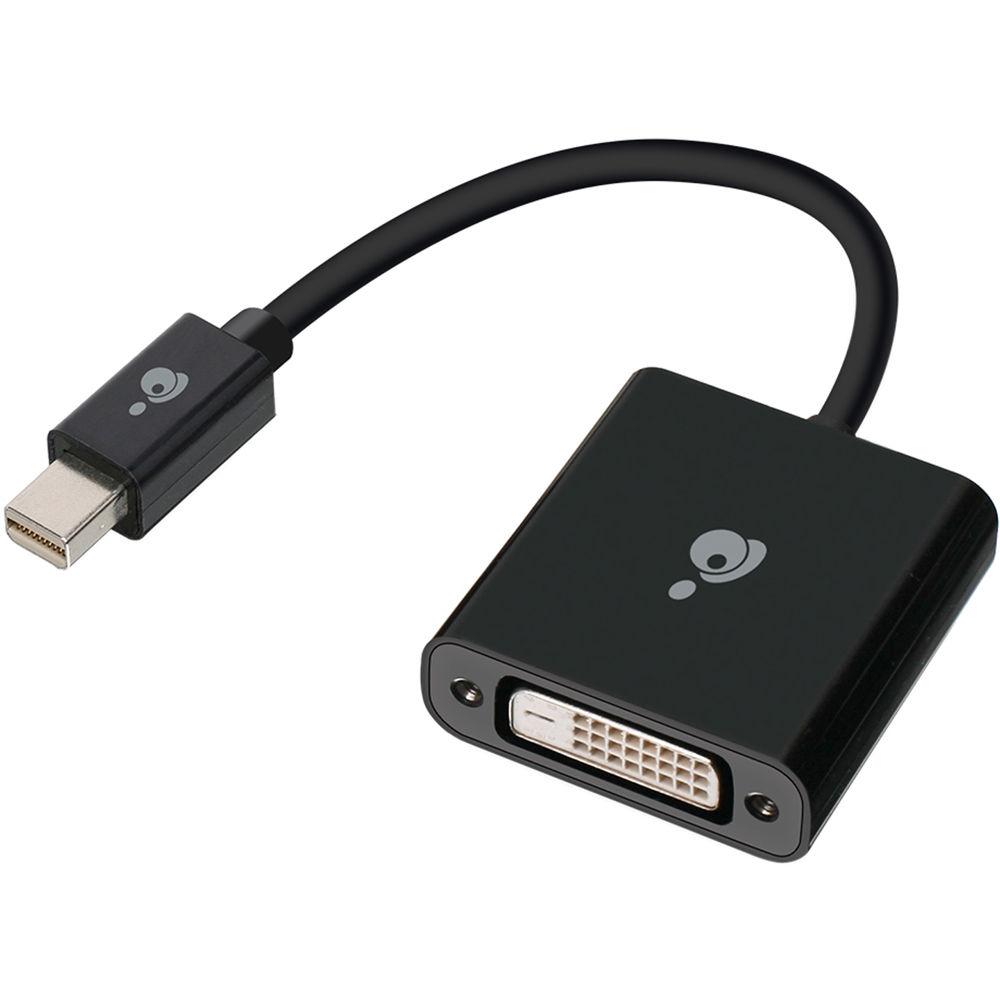

UPC: 881317508553 - Active Mini DisplayPort to DVI Adapter The Active Mini DisplayPort to DVI Adapter from IOGEAR is used to convert a Mini DisplayPort output to a DVI output. Use it to connect your computer or laptop or a DVI based display, projector, or TV. An active adapter is needed for connecting more than two displays to a video card. Moreover, this adapter supports resolutions up to 4K 3840 x 2160 at 30 Hz, and is plug-and-play compatible, so you won't have to worry about additional power plugs or installing drivers. UPC: 881317516169

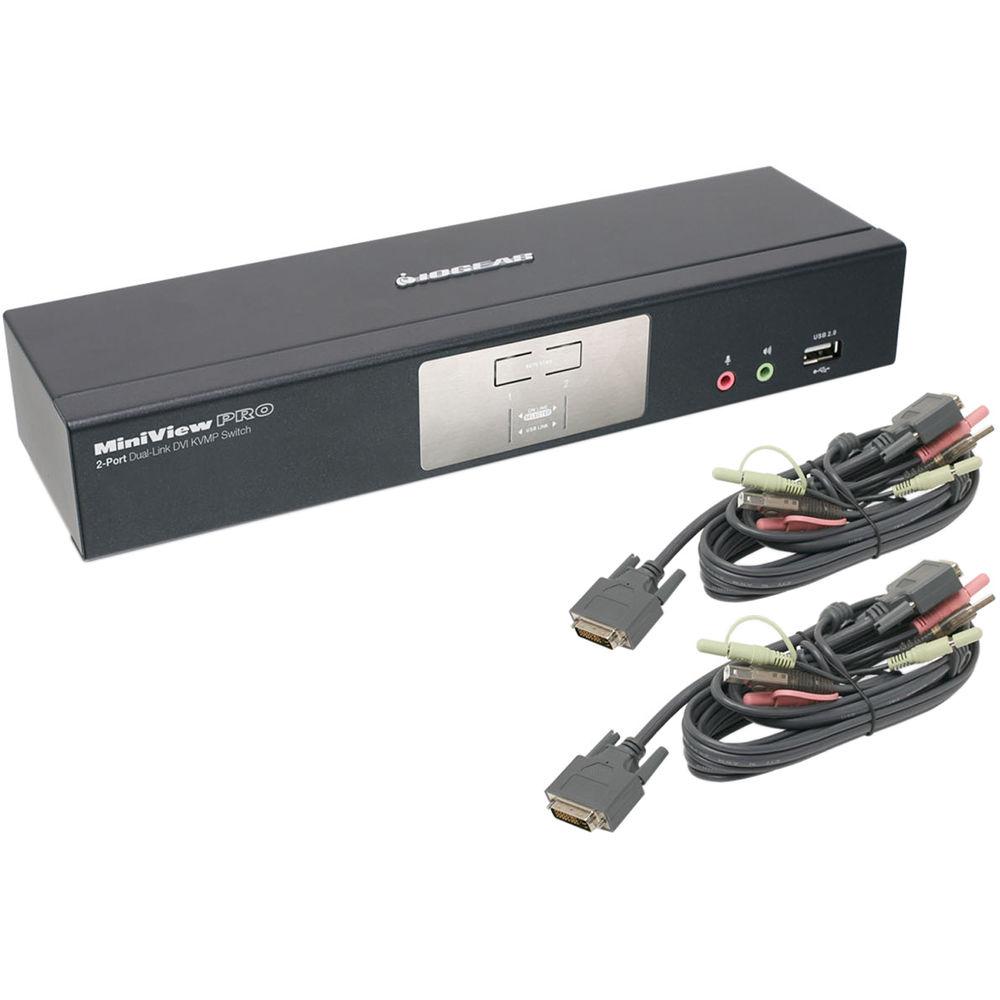

In the Box Bundle Items 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio uywbfytcxdrubyfvtxcuvfdrsurywybswqsee - 2 x Dual-Link DVI-D KVM Cable
Active Mini DisplayPort to DVI Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio Kit with Two Mini DisplayPort Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio
| | | Connections | 2 | | Port Selection | Hotkeys or Pushbutton | | | | CPU Connectors | Keyboard & Mouse: 2 x USB Type B Female Monitor: 2 x Dual Link DVI-I Female | | Console Connectors | Mouse: 1 x USB Type A Female
Keyboard: 1 x USB Type A Female
Monitor: 1 x Dual Link DVI-I Female
Flash ROM Upgrade: 1 x 4-conductor 3.5 mm Jack (Black) | | Connectors-Audio(CPU) | Center/Subwoofer: 1 x Mini Stereo Jack Female (Orange)
Line In: 1 x Mini Stereo Jack Female (Blue)
Line Out: 1 x Mini Stereo Jack Female (Green)
Microphone: 1 x Mini Stereo Jack Female (Pink)
Rear Speaker Out: 1 x Mini Stereo Jack Female (Black)
Side Speaker Out: 1 x Mini Stereo Jack Female (Grey) | | Peripheral Sharing | 2 x USB 2.0 Type A Female | | LED | Selected: 2 (Orange)
USB Peripherals: 2 (Green) | | | | Keyboard / Mouse | USB | | Video Resolution | DVI-D: 2560 x 1600 @ 60 Hz (Dual Link); 1920 x 1200 @ 60 Hz (Single Link); 3840 x 2400 @ 13 Hz (Single Link); DVI-A: 2048 x 1536; DDC2B | | | | Voltage | DC 5.3 V | | Current | 2.4 A | | Scan Interval | 1 to 99 seconds (5 seconds by default) | | | | Temperature / Humidity | Operation Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C) | | Humidity Range | 0 to 80% RH, Non-condensing | | Dimensions (W x H x D) | 10 x 1.5 x 2.75" (25.4 x 3.81 x 6.98 cm) | | Enclosure | Metal | | Weight | 1.84 lb (0.83 kg) | | | | Box Dimensions (LxWxH) | 13.0 x 8.5 x 4.0" | - Active Mini DisplayPort to DVI Adapter
| Input | Mini DisplayPort, male 20-pin | | Output | DVI, female 29-pin | | Supported Resolution | Up to 4K 3840 x 2160 @ 30 Hz | | Power Consumption | 1 W | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Dimensions (H x D x W) | 0.875 x 0.5 x 6.875" (2.2 x 1.3 x 17.5 cm) | | Weight | 0.05 lb (0.02 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.8" |
