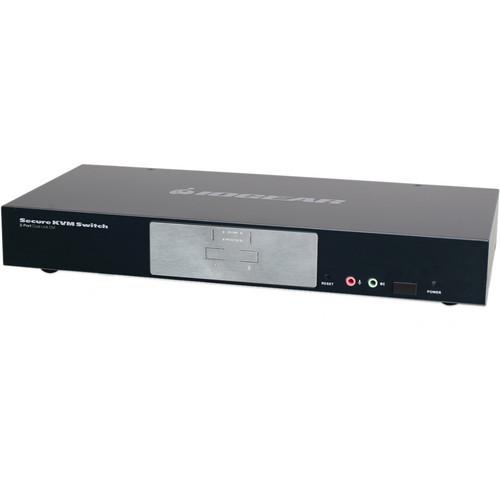

User Manual for IOGEAR 2-Port Dual-Link DVI Secure KVM Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port Dual-Link DVI Secure KVM
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 2-Port Dual-Link DVI Secure KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More In a rugged metal enclosure, the 2-Port Dual-Link DVI Secure KVM Switch from IOGEAR allows you to control up to 2 computers while offering advanced security. The switch supports a single monitor configuration and includes dual USB 2.0 ports for connecting a mouse and keyboard for controlling the connected computers. In addition, you can connect speakers or a mic for your console as well as for each computer that you connect. Plus, you can connect one USB peripheral for each computer.
In terms of security, the switch employs a number of different measures, making it suitable for use in government applications. It is validated to EAL2+ security requirements and is NIAP-certified. Each channel on the switch is isolated, preventing any data transfers between computers. In addition, if the cover is removed, the unit will stop working and its LEDs will flash. The keyboard buffer is cleared each time data is transmitted to the switch. The switch's firmware is designed to not be reprogrammed. The switch has its own built-in power supply, which can save space near power outlets, and is compatible with computers running Windows, Linux, Mac, or Sun. - USB Control
- One USB console controls 2 secure computers
- Pushbutton Only to Enhance Security
- (OSD, hotkey methods are not allowed)
- NIAP-Certified
- Validated to EAL2+ security requirements, with Peripheral Sharing Switch Protection Profile v2.1
- Isolated Channel Per Port
- Makes it impossible for data to be transferred between computers. Also, non USB HIDs (Human Interface Devices) are ignored when switching
- Tamper-evident Tape
- Provides a visual indication of any attempt to gain access to the switch's internal components
- Chassis Intrusion Detection
- If the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
- Tamper-Proof Hardware
- All integrated circuits are soldered directly to the circuit board to prevent tampering with the components
- Non-Reprogrammable ROM
- Prevents tampering and attempts to reprogram the switch's firmware
- Clears Keyboard Buffer
- Keyboard data is automatically cleared after transmission to the switch
- Multiplatform Support
- Windows 2000, XP, Vista, 7, Linux, Mac, and Sun
- Superior Video Quality
- 2560 x 1600 (DVI Dual-Link), 1920 x 1200 (DVI Single Link), and 2048 x 1536 (DVI-A)
UPC: 881317508652 In the Box IOGEAR 2-Port Dual-Link DVI Secure KVM Switch Power Cord User Manual Registration Card 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port Dual-Link DVI Secure KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

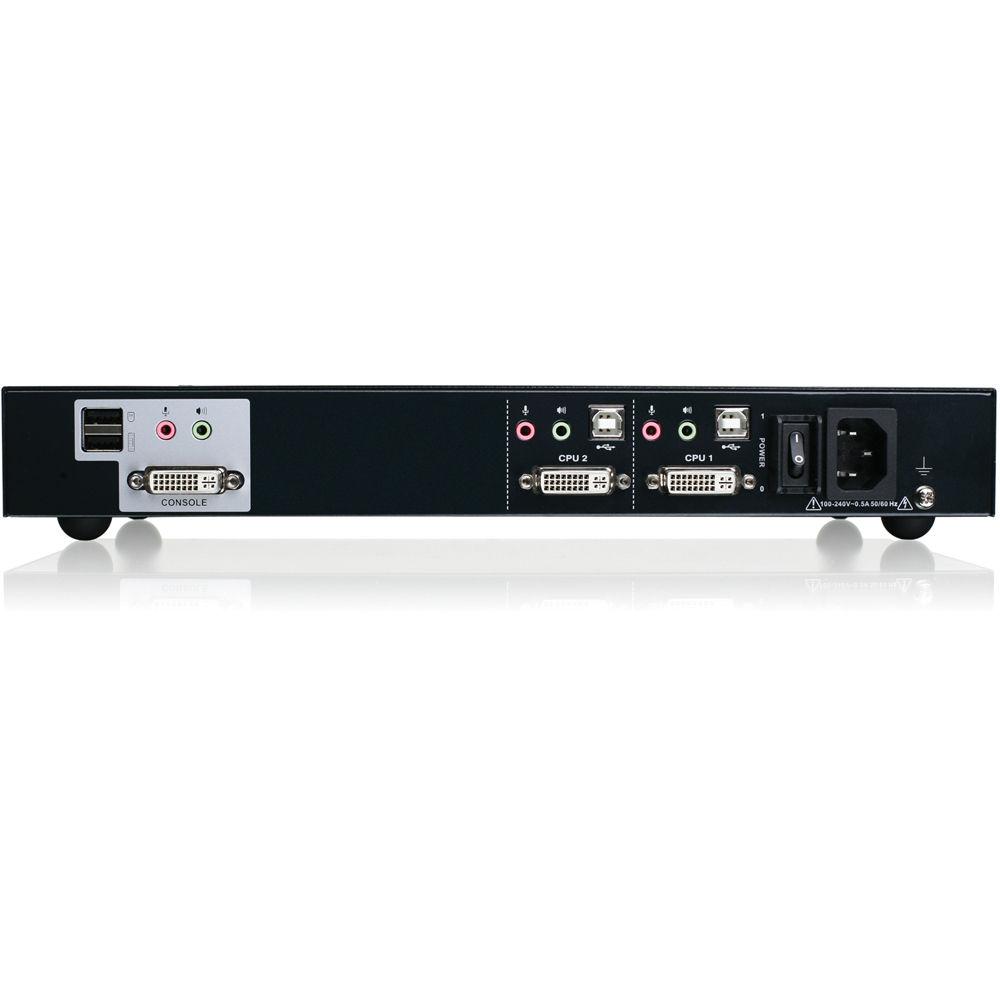

Technical parametersIOGEAR GCS1212TAA Specs | Max Computer Connections | 2 | | PC Connectors | 2x Dual-Link DVI-I Female
2x USB Type B Female
2x Line-Out Mini Stereo Jack Female (Green)
2x Mic-In Mini Stereo Jack Female (Pink) | | Console Connectors | 1x Dual-Link DVI-I Female
2x USB Type A Female
1x Line-Out Mini Stereo Jack Female (Green)

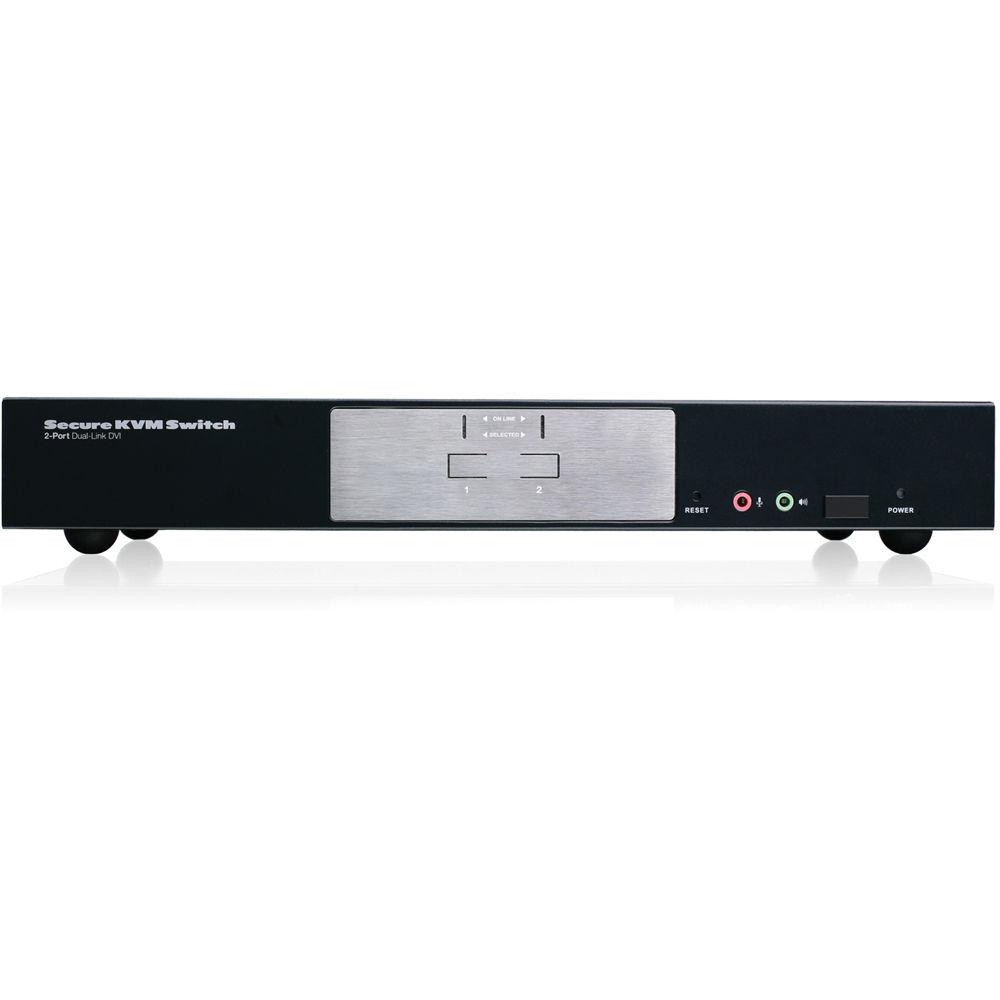

1x Mic-In Mini Stereo Jack Female (Pink) | | Front | 1x Line-Out Mini Stereo Jack Female (Green)
1x Mic-In Mini Stereo Jack Female (Pink)
1x Reset Button
2x Push Buttons for switching | | Video Resolution | 2560 x 1600 (DVI Dual-Link)
1920 x 1200 (DVI Single Link)
2048 x 1536 (DVI-A) | | Scan Interval | Not specified by the manufacturer | | Port Selection | Pushbutton | | Enclosure | Metal | | Compliance | RoHS
TAA for government use | | System Requirements | Console:
·DVI monitor
·USB keyboard and mouse
·Speakers and microphone
Computer:
·DVI port - Single or Dual-Link DVI video card
·Type "A" USB port
Operating Systems:
·Windows XP, Vista, 7
·Mac OS X or greater
·Sun Solaris
·Linux, UNIX and other USB supported systems
Note:
1. Additional drivers and support may be needed
2. Dual-Link DVI-D USB 2.0 KVM Cables sold separately (G2L7D02UD, G2L7D03UD, G2L7D05UD) | | Power Requirements | AC: 120VAC
DC: 5VDC, 2A | | Dimensions (WxHxD) | 6 x 1.75 x 13.1" (15.5 x 4.4 x 33.4cm) | | Weight | 3.65 lb (1.7kg) | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 16.9 x 8.7 x 3.6" |
