Product description Multi-Monitors: Maximizing Multitasking Read More Share two DVI monitors with a single keyboard and mouse between two computers using the 2-Port Dual View Dual-Link DVI KVMP Switch from IOGEAR. This switch combines IOGEAR's DuraSync with the widescreen graphics resolution of displays 30" and larger, supporting two Dual-Link DVI monitors at resolutions up to 2560 x 1600 and 3D graphics. This switch is well-suited for applications where high resolutions, 3D graphics, and large or widescreen dual-display monitors are necessary, such as CAD (Computer-Aided Design), CAM (Computer-Aided Manufacturing), desktop publishing, graphic design, and video editing, medical, surgical, and diagnostic imaging, and high-end gaming.

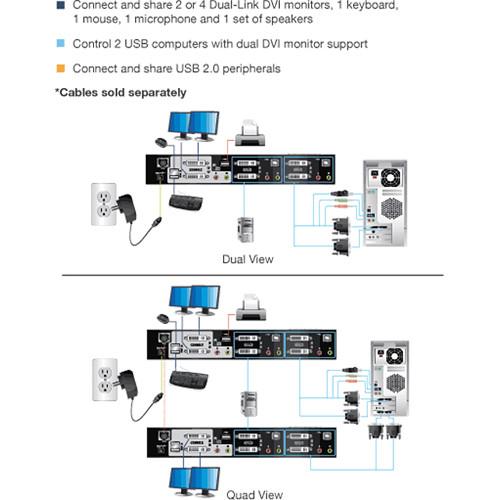

By combining two of these switches, users can assemble a Quad View console with one keyboard, one mouse, two computers, and four displays. Switch between and access each system from a push button on the front panel, a keyboard hotkey, or the clickwheel on your 3-button mouse. If you need to share USB devices, there are two USB 2.0 Type-A ports, and a powered hub may also be connected to one of these ports for increased connectivity and functionality. Included is a power adapter, and protection is provided by a limited 3-year warranty. General Features - Dual Monitor Dual-Link DVI support - Share two DVI monitors with a single keyboard and mouse between two computers
- Quad View (DCC Mode) - When connecting two GCS1642X units together
- Increase security for your intranet by separating a system connected to the internet and a system connected to an intranet
- High Resolution - Dual-Link DVI resolution of up to 2560 x 1600
- KVM and audio cable set G2L7202U is available for separate purchase
- Supports 3D graphics and gaming
- Multi-OS platform support
- 2-Port USB 2.0 hub for peripherals sharing
- Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
- IOGEAR's DynaSync reads and remembers the monitor's parameters (EDID), so there is no delay or change of video resolution when switching between or booting computers
- Audio Enabled - Microphone support and full bass response provides 2.1 stereo sound
- Complete keyboard and mouse emulation for error-free booting and real-time switching

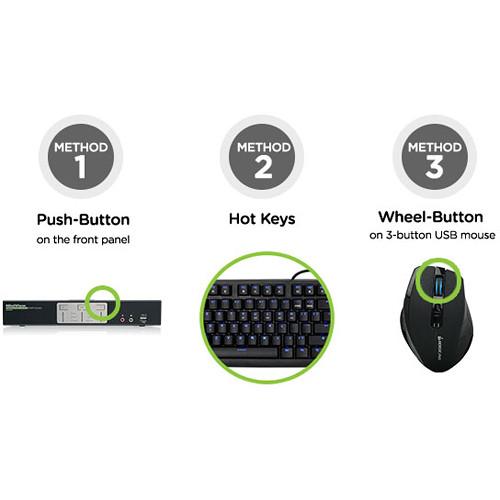

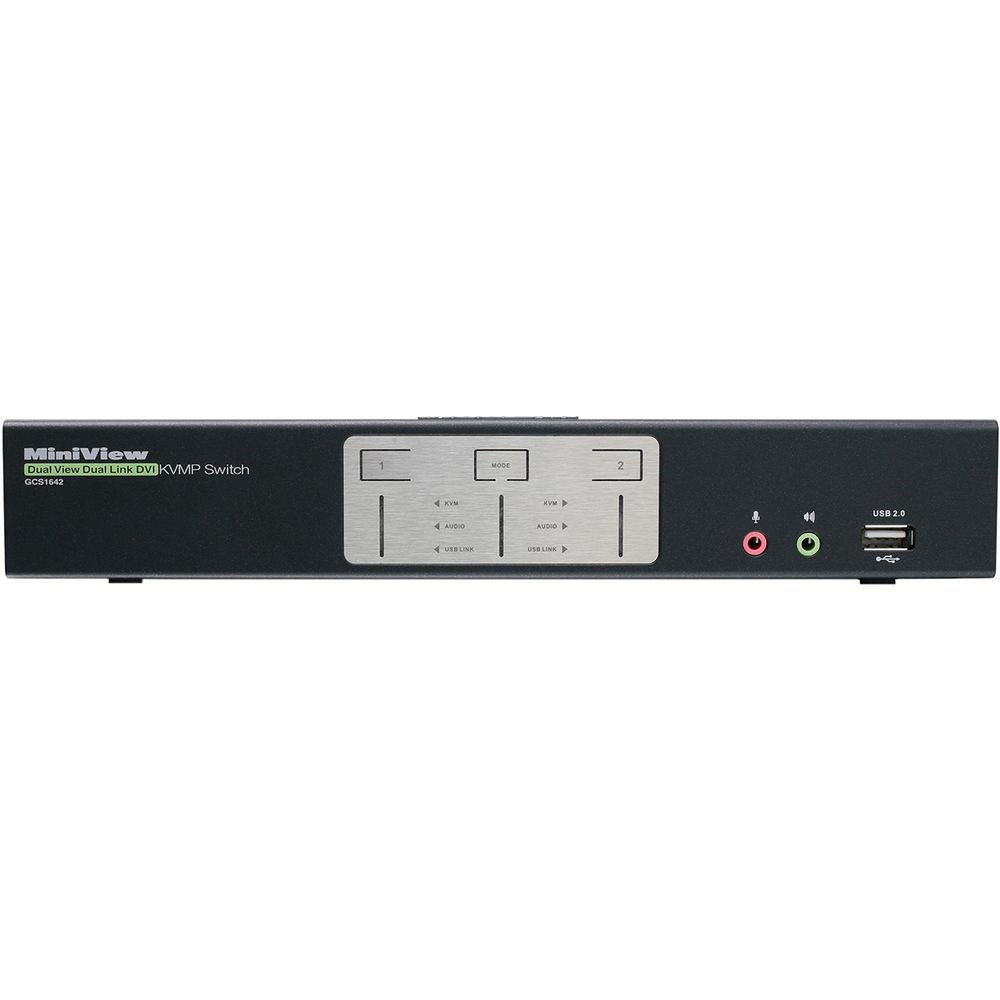

- Computer switching via front panel push buttons, hotkeys, or mouse
- Auto Scan Mode monitors connected computers
- Supports Mac and Sun keyboards and special keys
- Plug-and-Play - No software installation required

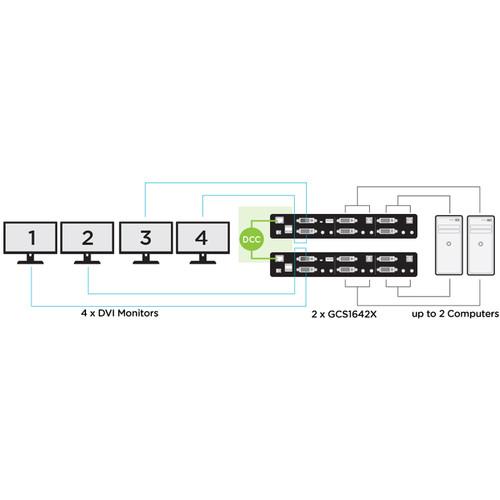

- Quad Monitor Display
- Connect two GCS1642X units in DCC Mode to have a quad view console that consists of a keyboard, mouse, and four monitors.
- Convenient Switching Methods
- Switch and access four DisplayPort computers from a simple push-button on the front panel or hotkey keyboard combination. IOGEAR's 2-Port Dual-Link DVI Dual Monitor KVM Switch also offers mouse port-switching functionality to change ports. Quickly switch between connected computers by clicking the wheel button on your 3-button USB mouse.
- Share USB 2.0 Devices
- The GCS1642X also features two USB 2.0 Type-A peripheral ports for asynchronously sharing USB devices between your computers. A powered USB hub may be attached to the peripheral ports for added functionality. Audio and microphone support makes sharing speakers and a microphone a convenience for the users.
- EDID Support
- IOGEAR's DynaSync remembers your monitor's ideal resolution and refresh rate (EDID), making it possible to boot all your computers simultaneously, switch back and forth between computers, and still maintain the ideal video settings of the monitor.
- Save Cost and Increase Security
- This 2-port KVM also offers a cost-effective solution to increase security by allowing users to switch between an internet-connected system and an intranet-connected system.

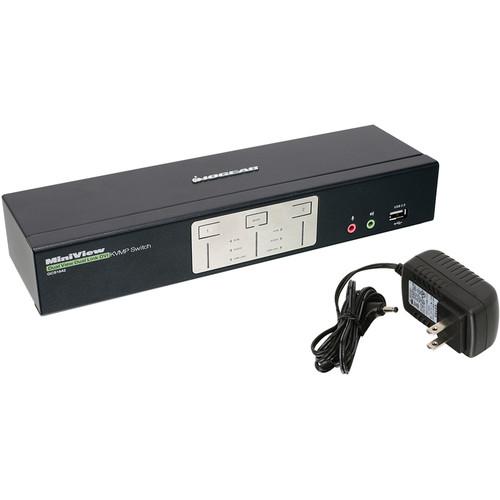

UPC: 881317517241 In the Box IOGEAR 2-Port Dual View Dual-Link DVI KVMP Switch Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port Dual View Dual-Link DVI KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

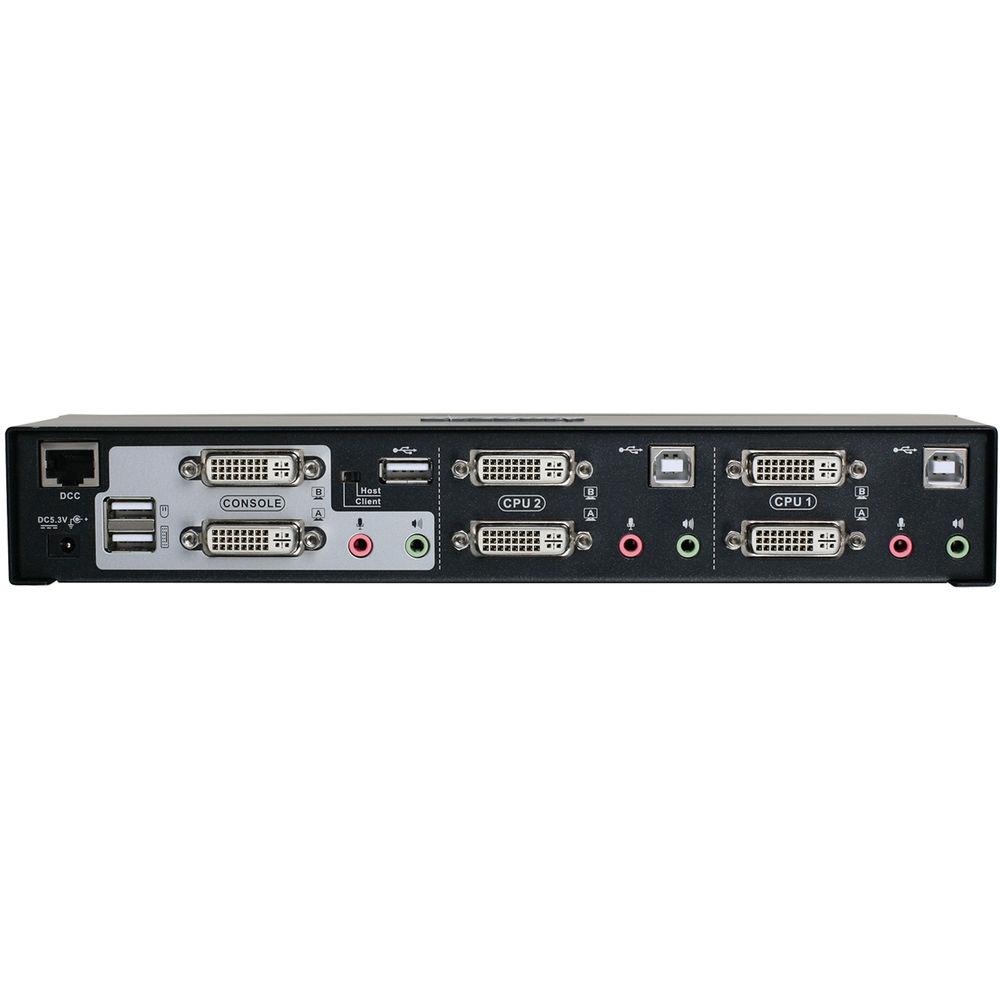

Technical parametersIOGEAR GCS1642X Specs | | | # of Systems Supported | 2 | | CPU Connections | 4 x DVI-I, Female
2 x USB (Unspecified Version) Type-B, Female
2 x 3.5 mm, Female
2 x 3.5 mm Microphone, Female | | Console Connections | 2 x DVI, Female
1 x USB (Unspecified Version) Type-A (Keyboard), Female
1 x USB (Unspecified Version) Type-A (Mouse), Female
1 x 3.5 mm Audio-Out, Female
1 x 3.5 mm Microphone, Female | | USB Peripheral/Firmware Connections | 2 x USB (Unspecified Version) Type-A, Female | | Scan Interval Range | 1 to 99 secs (5 secs Default) | | Supported Resolutions | 1920 x 1200
2650 x 1600 | | USB Keyboard/Mouse Emulation | Yes | | Operating System Support | Linux, Solaris, Windows, macOS/OS X | | | | DC Input Power | 5.3 VDC at 2.4 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions | 10.2 x 1.7 x 2.9" / 25.9 x 4.3 x 7.4 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 11.0 x 7.0 x 3.0" |
