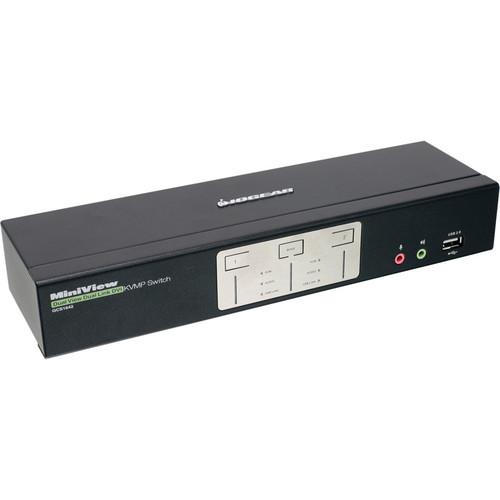

User Manual for IOGEAR 2-Port DualView Dual-Link DVI KVMP Switch with Audio Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port DualView Dual-Link DVI KVMP
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 2-Port DualView Dual-Link DVI KVMP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The IOGEAR 2-Port DualView Dual-Link DVI KVMP Switch with Audio comes with four DVI-I outputs, two DVI-I inputs, and a pair of USB ports, so you can control 2 computers using two monitors and a single keyboard and mouse. For multimedia applications, the switch delivers 2-channel sounds by featuring standard audio jacks for your speakers, headsets, and microphones. In addition, a 2-port USB hub allows you to connect printers, external storage drives, scanners, and more to your two systems.
The six dual-link DVI-I ports offer a resolution of up to 2500 x 1600, which is suitable for 3D graphics and gaming. You can quickly switch between the two systems with asynchronous hotkey software switching or the three buttons located on the front panel. The switch supports Dynasync so that Windows 7 can read and remember the monitor's video resolution when switching between or booting computers. IOGEAR has designed this switch to work with various operating systems, including Windows, Mac OS X, Sun Solaris, and Linux. Being HDCP compliant, the switch is firmware upgradeable. Furthermore, two sets of KVM cables and two DVI-D cables are included to complete your switching needs. - Allows you to control 2 computers using a single keyboard and mouse
- Supports dual monitor configurations, an integrated 2-port USB 2.0 hub, and audio switching
- Offers a high resolution up to 2500 x 1600
- Supports 3D graphics and gaming
- Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
- 2.1 stereo sound with the audio enabled - microphone support and full bass response
- Dynasync feature with EDID support for Windows 7 - reads and remembers the monitor's parameters so that there is no delay or change of video resolution when switching between, or booting computers
- Complete keyboard and mouse emulation for error free booting and real-time switching

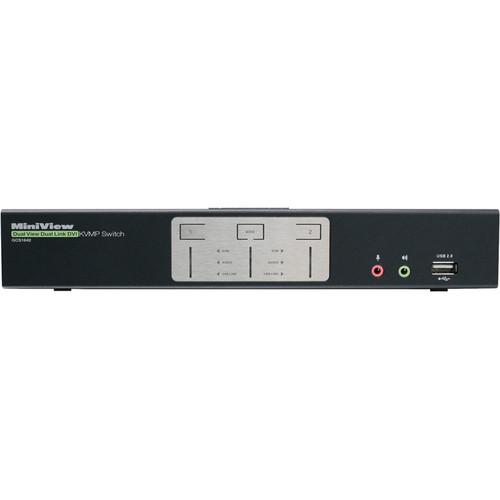

- Front panel pushbuttons / hotkeys for switching between computers
- Compatible with MAC / Sun keyboard and special keys
- Supports a multi-platform OS including Windows XP, Windows Vista, Windows 7, Mac OS X, Sun Solaris, and Linux
- Plug-n-Play installation - allows you to install without any need for software
- Ideal for CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing), desktop publishing / graphic design / video editing, medical / surgical / diagnostic displays, and high-end gaming
UPC: 881317502834 In the Box IOGEAR 2-Port DualView Dual-Link DVI KVMP Switch with Audio 2 x Dual-Link DVI-D KVM Cables 2 x Dual-Link DVI-D Cables Power Adapter 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port DualView Dual-Link DVI KVMP Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

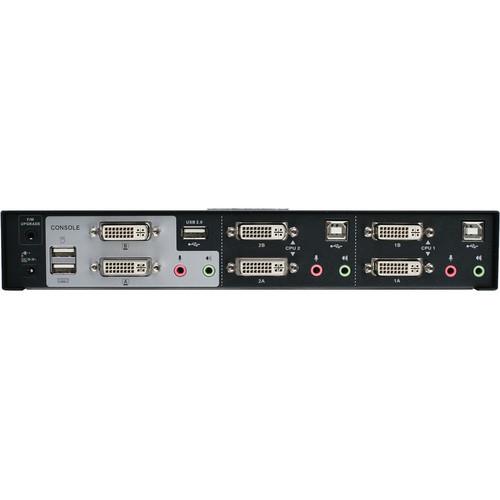

Technical parametersIOGEAR GCS1642 Specs | | | # of Systems Supported | 2 | | CPU Connections | 4 x DVI-I, Female
2 x USB (Unspecified Version) Type-B (Keyboard), Female
2 x USB (Unspecified Version) Type-B (Mouse), Female
2 x 3.5 mm, Female
2 x 3.5 mm Microphone, Female | | Console Connections | 2 x DVI-I DL, Female
1 x USB (Unspecified Version) Type-A (Keyboard), Female
1 x USB (Unspecified Version) Type-A (Mouse), Female
1 x 3.5 mm Audio, Female
1 x 3.5 mm Microphone, Female | | Control Connections | 1 x 3.5 mm | | USB Peripheral/Firmware Connections | 2 x USB (Unspecified Version) Type-A, Female | | Scan Interval Range | 1 to 99 secs (5 secs Default) | | Supported Resolutions | 1920 x 1200
2650 x 1600 | | USB Keyboard/Mouse Emulation | Yes | | | | DC Input Power | 5.3 VDC at 2.4 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions | 10.2 x 1.7 x 2.9" / 26.0 x 4.4 x 7.5 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 13.1 x 8.5 x 4.1" |
