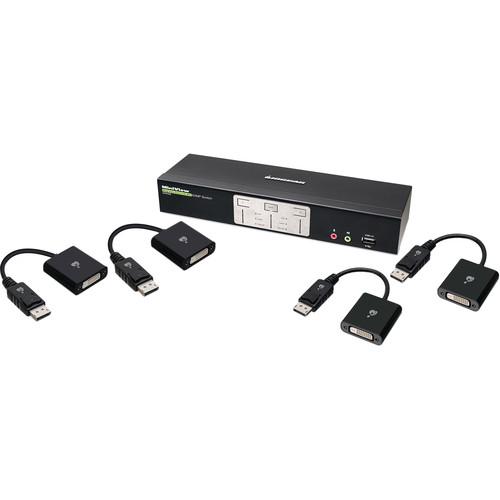

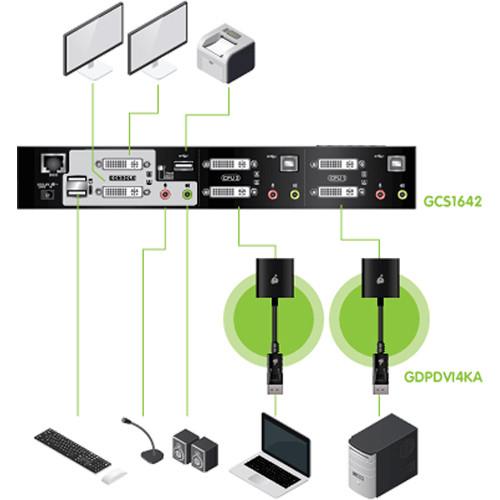

Product description Multi-Monitors: Maximizing Multitasking Read More This IOGEAR kit provides one 2-Port DualView Dual-Link DVI KVMP Switch with Audio as well as four DisplayPort adapters, so you can control two DisplayPort desktop computers with a single console system that has two DisplayPort monitors. The adapters convert the ends of the KVM cables from a DVI connection to a DisplayPort interface. - 2-Port DualView Dual-Link DVI KVMP Switch with Audio The IOGEAR 2-Port DualView Dual-Link DVI KVMP Switch with Audio comes with four DVI-I outputs, two DVI-I inputs, and a pair of USB ports, so you can control 2 computers using two monitors and a single keyboard and mouse. For multimedia applications, the switch delivers 2-channel sounds by featuring standard audio jacks for your speakers, headsets, and microphones. In addition, a 2-port USB hub allows you to connect printers, external storage drives, scanners, and more to your two systems.
The six dual-link DVI-I ports offer a resolution of up to 2500 x 1600, which is suitable for 3D graphics and gaming. You can quickly switch between the two systems with asynchronous hotkey software switching or the three buttons located on the front panel. The switch supports Dynasync so that Windows 7 can read and remember the monitor's video resolution when switching between or booting computers. IOGEAR has designed this switch to work with various operating systems, including Windows, Mac OS X, Sun Solaris, and Linux. Being HDCP compliant, the switch is firmware upgradeable. Furthermore, two sets of KVM cables and two DVI-D cables are included to complete your switching needs. - Allows you to control 2 computers using a single keyboard and mouse
- Supports dual monitor configurations, an integrated 2-port USB 2.0 hub, and audio switching
- Offers a high resolution up to 2500 x 1600
- Supports 3D graphics and gaming
- Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
- 2.1 stereo sound with the audio enabled - microphone support and full bass response
- Dynasync feature with EDID support for Windows 7 - reads and remembers the monitor's parameters so that there is no delay or change of video resolution when switching between, or booting computers
- Complete keyboard and mouse emulation for error free booting and real-time switching
- Front panel pushbuttons / hotkeys for switching between computers
- Compatible with MAC / Sun keyboard and special keys
- Supports a multi-platform OS including Windows XP, Windows Vista, Windows 7, Mac OS X, Sun Solaris, and Linux
- Plug-n-Play installation - allows you to install without any need for software
- Ideal for CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing), desktop publishing / graphic design / video editing, medical / surgical / diagnostic displays, and high-end gaming

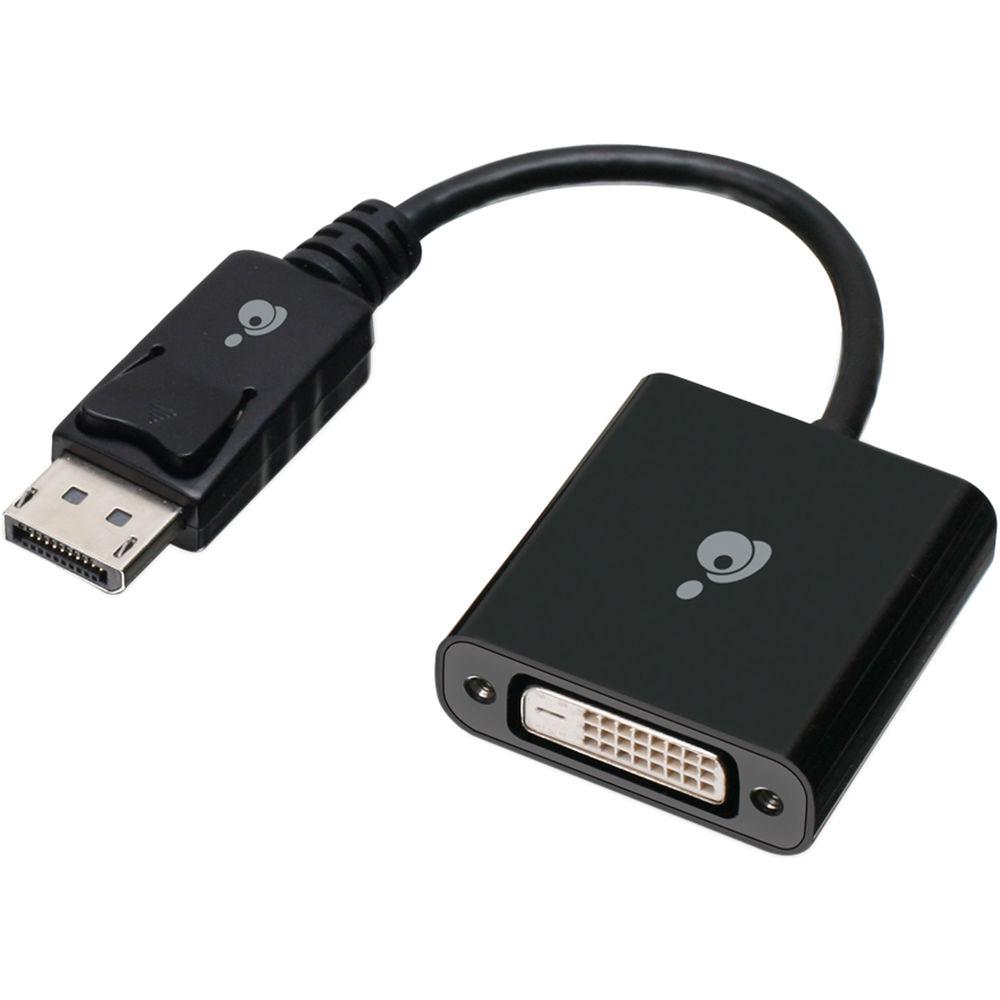

UPC: 881317502834 - Active DisplayPort to DVI Adapter The Active DisplayPort to DVI Adapter from IOGEAR is used to convert a DisplayPort output to a DVI output. Use it to connect your computer or laptop or a DVI based display, projector, or TV. An active adapter is needed for connecting more than two displays to a video card. Moreover, this adapter supports resolutions up to 4K 3840 x 2160 at 30 Hz, and is plug-and-play compatible, so you won't have to worry about additional power plugs or installing drivers. UPC: 881317516152

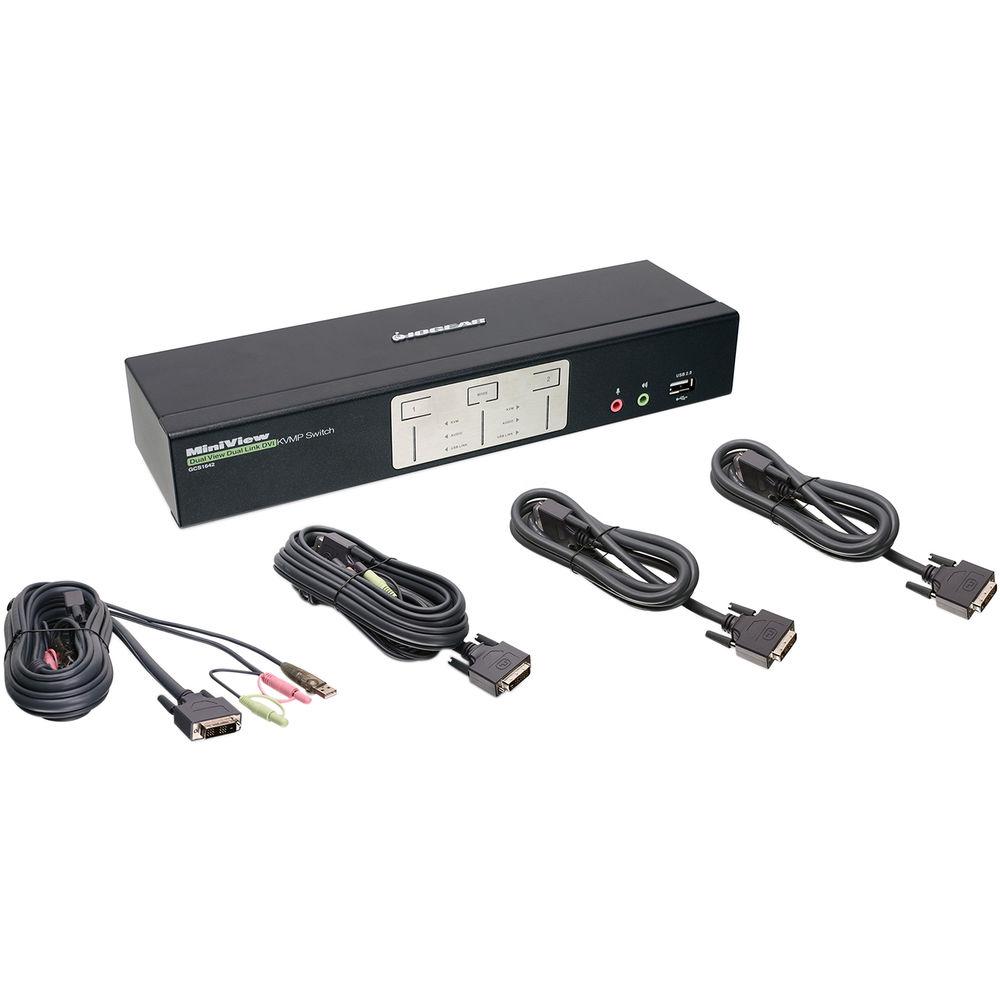

In the Box Bundle Items 2-Port DualView Dual-Link DVI KVMP Switch with Audio xdvdcsbcyfezey - 2 x Dual-Link DVI-D KVM Cables
- 2 x Dual-Link DVI-D Cables
4 x Active DisplayPort to DVI Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port DualView Dual-Link DVI KVMP Switch with Audio Kit with Four DisplayPort Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2-Port DualView Dual-Link DVI KVMP Switch with Audio
| | | # of Systems Supported | 2 | | CPU Connections | 4 x DVI-I, Female
2 x USB (Unspecified Version) Type-B (Keyboard), Female
2 x USB (Unspecified Version) Type-B (Mouse), Female
2 x 3.5 mm, Female
2 x 3.5 mm Microphone, Female | | Console Connections | 2 x DVI-I DL, Female
1 x USB (Unspecified Version) Type-A (Keyboard), Female
1 x USB (Unspecified Version) Type-A (Mouse), Female
1 x 3.5 mm Audio, Female
1 x 3.5 mm Microphone, Female | | Control Connections | 1 x 3.5 mm | | USB Peripheral/Firmware Connections | 2 x USB (Unspecified Version) Type-A, Female | | Scan Interval Range | 1 to 99 secs (5 secs Default) | | Supported Resolutions | 1920 x 1200
2650 x 1600 | | USB Keyboard/Mouse Emulation | Yes | | | | DC Input Power | 5.3 VDC at 2.4 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions | 10.2 x 1.7 x 2.9" / 26.0 x 4.4 x 7.5 cm | | Weight | 2 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 13.1 x 8.5 x 4.1" | - Active DisplayPort to DVI Adapter
| Input | DisplayPort, male 20-pin | | Output | DVI, female 29-pin | | Supported Resolution | Up to 4K 3840 x 2160 @ 30 Hz | | Power Consumption | 1 W | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Dimensions (H x D x W) | 0.875 x 0.5 x 6.875" (2.2 x 1.3 x 17.5 cm) | | Weight | 0.05 lb (0.02 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.8" |
