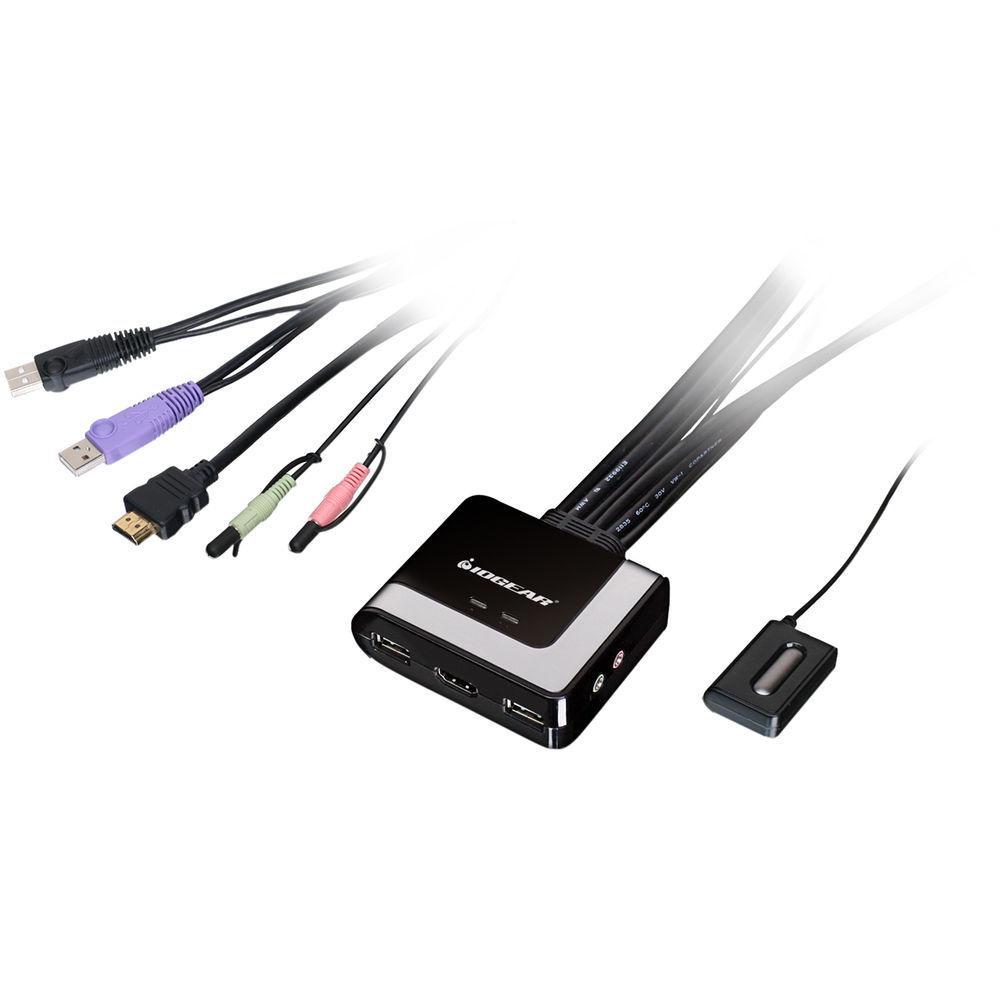

User Manual for IOGEAR 2-Port HD Cable KVM Switch with Mini DisplayPort Adapters Bundle Click to enlarge the picture
Contents of the user manual for the IOGEAR 2-Port HD Cable KVM Switch
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 2-Port HD Cable KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The bundle from IOGEAR comes with the 2-Port HD Cable KVM Switch along with two HDMI to Mini DisplayPort adapters, so you can control 2 computer systems with HDMI or Mini DisplayPort video connections using a single USB keyboard and mouse as well as an HDMI-capable monitor. Each set of integrated cables sports one HDMI, two USB, and two 3.5mm connectors for your game console or computer. The included adapters let you convert both cables into a Mini DisplayPort connection, so you can use this switch with MacBooks, iMacs, and other Apple products.
This switch offers resolutions of up to 1920 x 1200 at 60 Hz, including support for FHD 1080p. You can quickly switch between the two systems with a push of a button or using asynchronous hotkey software. It supports DynaSync so that Windows 7 can read and remember the monitor's video resolution when switching between or booting computers. IOGEAR has designed this switch to work with various operating systems, including Windows, Mac OS X, Sun Solaris, and Linux. Additionally, it is HDCP compliant and firmware upgradeable. - Share a display with HDMI or Mini DisplayPort connection as well as a USB keyboard and mouse with two USB-equipped computers
- Separate the Internet and Intranet with the click of a button
- Full 1080p and up to 1920 x 1200 @ 60Hz
- Port switching via remote switch button, mouse, or hotkeys
- Hotkeys allows independent KVM and audio switching between computers
- Includes 2.1 stereo sound and microphone support
- USB 2.0 Peripheral Sharing via mouse port
- Connect a powered USB Hub to expand your USB connectivity
- USB mouse and keyboard emulation for error-free boot-up and instantaneous recognition when switching computers
- Power-on Detection - If one of the computers is powered off, it will automatically switch to the next powered-on computer
- Re-programmable hotkey activation for keyboards without a scroll lock key
- Keyboard emulation can be disabled to support a gaming keyboard's special keys
- Mouse emulation can be disabled to support mice with special keys
- Mac and Sun keyboard support
- Plug & Play - no software installation required
UPC: 881317515131 In the Box IOGEAR 2-Port HD Cable KVM Switch with Mini DisplayPort Adapters Bundle 2 x HDMI to Mini DisplayPort Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2-Port HD Cable KVM Switch with Mini DisplayPort Adapters Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS62HMDPKIT Specs | | | Connections | 2 | | Console Connection | 1 | | Port Selection | Hotkey, Remote Pushbutton, or Mouse Switching | | | | CPU Connectors | Monitor: 2 x HDMI Type-A Male (or 2 x Mini DisplayPort Male with adapters)
Keyboard: 2 x USB Type-A Male (Purple)
Mouse: 2 x USB Type-A Male (Black)
Audio: 2 x 3.5 mm Mini-Stereo Jack Male (Green)
Microphone: 2 x 3.5 mm Mini-Stereo Jack Male (Pink) | | Console Connectors | Monitor: 1 x HDMI Type-A Female
Keyboard: 1 x USB Type-A Female
Mouse: 1 x USB Type-A Female
Audio: 1 x 3.5 mm Mini-Stereo Jack Female (Green)
Microphone: 1 x 3.5 mm Mini-Stereo Jack Female (Pink) | | LED | On Line: 2 x Green | | | | Specifications | Mini DisplayPort Specification 1.1a for both 1.62 Gbps and 2.7 Gbps
Mini DisplayPort link tracking
Compliant with HDMI up to 2.25 Gbps
Supports Deep Sleep mode | | | | Keyboard / Mouse | USB | | Video Resolution | Up to FHD 1080p; 1920 x 1200 @ 60 Hz | | Scan Interval | 3, 5, 10, 20 seconds (Default 5 seconds) | | Supported Operating Systems | Windows XP, Vista, 7, 8, 8.1, 10
Mac OS 9 to 10.x
Oracle Solaris
Linux
Unix
Other USB-supported systems | | | | Temperature / Humidity | Operation Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C) | | Humidity Range | 0 to 80% RH, Non-condensing | | | | Material of Construction | Plastic housing | | Dimensions (W x H x D) | 3.15 x 0.98 x 2.56" (8 x 2.5 x 6.5 cm) | | Weight | 0.94 lb (0.42 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.0 x 6.5 x 2.9" |
