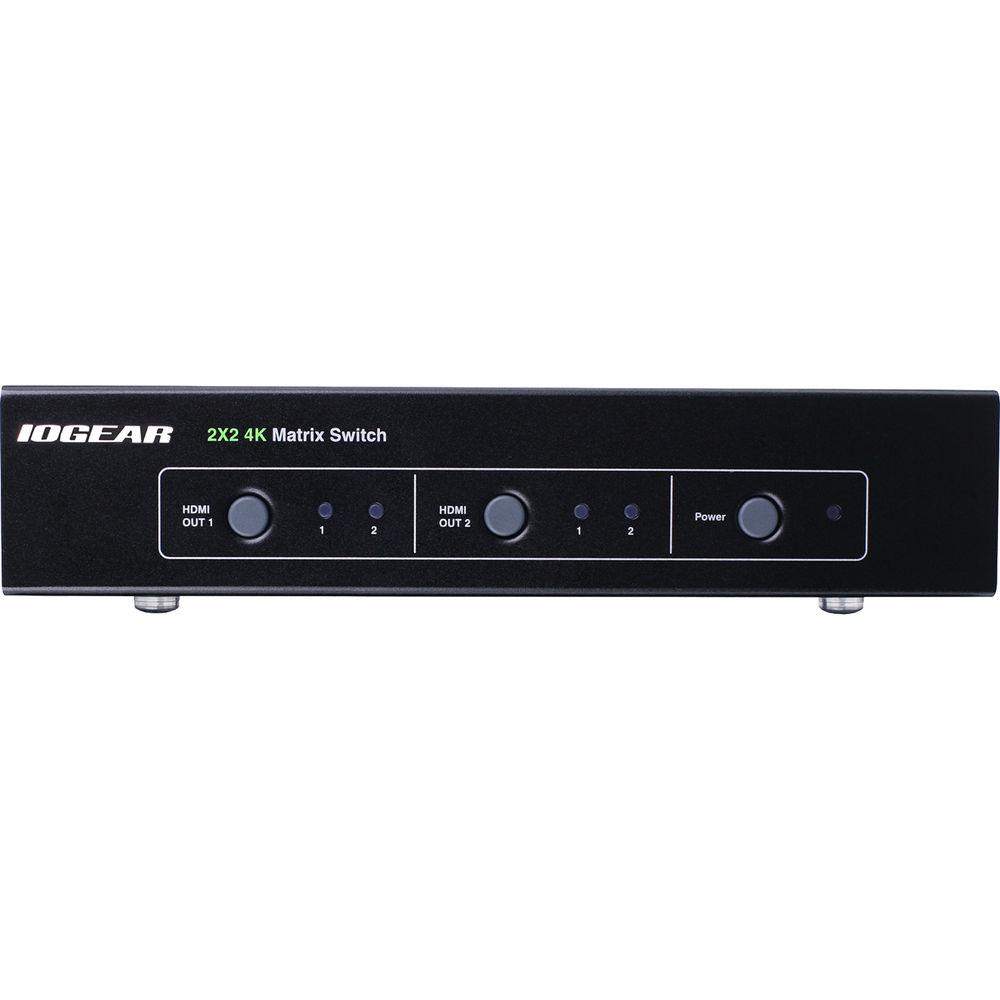

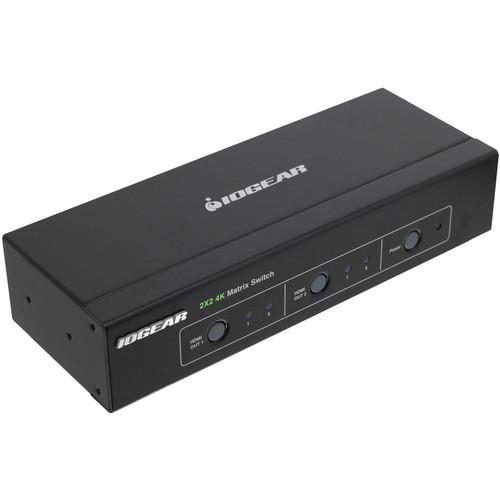

Product description The IOGEAR 2 x 2 DCI 4K HDMI Matrix Switcher allows you to connect two HDMI video sources and route them to two HDMI displays along with embedded audio. You can route a single source to one or two displays, toggle between the two sources, or output each source to a separate display. The switcher supports up to DCI 4K resolution at 60 Hz and extends the source signal up to 50' over HDMI cabling at data rates up to 10.2 Gb/s. The compact switcher can be controlled via front-panel buttons, an included IR remote control, or RS-232 serial control. It's suitable for use as a home theater solution or in bars, lounges, lobbies, and similar environments with sources such as computers, Blu-ray players, and satellite boxes.
Built-in EDID optimization automatically maximizes compatibility between your sources and displays to ensure optimal image quality and reduce the need for manual adjustments. Video settings are stored to ensure reliability and easy switching between sources. - Key Features
-
- Route two HDMI sources to two HDMI displays
- Up to 4096 x 2160 at 60 Hz resolution
- Up to 50' signal extension
- Front panel, IR remote, and RS-232 serial control
- EDID optimization
- Supports data rates up to 10.2 Gb/s
- HDCP 1.4 compliant
- All-metal, rack-mountable chassis
- IR extender, IR remote, and mounting hardware included
- Firmware upgradeable
- TAA compliant
UPC: 881317517074 In the Box IOGEAR 2 x 2 DCI 4K HDMI Matrix Switcher Rackmount Kit Power Adapter IR Remote Control IR Extender Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 2 x 2 DCI 4K HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

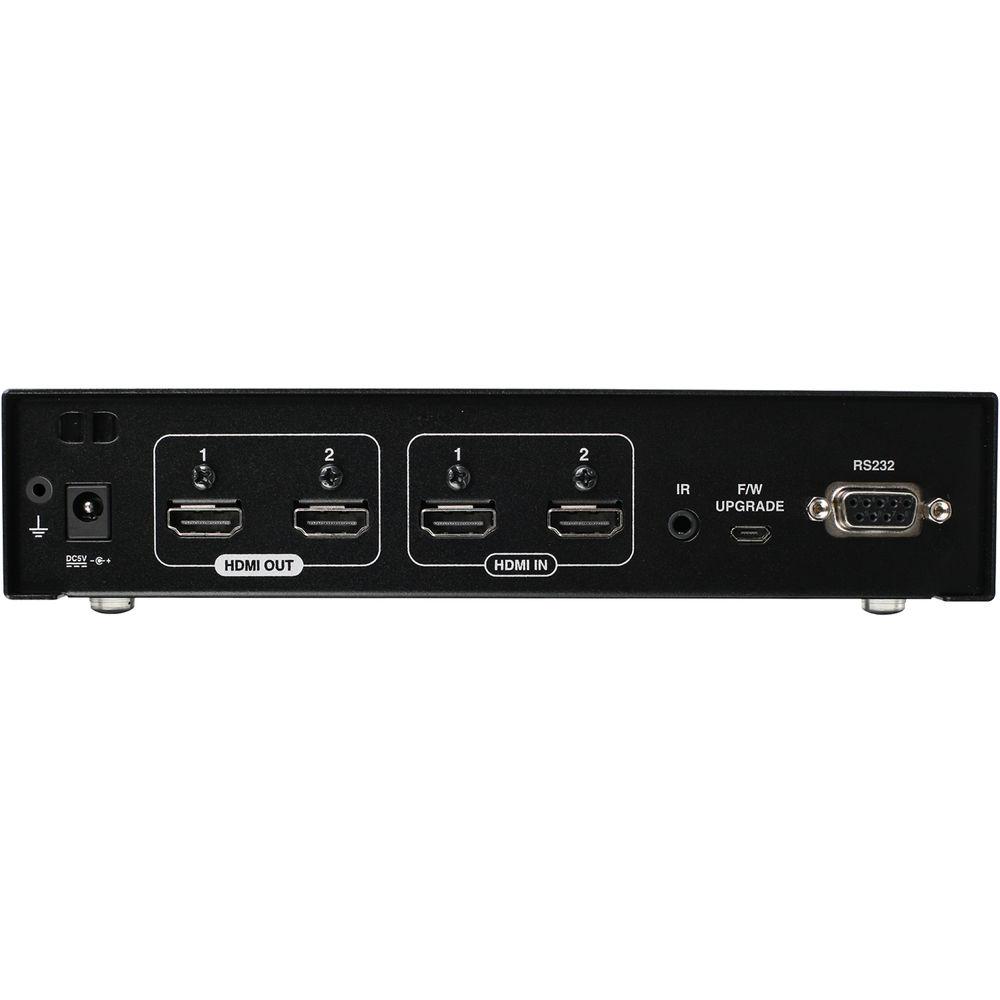

Technical parametersIOGEAR GHMS8422 Specs | Input | 2 x HDMI 1.4 Type A | | Output | 2 x HDMI 1.4 Type A | | RS-232 | 1 x DB-9 Female | | Resolution | Up to 4096 x 2160 at 60 Hz (4:2:0)
4096 x 2160 at 30 Hz (4:4:4)
3840 x 2160 at 60 Hz (4:2:0)
3840 x 2160 at 30 Hz (4:4:4) | | Supported Data Rates | Up to 10.2 Gb/s | | HDMI Signal Extension | 50' / 15 m | | HDCP Compliance | 1.4 | | EDID | Yes | | Dimensions | 1.8 x 2.8 x 7.9" / 4.6 x 7.1 x 20 cm | | Weight | 1.3 lb / 0.6 kg |
