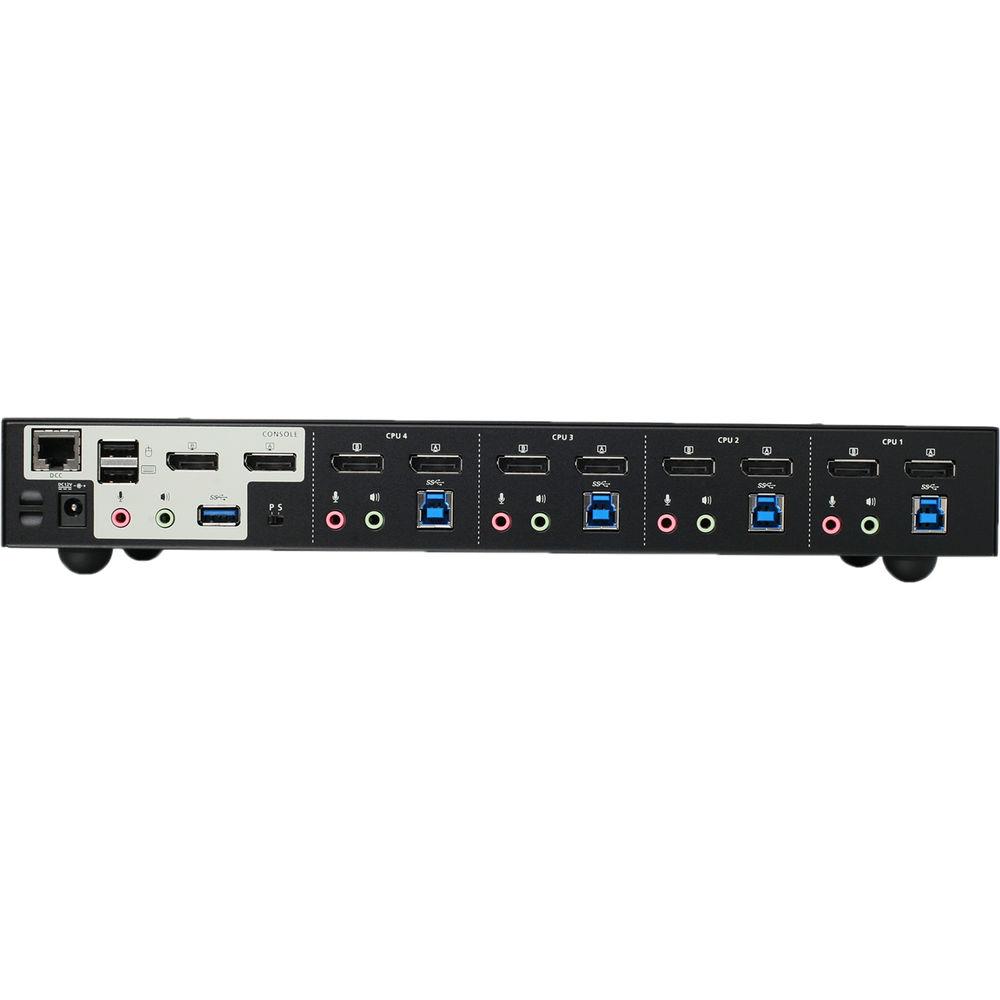

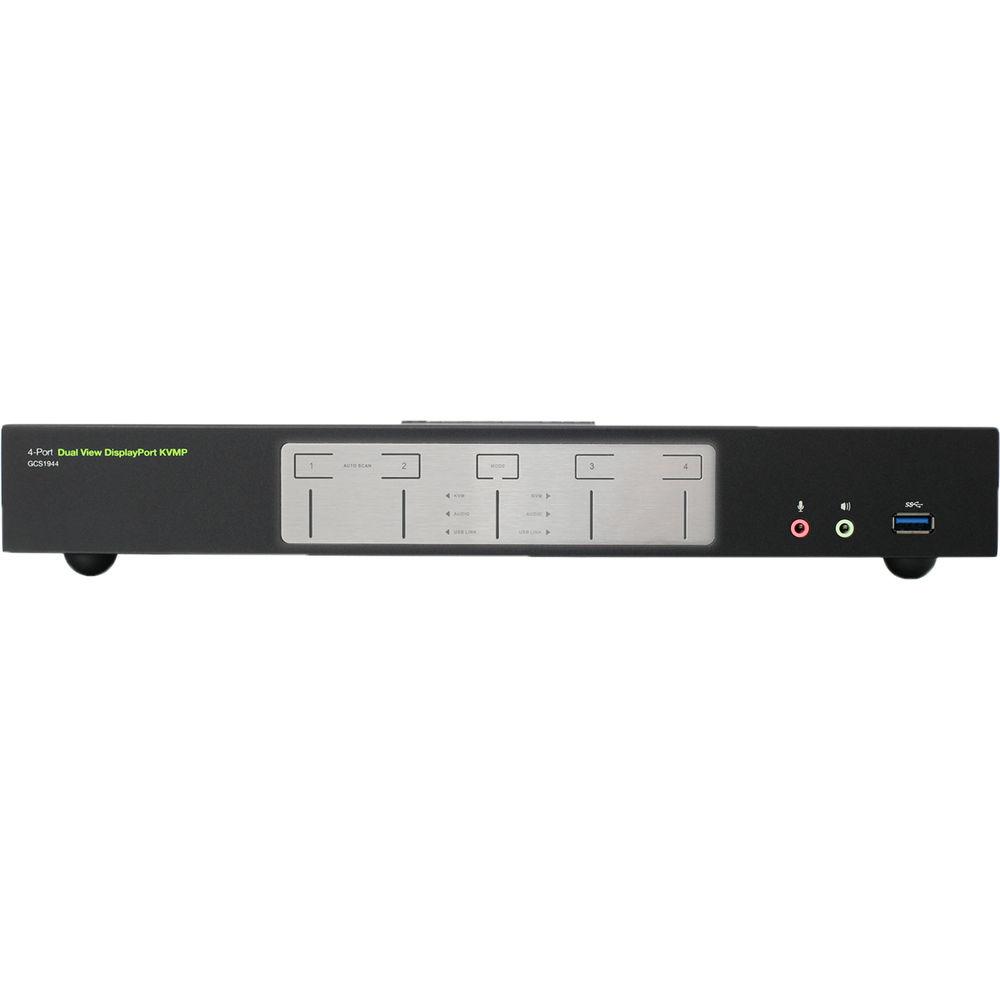

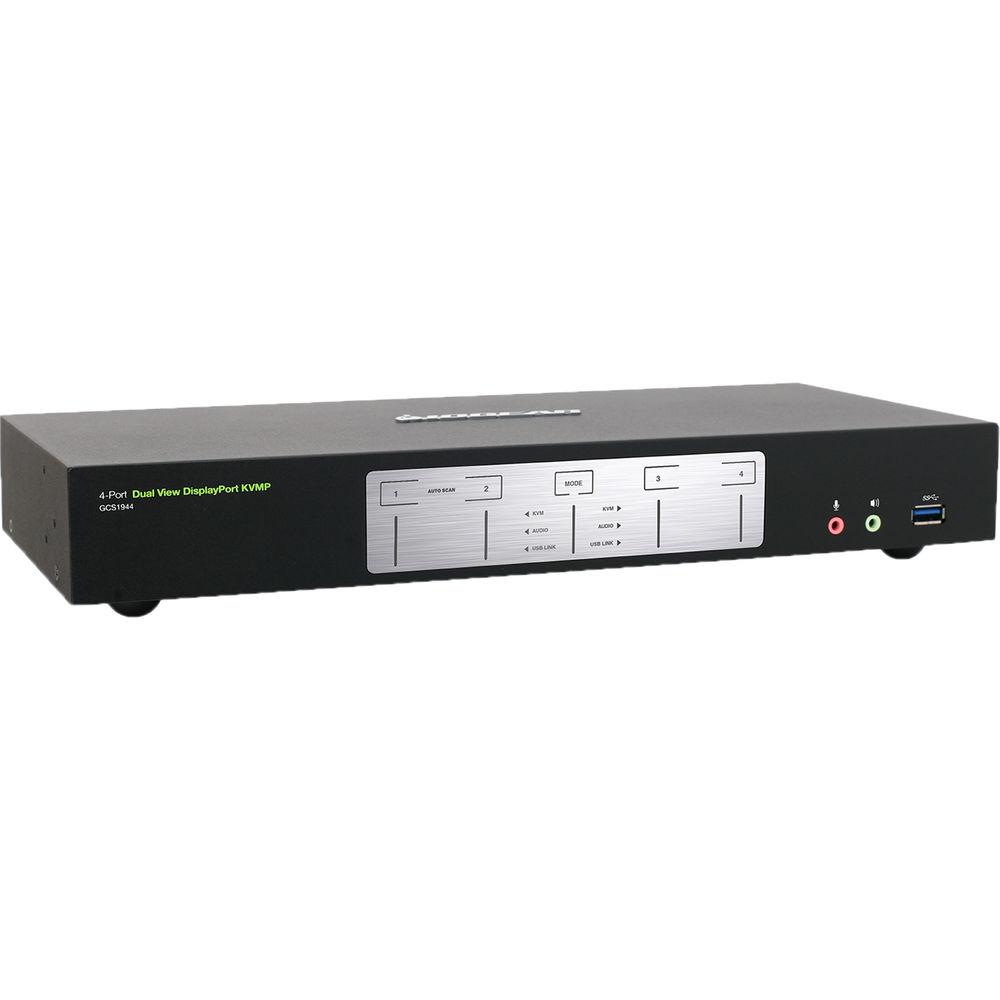

User Manual for IOGEAR 4-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 Hub and Audio Click to enlarge the picture
Contents of the user manual for the IOGEAR 4-Port 4K Dual View DisplayPort
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 4-Port 4K Dual View DisplayPort contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The 4-Port 4K Dual View DisplayPort KVMP Switch from IOGEAR lets you control four desktop computers using a single set of peripherals, which consists of two monitors along with a keyboard, mouse, and set of speakers. The switch supports up to 4K resolutions and is compatible with DisplayPort-equipped monitors and systems. Using buttons on the switch, keys on the keyboard, or the wheel button on the mouse, you can quickly switch between the four computer systems. Moreover, the switch comes with an integrated 2-port USB 3.0/3.1 Gen 1 hub, allowing you to share a printer and scanner between the computers. Included with the switch are 8 DisplayPort cables, 4 USB 3.0 cables, and 4 audio cable sets. - Maximize your high-end multi-monitor workstation with superior video resolution
- Share dual Cinema 4K DisplayPort monitors (4096 x 2160 @ 60 Hz)
- Operate 4 DisplayPort computers with 1 keyboard, mouse, and 2 monitors
- Add another switch to expand up to four 4K monitors
- DisplayPort 1.2 and HDCP compliant
- Allows independent switching of the KVM, USB, and audio devices
- Control/share USB 3.0/3.1 Gen 1 peripherals between 2 computers
- Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
- USB 3.0/3.1 Gen 1 SuperSpeed 5 Gb/s transfer rate
- MST (Multi-Stream Transport) support
- DP++ supports HDMI and DVI outputs
- Computer selection via front panel pushbuttons, hotkeys, or mouse
- Supports 7.1 HD audio through DisplayPort
- Full bass response for 2.1-channel audio
- Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
- Windows 7, Windows 8.1, Windows 10, macOS, and Linux compatible
- Multilingual keyboard mapping support (English, French, and German keyboards)
- Mac keyboard support and emulation
- Auto-scan mode to monitor all computers
UPC: 881317516688 In the Box IOGEAR 4-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 Hub and Audio 8 x DisplayPort Cables 4 x USB 3.0 Cables 4 x Audio Cable Sets Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 4-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 Hub and Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS1944 Specs | | | # of Systems Supported | 4 (4 Cascade) | | CPU Connections | 8 x DisplayPort, Female
4 x USB 3.0 Type-B, Female
4 x 3.5 mm Audio
4 x 3.5 mm Microphone | | Console Connections | 2 x DisplayPort
1 x USB (Unspecified Version) Type-A (Keyboard)
1 x USB (Unspecified Version) Type-A (Mouse)
2 x 3.5 mm Audio
2 x 3.5 mm Microphone | | Control Connections | 1 x RJ45, Female | | USB Peripheral/Firmware Connections | 2 x USB 3.0 Type-A, Female | | Scan Interval Range | 1 to 255 secs (5 secs Default) | | Supported Resolutions | 4096 x 2160 @ 60 Hz | | USB Keyboard/Mouse Emulation | Yes | | Operating System Support | Linux, Windows, macOS/OS X | | | | DC Input Power | 12 VDC | | Power Source | AC Adapter | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Housing Material | Metal | | Dimensions | 2.1 x 6.1 x 13.9" / 5.3 x 15.5 x 35.3 cm | | Weight | 3.6 lb / 1.6 kg |
