User Manual for IOGEAR 4-Port 4K HDMI Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR 4-Port 4K HDMI Switch
- Product category: Routers & Switchers IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Routers & Switchers
 |
User manual for the IOGEAR 4-Port 4K HDMI Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

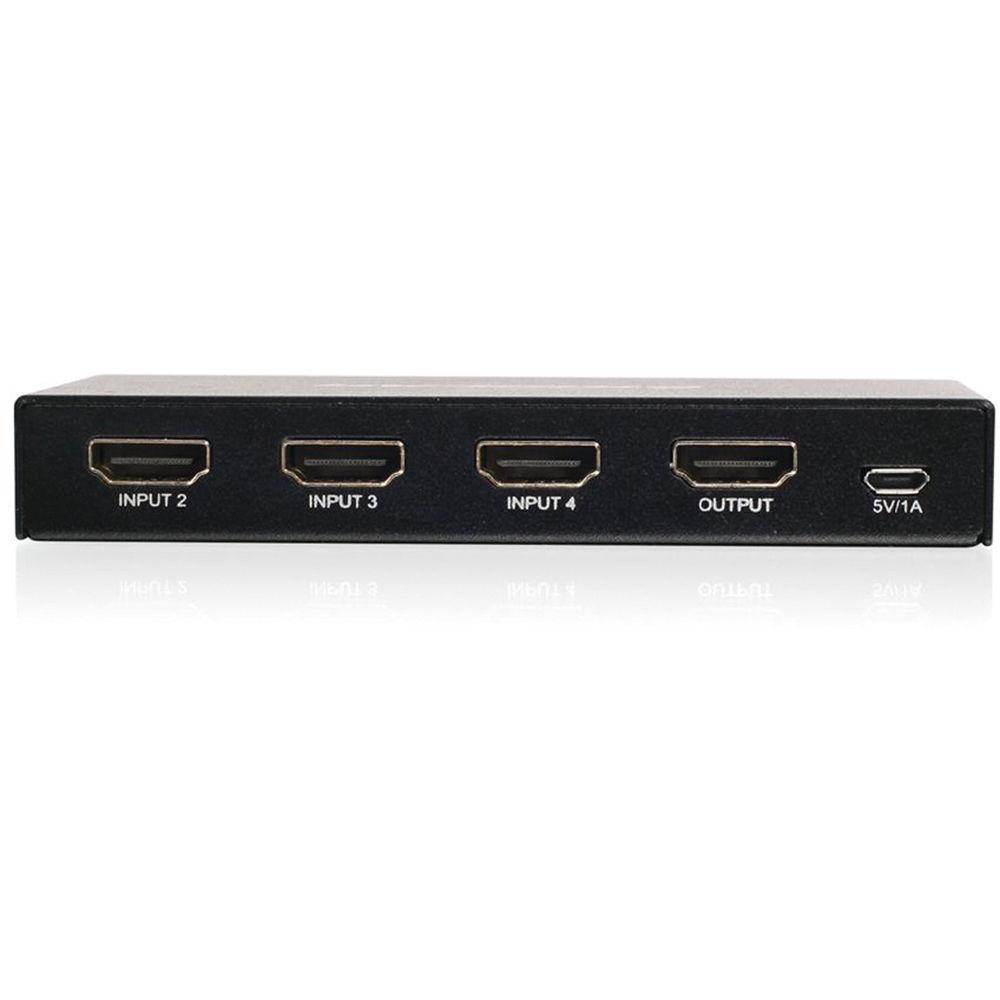

Product description Requiring little power, the IOGEAR 4-Port 4K HDMI Switch needs no more than the power provided from one of your HDMI sources, allowing you to cut down on cable clutter and generally allowing for more convenience. If your HDMI source does not supply enough power, the switcher features a micro-USB power port that you can connect a computer or laptop to for power. Adding further to the convenience factor, the switcher has an easy-access design featuring three inputs on the rear panel while one is located in front so you can easier connect/disconnect temporary devices.
The switcher features 4 inputs and 1 output and supports up to UltraHD 4K resolution (3840 x 2160), 12-bit deep color, 3D video, and DTS, Dolby, DTS-HD, Dolby True HD, LPCM 7.1, and AC3 audio, and it's HDCP compliant for compatibility with HDCP protected devices.

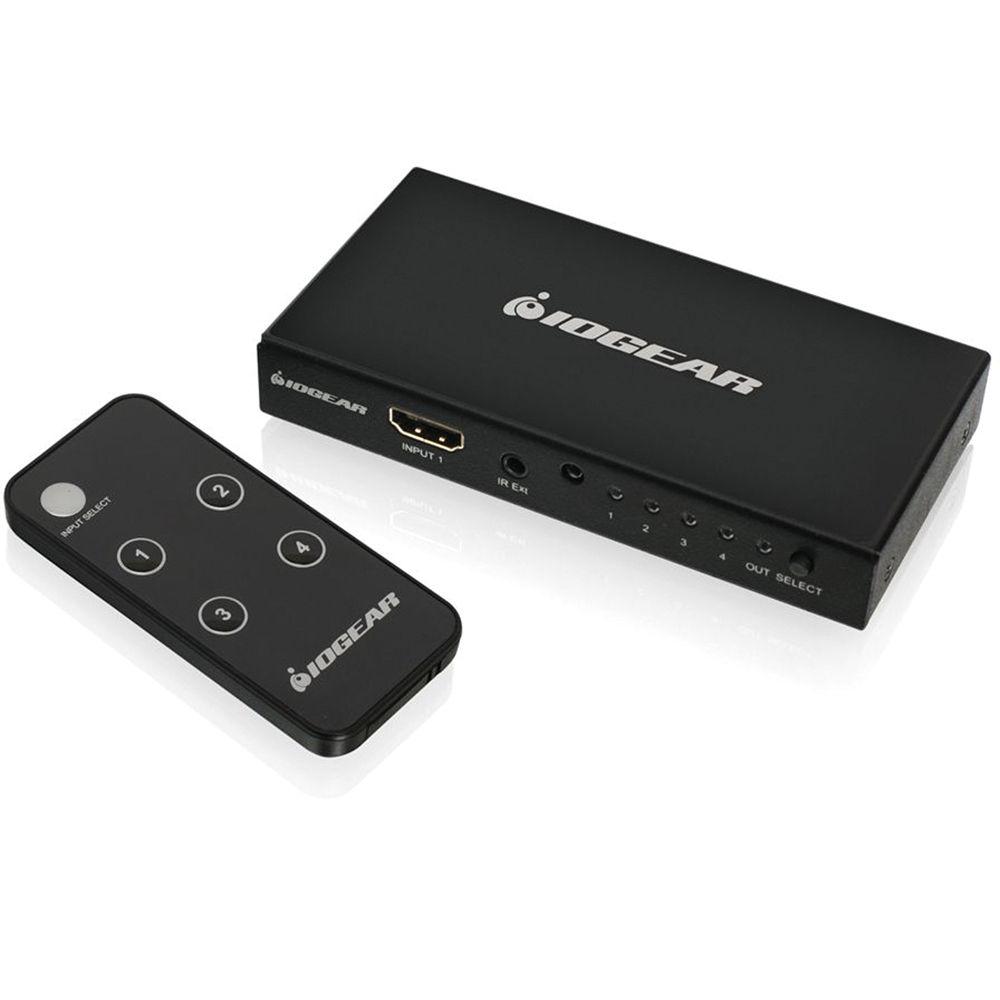

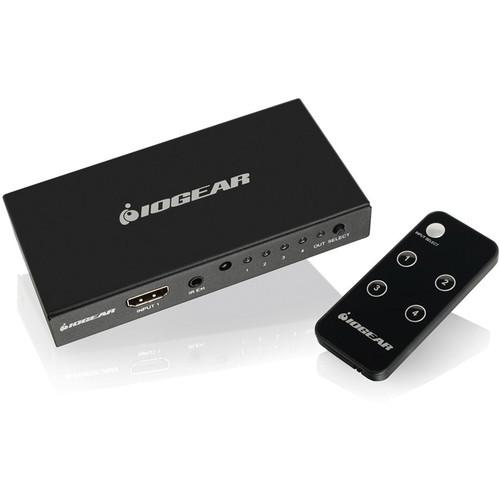

You can switch between sources via front panel push-buttons or the included remote control, while LED indicators on the front panel confirm your selections. There's also an IR extension port that will allow you to connect an optional IR extension cable so you can keep the switcher out of sight. - Key Features
-
- 4-input/1-output HDMI switcher
- Supports up to UltraHD 4K resolution, 12-bit deep color, and 3D video
- Low power consumption — powered by HDMI source / no external power supply required
- Easy-access design — one of the four inputs is on the front panel
- Supports DTS, Dolby, DTS-HD, Dolby True HD, LPCM 7.1, and AC3 audio
- HDCP 1.2 compliant
- Remote control included
- IR extension port supporting long distance IR extension cable
UPC: 881317512901 In the Box IOGEAR 4-Port 4K HDMI Switch IR Remote Control Quick Start Guide Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 4-Port 4K HDMI Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GHDSW4K4 Specs | Inputs | 4x HDMI type A female
1x IR extension port
1x micro-USB port for power | | Output | 1x HDMI type A female | | Supported Resolution | UltraHD 4K 3840 x 2160p24/30, 1080p24/50/60, 1080i, 720p, 480p, 480i, VGA-UXGA | | Supported Color Depth | 36-bit / 48-bit | | Supported Audio | DTS, Dolby, DTS-HD, Dolby True HD, LPCM 7.1, AC3 | | Data Rate | 10.2 Gbps | | HDCP Compliant | HDCP 1.2 compliant | | Operating Temperature | 5 to 131°F (-15 to 55°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0-80% RH (Non-condensing) | | Power | 5 V, 1 A | | Housing | Metal | | Dimensions | 0.75 x 2.4 x 4.75" (2 x 6 x 12 cm) | | Weight | 0.45 lb (0.2 kg) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.2 x 5.2 x 0.9" |
