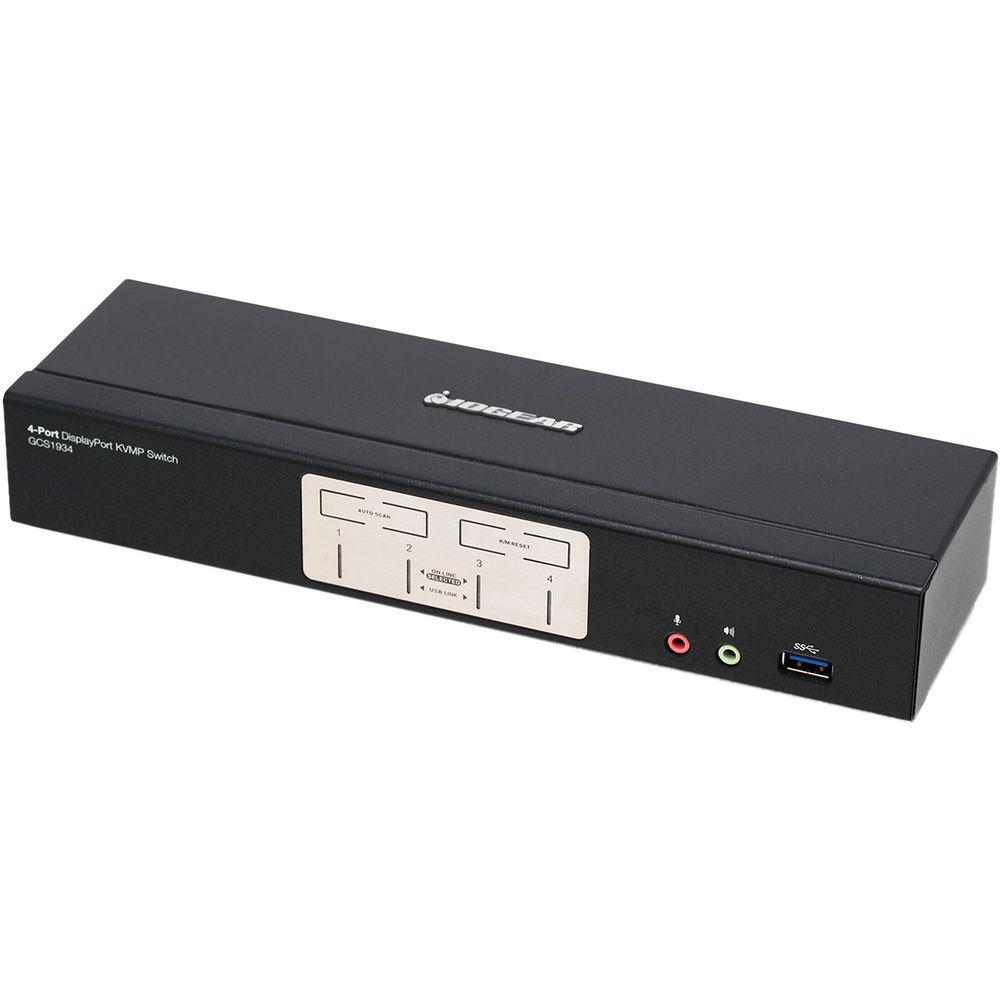

Product description Multi-Monitors: Maximizing Multitasking Read More The 4-Port DisplayPort 1.2 KVMP Switch from IOGEAR lets you use a 4K-capable monitor, keyboard, and mouse to control four DisplayPort computers. The switch also supports audio and comes with a built-in 2-port USB 3.0 hub that allows you to attach printers, external storage drives, and other USB devices to your systems. With DisplayPort 1.2 technology, this switch delivers resolutions of up to 4096 x 2160 at 60 Hz, making it suitable for motion graphic design, film, animation, engineering, architecture, and media design environments. Moreover, you can quickly select between the computer systems utilizing physical pushbuttons, software-based hotkeys, or the scroll wheel on a mouse. - Control four computers using a single keyboard, mouse, and DisplayPort video console
- DCI 4K compliant (4096 x 2160 @ 60 Hz)
- DisplayPort 1.2 compliant, HDCP compliant
- 2-port USB 3.0 hub with SuperSpeed 5 Gb/s transfer rate
- MST (Multi-Stream Transport)
- DP++ supports HDMI and DVI output

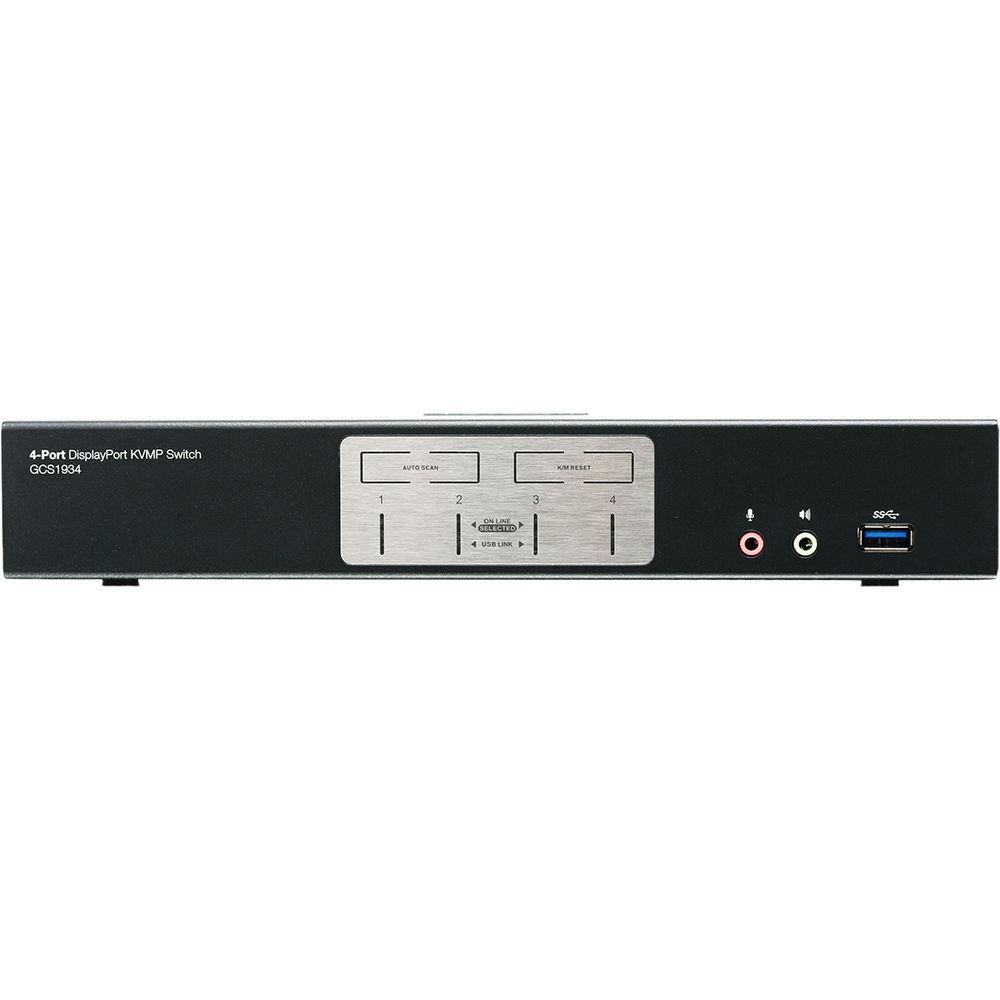

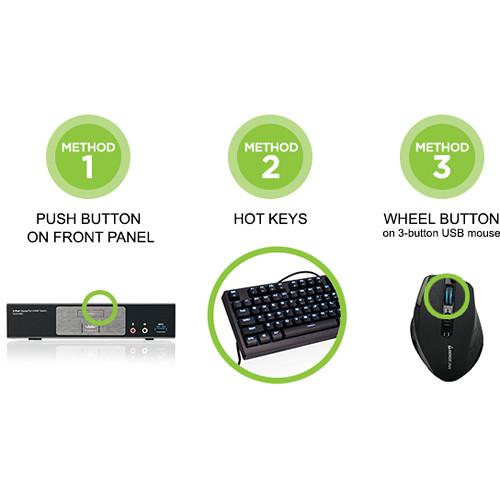

- Computer selection via front-panel pushbuttons, hotkeys, and mouse
- Independent switching of the KVM, USB, and audio
- Supports HD audio through DisplayPort
- Full bass response for 2.1-channel audio
- Mouse emulation or bypass feature supports most mouse drivers and multi-function mice
- Multi-platform support: Windows 7, Windows 8.1, Windows 10, Mac, and Linux
- Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
- Mac keyboard support and emulation
- Auto Scan Mode to monitor all computers

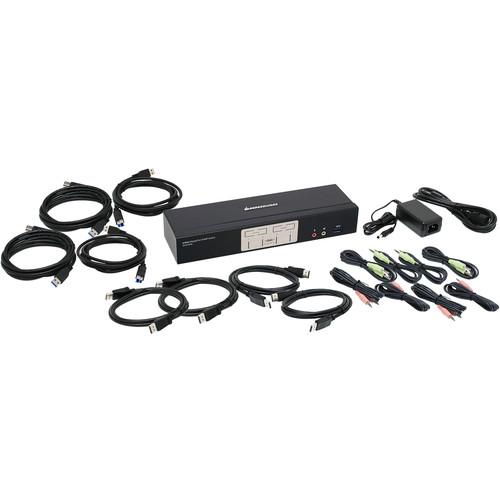

UPC: 881317514448 In the Box IOGEAR 4-Port DisplayPort 1.2 KVMP Switch with USB 3.1 Gen 1 Hub and Audio 4 x DisplayPort Cables 4 x USB 3.0 Cables 8 x Audio Cables Power Adapter Limited 3-Year Warranty More from Manufacturer evyauxffcffevybzwdwwvsqyveqcscrrybyv Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 4-Port DisplayPort 1.2 KVMP Switch with USB 3.1 Gen 1 Hub and Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

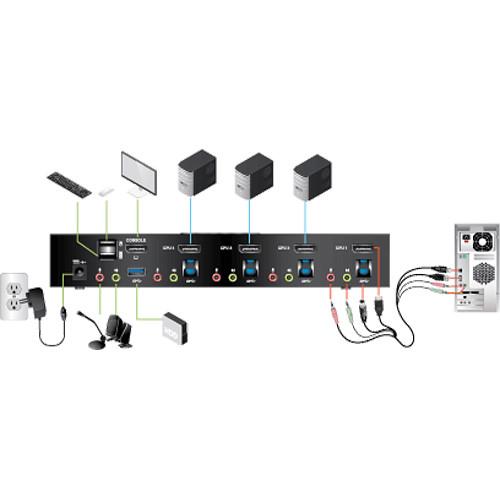

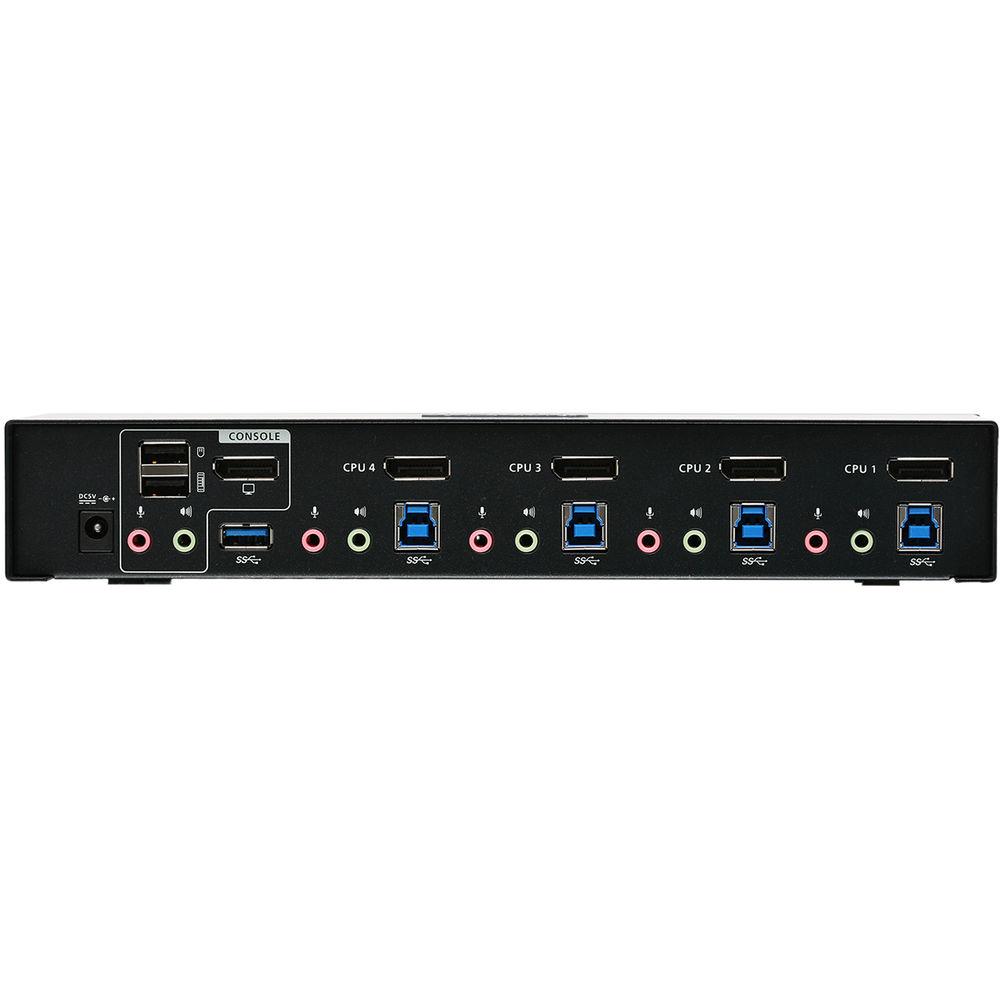

Technical parametersIOGEAR GCS1934 Specs | | | # of Systems Supported | 4 | | CPU Connections | 4 x DisplayPort
4 x USB 3.0 Type-B (Keyboard/Mouse)
4 x 3.5 mm
4 x 3.5 mm Microphone | | Console Connections | 1 x DisplayPort
1 x USB (Unspecified Version) Type-A (Keyboard)
1 x USB (Unspecified Version) Type-A (Mouse)
2 x 3.5 mm Audio-Out
2 x 3.5 mm Microphone | | USB Peripheral/Firmware Connections | 1 x USB (Unspecified Version) Type-B (F/W Upgrade)
2 x USB 3.0 Type-A | | Scan Interval Range | 1 to 99 secs (5 secs Default) | | Supported Resolutions | 4096 x 2160 @ 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions | 2.9 x 10.3 x 1.7" / 7.4 x 26.0 x 4.3 cm | | Weight | 1.9 lb / 0.9 kg | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 12.9 x 8.6 x 3.8" |
