User Manual for IOGEAR 4-Port DisplayPort KVMP Switch with USB 3.1 Gen 1 Hub Click to enlarge the picture
Contents of the user manual for the IOGEAR 4-Port DisplayPort KVMP Switch with
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 4-Port DisplayPort KVMP Switch with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

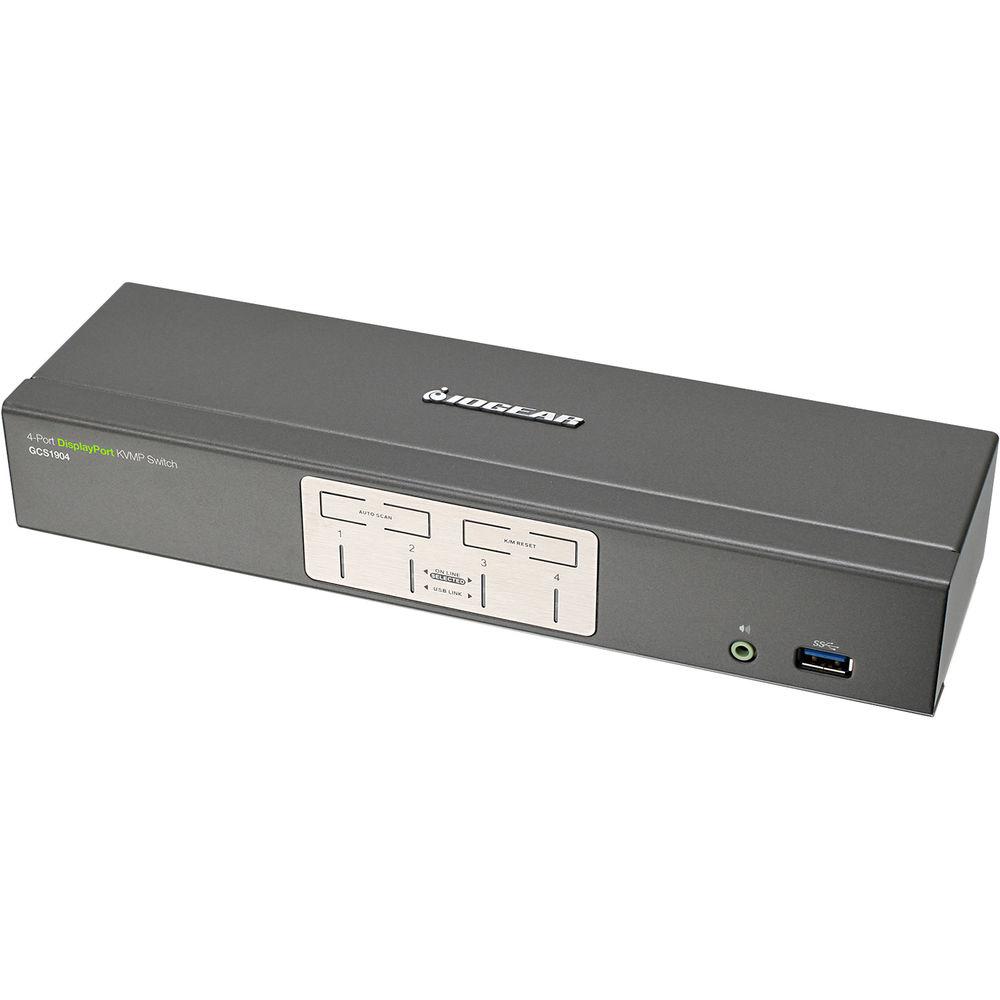

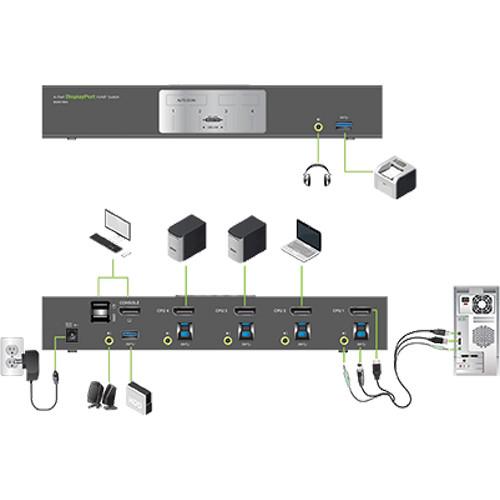

Product description Multi-Monitors: Maximizing Multitasking Read More The IOGEAR 4-Port DisplayPort KVMP Switch with USB 3.0 Hub lets you use a single set of console peripherals to control up to four computer systems that have DisplayPort outputs. The switch allows you to quickly move between the systems via hotkey combinations, pushbuttons, or wheel-mouse clicks. KVM cables are included for connecting to your computer's DisplayPort, audio, and USB Type-A ports, and an integrated 2-port USB 3.0 hub is available for equipment sharing with printers, scanners, and external storage drives. For easy installation, it is Plug & Play compatible with a wide-variety of operating systems. Once connected, the switch supports resolutions of up to 3840 x 2160 and 2.1-channel audio. - Control 4 computers using a single keyboard, mouse, and DisplayPort video console
- Up to UHD 4K resolution (3840 x 2160 @ 30 Hz)
- DisplayPort 1.1 compliant & HDCP compliant
- 2-port USB 3.0 hub with 5 Gb/s max transfer rate
- Dual-Mode DP supports HDMI and DVI output
- Computer selection via front-panel pushbuttons, hotkeys, and mouse
- Independent switching of the KVM, USB, and audio
- Supports HD audio through DisplayPort
- Full bass response for 2.1 channel audio
- Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support - Windows 7 and later, Mac, and Linux
- Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
- Mac keyboard support and emulation
- Auto-scan mode to monitor all computers
UPC: 881317514967 In the Box IOGEAR 4-Port DisplayPort KVMP Switch with USB 3.1 Gen 1 Hub Package of KVM Cable Sets Power Adapter Limited 3-Year Warranty More from Manufacturer auezcvzyudcsetbvduvessbcywr Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 4-Port DisplayPort KVMP Switch with USB 3.1 Gen 1 Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

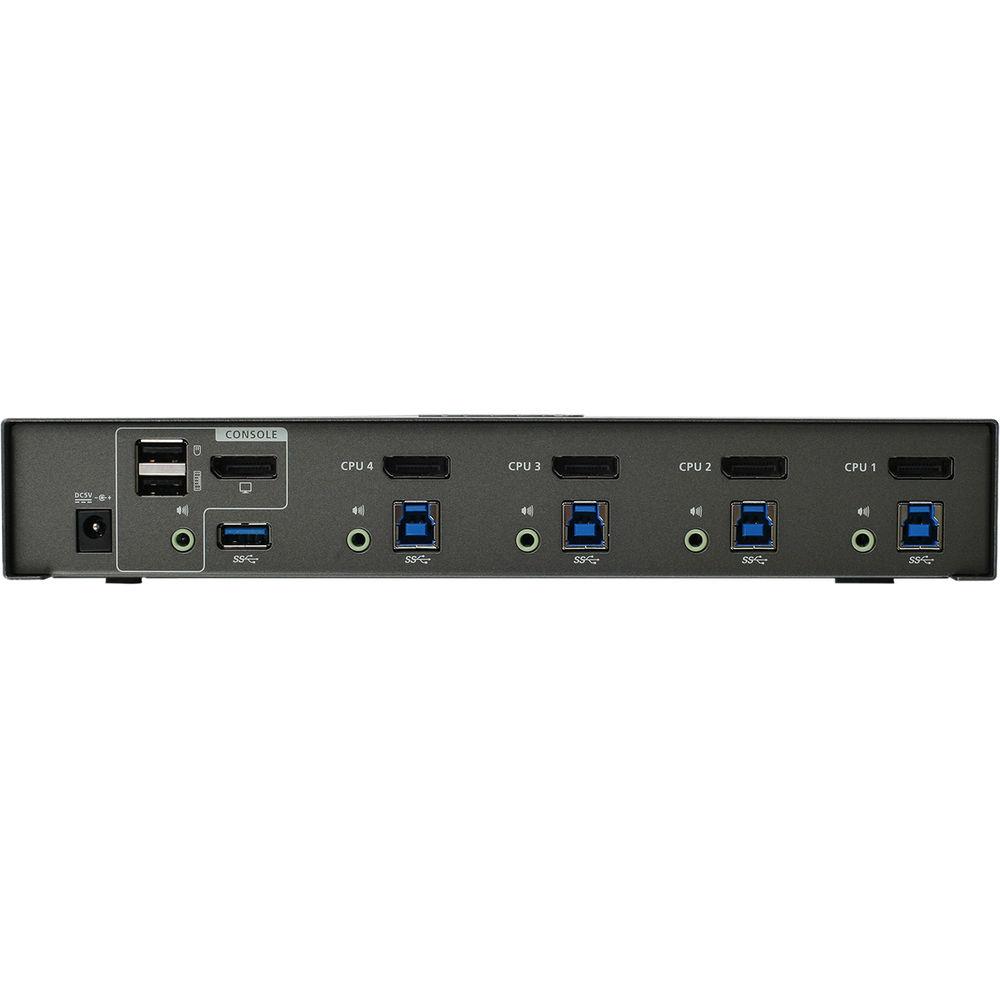

Technical parametersIOGEAR GCS1904 Specs | | | # of Systems Supported | 4 | | CPU Connections | 4 x DisplayPort
4 x 3.5 mm
4 x USB 3.0 Type-B | | Console Connections | 1 x DisplayPort
1 x USB 3.0 Type-A (Keyboard)
1 x USB 3.0 Type-A (Mouse)
2 x 3.5 mm Audio | | USB Peripheral/Firmware Connections | 1 x USB (Unspecified Version) Type-B (F/W Upgrade)
2 x USB 3.0 Type-A | | Scan Interval Range | 1 to 99 secs (5 secs Default) | | Supported Resolutions | 2560 x 1600 @ 60 Hz
3840 x 2160 @ 30 Hz | | USB Keyboard/Mouse Emulation | Yes | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Certifications | TAA, as per Manufacturer | | Dimensions | 2.9 x 1.7 x 10.3" / 7.5 x 4.3 x 26.2 cm | | Weight | 1.9 lb / 0.9 kg | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 12.8 x 8.3 x 4.1" |
