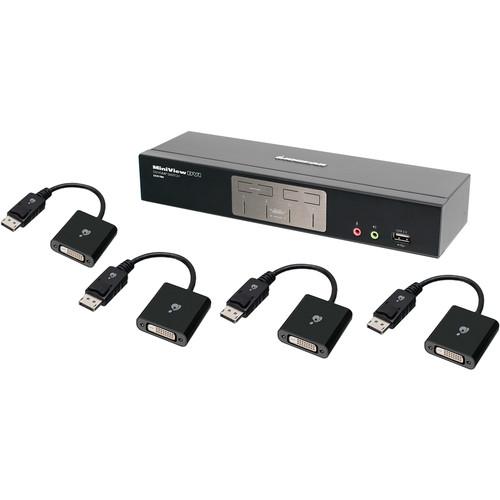

User Manual for IOGEAR 4-Port Dual-Link DVI KVMP Pro Switch with 2.1 Audio Kit with Four DisplayPort Adapters Click to enlarge the picture
Contents of the user manual for the IOGEAR 4-Port Dual-Link DVI KVMP Pro
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 4-Port Dual-Link DVI KVMP Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

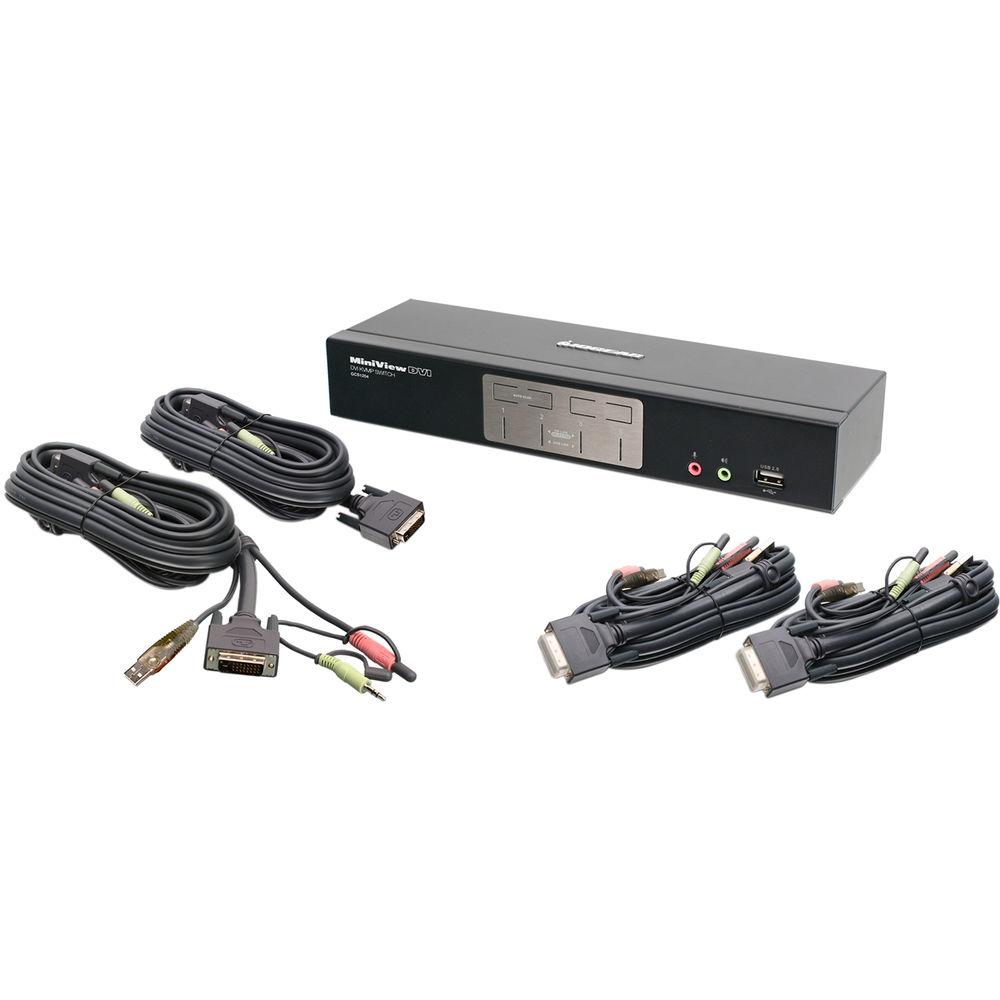

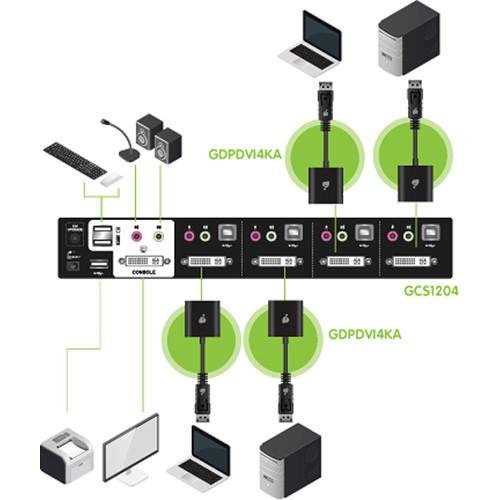

Product description Multi-Monitors: Maximizing Multitasking Read More This IOGEAR kit provides one 4-Port Dual-Link DVI KVMP Pro Switch with 2.1 Audio as well as four DisplayPort adapters, so you can control four DisplayPort desktop computers with a single console system that has one DVI-capable monitor. The adapters convert the ends of the KVM cables from a DVI connection to a DisplayPort interface. - 4-Port Dual-Link DVI KVMP Pro Switch The 4-Port Dual-Link DVI KVMP Pro Switch from IOGEAR allows you to control up to 4 computers using a single keyboard and mouse. Perfect for multimedia applications, the switch supports a single monitor configuration and includes an integrated 2-port USB 2.0 hub for connecting devices like a USB printer or USB external hard drive. You can access one device at a time on the hub. In addition, you can connect speakers or a mic for your console as well as for each computer that you connect.
The switch features IOGEAR's DynaSync technology, which remembers your display's ideal resolution and refresh rate. This allows you to boot all of your computers simultaneously and switch between them, while still maintaining ideal video settings for your particular monitor. To switch between computers, you can use hotkeys or manually press the push-button on the front of the unit. - Share a professional quality monitor between four USB / DVI computers
- DynaSync: reads and remembers the monitor's parameters to eliminate delay or change of video resolution when switching between, or booting computers 1
Please Note: IOGEAR's DynaSync provides the EDID support for Windows 7 OS close - Compatible with gaming keyboards
- Supports high-end 3D graphics
- Maximum video resolutions:
·DVI-D Dual link: 2560 x 1600
·DVI-D Single link: 1920 x 1200 - Audio support for 2.0 or 2.1 Audio
- 2-port USB 2.0 peripheral hub to share printers or external hard drives
- Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
- Complete keyboard and mouse emulation for error free booting and real-time switching
- Mouse emulation may be disabled to allow programmable buttons to function
- Support Mac keyboard and special keys
- Increase efficiency and save equipment cost for applications where high resolution, large or widescreen monitors are required:
• CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing)
• Desktop Publishing / Graphic Design / Video Editing
• Medical / Surgical / Diagnostic Displays

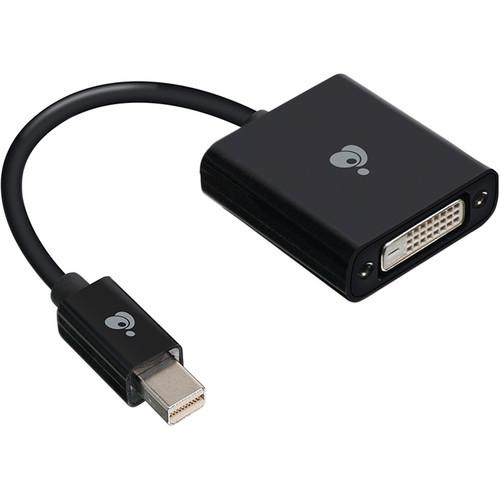

• High-End Gaming - where high and ultra-high video resolution is demanded UPC: 881317508546 - Active DisplayPort to DVI Adapter The Active DisplayPort to DVI Adapter from IOGEAR is used to convert a DisplayPort output to a DVI output. Use it to connect your computer or laptop or a DVI based display, projector, or TV. An active adapter is needed for connecting more than two displays to a video card. Moreover, this adapter supports resolutions up to 4K 3840 x 2160 at 30 Hz, and is plug-and-play compatible, so you won't have to worry about additional power plugs or installing drivers. UPC: 881317516152
In the Box Bundle Items 4-Port Dual-Link DVI KVMP Pro Switch 4 x Active DisplayPort to DVI Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 4-Port Dual-Link DVI KVMP Pro Switch with 2.1 Audio Kit with Four DisplayPort Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4-Port Dual-Link DVI KVMP Pro Switch
| Max Computer Connections | 4 | | PC Connectors | 4x Dual-Link DVI-I Female
4x USB Type B Female
4x Line-Out Mini Stereo Jack Female (Green)
4x Mic-In Mini Stereo Jack Female (Pink) | | Console Connectors | 1x Dual-Link DVI-I Female
3x USB Type A Female
1x Line-Out Mini Stereo Jack Female (Green)
1x Mic-In Mini Stereo Jack Female (Pink)
1x F/W Upgrade port | | Video Resolution | DVI-D Dual link: 2560 x 1600
DVI-D Single link: 1920 x 1200 | | Scan Interval | Not specified by the manufacturer | | Port Selection | Hotkeys or Pushbutton | | Enclosure | Material Not specified by the manufacturer | | Compliance | RoHS | | System Requirements | USB keyboard and mouse, DVI-D display | | Power Requirements | AC: 120VAC
DC: 5VDC, 2A | | Dimensions (WxHxD) | 10.2 x 1.6 x 2.9" (26 x 4.1 x 7.4cm) | | Weight | 2 lb (0.9kg) | | | | Box Dimensions (LxWxH) | 13.1 x 8.6 x 4.0" | - Active DisplayPort to DVI Adapter
| Input | DisplayPort, male 20-pin | | Output | DVI, female 29-pin | | Supported Resolution | Up to 4K 3840 x 2160 @ 30 Hz | | Power Consumption | 1 W | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Dimensions (H x D x W) | 0.875 x 0.5 x 6.875" (2.2 x 1.3 x 17.5 cm) | | Weight | 0.05 lb (0.02 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.8" |
