User Manual for IOGEAR 4-Port Dual Link DVI KVMP Switch with 7.1 Audio Kit with Four Mini DisplayPort Adapters Click to enlarge the picture
Contents of the user manual for the IOGEAR 4-Port Dual Link DVI KVMP
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 4-Port Dual Link DVI KVMP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

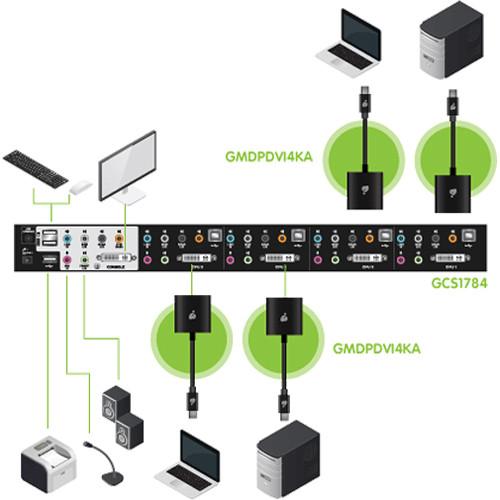

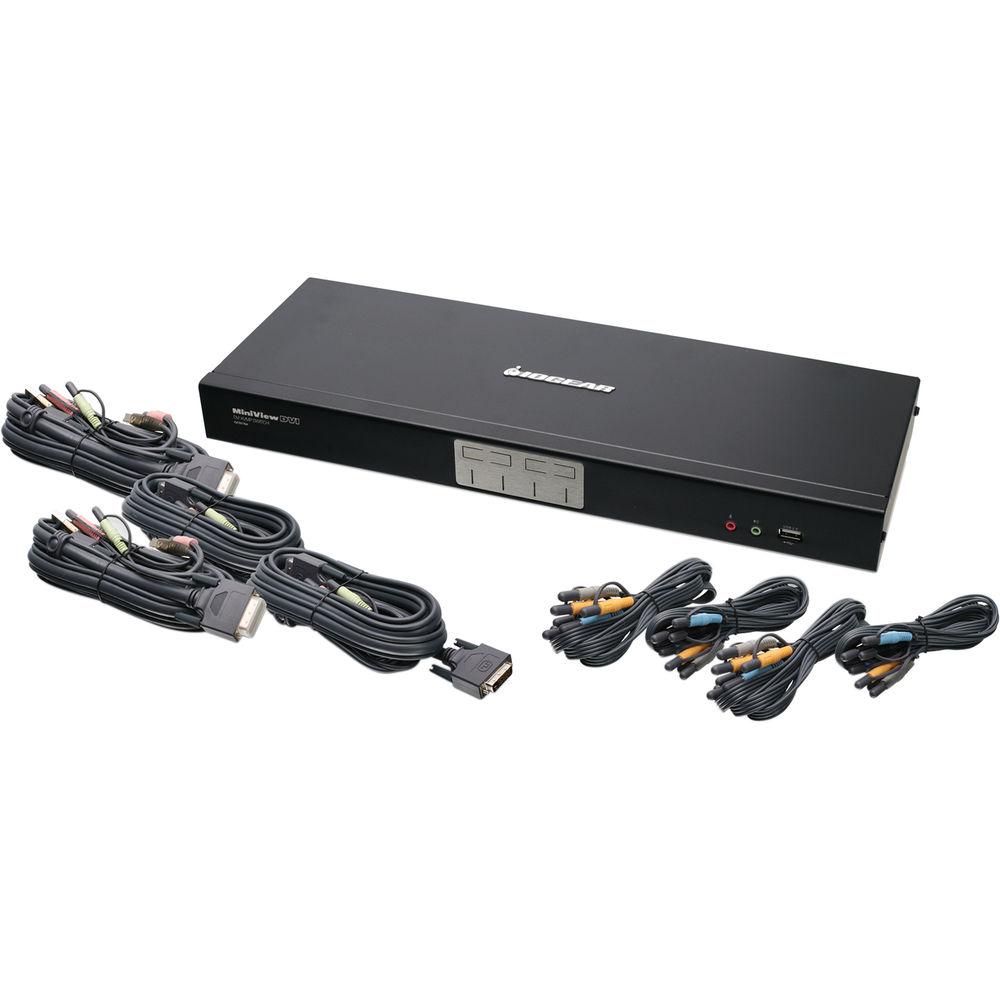

Product description Multi-Monitors: Maximizing Multitasking Read More This IOGEAR kit provides one 4-Port Dual-Link DVI KVMP switch with 7.1 Audio as well as four Mini DisplayPort adapters, so you can control four Mini DisplayPort desktop computers with a single console system that has one DVI-capable monitor. The adapters convert the ends of the KVM cables from a DVI connection to a Mini DisplayPort interface. - 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables The 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables from IOGEAR is a compact device that allows up to 4 computers to share a single keyboard, monitor, and mouse. It features DVI connections for video, USB connections for keyboard and mouse, and 7.1 analog audio support.
- Dual-Link DVI display support at up to 2560 x 1600 resolution
- HDCP compliant video support
- Windows, Mac, and Sun Solaris support
- Push-button and hot key switching
- Audio and device cables included
- Share up to 2 USB peripheral devices among connected computers

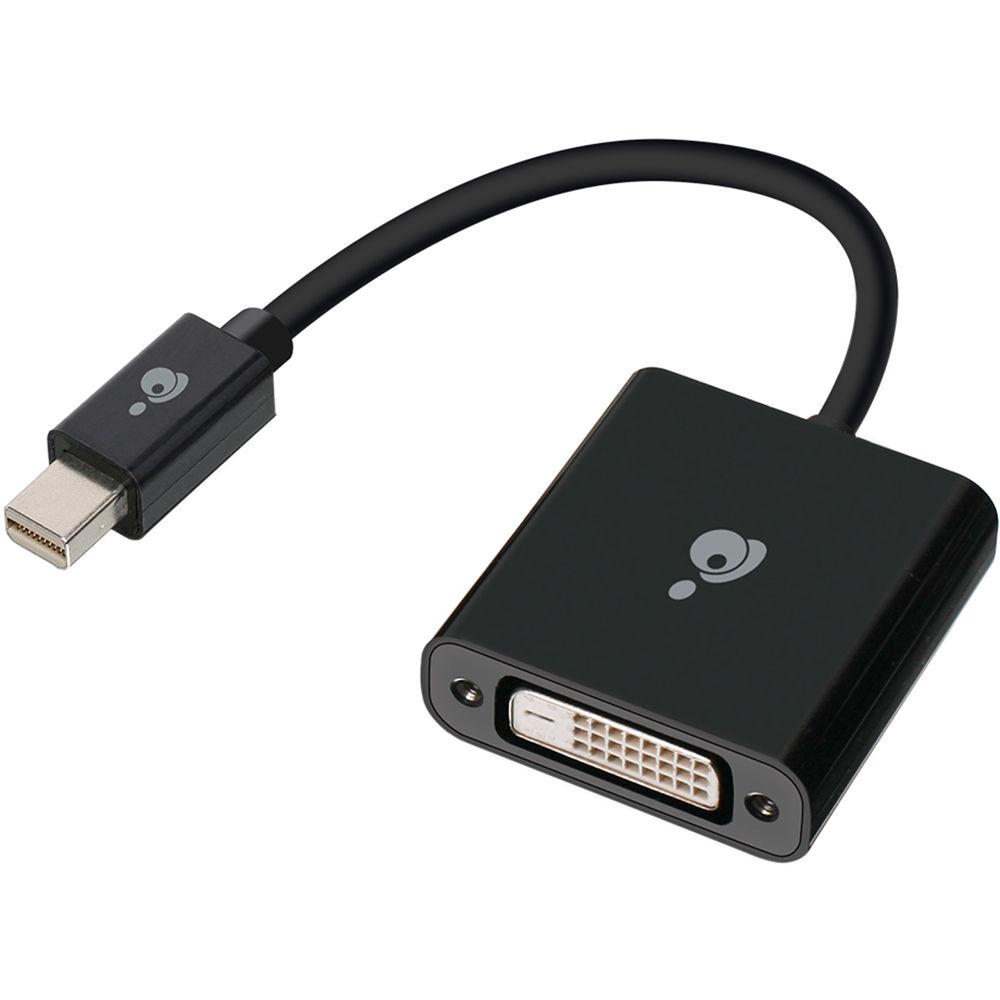

UPC: 881317006226 - Active Mini DisplayPort to DVI Adapter The Active Mini DisplayPort to DVI Adapter from IOGEAR is used to convert a Mini DisplayPort output to a DVI output. Use it to connect your computer or laptop or a DVI based display, projector, or TV. An active adapter is needed for connecting more than two displays to a video card. Moreover, this adapter supports resolutions up to 4K 3840 x 2160 at 30 Hz, and is plug-and-play compatible, so you won't have to worry about additional power plugs or installing drivers. UPC: 881317516169

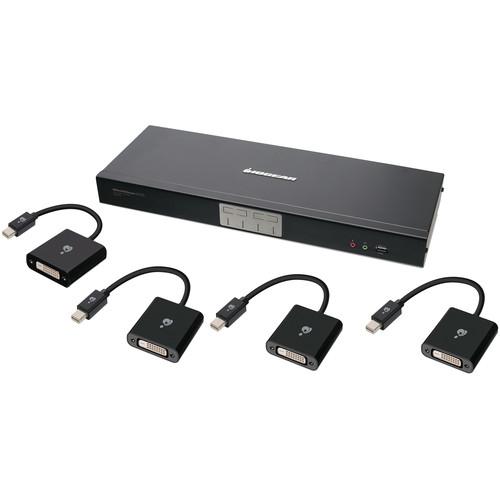

In the Box Bundle Items 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables - 4 x Custom Dual-Link Cables
4 x Active Mini DisplayPort to DVI Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 4-Port Dual Link DVI KVMP Switch with 7.1 Audio Kit with Four Mini DisplayPort Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables
| Max Computer Connections | 4 | | PC Connectors | 1x Dual-Link DVI
2x USB 2.0
6x 1/8" (3.5mm)
2x USB 2.0 for device sharing | | Console Connectors | 4x Dual-Link DVI
4x USB 2.0
24x 1/8" (3.5mm) | | Video Resolution | 2560 x 1600
Supports special monitors with resolutions of up to 3840 x 2400 | | Scan Interval | Variable (1-99 seconds) | | Port Selection | Hot key, Push Button | | Enclosure | Desktop | | System Requirements | Computers with USB and DVI connections | | Power Requirements | AC: 120VAC | | Dimensions (WxHxD) | 17 x 2.25 x 6.1" (43.2 x 5.7 x 15.6cm) | | Weight | 6 lbs (2.7kg) | | | | Box Dimensions (LxWxH) | 22.13 x 9.63 x 8.25" | - Active Mini DisplayPort to DVI Adapter
| Input | Mini DisplayPort, male 20-pin | | Output | DVI, female 29-pin | | Supported Resolution | Up to 4K 3840 x 2160 @ 30 Hz | | Power Consumption | 1 W | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Dimensions (H x D x W) | 0.875 x 0.5 x 6.875" (2.2 x 1.3 x 17.5 cm) | | Weight | 0.05 lb (0.02 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.8" |
