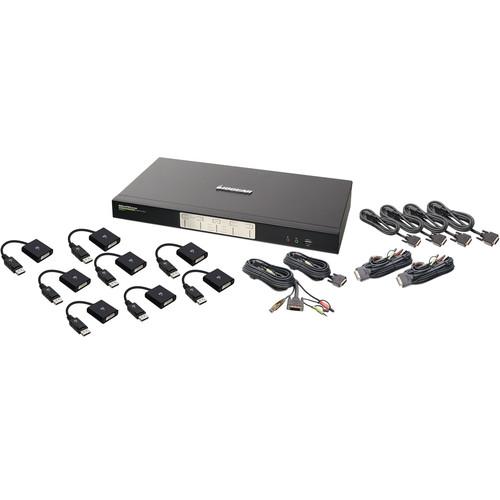

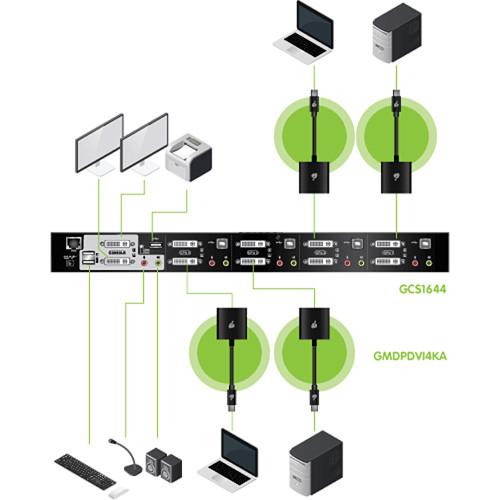

Product description Multi-Monitors: Maximizing Multitasking Read More This IOGEAR kit provides one 4-Port Dual View Dual-Link DVI KVMP Switch with Audio as well as eight DisplayPort adapters, so you can control four DisplayPort desktop computers with a single console system that has two DVI-capable monitors. The adapters convert the ends of the KVM cables from a DVI connection to a DisplayPort interface. - 4-Port Dual View Dual-Link DVI KVMP Switch with Audio The 4-Port Dual View Dual-Link DVI KVMP Switch with Audio from IOGEAR allows you to control up to 4 computers using a single keyboard and mouse. Perfect for multimedia applications, the switch supports dual monitor configurations, an integrated 2-port USB 2.0 hub, and audio switching.
The switch features IOGEAR's Display Emulation Technology, which remembers your display's ideal resolution and refresh rate. This allows you to boot all of your computer simultaneously and switch between computers, while still maintaining ideal video settings for your particular monitor. - Supports 2 Dual-Link DVI monitors, each with a resolution of up to 2560 x 1600
- Connect up to 4 computers for KVM switching
- Integrated 2-port USB 2.0 hub allows you to share peripherals between connected computers
- Supports asynchronous hotkey switching between KVM focus, USB peripherals, and audio ports
- Display Emulation Technology remembers your display's settings, eliminating the resolution change delay when switching between computers
- Emulates keyboard and mouse presence, allowing systems to boot when they don't hold the focus of the switch
- Switch between front panel push buttons or hotkeys
- Supports special keys found on Mac and Sun keyboards
- No software or drivers are required for installation, works with almost every major operating system
- Audible alarm can be toggled via hotkey
- Includes all necessary cables

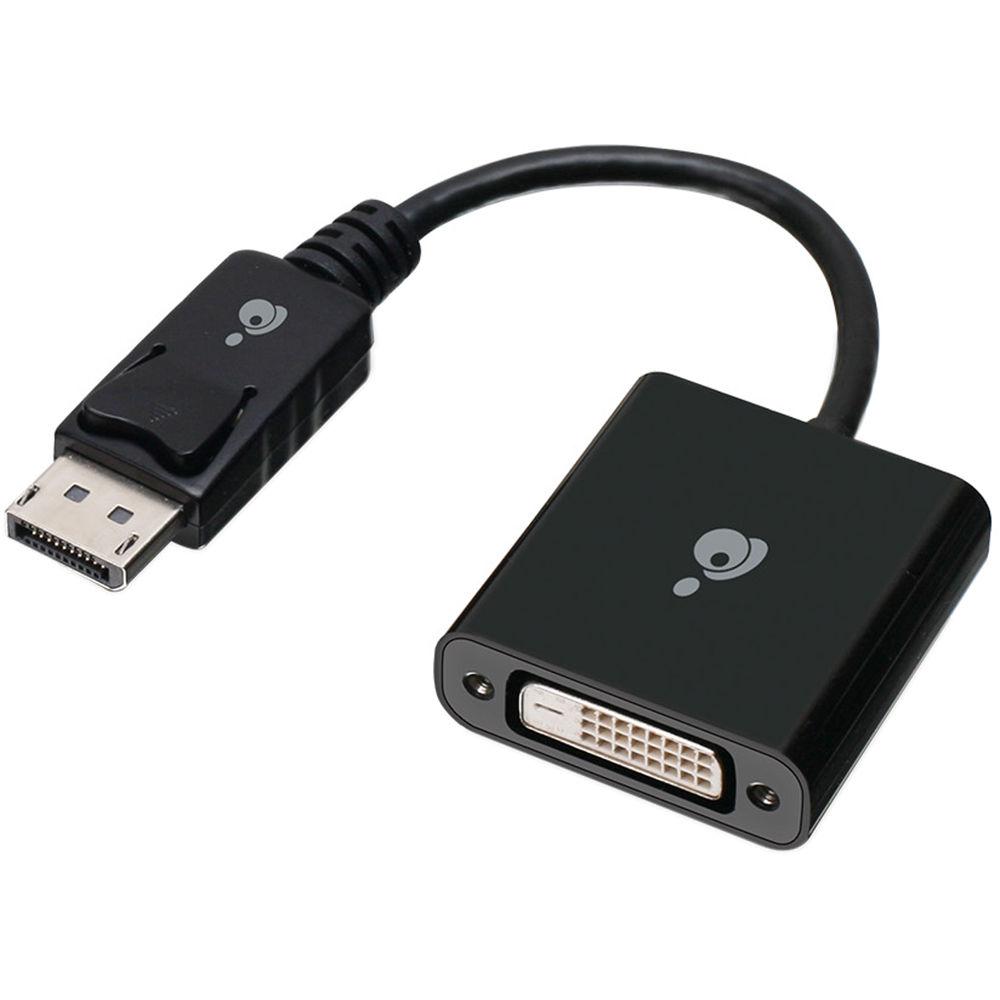

UPC: 881317502841 - Active DisplayPort to DVI Adapter The Active DisplayPort to DVI Adapter from IOGEAR is used to convert a DisplayPort output to a DVI output. Use it to connect your computer or laptop or a DVI based display, projector, or TV. An active adapter is needed for connecting more than two displays to a video card. Moreover, this adapter supports resolutions up to 4K 3840 x 2160 at 30 Hz, and is plug-and-play compatible, so you won't have to worry about additional power plugs or installing drivers. UPC: 881317516152
In the Box Bundle Items 4-Port Dual View Dual-Link DVI KVMP Switch with Audio ztfeswxfvq - 4 x Dual-Link DVI KVM Cables
8 x Active DisplayPort to DVI Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 4-Port Dual View Dual-Link DVI KVMP Switch with Audio Kit with Eight DisplayPort Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

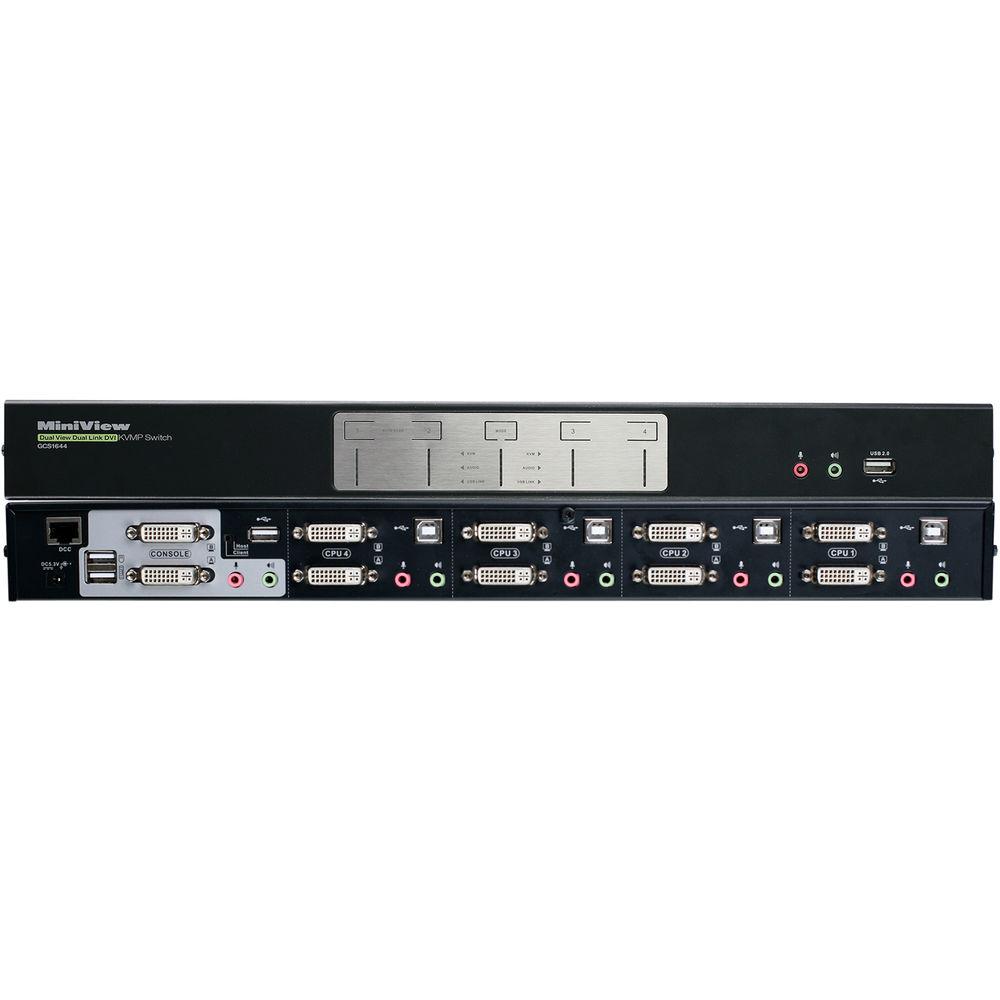

Technical parameters - 4-Port Dual View Dual-Link DVI KVMP Switch with Audio
| | | # of Systems Supported | 4 | | CPU Connections | 8 x DVI-I DL, Female
4 x USB (Unspecified Version) Type-B, Female
4 x 3.5 mm Line-Out, Female
4 x 3.5 mm Microphone, Female | | Console Connections | 2 x DVI-I, Female
2 x USB (Unspecified Version) Type-A, Female
1 x 3.5 mm Line-Out, Female
1 x 3.5 mm Microphone, Female | | Scan Interval Range | 1 to 99 secs | | Supported Resolutions | 2560 x 1600 | | | | AC Input Power | 120 VAC, 60 Hz | | DC Input Power | 5.3 VDC at 2.4 A | | | | Dimensions | 17.0 x 1.8 x 6.1" / 43.2 x 4.4 x 15.6 cm | | Weight | 5.8 lb / 2.6 kg | | | | Box Dimensions (LxWxH) | 22.2 x 9.5 x 8.2" | - Active DisplayPort to DVI Adapter
| Input | DisplayPort, male 20-pin | | Output | DVI, female 29-pin | | Supported Resolution | Up to 4K 3840 x 2160 @ 30 Hz | | Power Consumption | 1 W | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Dimensions (H x D x W) | 0.875 x 0.5 x 6.875" (2.2 x 1.3 x 17.5 cm) | | Weight | 0.05 lb (0.02 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.8" |
