User Manual for IOGEAR 4-Port Dual View Dual-Link DVI KVMP Switch with Audio Kit with Eight Mini DisplayPort Adapters Click to enlarge the picture
Contents of the user manual for the IOGEAR 4-Port Dual View Dual-Link DVI
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 4-Port Dual View Dual-Link DVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

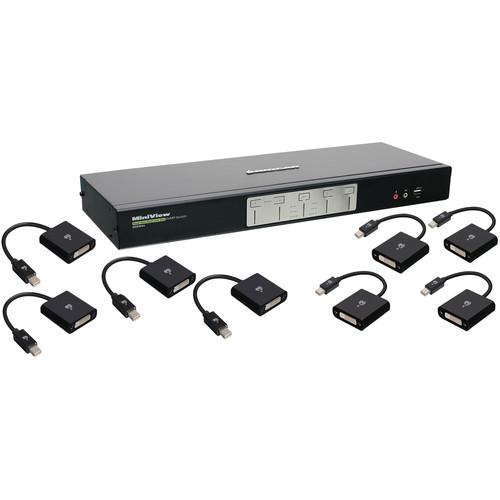

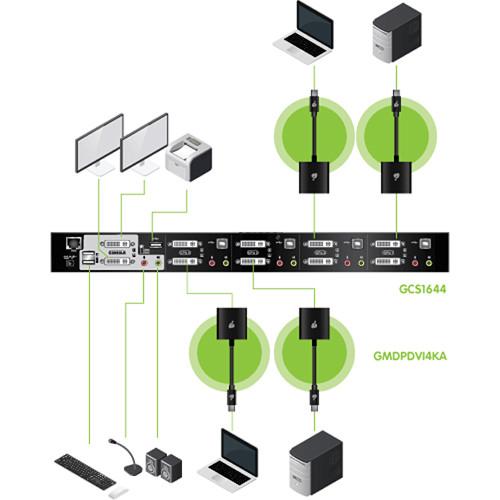

Product description Multi-Monitors: Maximizing Multitasking Read More This IOGEAR kit provides one 4-Port Dual View Dual-Link DVI KVMP Switch with Audio as well as eight Mini DisplayPort adapters, so you can control four Mini DisplayPort desktop computers with a single console system that has two DVI-capable monitors. The adapters convert the ends of the KVM cables from a DVI connection to a Mini DisplayPort interface. - 4-Port Dual View Dual-Link DVI KVMP Switch with Audio The 4-Port Dual View Dual-Link DVI KVMP Switch with Audio from IOGEAR allows you to control up to 4 computers using a single keyboard and mouse. Perfect for multimedia applications, the switch supports dual monitor configurations, an integrated 2-port USB 2.0 hub, and audio switching.
The switch features IOGEAR's Display Emulation Technology, which remembers your display's ideal resolution and refresh rate. This allows you to boot all of your computer simultaneously and switch between computers, while still maintaining ideal video settings for your particular monitor. - Supports 2 Dual-Link DVI monitors, each with a resolution of up to 2560 x 1600
- Connect up to 4 computers for KVM switching
- Integrated 2-port USB 2.0 hub allows you to share peripherals between connected computers
- Supports asynchronous hotkey switching between KVM focus, USB peripherals, and audio ports
- Display Emulation Technology remembers your display's settings, eliminating the resolution change delay when switching between computers
- Emulates keyboard and mouse presence, allowing systems to boot when they don't hold the focus of the switch
- Switch between front panel push buttons or hotkeys
- Supports special keys found on Mac and Sun keyboards
- No software or drivers are required for installation, works with almost every major operating system
- Audible alarm can be toggled via hotkey
- Includes all necessary cables

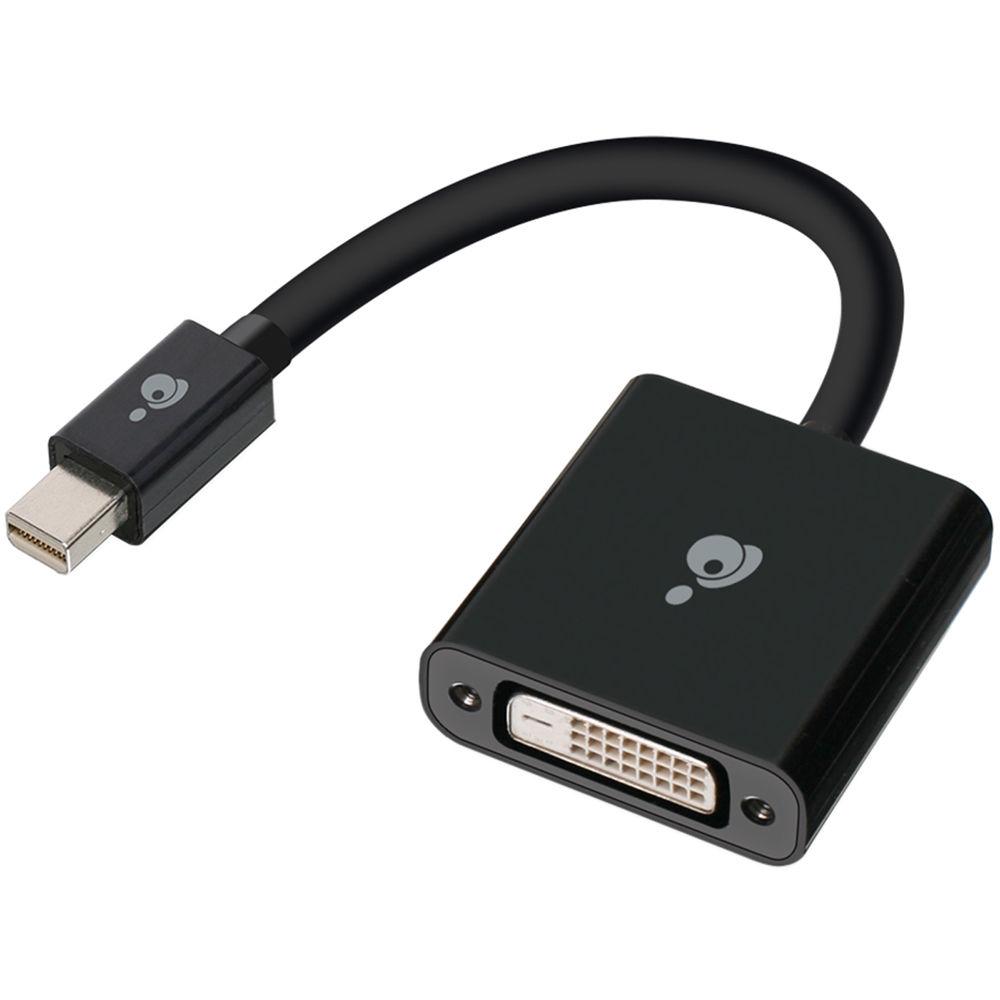

UPC: 881317502841 - Active Mini DisplayPort to DVI Adapter The Active Mini DisplayPort to DVI Adapter from IOGEAR is used to convert a Mini DisplayPort output to a DVI output. Use it to connect your computer or laptop or a DVI based display, projector, or TV. An active adapter is needed for connecting more than two displays to a video card. Moreover, this adapter supports resolutions up to 4K 3840 x 2160 at 30 Hz, and is plug-and-play compatible, so you won't have to worry about additional power plugs or installing drivers. UPC: 881317516169

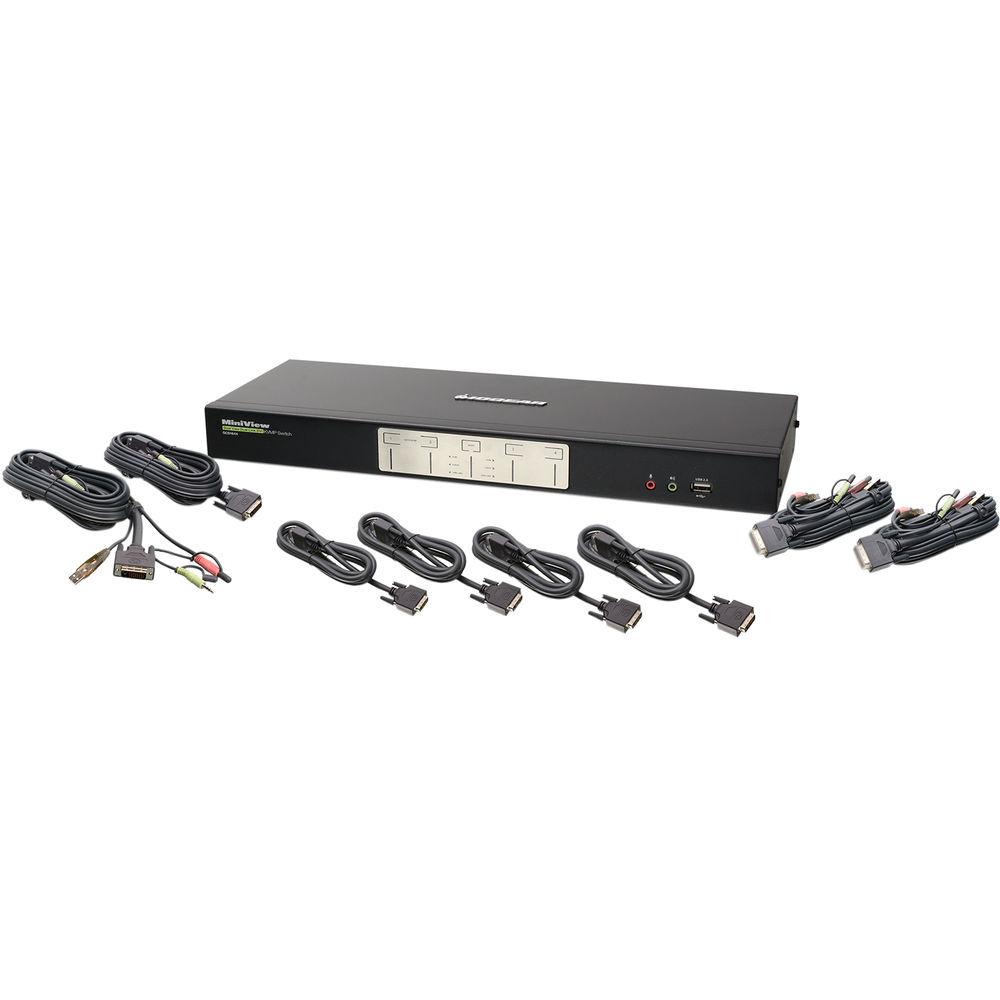

In the Box Bundle Items 4-Port Dual View Dual-Link DVI KVMP Switch with Audio yeuvwwwxdcdwcadzefu - 4 x Dual-Link DVI KVM Cables
8 x Active Mini DisplayPort to DVI Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 4-Port Dual View Dual-Link DVI KVMP Switch with Audio Kit with Eight Mini DisplayPort Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4-Port Dual View Dual-Link DVI KVMP Switch with Audio
| | | # of Systems Supported | 4 | | CPU Connections | 8 x DVI-I DL, Female
4 x USB (Unspecified Version) Type-B, Female
4 x 3.5 mm Line-Out, Female
4 x 3.5 mm Microphone, Female | | Console Connections | 2 x DVI-I, Female
2 x USB (Unspecified Version) Type-A, Female
1 x 3.5 mm Line-Out, Female
1 x 3.5 mm Microphone, Female | | Scan Interval Range | 1 to 99 secs | | Supported Resolutions | 2560 x 1600 | | | | AC Input Power | 120 VAC, 60 Hz | | DC Input Power | 5.3 VDC at 2.4 A | | | | Dimensions | 17.0 x 1.8 x 6.1" / 43.2 x 4.4 x 15.6 cm | | Weight | 5.8 lb / 2.6 kg | | | | Box Dimensions (LxWxH) | 22.2 x 9.5 x 8.2" | - Active Mini DisplayPort to DVI Adapter
| Input | Mini DisplayPort, male 20-pin | | Output | DVI, female 29-pin | | Supported Resolution | Up to 4K 3840 x 2160 @ 30 Hz | | Power Consumption | 1 W | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Dimensions (H x D x W) | 0.875 x 0.5 x 6.875" (2.2 x 1.3 x 17.5 cm) | | Weight | 0.05 lb (0.02 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.8" |
