Product description Multi-Monitors: Maximizing Multitasking Read More crtexvurutdzzessrdysvfysbduwwxeucfbu The bundle from IOGEAR comes with the 4-Port HDMI KVMP Switch along with two HDMI to Mini DisplayPort adapters, allowing you to directly control up to four computer systems with HDMI or Mini DisplayPort outputs using a single console set. The KVMP switch connects to the computer systems with four supplied KVM cables to deliver audio, video, and input-control signals to your monitor, USB keyboard, USB mouse, and headset. The included adapters let you convert two of the four KVM cables into a Mini DisplayPort connection, so you can use this switch with MacBooks, iMacs, and other Apple products. Aside from these connections, the switch sports two USB 2.0 ports for connecting printers and external storage devices to these systems.
The 4-Port HDMI KVMP switch offers front-panel switch buttons as well as software-based hotkeys to let you quickly switch between your attached systems. It supports HDCP and DynaSync to eliminate delays or changes in video resolution while switching between or booting systems. For easy installation, it is Plug & Play compatible with a wide-variety of operating systems. Moreover, the switch is outfitted with a port that lets you upgrade its firmware to support the latest technologies. - Share a keyboard, mouse, surround sound system, USB devices, and an HDTV or HD display between 4 computers
- Video Resolutions: 480i, 480p, 720i, 720p, 1080i, and 1080p
PC Resolutions: Up to 1920 x 1200 - Two USB 2.0 peripheral-sharing ports
- Dolby TrueHD and DTS HD Master audio support
- IOGEAR's DynaSync reads and remembers the monitor's parameters (EDID), so there is no delay or change of video resolution when switching between or booting computers
- Power-on Detection: If one of the computers is powered off, it will automatically switch to the next powered-on computer
- Asynchronous hotkey switching between KVM focus, USB peripherals, and audio ports
- Keyboard and mouse emulation for error-free booting and real-time switching
- Console mouse port can support emulation or bypass
- Plug & Play: no software installation required

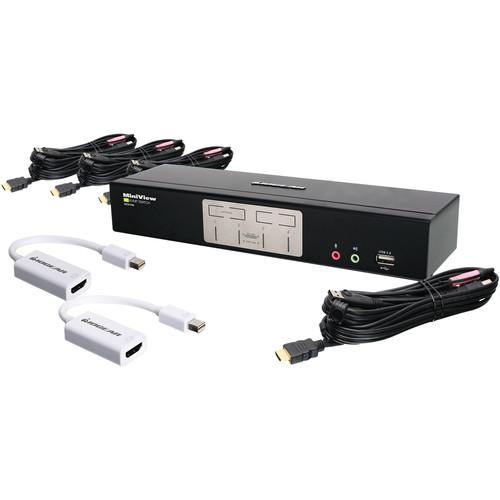

UPC: 881317515155 In the Box IOGEAR 4-Port HDMI KVMP Switch with Mini DisplayPort Adapters Bundle 4 x HDMI KVM Cables 2 x HDMI to Mini DisplayPort Adapters Firmware Upgrade Cable Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 4-Port HDMI KVMP Switch with Mini DisplayPort Adapters Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

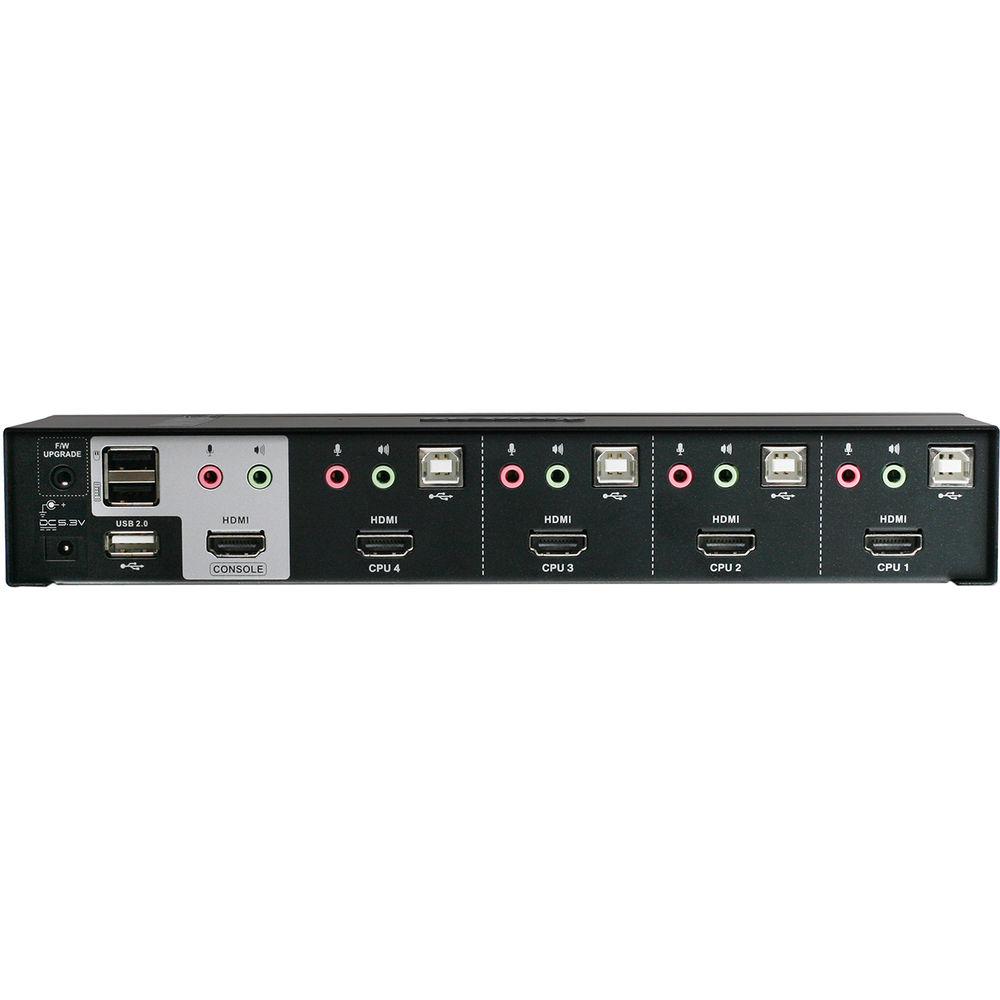

Technical parametersIOGEAR GCS1794MDPKIT Specs | Max Computer Connections | 4 | | Port Selection | Hotkeys or front-panel switch button | | Console Connectors | 1x HDMI female
1 x USB Type-A female (keyboard)
1 x USB Type-A female (mouse)
2 x 3.5 mm stereo female (green, audio)
2 x 3.5 mm stereo microphone female (pink, microphone)
1 x 4-conductor 3.5 mm (black, flash ROM upgrade) | | PC Connectors | 4 x HDMI (two Mini DisplayPort with adapters)
4 x USB Type-B female
4 x 3.5 mm stereo female (green, audio)
4 x 3.5 mm stereo female (pink, microphone) | | Additional Ports | 2 x USB 2.0 Type-A female (one front and one rear) | | Adapter Specifications | Mini DisplayPort Specification 1.1a for both 1.62 Gbps and 2.7 Gbps
Mini DisplayPort link tracking
Compliant with HDMI up to 2.25 Gbps
Supports Deep Sleep mode | | LEDs | 4 x USB peripherals (green)
4 x On line (orange) | | Emulation | USB keyboard and mouse | | Video Resolution | 1920 x 1200 (1080p) | | Scan Interval | 1 to 99 seconds | | Power | 5.3 V, 2.4 A | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity (Non-Condensing) | 0 to 80% | | Supported Operating Systems | Windows, Mac, Sun Solaris, and Linux | | Dimensions (WxHxD) | 10.3 x 1.6 x 3" / 26 x 4.1 x 7.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 13.1 x 8.4 x 4.0" |
