User Manual for IOGEAR 8-Port 17" LCD Combo KVM Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR 8-Port 17" LCD Combo KVM
- Product category: LCD KVM Consoles IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR LCD KVM Consoles
 |
User manual for the IOGEAR 8-Port 17" LCD Combo KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

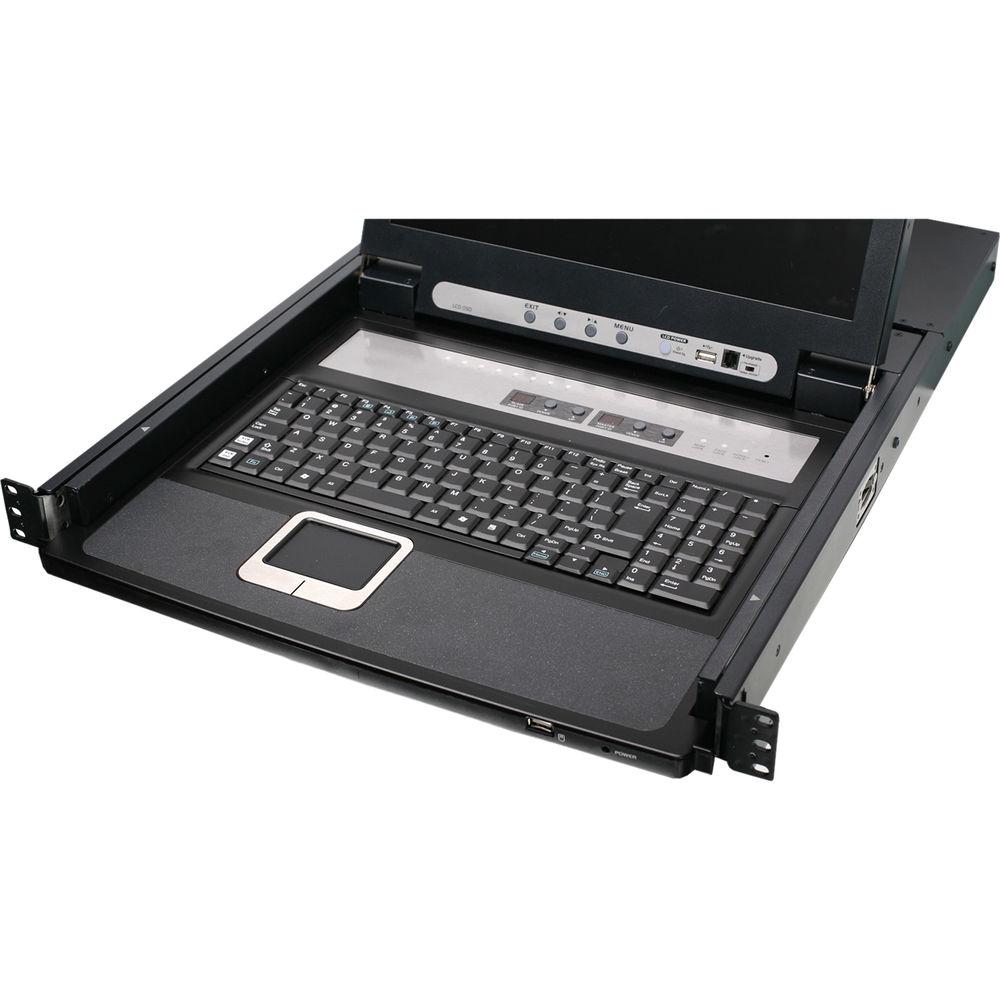

Product description The IOGEAR 8-Port 17" LCD Combo KVM Switch integrates a keyboard, an 8-port KVM switch, a 17" TFT LCD active matrix monitor, and a touchpad in a universal 1 RU rack mount space, and is compatible with Windows, Mac, Sun Solaris, and Linux platforms. The 8-port KVM (keyboard, video, and mouse) switch can be connected to eight VGA, USB, or PS/2 ports. In addition, up to eight additional compatible KVM switches can be cascaded together, allowing you to control up to 128 computers from a single KVM console. This KVM switch is compliant with the Trade Agreements Act (TAA).
Equipped with an additional USB / PS/2 port on the rear panel, the 17" LCD Combo Console allows you to manage the KVM switch from an external console (monitor, keyboard, and mouse), and supports an external USB mouse. The front panel push button LEDs, an intuitive OSD (On-Screen Display), and the hotkeys enable you to quickly access a given computer. In addition, the OSD comes with two-level password protection for enhanced security.
The 17" LCD Combo Console's depth can be easily adjusted, allowing it to fit racks of different sizes. With a 1280 x 1024 resolution, the monitor displays clear and crisp images. With DDC emulation, the video settings of each computer are automatically adjusted for optimal output to the monitor. Featuring an auto-sensing function, custom ASIC helps recognize the position of each station on the installation. The console fully supports the DDC2B protocol. - Integrates a keyboard, an 8-port KVM switch, a 17" TFT LCD active matrix monitor, and a touchpad in a universal 1 RU rackmount space
- Compatible with Windows, Mac, Sun Solaris, and Linux platforms
- Features an 8-port KVM (keyboard, video, and mouse) switch that can be connected to eight VGA, USB, or PS/2 ports
- Up to eight additional compatible KVM switches can be cascaded together, controlling a maximum of 128 computers from a single KVM console

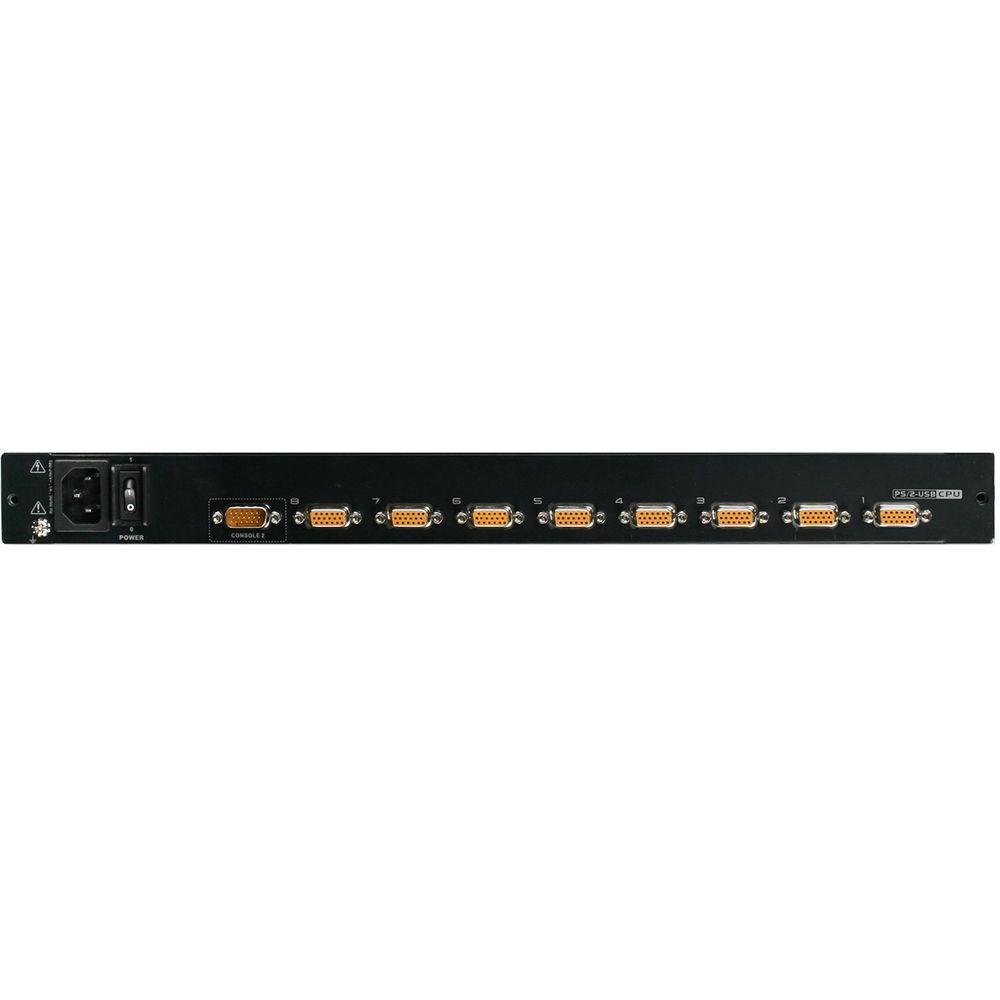

- Equipped with an additional USB-PS/2 console port on the rear panel that allows the KVM switch to be controlled from an external console (monitor, keyboard, and mouse)
- Supports an external USB mouse
- Front panel push button LEDs, an intuitive OSD (On-Screen Display), and the hotkeys enable quick and easy access to a given computer
- OSD comes with two-level password protection for enhanced security

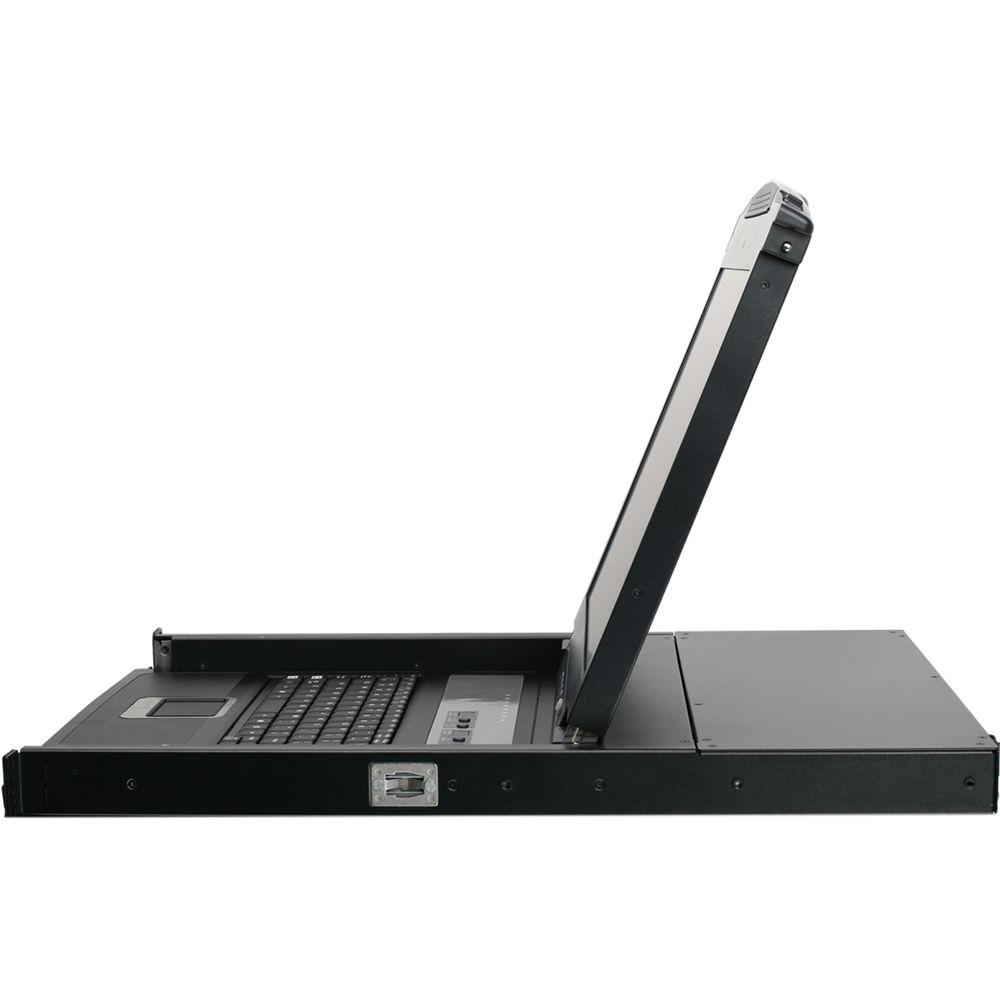

- Depth can be easily adjusted, allowing you to fit racks of different sizes
- Monitor resolution of 1280 x 1024
- DDC emulation enables the video settings of each computer to be automatically adjusted for optimal output to the monitor
- Custom ASIC provides an auto-sensing function which helps recognize the position of each station on the installation
- Fully supports the DDC2B protocol
UPC: 881317506870 In the Box IOGEAR 8-Port 17" LCD Combo KVM Switch (TAA Compliant, 1 RU) Keyboard PS/2 KVM Cable USB KVM Cable Console Cable Cascade Cable Firmware Upgrade Cable Rack-Mounting Kit Grounding Wire Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 8-Port 17" LCD Combo KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCL1808TAA Specs | Computer Connections | Direct: 8
Daisy Chain or Cascading: 128 | | Port Selection | OSD, hotkeys, push buttons | | Connectors | Console: 1 x SPHD-18, male
Power: 1 x Three-prong AC socket | | Console Connectors | Monitor: 1 x 15-pin VGA, female
Keyboard: PS/2 or USB
Mouse: S/2 or USB
Extra Mouse: 1 x USB Type A, female
Flash ROM Upgrade: 1 x RJ-11, female | | CPU Connectors | Keyboard, Mouse, and Monitor: 8 x 15-pin VGA, female | | Switches | Reset: 1 x Semi-recessed push button
Power: 1 x Rocker switch
F/W Upgrade: 1 x Switch
LCD Adjustment: 4 x Push button
LCD Power: 1 x LED push button (orange)
Port Selection: 4 x Push button | | LEDs | On Line: 8 (orange)
Port ID: 4 x 7-segment LED display (yellow)
Power On: Dark green | | Emulation | Keyboard: PS/2, USB
Mouse: PS/2, USB | | Video Resolution | 1280 x 1024 @ 75 Hz; DDC2B | | Scan Interval | 1 to 255 seconds | | Power Input Rating | Per AC Power Inlet: 100 to 240 VAC. 50/60 Hz, 1 A | | Power Consumption | 120 V, 28 W | | Environment | Operation Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: 68 to 140°F (-20 to 60°C)
Humidity: 0 to 80% RH, non-condensing | | Housing Material | Metal and plastic case | | Dimensions (WxHxD) | 19 x 1.75 x 25" (48.26 x 4.44 x 63.5 cm) | | Weight | Unit Pack: 44.03 lb (19.97 kg)
Unit with Accessories: 33.07 lb (15 kg)
Unit: 27.78 lb (70.56 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
|
| Request for user manual |
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:
I’m looking for a manual / Request for manual
Current requests for instruction manuals:
