User Manual for IOGEAR 8-Port 19" LCD Combo KVM Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR 8-Port 19" LCD Combo KVM
- Product category: LCD KVM Consoles IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR LCD KVM Consoles
 |
User manual for the IOGEAR 8-Port 19" LCD Combo KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

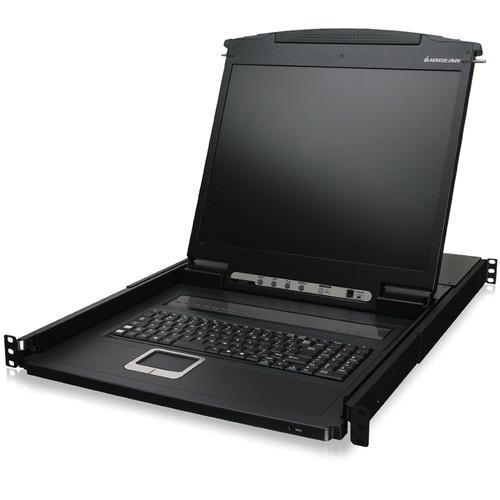

Product description The 8-Port 19" LCD Combo KVM Switch from Iogear is an integrated LCD console with 8-port KVM (keyboard, video, and mouse) switch that offers secure access to 8 VGA, USB, or PS/2 computers. It features a convenient space saving rack mountable sliding / retractable 19" TFT LCD active matrix monitor and keyboard with built-in touchpad. It fits into a universal 1U rack mount space. The switch supports both PS/2 and USB keyboards and mice for the connected computers, and supports USB peripheral devices for the attached computers. It can control up to 8 computers, but as many as 16 additional compatible KVM switches can be cascaded to reach up to 128 computers* controlled from a single keyboard, monitor and mouse console. It increases space and productivity, while providing an energy cost saving solution. It contributes to a greener environment by reducing the amount of waste generated by multiple components. It provides an easy and efficient way to organize and streamline a growing or expanding server operation. Note: *It can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models - Integrated 8-port KVM console featuring a 19" TFT LCD active matrix monitor, keyboard and touchpad
- 1280 x 1024 resolution on 19" rack mount LCD video display
- Adjustable mounting rail to fit different sizes of racks
- Compatible with Windows, Mac, and Linux platforms
- Easy computer selection via front panel pushbutton LED's, intuitive OSD (on-screen display) and hotkeys
- External USB or PS/2 with VGA console port
- Controls up to 128 computers from a single console
- Provides two level password protection for OSD
- Video settings of each computer are automatically adjusted for optimal output to the monitor due to DDC emulation
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation

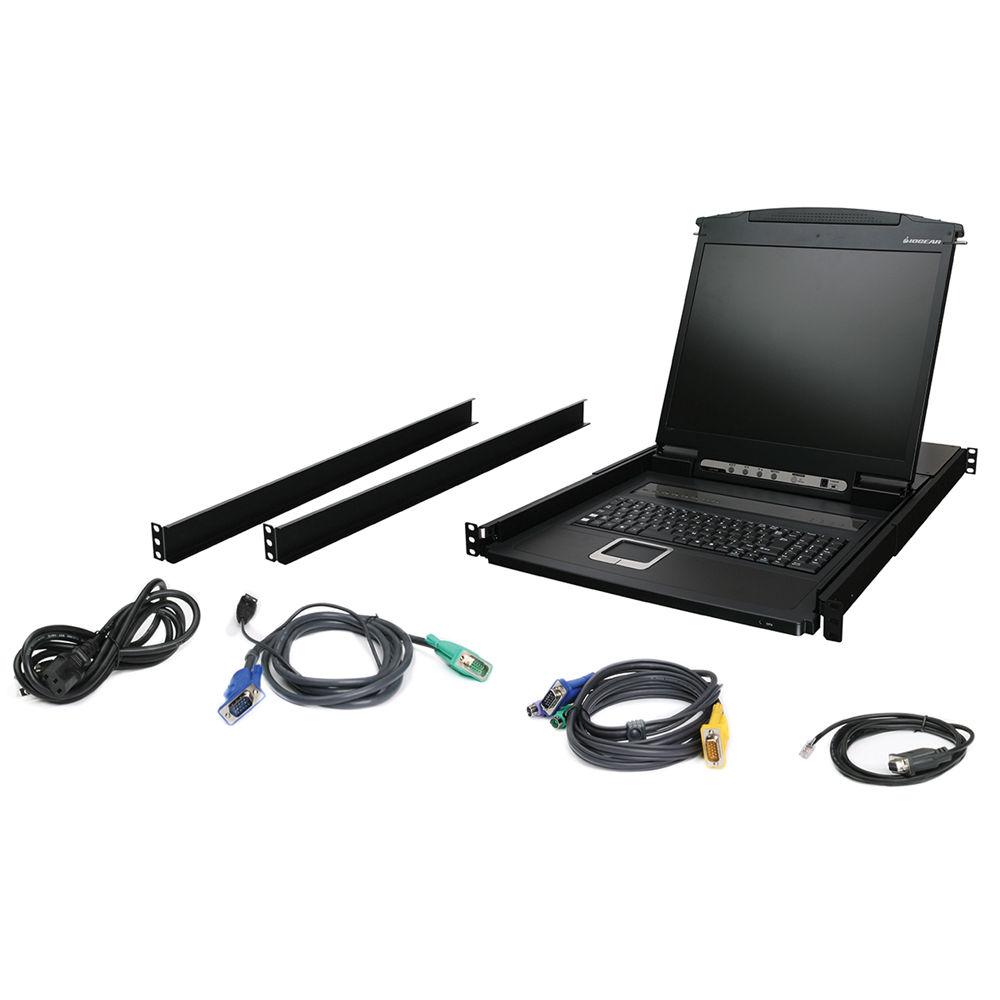

UPC: 881317512888 In the Box IOGEAR 8-Port 19" LCD Combo KVM Switch PS/2 KVM Cable USB KVM Cable Power Cable Firmware Upgrade Cable Standard Long Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 8-Port 19" LCD Combo KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCL1908 Specs | LCD Size | 19" (485.6 mm) | | Video Resolution | 1280 x 1024 at 75 Hz
DDC2B | | Computer Connections | Direct: 8
Daisy Chain or Cascading: 128 (via cascade) | | Connectors | Power: 1 x 3-Prong AC socket

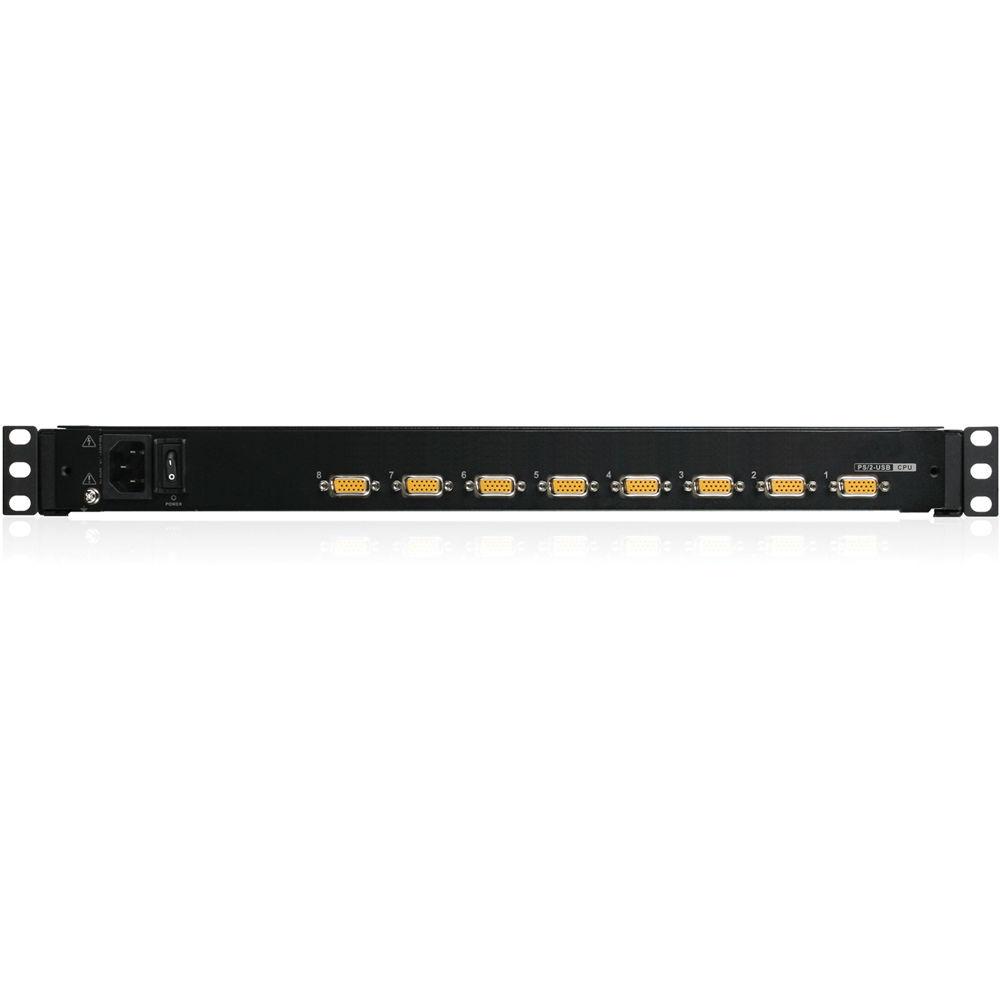

Computer/KVM: 8 x SPHD-17 female (yellow) | | Switches | F/W Upgrade: 1 x Slide Switch
Port Selection: 8 x Pushbutton
Power: 1 x Rocker Switch
Reset: 1 x Semi-recessed Pushbutton
LCD Power: 1 x Pushbutton
LCD Adjustment: 4 x Pushbutton | | Power | Current: 2.4 A
Voltage: 5.3 VDC | | Scan Interval | 1 to 255 sec | | Environment | Operation Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to +140°F (-20 to +60°C)
Relative Humidity: 0 to 80% (non-condensing) | | Case | Metal | | Port Selection | On Line: 8 (orange)
Selected: 8 (green)
Power On:
Dark green (KVM)
Orange (LCD) | | Dimensions (L x H x D) | 17.75 x 27.00 x 1.75" (45.09 x 68.58 x 4.45 cm) | | Weight | 27.75 lb (12.58 kg) | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 33.0 x 26.5 x 5.5" |
