Product description Multi-Monitors: Maximizing Multitasking Read More xrzwfxqaxttrdbucfryxwuuvxvsu The 8-Port Dual Link DVI KVMP Switch KIT with VGA from Iogear is a control unit that allows access and control of up to 8 DVI computers from a single USB keyboard and USB mouse. It can be cascaded to three levels, allowing up to 73 DVI KVMP switches to control up to 512 computers, all from the original single console. Additionally, the switch comes with Iogear's Video DynaSync technology to optimize the display resolution. The DynaSync technology reads and remembers the monitor's parameters (EDID), causing no delay or change of video resolution when switching between or booting computers. Switching between computers can easily be accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard or via an on-screen display (OSD) system. A convenient Auto-scan feature permits automatic scanning and monitors activities on all connected computers. The DVI KVMP provides 2.1 stereo audio and microphone support, as well as multimedia keyboard support. - One USB console controls eight DVI or VGA computers
- Supports both digital (DVI), analog (DVI) video and analog (VGA)
- Superior video quality: 2560 x 1600 (dual link DVI), 1920 x 1200 (single link DVI), 2048 x 1536 (VGA), DDC2
- Supports widescreen resolutions
- Multi-platform support - Windows, Linux, Mac, Sun

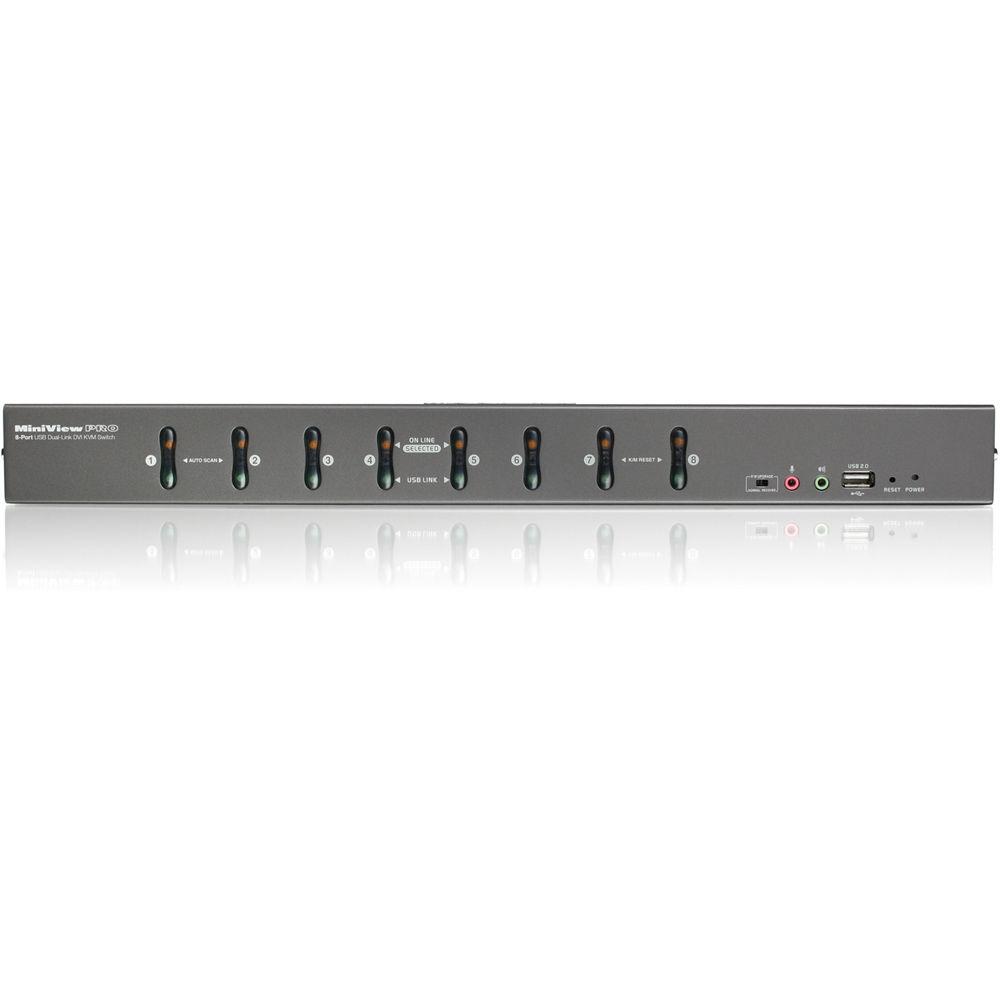

- Computer selection via front panel pushbuttons, hotkeys or on-screen display (OSD)
- Includes two USB 2.0 peripheral sharing ports
- Console audio ports on front panel for easy access
- Independent switching of KVM and USB focus
- Two-level (administrator / user) password authorization for enhanced security protection
- Cascadable to three levels - control up to 512 computers
- DynaSync* technology reads and remembers the monitor's parameters (EDID), so there is no delay or change of video resolution when switching between or booting computers 1
Please Note: *IOGEAR's DynaSync provides the EDID support for Windows 7 close - Full bass response provides a rich experience for 2.1 channel surround sound systems
- Complete keyboard emulation for error-free booting
- Console mouse port emulation / bypass feature supports most mouse drivers and multi-function mice
- Mac / Sun keyboard support and emulation** 2
Please Note: ** PC keyboard combinations emulate Mac / Sun keyboards; does not emulate Mac / Sun keyboard to PC keyboard close - Auto-scan mode for monitoring all computers
- Broadcast mode allows you to send commands from the console to all computers to perform operations simultaneously

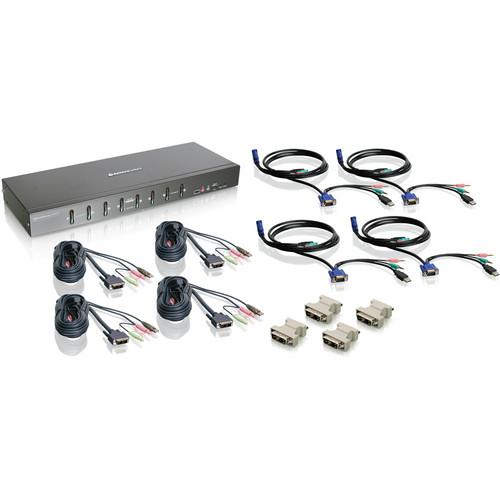

UPC: 881317511454 In the Box IOGEAR 8-Port Dual Link DVI KVMP Switch KIT with VGA Rack Mounting Kit 4x 6'(1.83m) Dual Link DVI-D USB KVM Cables 4x 6'(1.83m) VGA USB Audio / Mic KVM Cables 4x DVI-A (Male) to VGA (Female) Adapter Firmware Upgrade Cable Power Adapter Foot Pad Set (4 Pieces) 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 8-Port Dual Link DVI KVMP Switch KIT with VGA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS1208KIT2 Specs | Peripheral Sharing | 2 x USB 2.0 | | Port Selection | Front Panel Buttons; OSD ; Hotkey | | Video Resolution | DVI(dual link ):2560 x 1600
DVI (single link):1920 x 1200
VGA: 2048 x 1536 | | Scan Interval | 1-255 secs (default: 5 seconds) | | LEDs | Selected: 8x orange
On Line: 8x orange
USB Peripherals: 8x green

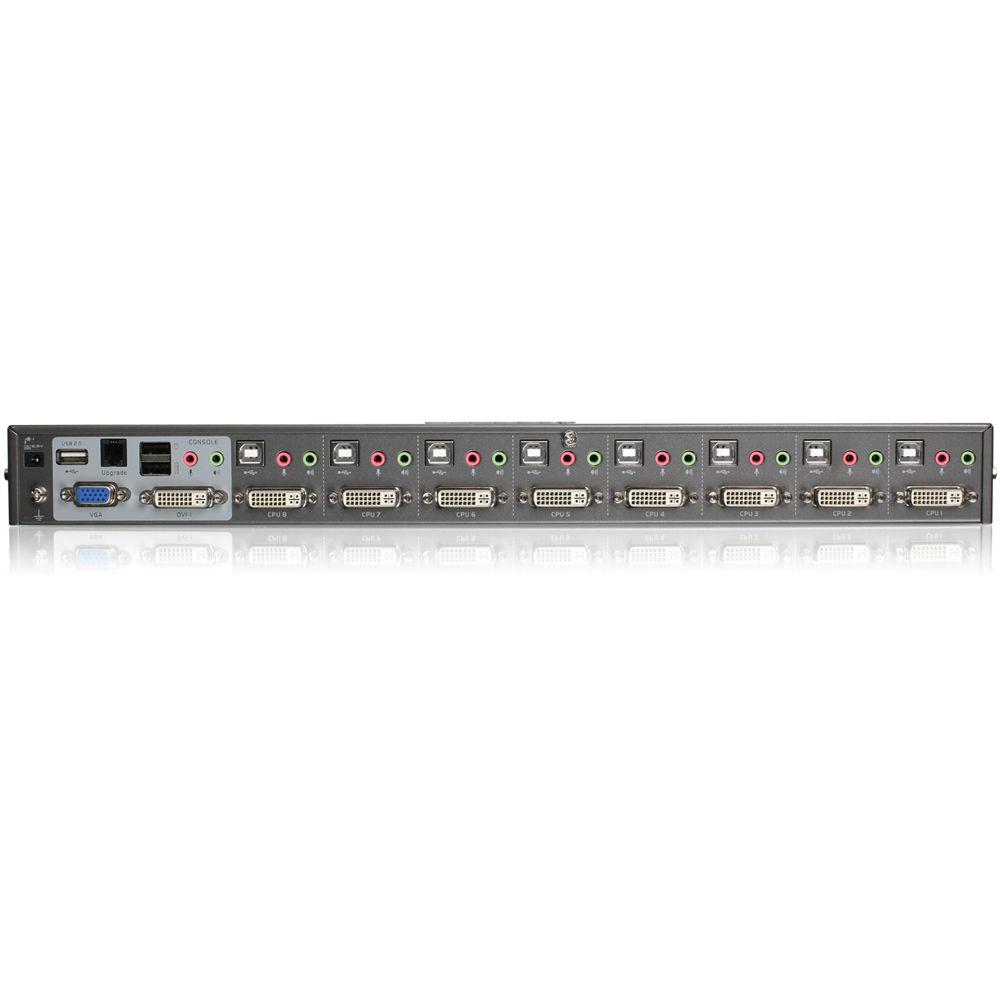

Power On: 1x dark green | | | | Connections | 8 | | Daisy Chain/Cascading | Up to 512 (via cascade) | | | | CPU Connectors | Monitor: 8x DVI-I ports (female)
Microphone: 8x Microphone jack
Audio: 8x Stereo earphone jack
Keyboard & Mouse: 8x USB Type B sockets | | Console Connectors | Mouse: 1x USB Type A socket
Keyboard: 1x USB Type A socket
Monitor: 1x VGA port (female) / 1x DVI-I port (female)
Microphone: 2x Microphone jack (1x front panel, 1x rear panel)
Audio: 2x Stereo earphone jack (1x front panel, 1x rear panel) | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH | | | | Enclosure | Metal | | System Requirements |
Display Option #1 - A display with both DVI and VGA connection*
Display Option #2 - A display with DVI-I connection
Display Option #3 - One each of DVI and VGA displays
1x set of USB keyboard and mouse Computers
1x DVI port / 1x VGA port
1x USB port Operating Systems
Windows XP, Windows Vista (32-bit / 64-bit),
Windows 8 (32-bit / 64-bit)
Windows 7 (32-bit / 64-bit)*
Mac OS X v10.3.9 or later
Sun Solaris
Linux * Display Emulation Technology provides the EDID support for Windows 7 | | Dimensions (L x W x H) | 17.2 x 6.6 x 1.8" (43.7 x 16.8 x 4.6 cm) | | Weight | 6.4 lb (2.9 kg) | | | | Package Weight | 15.35 lb | | Box Dimensions (LxWxH) | 22.2 x 10.4 x 10.0" |
