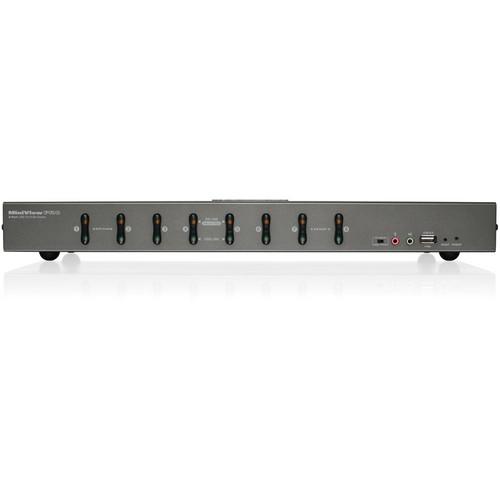

User Manual for IOGEAR 8 Port DVI KVMP Switch Kit Click to enlarge the picture
Contents of the user manual for the IOGEAR 8 Port DVI KVMP Switch
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 8 Port DVI KVMP Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The 8 Port DVI KVMP Switch Kit from Iogear is a control unit that allows access and control of up to 8 DVI computers from a single USB keyboard and USB mouse. It can be cascaded to three levels, allowing up to 73 DVI KVMP Switches to control up to 512 computers, all from the original single console. Additionally, the switch comes with Iogear's Video DynaSync technology to optimize the display resolution. The DynaSync* technology reads and remembers the monitor's parameters (EDID) causing no delay or change of video resolution when switching between or booting computers. Switching between computers can easily be accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard or via the on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitors activities on all connected computers. The DVI KVMP Switch Kit provides 2.1 stereo audio and microphone support as well as multimedia keyboard support. Note: *DynaSync technology provides EDID support for Windows 7. - One USB console controls eight DVI computers
- Superior video quality: 1920 x 1200 (single link DVI), DDC2
- Supports widescreen resolutions
- Computer selection via front panel push buttons, hotkeys and on-screen display (OSD)
- Includes two USB 2.0 peripheral sharing ports
- Console audio ports on front panel for easy access
- Independent switching of KVM and USB focus
- Two-level (administrator / user) password authorization for enhanced security protection
- Cascadable to three levels - control up to 512 computers
- DynaSync* technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between or booting computers 1
Please Note: *The DynaSync technology provides EDID support for Windows 7. close - Full bass response provides a rich experience for 2.1 channel surround sound systems
- Complete keyboard emulation for error-free booting
- Console mouse port emulation / bypass feature supports most mouse drivers and multi-function mice
- Auto-scan mode for monitoring all computers
- Broadcast mode allows you to send commands from the console to all computers to perform operations simultaneously
- Mac / Sun Solaris keyboard support and emulation* 2
Please Note: *PC keyboard combinations emulate Mac / Sun Solaris keyboards; does not emulate Mac / Sun Solaris keyboard to PC keyboard. close - Supports a multi-platform OS including Windows, Mac, Linux and Sun Solaris

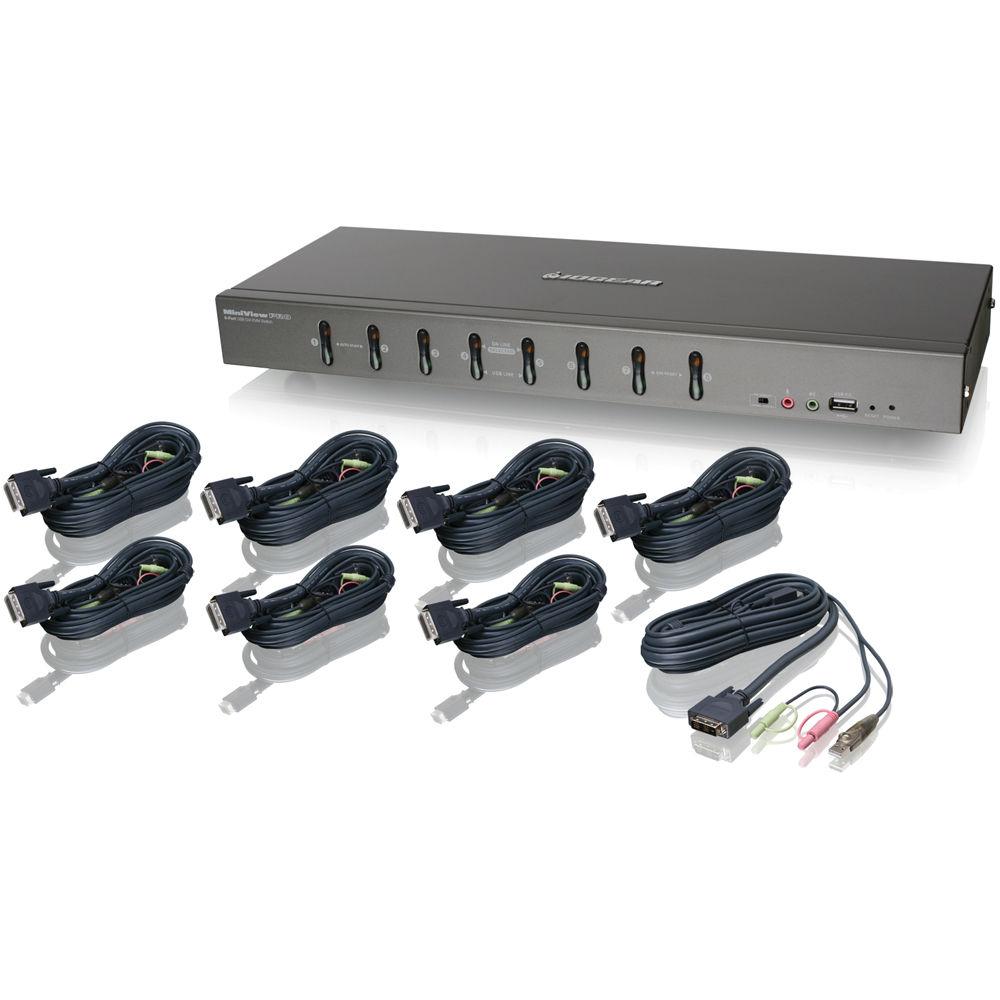

UPC: 881317510594 In the Box IOGEAR 8 Port DVI KVMP Switch Kit Rack Mounting Kit 4 x 6' (1.83 m) Single Link DVI-D USB KVM Cables 4 x 10' (3.05 m) Single Link DVI-D USB KVM Cables Firmware Upgrade Cable Power Adapter Foot Pad Set (4 Pieces) User Manual 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 8 Port DVI KVMP Switch Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

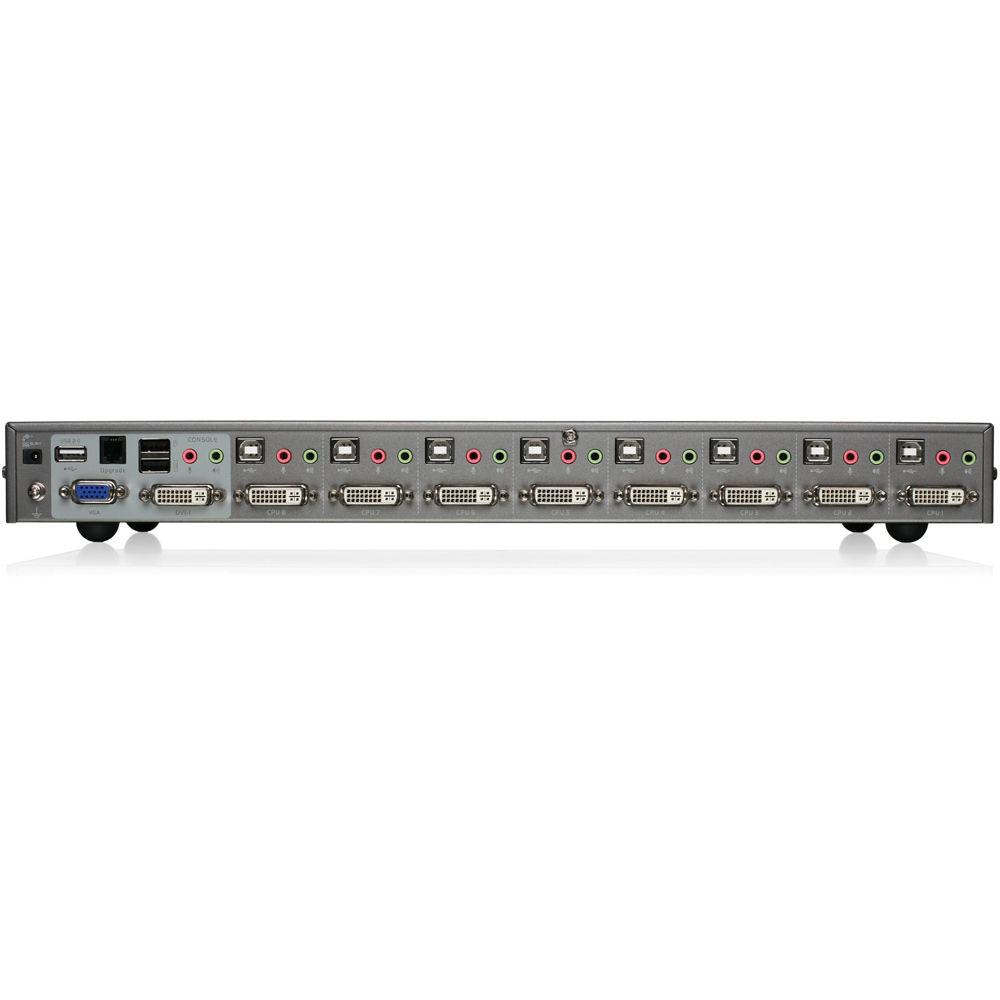

Technical parametersIOGEAR GCS1108 Specs | Peripheral Sharing | 2x USB 2.0 | | Port Selection | Front panel switches; hotkey | | Video Resolution | DVI: 1920 x 1200 VGA: 2048 x 1536 | | Scan Interval | 1 - 255 seconds (default: 5 seconds) | | LEDs | Selected: 8x orange On Line: 8x orange USB Peripherals: 8x green Power On: 1x dark green | | | | Connections | 8 | | Daisy Chain/Cascading | Up to 512 (via cascade) | | | | CPU Connectors | Monitor: 8x DVI-I ports (female) Microphone: 8x microphone jacks Audio: 8x stereo earphone jacks Keyboard / Mouse: 8x USB type B sockets | | Console Connectors | Mouse: 1x USB type A socket Keyboard: 1x USB type A socket Monitor: 1x VGA port (female) / 1x DVI-I port (female) Microphone: 2x microphone jacks (1x front panel, 1x rear panel) Audio: 2x stereo earphone jacks (1x front panel, 1x rear panel) | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH | | | | Enclosure | Metal | | System Requirements | Console 1x DVI display 1x set of USB keyboard and mouse Computers 1x DVI port 1x USB port Operating Systems Windows 7*, XP, Vista (32-bit / 64-bit) Mac OS X v10.3.9 or later Sun Solaris Linux *Display Emulation technology provides EDID support for Windows 7 | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 15.9 lb | | Box Dimensions (LxWxH) | 22.2 x 10.4 x 9.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
