IOGEAR 8-Port IP-Based KVM and 17"

Search your instruction manual in PDF to download

User Manual for IOGEAR 8-Port IP-Based KVM and 17" LCD KVM Console Bundle

Click to enlarge the picture
IOGEAR 8-Port IP-Based KVM and 17" LCD KVM Console Bundle Contents of the user manual for the IOGEAR 8-Port IP-Based KVM and 17"
  • Product category: LCD KVM Consoles IOGEAR
  • Brand: IOGEAR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for IOGEAR LCD KVM Consoles

IOGEAR 8-Port IP-Based KVM and 17" LCD KVM Console Bundle IOGEAR 8-Port IP-Based KVM and 17" LCD KVM Console Bundle IOGEAR 8-Port IP-Based KVM and 17" LCD KVM Console Bundle IOGEAR 8-Port IP-Based KVM and 17" LCD KVM Console Bundle
User manual for the IOGEAR 8-Port IP-Based KVM and 17" contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any IOGEAR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!



Product description

With the 8-Port IP-Based KVM and 17" LCD KVM Console Bundle from IOGEAR, users can control up to eight computers using the included 17" TFT LCD monitor complete with a keyboard and touchpad. The KVM switch features a variety of connections including a single console port, eight computer/KVM ports, one USB 1.1 Type-A port, PS/2 and USB connectivity for a second mouse and keyboard, and a single HDB-15 female secondary console video port. In addition to ports, the KVM switch features a single firmware upgrade slide switch, eight push button port selection, and a dedicated reset button.

Once configured, this 1 RU rack-mountable 8-port IP-based KVM switch supports video resolutions up to 1280 x 1024, and works with Windows, Mac, Sun Solaris, and Linux-based operating systems. Additionally, this switch supports hot-pluggable connectivity, eliminating the need to power down the switch when adding or removing computers from the system. The easy-to-use interface features push button functionality along with a browser-based GUI for easy control of connected computers. Network security has also been addressed, as IOGEAR has implemented SSL 128-bit data encryption and RSA 1024-bit certificates to help avoid unauthorized users from gaining access to connected computers.

Functionality

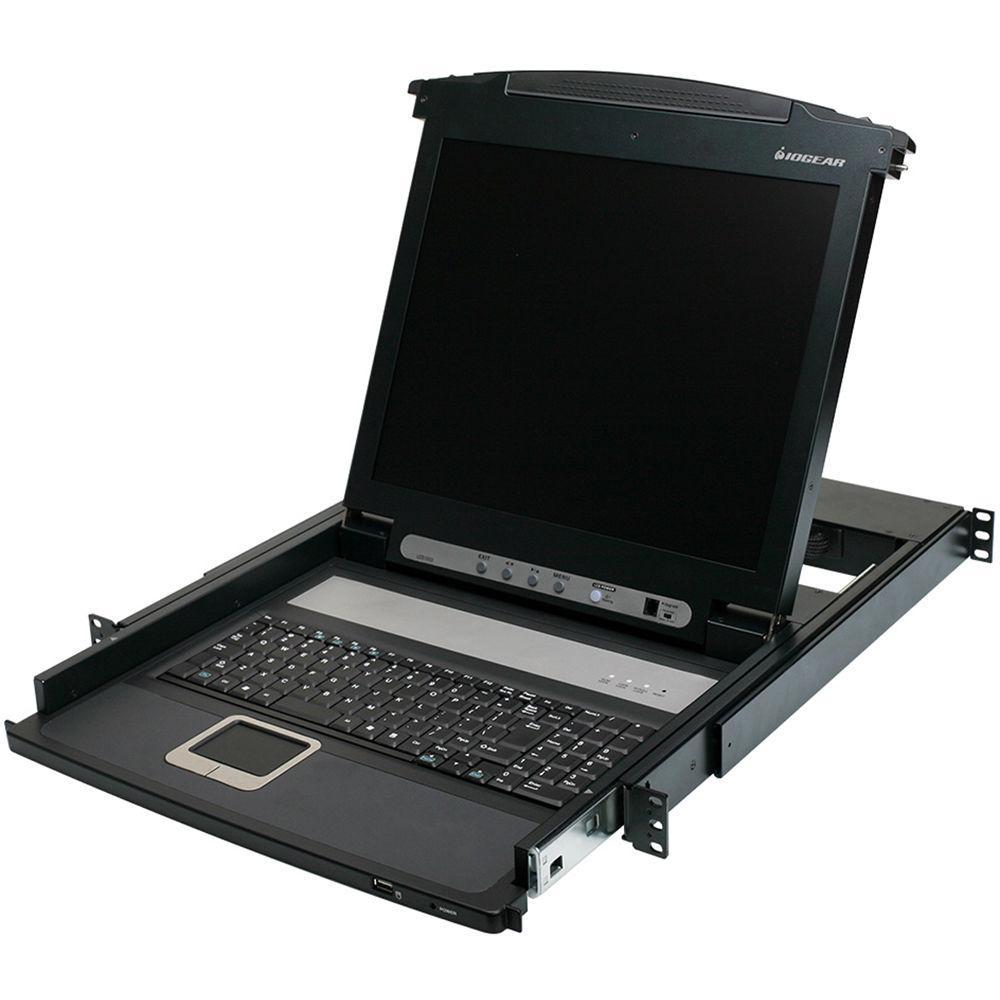

  • Integrated IP KVM bundle features a 17" TFT LCD active matrix monitor, keyboard, and touchpad complete with eight-port IP-based KVM switch
  • Monitor and control up to eight computers from both local and remote KVM consoles
  • Video quality up to 1280 x 1024 on LCD; up to 1600 x 1200 @ 60 Hz/24-bit color depth for remote access
  • Multi-platform OS support for Windows, Mac, Sun Solaris, and Linux
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • DynaSync stores the local monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Rack-mountable in a 19" (1 RU) system; adjustable depth allows fitting into different sizes of racks
  • Hot-pluggable—add or remove computers without having to power-down the switch
  • Front-panel USB port allows connected computers to access USB peripherals, such as USB flash drives or hard drives. Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals
  • Dual interface—the automatic interface detection supports computers with either PS/2 or USB connections
  • Complete keyboard and mouse emulation for error-free booting
  • Support for special keys on Mac and Sun keyboards
  • Firmware upgradeable

Easy-to-Use Interface

  • Easy to operate—computer selection via front panel push button LEDs, intuitive OSD (on-screen display), and hotkeys
  • Browser-based or AP GUIs, including a menu-driven OSD for the remote console
  • Windows client and Java client software support
  • Multi-browser support for IE, Mozilla, Firefox, Safari, Opera, and Chrome (Chrome works when connecting to the GCS1808i from a Windows OS with the most current Java version installed)
  • Panel array mode enables user to monitor multiple servers from a single screen
  • Auto-scan mode to monitor connected computers

Advanced Security

  • Secure keyboard/video/mouse transmission via RC4 128-bit encryption
  • Supports SSL 128-bit data encryption and RSA 1024-bit certificates for secure user logins from a browser
  • Two-level password security (administrator and users)—up to 64 user accounts with separate profiles for each
  • Third-party authentication supported: RADIUS, LDAP, LDAPS, MS Active Directory
  • Supports IP and MAC filters
  • Log-in authentication required for both local and remote access

Virtual Remote Desktop

  • Resizable remote desktop window
  • Message board allows logged-in users to communicate with each other and allows a user to take exclusive control of the KVM functions
  • Mouse DynaSync
  • On-screen keyboard with multi-language support
UPC: 881317514646 In the Box IOGEAR 8-Port IP-Based KVM and 17" LCD KVM Console Bundle
  • GCL1800 17" LCD Console
  • GCS1808i 16-Port IP-Based KVM
  • Console Cable
  • 3 x USB KVM Cable (6')
  • 2 x USB KVM Cable (10')
  • 2 x PS/2 KVM Cable (6')
  • 2 x PS/2 KVM Cable (10')
  • Firmware Upgrade Cable for GCL1800
  • Firmware Upgrade Cable for GCS1808i
  • GCL1800 Mounting Kit
  • GCS1808i Mounting Kit
  • Grounding Wire
  • Power Cord for GCL1800
  • Power Adapter for GCS1808i
  • Foot Pad Set (4-Piece)
  • Software CD for GCS1808i
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the IOGEAR 8-Port IP-Based KVM and 17" LCD KVM Console Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    IOGEAR GCL1808IKIT Specs

    Requirements Local Console:
    1 x VGA monitor
    1 x USB or PS/2 mouse
    1 x USB or PS/2 keyboard

    Local Computers:
    Video graphics card with HDB-15 VGA port
    USB Type A port and USB host controller, or 6-pin mini-DIN keyboard and mouse port

    Operating Systems:
    Windows (32/64-bit): Vista, 7, and 8.x
    Apple Mac OS X 9.0 to 10.x

    Note: For best results during remote access:
    • Computers used to access the 8-Port IP-based KVM should have at least a P III 1 GHz processor
    • Screen resolution should be set to 1024 x 768
    • Internet connection speed of at least 128 kbps
    • Browsers must support 128-bit data encryption
    • To run the Windows client, DirectX 8.0 or higher is required
    • To run the Java client, Sun's Java Runtime Environment (JRE) 6, Update 3, or higher is required
    • To run the Log Server, Microsoft Jet OLEDB 4.0 (or higher) driver is required

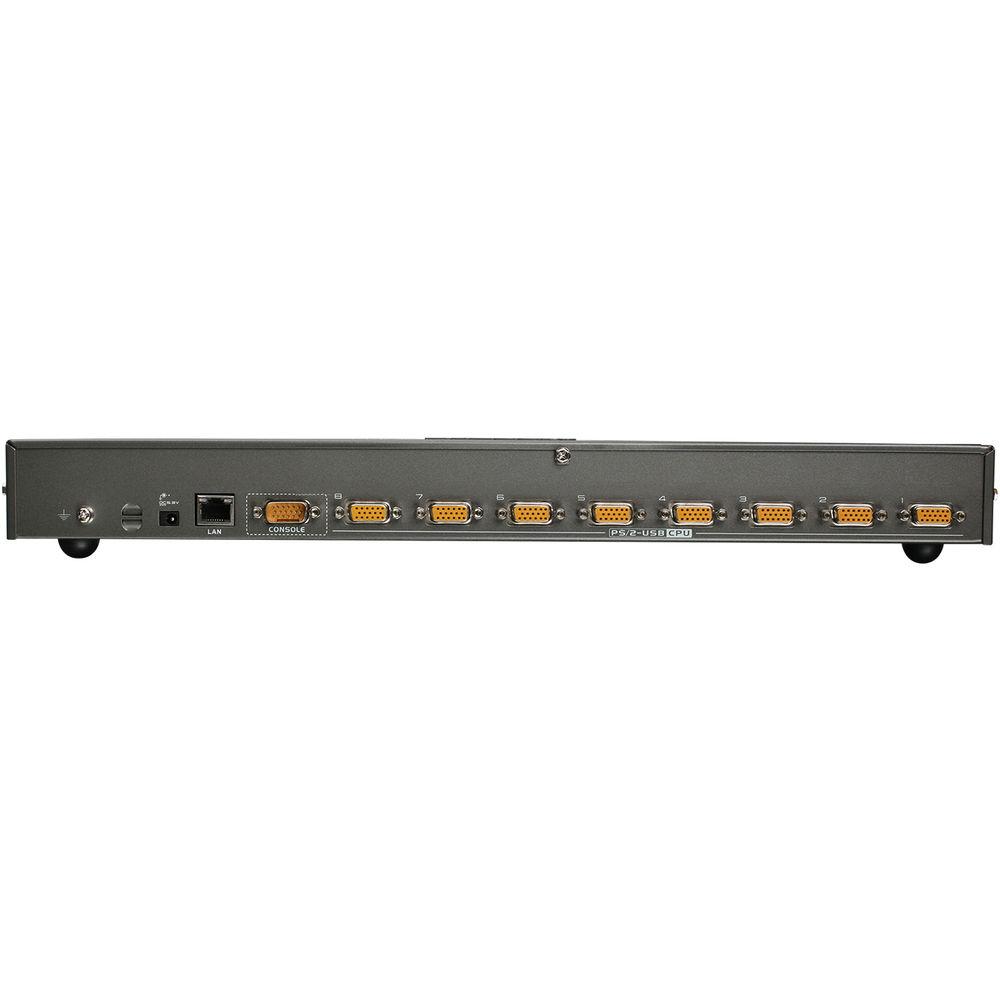

    Computer Connections 8
    Connectors Console: 1 x SPHD-18, male
    Computer/KVM: 8 x SPHD-17, female
    Power: 1 x DC jack (KVM), 1 x 3-prong AC socket (LCD)
    USB: 1 x USB 1.1 Type A
    LAN: 1 x RJ45, female
    Second Console Keyboard: PS/2, USB
    Second Console Mouse: PS/2, USB
    Second Console Video: 1 x HDB-15, female

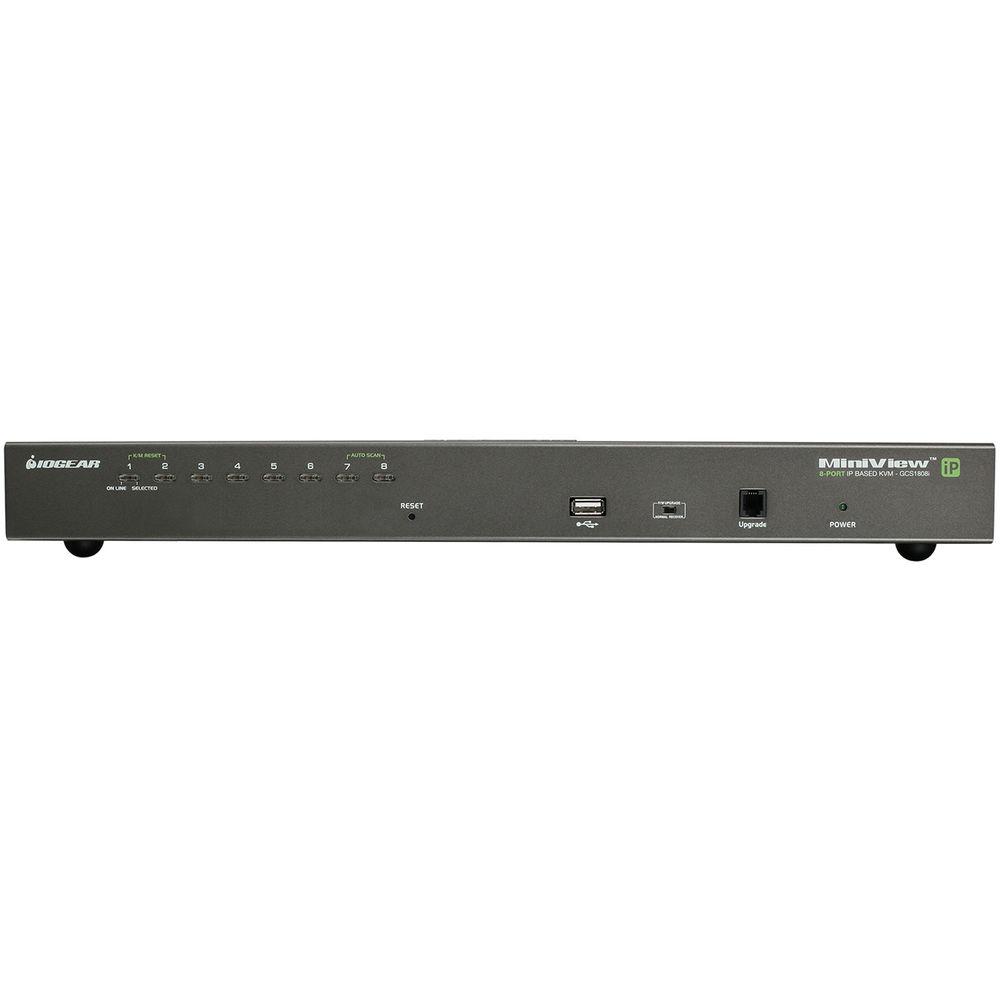

    Switches F/W Upgrade: 1 x Slide switch
    Port Selection: 8 x Push button
    Reset: 1 x Semi-recessed push button
    LCD Power: 1 x LED push button (orange)
    LCD Adjustment: 4 x Push button
    Emulation Keyboard: PS/2, USB
    Mouse: PS/2, USB
    Video Performance Local:
    2048 x 1536, DDC2B (for KVM)
    1280 x 1024 (for LCD)

    Remote:
    1600 x 1200 @ 60 Hz / 24-bit color depth
    Scan Interval 1-255 sec
    Housing KVM Case: Metal
    LCD Case: Metal and plastic
    LEDs On Line: 8 x Orange
    Power On: Dark green (KVM and LCD)
    10/100 Mbps: 1 x Orange/green (at LAN port)
    Power Voltage: 5.3 VDC
    Amps: 2.4 A

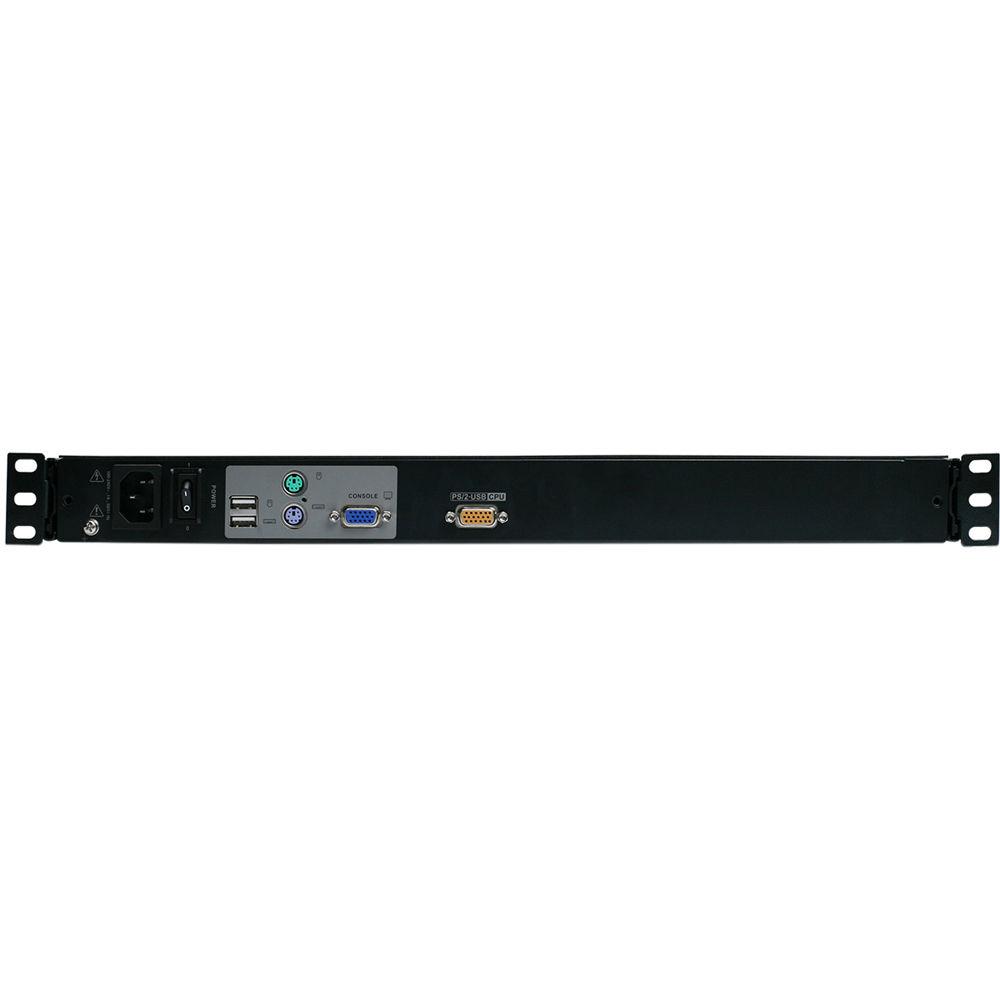

    Console Connectors Flash ROM Upgrade: 1 x RJ-11, female
    CPU Connectors Keyboard, Mouse, and Monitor: 1 x SPHD-15, female
    Temperature & Humidity Operating Temperature: 32 to 122°F / 0 to 50°C
    Storage Temperature: -4 to 140°F / -20 to 60°C
    Humidity: 0 to 80% RH, non-condensing
    Dimensions 37 x 6 x 28" / 94.0 x 15.2 x 71.1 cm
    Weight 55 lb / 12 kg
