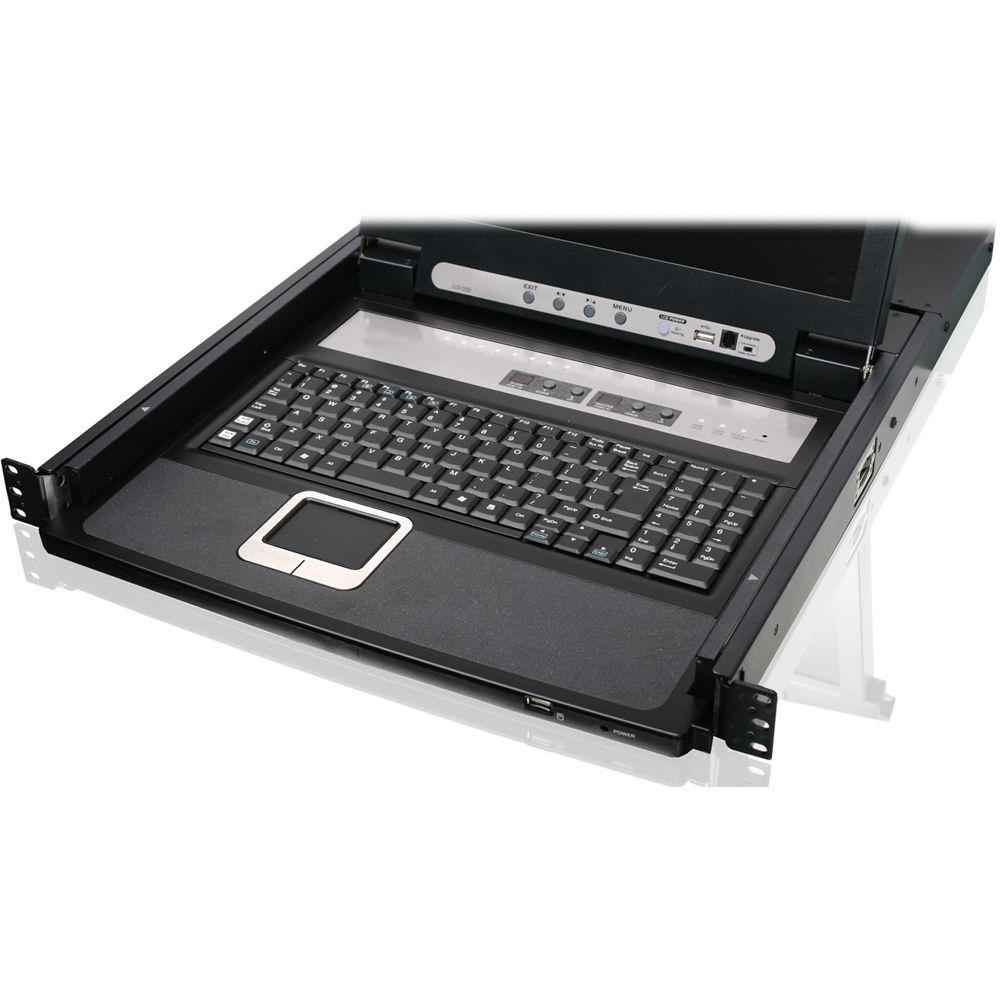

Product description The Iogear 17" LCD Combo Console (8-Port KVM Switch, Cables) integrates a keyboard, a sliding / retractable 17" (43.18 cm) TFT LCD Active Matrix monitor, a touchpad and an 8-port KVM switch in a universal 1U rack mount space. In addition, it comes with 4 USB and 4 PS/2 KVM cables, and is compatible with Windows, Mac, Sun Solaris and Linux platforms. The 8-port KVM (keyboard, video, and mouse) switch can be connected to 8 VGA, USB or PS/2 ports. Moreover, up to 8 additional compatible KVM switches can be cascaded together, allowing you to control up to 128 computers from a single KVM console.

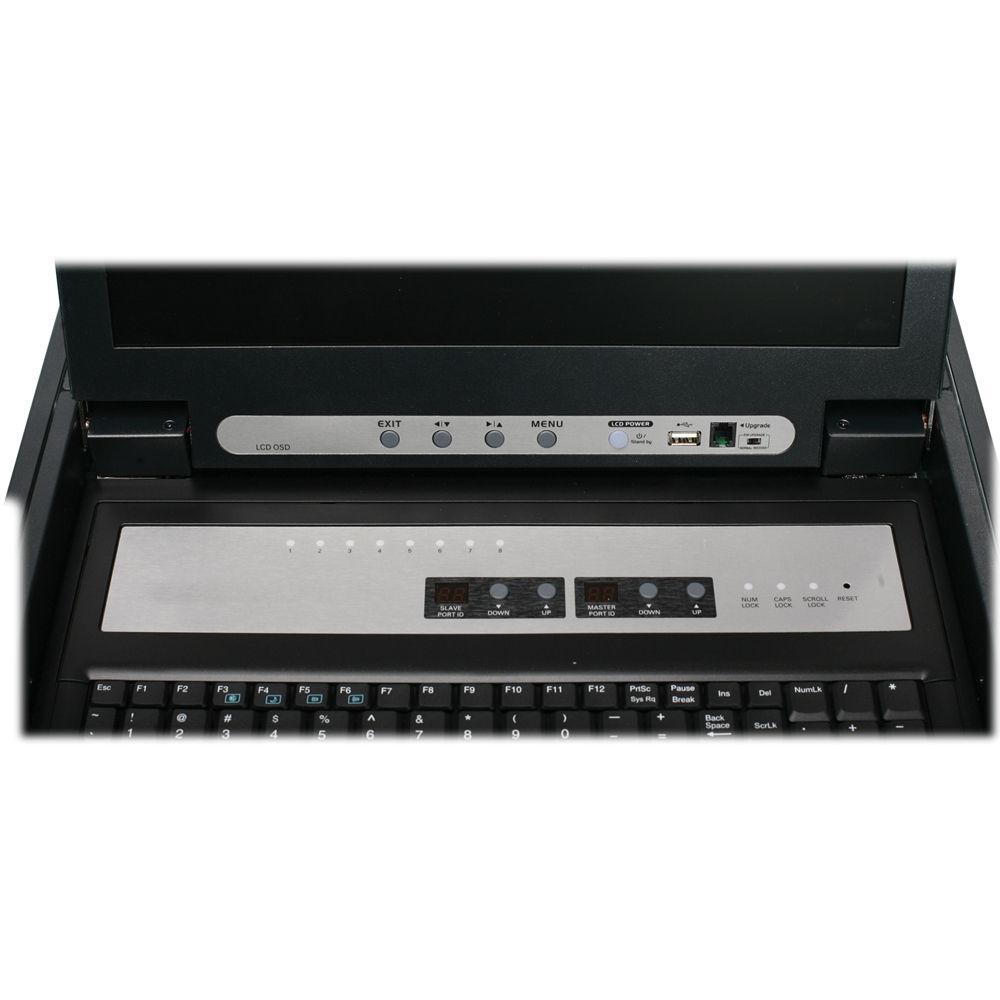

Equipped with an additional USB / PS/2 console port on the rear panel, the LCD Combo Console allows you to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse), and also supports an external USB mouse. The front panel pushbutton LEDs, intuitive On Screen Display (OSD) and hotkeys enable you to quickly access a given computer. The OSD comes with 2-level password protection for enhanced security.

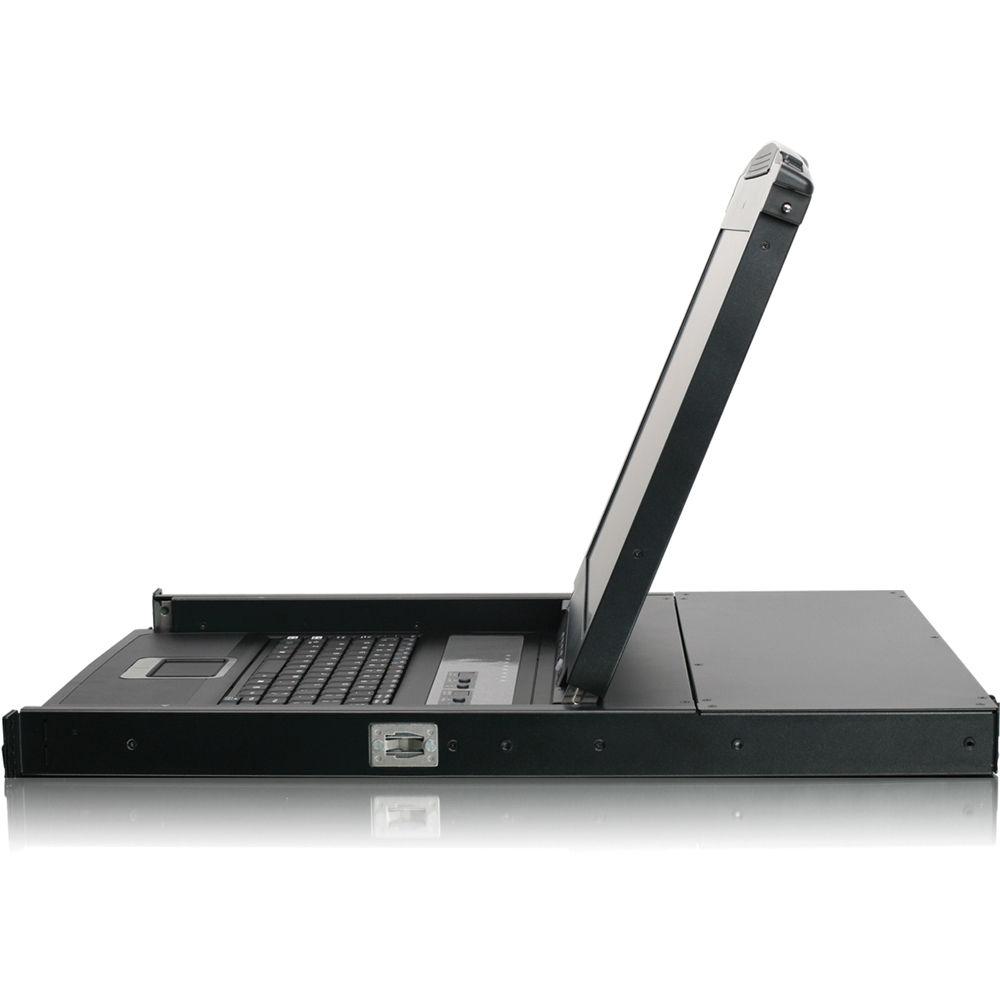

The 17" LCD Combo Console's depth can be easily adjusted, allowing it to fit racks of different sizes. With a resolution of 1280x1024 pixels, the monitor displays clear and crisp images. With DDC emulation, the video settings of each computer are automatically adjusted for optimal output to the monitor. Featuring an auto-sensing function, Custom ASIC helps recognize the position of each station on the installation. The console fully supports the DDC2B protocol. - Integrates a keyboard, an 8-port KVM switch, a 17" (43.2 cm) TFT LCD Active Matrix monitor, and a touchpad in a universal 1U rack mount space
- Compatible with Windows, Mac, Sun Solaris, and Linux platforms
- Features an 8-port KVM (keyboard, video, and mouse) switch that can be connected to 8 VGA, USB or PS/2 ports
- Up to 8 additional compatible KVM switches can be cascaded together, for controlling a maximum of 128 computers from a single KVM console
- Equipped with an additional USB / PS/2 console port on the rear panel - allows the KVM switch to be controlled from an external console (monitor, keyboard, and mouse)
- Supports an external USB mouse
- Includes 4 USB and 4 PS/2 KVM cables
- Front panel pushbutton LEDs, an intuitive OSD (On Screen Display), and the hotkeys - enable quick and easy access to a given computer
- OSD comes with 2-level password protection for enhanced security
- Depth can be easily adjusted - allows you to fit racks of different sizes
- Monitor resolution - 1280x1024 pixels
- DDC emulation - enables the video settings of each computer to be automatically adjusted for optimal output to the monitor
- Custom ASIC provides an auto-sensing function - helps recognize the position of each station on the installation
- Fully supports the DDC2B protocol
UPC: 881317506399 In the Box IOGEAR 8-Port LCD Combo KVM Switch with Cables 17" TFT LCD Active Matrix Monitor Keyboard 2 x 6' (1.8 m) PS/2 KVM Cable awauwaryuztfvdetzdutw 2 x 10' (3 m) PS/2 KVM Cable 2 x 6' (1.8 m) USB KVM Cable 2 x 10' (3 m) USB KVM Cable Console Cable Cascade Cable Firmware Upgrade Cable Grounding Wire Power Cord Installation Guide 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 8-Port LCD Combo KVM Switch with Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

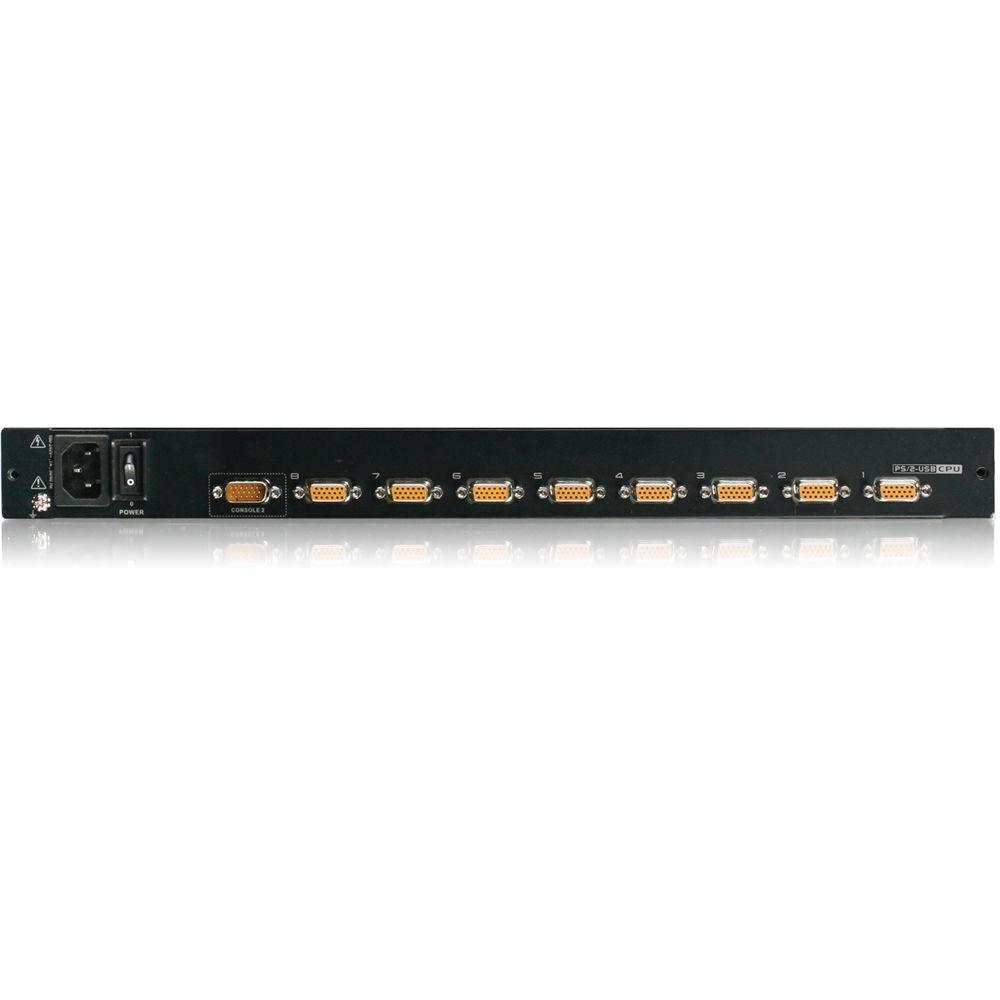

Technical parametersIOGEAR GCL1808 Specs | Computer Connections | Direct: 8 Daisy Chain or Cascading: 128 | | Port Selection | OSD, Hotkeys, Pushbuttons | | Connectors | Console: 1 x HDB-15 Female Power: 1 x 3-Prong AC Socket | | Console Connectors | Monitor: 1 x HDB-15 Female Keyboard: PS/2 or USBMouse: S/2 or USBExtra Mouse: 1 x USB Type A FemaleFlash ROM Upgrade: 1 x RJ-11 Female | | CPU Connectors | Keyboard, Mouse, and Monitor: 8 x SPHD-15 Female | | Switches | Reset: 1 x Semi-recessed Pushbutton Power: 1 x Rocker Switch F/W Upgrade: 1 x Switch LCD Adjustment: 4 x Pushbutton LCD Power: 1 x LED Pushbutton (Orange) Port Selection: 4 x Pushbutton | | LEDs | On Line: 8 (Orange) Port ID: 4 x 7 Segment LED Display (Yellow) Power On: Dark Green | | Emulation | Keyboard: PS/2, USB Mouse: PS/2, USB | | Video Resolution | 1280 x 1024 @ 75Hz; DDC2B | | Scan Interval | 1-255 Seconds | | Power Input Rating | Per AC Power Inlet, 50/60Hz: 100-240VAC. 50/60Hz, 1A | | Power Consumption | 120V, 28W | | Environment | Operation Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: 68 to 140°F (-20 to 60°C) Humidity: 0-80% RH; Non-condensing | | Housing | Case: Metal and Plastic | | Requirements | VGA, SVGA, or MultiSync Video Graphics Card with an HDB-15 port PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port | | Dimensions (WxHxD) | 19 x 1.75 x 25" (48.26 x 4.44 x 63.5 cm) | | Weight | Unit Pack Wt: 51.23 lb (23.23 kg) Unit Wt w/Accessories: 36.27 lb (16.45 kg) Unit Wt: 27.78 lb (12.6 kg) | | | | Package Weight | 52.4 lb | | Box Dimensions (LxWxH) | 37.5 x 30.5 x 7.0" |
