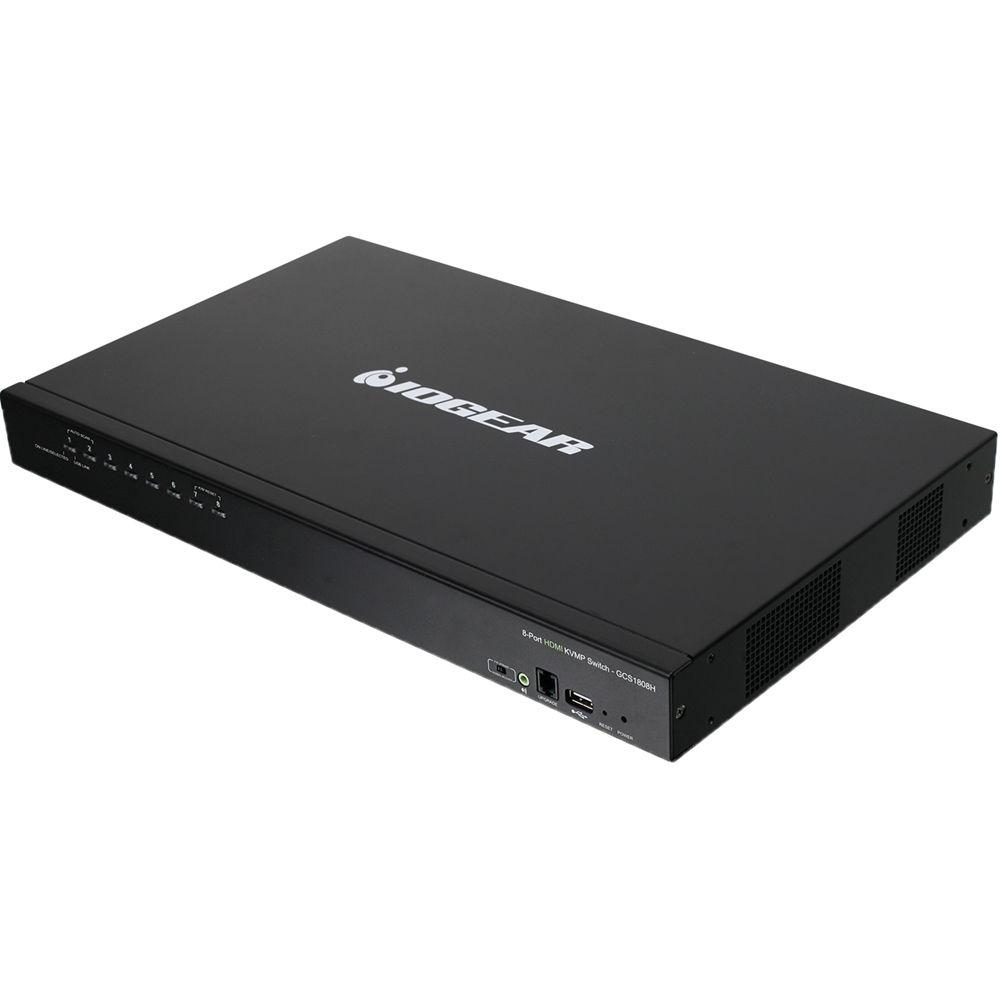

User Manual for IOGEAR 8-Port USB HDMI KVMP Switch with 2 KVM Cable Sets Click to enlarge the picture
Contents of the user manual for the IOGEAR 8-Port USB HDMI KVMP Switch
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR 8-Port USB HDMI KVMP Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More Control up to 8 computers using a single HDMI monitor, keyboard, and mouse with the 8-Port USB HDMI KVMP Switch from IOGEAR. Boasting 8 HDMI inputs and capable of video resolution up to 1920 x 1200, the 8-port switch supports 2.1 stereo surround audio, and it allows you to control up to 512 computers by cascading 3 levels of the switch. The rack-mountable 8-port KVMP switch features IOGEAR's DynaSync technology with EDID support, which helps to ensure that there is little or no delay or change in video resolution while switching between computers. Two USB 2.0 ports allow you to share peripherals such as printers or USB storage devices. The switch is firmware-upgradable and supports Windows, Mac, Linux, UNIX, and Solaris systems. Two sets of KVM cables are included. - Expanded Connectivity
- IOGEAR's 8-Port USB HDMI KVMP Switch is designed to control up to 512 computers by cascading 3 levels of the switch. The built-in USB 2.0 Type-A hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can broadcast messages, announcements, firmware updates, or notifications to all connected sources.
- EDID Support
- IOGEAR's Video DynaSync technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID), which helps to ensure there is no delay or change in video resolution when switching between or booting computers.
- Simple Switching Methods
- Easily switch between connected computers by either manually pressing the front panel push-buttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices.
- 2.1 Surround Sound
- This 8-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers.
- Multi-Display Setup
- Enhance productivity and view all connected sources on up to eight displays by stacking eight switches together.
- Additional Features
- Supports up to 1080p (1920 x 1200) HD video resolution
Independent KVM and USB focus switching
Password protection security for On-Screen Display (OSD)
OSD Backup/Restore configuration and user profile information
Broadcast Mode sends commands to all connected computers
Auto Scan Mode monitors connected computers
HDMI input connectors equipped with screw lock for secure connection
Rack mountable in a 19" (1U) system rack
Console mouse port emulation & bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation designed for error-free booting
Mac/Sun keyboard support and emulation (PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own OS)
Multilingual OSD supports English, German, Japanese, Chinese, Spanish, Russian, and French
Multilingual keyboard mapping supports English (US), English (UK), German, Japanese, Traditional Chinese, Spanish, Korean, and French
HDCP compatible
Firmware upgradable - Console Requirements
- HDMI display
Standard 104-key wired USB keyboard
Standard 2- or 3-button wired USB mouse - Source Device Requirements
- HDMI output
USB Type-A port - OS Requirements
- Windows 10, 8.1, 8, 7, Vista
macOS
Solaris, Linux, Unix, and other USB supported systems UPC: 881317518378 In the Box IOGEAR 8-Port USB HDMI KVMP Switch with 2 KVM Cable Sets 2 x HDMI KVM Cable with USB and Audio (6') Firmware Upgrade Cable Power Adapter Foot Pad Set (4 Pieces) Rack Mounting Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 8-Port USB HDMI KVMP Switch with 2 KVM Cable Sets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS1808H Specs | | | # of Systems Supported | 8 (512 Cascade) | | CPU Connections | 8 x USB 2.0 Type-B (Keyboard/Mouse)
8 x HDMI
8 x 3.5 mm Line-In | | Console Connections | 1 x USB 2.0 Type-A (Keyboard)
1 x USB 2.0 Type-A (Mouse)
1 x HDMI
2 x 3.5 mm Line-Out | | USB Peripheral/Firmware Connections | 2 x USB 2.0 Type-A | | Scan Interval Range | 1 to 255 secs (5 secs Default) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | USB Keyboard/Mouse Emulation | Yes | | Operating System Support | Linux, Solaris, Windows, macOS/OS X | | | | DC Input Power | 5 VDC | | Power Consumption | 12.2 W | | Power Source | AC Adapter | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Rack Form Factor | 1 RU | | Housing Material | Metal | | Dimensions | 17.0 x 10.0 x 1.8" / 43.2 x 25.4 x 4.6 cm | | Weight | 7.8 lb / 3.5 kg |
