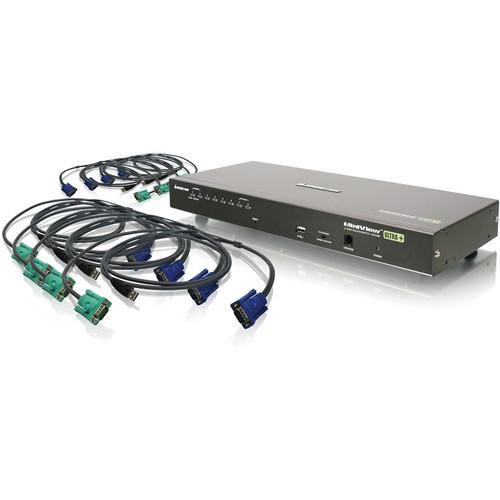

Product description Multi-Monitors: Maximizing Multitasking Read More This 8-Port USB PS/2 Combo KVM Switch Kit from Iogear makes connecting a single console to multiple computers extremely easy. In addition to the 8-port switch, you will receive as part of the kit four 6-foot USB KVM cables, four 10-foot USB KVM cables, and one 6-foot PS/2 KVM cable. These cables allow you to connect the switch with computers that rely upon the VGA interface and either PS/2 or USB ports for mouse and keyboard connections.

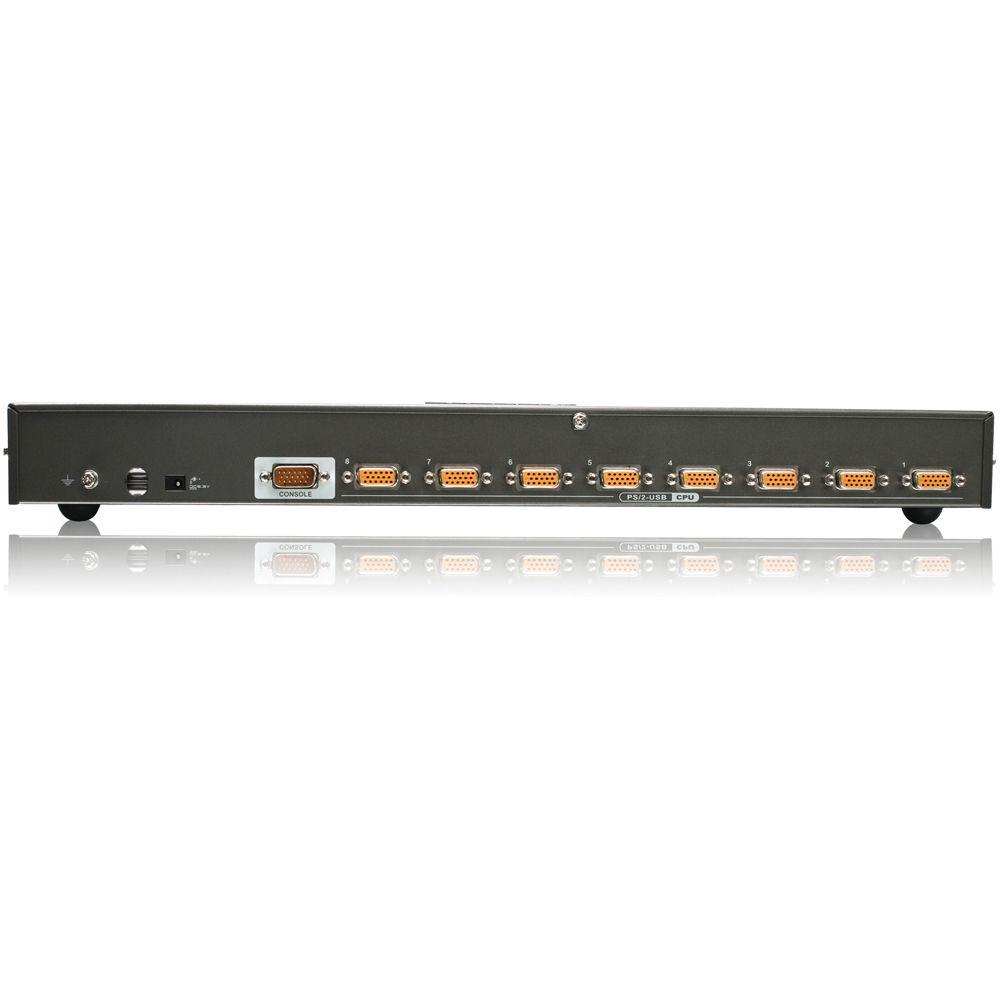

The switch has eight HD-15 connectors for connecting up to eight computers. However, if you utilize the 2-level cascade setup, you can connect up to sixteen switches and manage up to 128 computers. If you cascade on only one level, you can connect up to 8 switches and manage up to 64 computers using a single keyboard, mouse, and monitor.
The streamlined form-factor allows the switch to be quickly mounted to a 1U system rack. Whether you have a small handful of computers or a myriad, this switch and the cable kit with it provide simple, powerful and efficient management. - Compatible with Windows, Mac, Sun Solaris and Linux
- Supports both USB and PS/2, VGA computers

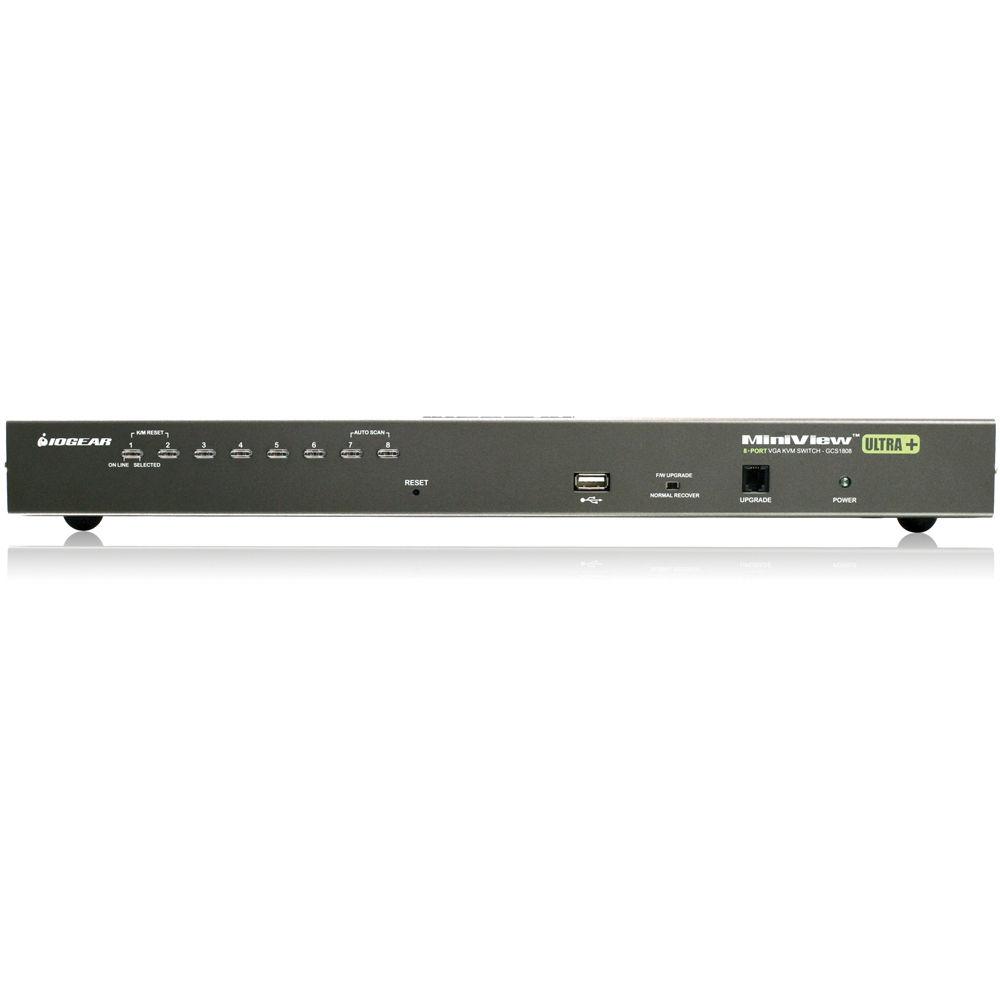

- Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
- Cascade up to 2 levels and control up to 128 computers from a single console
- The switch is secure with a 2-level password protection for OSD
- Supports resolutions up to 2048 x 1536
- Front USB port for system upgrades and shared peripherals (fully compliant with USB 1.1)
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
UPC: 881317509390 In the Box IOGEAR 8-Port USB PS/2 Combo KVM Switch Kit with One PS/2 KVM Cable and Eight USB KVM Cables 6' (182.9cm) PS/2 KVM Cables (mfr# G2L5202P) 4 x 6' (182.9cm) USB KVM Cables (mfr# G2L5202U) 4 x 10' (304.8cm) USB KVM Cables (mfr# G2L5203U) Console Cable Cascade Cable Firmware Upgrade Cable Grounding Wire Foot Pad Set (4 Pads) Power Adapter Standard Rack Mounting Kit Installation Guide 3-Year Limited Warranty for Switch Limited Lifetime Warranty for All USB KVM and PS/2 KVM Cables Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 8-Port USB PS 2 Combo KVM Switch Kit with One PS 2 KVM Cable and Eight USB KVM Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS1808KITUTAA Specs | Max Computer Connections | Direct: 8
Via Level-One Cascade: 64 Computers
Via Level-Two Cascade: 128 Computers | | PC Connectors | 8 | | Console Connectors | 1 | | Video Resolution | Up to 2048 x 1536 | | Scan Interval | 1-255s | | Port Selection | Hotkeys, OSD, Button | | Enclosure | Metal | | System Requirements | Console:
VGA, SVGA, or MultiSync Monitor
A keyboard and mouse (USB or PS/2)
Computers:
VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
PS/2 mouse and keyboard ports (6-pin mini DIN)
1 x USB port
Operating System:
·Windows XP, Windows Vista (32-bit / 64-bit)
·Windows 7
·Apple Mac OS 9.0 and above
·Sun Solaris 8.0 and above
·Linux
Note: Iogear's Display Emulation Technology provides the DDC support for Windows 7 | | Power Requirements | DC 5.3V/2.4A | | Dimensions (WxHxD) | 17 x 1.75 x 6.25" (432 x 44 x 159mm) | | Weight | 5.58 lbs (2.5kg) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 22.0 x 10.13 x 8.73" |
