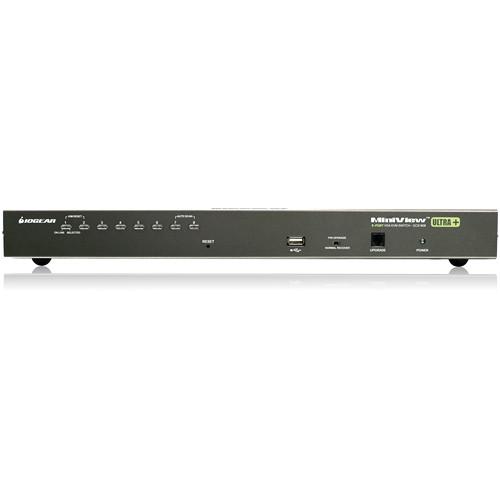

User Manual for IOGEAR 8-Port USB PS 2 Combo KVMP Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR 8-Port USB PS 2 Combo
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
|
User manual for the IOGEAR 8-Port USB PS 2 Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More Utilizing the 8-Port USB PS/2 Combo KVMP Switch from Iogear, connecting a single workstation to multiple servers is easy. The switch can connect directly to eight servers, and utilizing a 2-level cascade setup, you can manage up to 128 computers using a single keyboard, mouse, and monitor. With support for both PS/2 and USB KVM connectors, as well as compatibility support for all major operating systems, the switch is versatile enough to manage complex arrangements of servers. The streamlined form factor allows the switch to be quickly mounted to a 1U system rack. Whether you have a small handful of servers or a few dozen, the 8-Port USB PS/2 Combo KVMP Switch provides simple, powerful and efficient management. - Compatible with Windows, Mac, Sun Solaris and Linux
- Supports both USB and PS/2
- Computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
- Cascade up to 2 levels and control up to 128 computers from a single console
- The switch is secure with a 2-level password protection for OSD
- Supports resolutions up to 2048 x 1536
- Front USB port for system upgrades and shared peripherals (fully compliant with USB 1.1)
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
UPC: 881317504050 In the Box IOGEAR 8-Port USB PS/2 Combo KVMP Switch USB KVM Cable PS/2 KVM Cable Console Cable Cascade Cable Firmware Upgrade Cable Grounding Wire 4 x Foot Pads Power Adapter Rack Mount Kit Installation Guide 3-Year Limited Warranty More info from IOGEAR Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 8-Port USB PS 2 Combo KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS1808 Specs | Max Computer Connections | Direct: 8
Via Daisy Chain or Cascade: 64 | | PC Connectors | 8 | | Console Connectors | 1 | | Video Resolution | Up to 2048 x 1536 | | Scan Interval | 1-255s | | Port Selection | Hotkeys, OSD, Button | | Enclosure | Metal | | System Requirements | Console:
VGA, SVGA, or MultiSync Monitor
A Keyboard and Mouse (USB or PS/2)
Computers:
VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
PS/2 mouse and keyboard ports (6-pin mini DIN)
1 x USB port
Windows, Mac, Sun Solaris or Linux OS | | Power Requirements | DC 5.3V/2.4A | | Dimensions (WxHxD) | 17 x 1.75 x 6.25" (432 x 44 x 159mm) | | Weight | 5.58 lbs (2.5kg) | | | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 22.1 x 9.8 x 5.9" |
