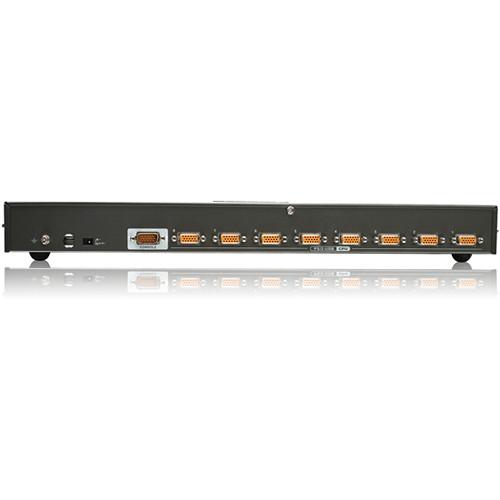

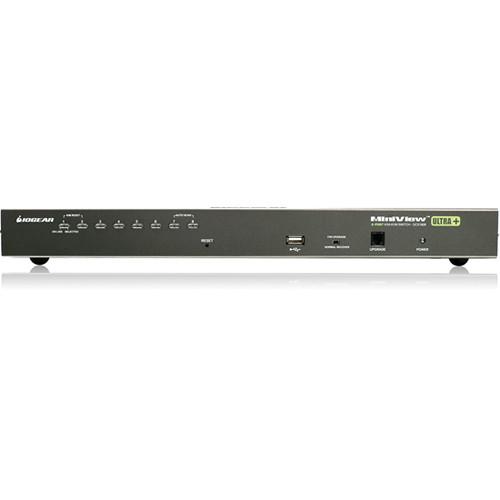

Product description Multi-Monitors: Maximizing Multitasking Read More rzqtvywuwaetcvacxzwxectutbuc Utilizing the 8-Port USB PS/2 Combo KVMP Switch from Iogear, connecting a single workstation to multiple servers is easy. The switch can connect directly to eight servers, and, utilizing a 2-level cascade setup, you can manage up to 128 computers using a single keyboard, mouse, and monitor. With support for both PS/2 and USB KVM connectors, as well as compatibility support for all major operating systems, the switch is versatile enough to manage complex arrangements of servers. The streamlined form factor allows the switch to be quickly mounted to a 1U system rack. The switch comes packaged with eight PS/2 KVM cables, so you can start connecting servers to your workstation right out of the box. Whether you have a small handful of servers or a few dozen, the 8-Port USB PS/2 Combo KVMP Switch provides simple, powerful and efficient management. - Compatible with Windows, Mac, Sun Solaris and Linux
- Supports both USB and PS/2
- Equipped with 8 PS/2 KVM cables (4x 6' and 4x 10')
- Computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
- Cascade up to 2 levels and control up to 128 computers from a single console
- The switch is secure with a 2-level password protection for OSD
- Supports resolutions up to 2048 x 1536
- Front USB port for system upgrades and shared peripherals (fully compliant with USB 1.1)
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
UPC: 881317505224 In the Box IOGEAR 8-Port USB PS/2 Combo KVMP Switch With PS/2 KVM Cables 4 x PS/2 KVM Cables (6') 4 x PS/2 KVM Cables (10') USB KVM Cable Console Cable Cascade Cable Firmware Upgrade Cable Grounding Wire 4 x Foot Pads Power Adapter Rack Mount Kit Installation Guide 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR 8-Port USB PS 2 Combo KVMP Switch With PS 2 KVM Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS1808KITP Specs | Max Computer Connections | Direct: 8
Via Daisy Chain or Cascade: 64 | | PC Connectors | 8 | | Console Connectors | 1 | | Video Resolution | Up to 2048 x 1536 | | Scan Interval | 1-255s | | Port Selection | Hotkeys, OSD, Button | | Enclosure | Metal | | System Requirements | Console:
VGA, SVGA, or MultiSync Monitor
A Keyboard and Mouse (USB or PS/2)
Computers:
VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
PS/2 mouse and keyboard ports (6-pin mini DIN)
1 x USB port
Windows, Mac, Sun Solaris or Linux OS | | Power Requirements | DC 5.3V/2.4A | | Dimensions (WxHxD) | 17 x 1.75 x 6.25" (432 x 44 x 159mm) | | Weight | 5.58 lbs (2.5kg) | | | | Package Weight | 14.65 lb | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 9.0" |
