User Manual for IOGEAR AVIOR 4-Port HDMI Audio Video CAT5e 6 Splitter Click to enlarge the picture
Contents of the user manual for the IOGEAR AVIOR 4-Port HDMI Audio Video
- Product category: Distribution Amplifiers (DA's) IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Distribution Amplifiers (DA's)
 |
User manual for the IOGEAR AVIOR 4-Port HDMI Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

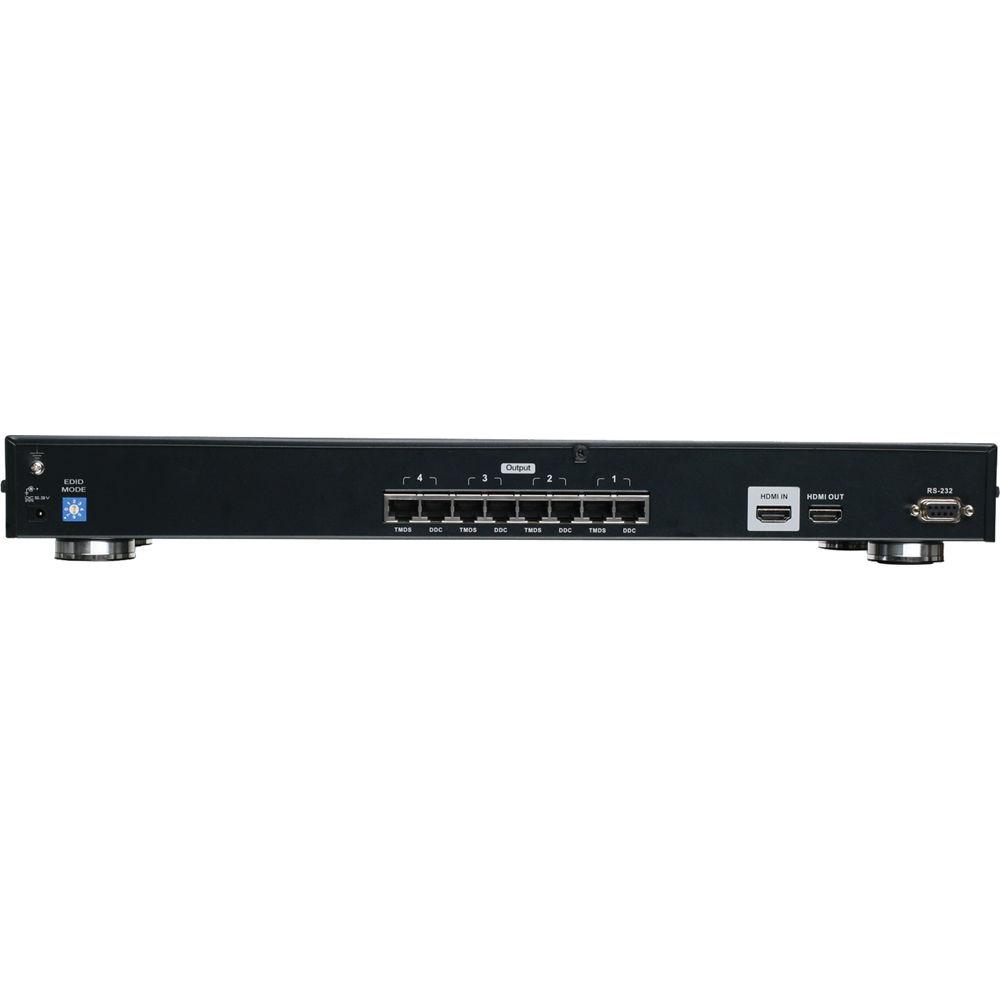

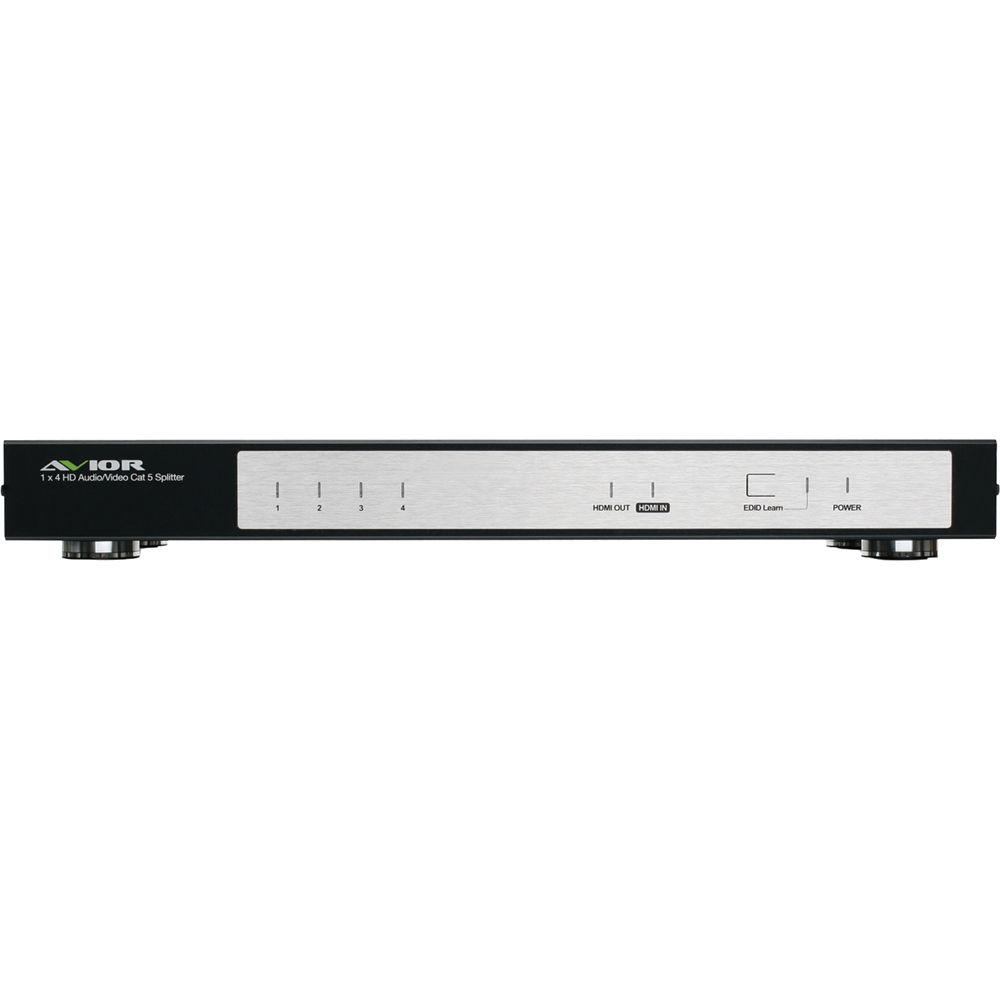

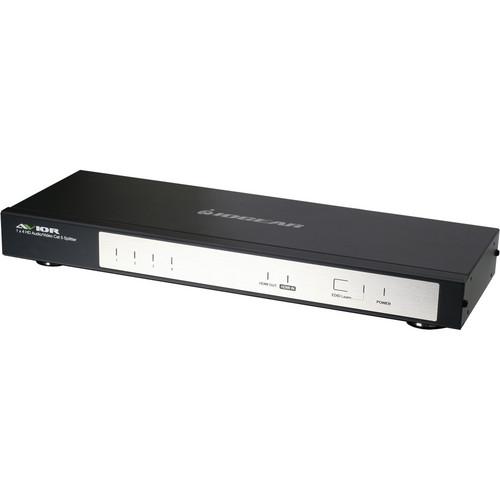

Product description The rack-mountable AVIOR 4-Port HDMI Audio / Video CAT5e/6 Splitter from IOGEAR takes high-definition audio and video from a single HDMI media source and directs it to 4 separate HDTVs or displays with 3D support via the CAT5e/6 receiver (sold separately). Being HDCP compliant, the unit is able to support high-quality HD video and multi-channel digital audio, enabling the splitting of HD content from DVR, set-top boxes, Blu-Ray players, computers, and other HD or non-HD devices. The loop-through / local port offers additional flexibility for cascading and an additional local viewing monitor connection.
Distribute Full HD 1080p (24 / 60 Hz) or your 3D content with multi-channel digital audio and 12-bit deep color. The splitter can cascade up to 3 levels supporting up to 64 HDMI signals. Cascading distance from source to device is 6’ (1.8m), device to device is 50’ (15.2m), and device to display is 65’ (19.8m); thus making a total of 121’ (36.9m) through cascade. - Distribute a single HD media source up to 4 HDMI displays over CAT5e/6 cables up to 196' (59.7m) 1
Please Note: Extension range may vary with different devices and CAT5e/6 cables. close - Connects with HDMI CAT5e/6 Audio / Video Receiver (sold separately)
- Works with DVR, set-top boxes, Blu-ray, DVD players, media servers, computers, etc.
- A local HDMI out port allows flexibility for cascading and 1 additional local viewing monitor connection
- High Resolution Support: 1080p up to 130' (39.6m) and 1080i up to 196' (59.7m)
- Auto-detects the highest common resolution of connected displays 2
Please Note: For HD media sources that support auto video resolution scaling. close - Supports 12-bit deep color
- Cascadable 3
Please Note: While Cascading if your media content is HDCP enabled, the splitters support up to the maximum HDCP keys available i.e 127 keys. If your media content is not HDCP enabled, then the splitters support the full 3-level cascade (512 displays). close - LED indication of displays
- Backwards compatible with DVI devices with HDMI to DVI adapter 4
Please Note: HD (female) to DVI (male) adapter is sold separately. close UPC: 881317509659 In the Box IOGEAR AVIOR 4-Port HDMI Audio / Video CAT5e/6 Splitter Rack Mount Kit Power Adapter Foot Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR AVIOR 4-Port HDMI Audio Video CAT5e 6 Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GHSP8214E Specs | Requirements | Hardware: HDMI CAT5e/6 Audio / Video Receiver
Media Source: 1 x HDMI output
Cable:
1 HDMI cable
2 x solid CAT5e/6 cable per audio / video receiver HDMI CAT5e/6 Audio / Video Receiver and cables are sold separately. | | LEDs | Power On: 1
Port Status: 4 (Output) | | Power | Voltage: 6 VDC
Amperes: 2 A | | Power Consumption | 12 W (maximum) | | Data Rate | Up to 2.25 Gb/s | | Video Resolution | 480i / 480p / 720p / 1080i / 1080p
VGA / SVGA / XGA / SXGA / UXGA | | Cable Connection | Input & Output: HDMI | | Connectors | Input: 1 x HDMI type A 19-pin female
Output: 4 x HDMI type A 19-pin female | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH (non-condensing) | | Housing | Metal case | | Dimensions | H x D x L: 2.13 x 6.10 x 17.22” (54.10 x 154.94 x 437.39 mm) | | Weight | 4.63 lb (2.10 kg) | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 21.4 x 9.4 x 4.7" |
